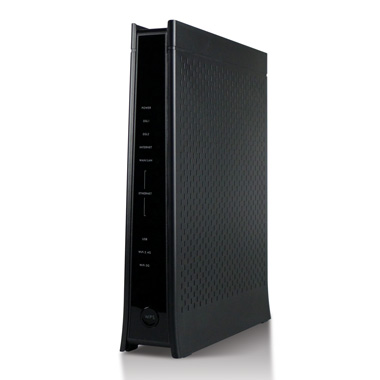

Zyxel VMG4825
Wireless AC/N VDSL2 Combo WAN (VDSL+GbE WAN) Modem GbE Gateway AC2050

Overview:

The Zyxel VMG4825 and VMG9823 residential gateways (RGs) provides the ultimate broadband and home connectivity experience by combining the advanced bonded VDSL2 features with carrier-grade, dual-band AC2050 WiFi for the most demanding subscribers. Sophisticated Quality of Service (QoS) for incredible video performance, both wired and wireless, and built-in voice ports (VMG4823) are just a few features that make these RGs an ideal platform for premium services. With over 25 years of experience and extensive industry-wide interoperability, Zyxel offers carrier's solid products with reduced deployment times and lasting subscriber experience.

• VDSL2 bonding support up to profile 17a
• G.Vector support improves broadband performance by up to 150%
• AC2050, dual-band WiFi with 1.7Gbps* 802.11ac Wave 2 technology delivering performance boosting features that include Multi-User MIMO (MU-MIMO) and Beamforming
• Carrier-grade Quantenna 11ac with 4x4 antenna configuration, optimized for video streaming and IPTV
• High powered Wi-Fi on both the 5GHz and 2.4GHz bands for extended coverage and performance
• TR-69 remote device management supporting the latest TR181 data model
• 2 FXS phone ports with support for extensive voice features (VMG9823) • FTTH capable with gigabit Ethernet WAN port
• 5 gigabit Ethernet ports and a USB port

Benefits:

Bonded VDSL2 with G.Vector

The VMG4825 and VMG9823 supports VDSL2 bonding with vectoring up to profile 17a. Vectoring support reduces cross-talk for up to 150% increase in performance and range for operators.

Carrier-class WiFi for Seamless Mobility

The VMG4825 and VMG9823 offers dual-band Wi-Fi with performance boosting features that include Multi-User MIMO (MU-MIMO) and Beamforming for simultaneous, lag-free streaming and gaming. Rated at AC2050, the new RGs deliver speeds of up to 1.7 Gbps* over 5Ghz and 300 Mbps* over 2.4Ghz. High powered Wi-Fi on both 5GHz and 2.4GHz APs extend coverage, unleashing the best wireless experience for homes with growing number of Wi-Fi devices. In addition, the ability to create multiple Wi-Fi networks with up to 4 SSIDs helps operators easily create separate WLAN networks for video, data, and guests.

Triple-Play Powerhouse

The VMG4825 and VMG9823 are built with sophisticated QoS, multicast traffic shaping features like IGMP v1/2/3 snooping and VLAN capabilities for premium video delivery service. And built-in Quantenna’s 4x4, 802.11ac chip is a top choice among operators for wireless IPTV. In addition, operators can easily add voice services with VMG9823’s two FXS VoIP ports.

TR-069 Remote Management with TR181 Support

The VMG4825 and VMG9823 support TR-069 that simplifies remote configuration, upgrades, and management thereby reducing cost and improving customer satisfaction. Additional support for the latest TR-181 data model enhances service provider visibility in to subscriber’s LAN network for improved customer support.

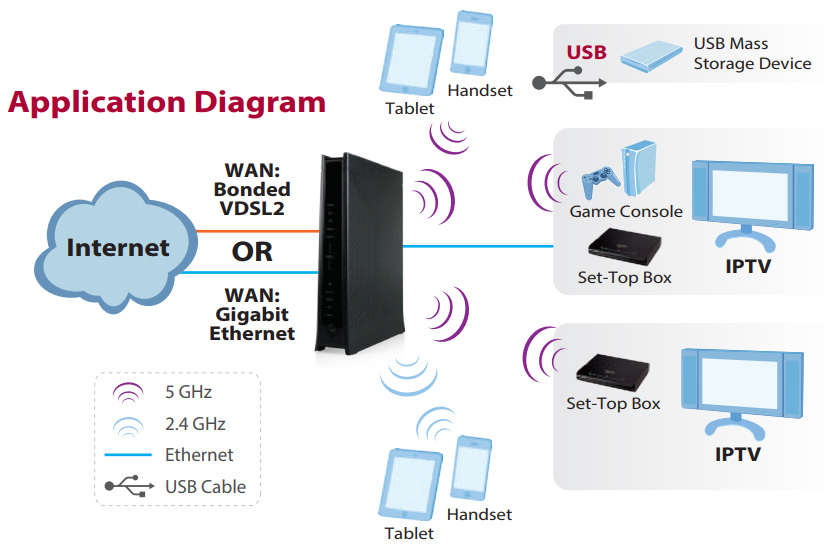

Key Applications:

Specifications:

VMG4825 Specifications:
System Specifications
Wireless	5 GHz band 802.11ac support 1.7 Gbps* data rate Backward compatible to 802.11a/n 4x4 antenna array High power amplier 2.4 GHz band 802.11n support 300 Mbps* data rate Backward compatible to 802.11b/g 2x2 antenna array 400mW high power WEP data encryption (64/128 bit) WPA/WPA2, WPA-PSK/WPA2-PSK (Wi-Fi Protected Access - Pre-Shared Key) WPS (Wi-Fi Protected Setup) Wi-Fi scheduling Multiple SSID (up to 4)
DSL	VDSL2 (G.993.2) Bonding 200Mbps/100Mbps* down/up data rates Bonding mode: 8a, 8b, 8c, 8d, 12a, 12b, 17a proles Single line mode: 8a, 8b, 8c, 8d, 12a, 12b, 17a proles G.vector (G.993.5) ADSL/2/2+ Bonding ADSL (T1.413), G.dmt (G.992.1), G.lite(G.992.2), ADSL2 (G.992.3), ADSL2+ (G.992.5) compliant Reach Extended ADSL2 (Annex L) Annex M (G.992.3 / G.992.5) ATM/PTM transfer mode G.INP value support up to INP=16 PhyR PHY Level Retransmission Technology Auto detect for bonding / single line, VDSL2 prole, and ADSL/2/2+ fallback modes
Router/Bridge Features	IEEE 802.1D transparent bridge & basic spanning tree PPPoE (RFC 2516) PPPoA (RFC 2364) MAC Encapsulation Routing / IPoE Network Address Translation (NAT) NAT virtual Server (port forwarding) DHCP client/server/relay with DHCP option 43/60/61/125 DNS proxy/dynamic DNS Static/Policy Route IGMP v1, v2, v3 IPv6: Dual Stack, 6RD, DS-Lite
QoS	802.1Q VLAN tagging/un-tagging Support exible trac classication
Networking	IGMP v1/v2/V3 IGMP snooping IGMP fast leave
Management	Web/HTTP: 3 level log-in CLI (Command Line Interpreter) via SSH or Telnet Firmware upgrade via Web/TFTP/FTP/TR069 RPC method Text based conguration (XML based) Conguration backup/update/restore default via Web Congurable access control for remote management (Interface and / port number) Trust Domain(support trust domain list) NTP (Internet Time automatically synchronize) DSL Forum TR-069, TR-098, TR064, TR111, TR181 SNMP v1, v2 Rom-D support UPnP port forwarding rules on page Session login.(for multiple user conguration with login privilege.) Conguration lter by login privileges
Firewall & Security	Generic packet lter DoS attack prevention Parental contro
Hardware Specifications
Interface	WAN: 1 10/100/1000Mbps Ethernet Port LAN: 4 x 10/100/1000Mbps Ethernet Ports FXS: 2 phone ports [VMG9823] Reset: One reset/restore factory default button USB DSL
LED	Power/System DSL 1-2 LAN 1-4 WAN/LAN WLAN-2.4G/WPS WLAN-5G/WPS VoIP 1-2 [VMG9823] Internet USB
Power supply	12V/3A
Physical Specifications
Item dimensions (WxDxH)(mm/in.)	59 (W) x 218(D) x 218 (H) mm
Environmental Specifications
Operating Temperature	0ºC to 40 º C
Operating Humidity	10% to 90% (Non-condensing)
Storage Temperature	-30 º C to 70 º C
Storage Humidity	10% to 95% (Non-condensing)
Certification
Certification	FCC/IC/CSA

Documentation:

Download the Zyxel VMG4825-B10A Datasheet (PDF).
