Zyxel ZyWALL 110
VPN Firewall

Overview:

Ultra-fast Performance for Tomorrow’s VPN Deployments

Business operations have become more mobile than ever. New and advanced business applications have also created demand for faster VPN performance, which legacy firewall and UTM appliances cannot satisfy. To keep up with the dynamic business environment, business networks today need to provide branch offices, chain stores and mobile employees faster remote access to headquarter resources. Moreover, they must do so without exposing company resources and customer information to threat and data breach.

Zyxel’s new ZyWALL Series VPN Firewalls are business-grade VPN gateways purpose-built to deliver the fastest performance for multi-site VPN deployments. These high performance VPN Firewalls feature multi-core CPUs and are fine-tuned to deliver ultra-fast performance with up to 3.6 Gbps firewall and 800 Mbps VPN throughputs. The new ZyWALL Series VPN Firewalls also feature the most advanced VPN functionality—SHA-2 encryption, VPN HA and L2TP—for more secure, more reliable and more mobile VPN connectivity.

• Multi-core CPUs deliver up to 3.6 Gbps firewall throughput and 800 Mbps VPN throughput
• Up to 9x faster firewall performance and 4.4x faster VPN performance than preceding models
• More secure VPN connections with SHA-2 encryption
• VPN high availability (HA) with dual-WAN failover and fallback support
• L2TP support for iOS, Android and Windows mobile devices
• Auto-provisioned client-to-site IPsec setup with Easy VPN

Benefits:

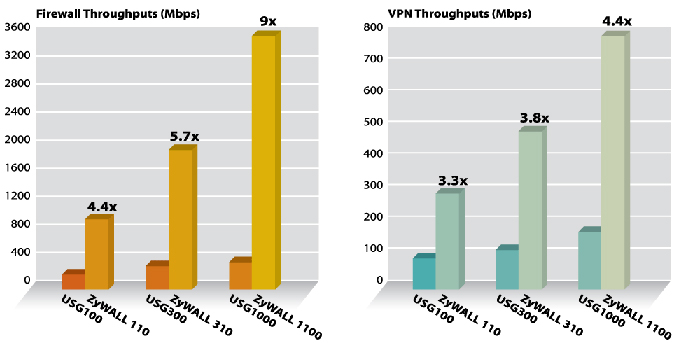

Best-in-class VPN and firewall throughput

The new ZyWALL Series VPN Firewalls are designed with multi-core CPUs to deliver the fastest VPN and firewall performance on the market. High-speed networking performance is guaranteed with up to 3.6 Gbps firewall throughput and 800 Mbps VPN throughput—up to 9x the firewall performance and 4.4x the VPN performance of preceding models. Designed with completely new and advanced hardware platforms, the new ZyWALL Series VPN Firewalls deliver uncompromising performance for high-speed site-to-site and client-to-site VPN applications.

Safer, more reliable VPN connections

Faster processors today have greatly boosted the capabilities of attackers to decrypt VPN tunnels. Legacy VPN encryption algorithms like Message Digest 5 (MD5) and Secure Hash Algorithm 1 (SHA-1) are no longer suffi cient to guarantee secured external communications. Supporting the more advanced Secure Hash Algorithm 2 (SHA-2), the ZyWALL Series provides the safest VPN connections in its class and ensures maximum security for business communications.

The complete range of ZyWALL Series VPN Firewalls deliver reliable, non-stop VPN services with dual-WAN failover and fallback support. With two WAN connections—one primary and one for redundancy—the ZyWALL VPN Firewall automatically switches to the backup connection should the primary link fail, and automatically switches back to the primary connection once it is back online.

Unlimited business mobility

To support dynamic, mobile business operations in today’s BYOD (bring your own device) business environment, the ZyWALL Series VPN Firewalls off er unlimited business mobility with Layer 2 Tunneling Protocol (L2TP) VPN for mobile devices. The ZyWALL Series supports L2TP VPN on a wide variety of mobile Internet devices running the iOS, Android and Windows mobile platforms.

Zero-configuration remote access

Virtual private networks provide businesses a secure and convenient way of sharing company resources with partners, customers, or employees on business trips. Yet typical VPN solutions are hard for non-technical users to confi gure, which greatly reduces their usability and convenience. The ZyWALL Series VPN Firewalls feature Easy VPN to provide auto-provisioned client-to-site IPsec VPN setup. A wizard is available with the Zyxel IPsec VPN client software that automatically retrieves the VPN confi guration fi le from the remote ZyWALL VPN Firewall and completes the IPsec VPN setup in 3 simple steps. Zyxel’s Easy VPN lowers administration eff ort and allows partner, customers, or traveling employees to access company servers, email, or data centers easily and securely.

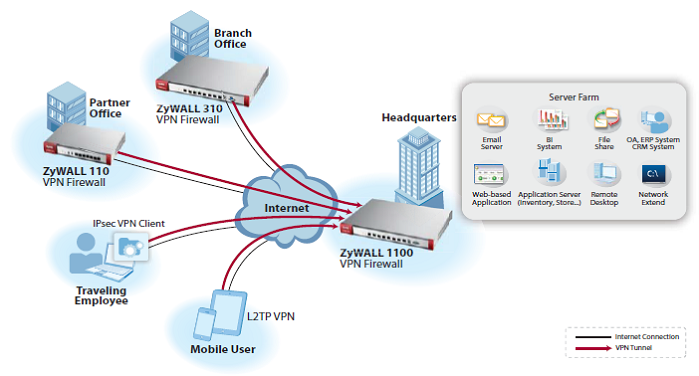

Application Diagram:

Centralized Service Deployment via VPN

Features:

Accessories
Item	Description	Supported OS
ZyWALL IPsec VPN Client	VPN client software for the ZyWALL and USG Series with Easy VPN for zero-configuration remote access	Windows XP (32-bit) Windows Server 2003 (32-bit) Windows Server 2008 (32/64-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit) Windows 8 (32/64-bit)

Specifications:

ZyWALL 110 Specifications
Hardware Specifications
10/100/1000 Mbps RJ-45 ports		2 x WAN, 1 x OPT, 4 x LAN/DMZ
USB ports		2
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2		1,000
AES VPN throughput (Mbps)*3		300
Unlimited user licenses		Yes
Max. concurrent sessions*4		60,000
New session rate		2,800
Max. concurrent IPsec VPN tunnels		100
Max. concurrent SSL VPN users		25
Included SSL VPN user no.		25
Customizable zones		Yes
IPv6 support		Yes
Power Requirements
Power input		12 V DC, 3.33 A max.
Max. power consumption (watt)		37
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	300 x 178 x 44/ 11.81 x 7 x 1.73
	Weight (kg/lb.)	2/4.41
Packing	Dimensions (WxDxH)(mm/in.)	245 x 152 x 351/ 9.65 x 5.98 x 13.82
	Weight (kg/lb.)	2.83/6.24
Environmental Specifications
Operating	Temperature	0°C to 40°C/32°F to 104°F
	Humidity	10% to 90% (non-condensing)
Storage	Temperature	-30°C to 70°C/-22°F to 158°F
	Humidity	10% to 90% (non-condensing)
MTBF (hr)		787,109.3
Certifications
EMC		FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI
Safety		LVD (EN60950-1), BSMI

Note:
*1: Actual performance may vary depending on network conditions and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: AES VPN throughput measured based on RFC 2544, using UDP traffic with 1,424-byte packets.
*4: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.

Model Comparison:

Model		ZyWALL 110	ZyWALL 310	ZyWALL 1100

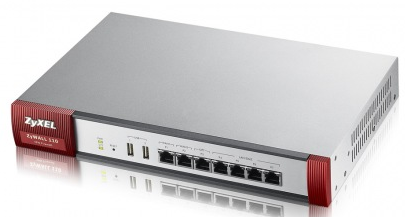

Product photo
Hardware Specifications
10/100/1000 Mbps RJ-45 ports		2 x WAN, 1 x OPT, 4 x LAN/DMZ	8 (configurable)	8 (configurable)
USB ports		2	2	2
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2		1,000	2,000	3,600
AES VPN throughput (Mbps)*3		300	500	800
Unlimited user licenses		Yes	Yes	Yes
Max. concurrent sessions*4		60,000	100,000	500,000
New session rate		2,800	8,000	8,000
Max. concurrent IPsec VPN tunnels		100	200	1,000
Max. concurrent SSL VPN users		25	50	250
Included SSL VPN user no.		25	50	250
Customizable zones		Yes	Yes	Yes
IPv6 support		Yes	Yes	Yes
Power Requirements
Power input		12 V DC, 3.33 A max.	100 - 240 V AC, 50/60 Hz, 1.3 A max.	100 - 240 V AC, 50/60 Hz, 1.3 A max.
Max. power consumption (watt)		37	58.5	58.5
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	300 x 178 x 44/ 11.81 x 7 x 1.73	430 x 250 x 44/ 16.93 x 9.84 x 1.73	430 x 250 x 44/ 16.93 x 9.84 x 1.73
	Weight (kg/lb.)	2/4.41	3.3/7.28	3.3/7.28
Packing	Dimensions (WxDxH)(mm/in.)	245 x 152 x 351/ 9.65 x 5.98 x 13.82	519 x 392 x 163/ 20.43 x 15.43 x 6.42	519 x 392 x 163/ 20.43 x 15.43 x 6.42
	Weight (kg/lb.)	2.83/6.24	4.74/10.45	4.74/10.45
Environmental Specifications
Operating	Temperature	0°C to 40°C/32°F to 104°F	0°C to 40°C/32°F to 104°F	0°C to 40°C/32°F to 104°F
	Humidity	10% to 90% (non-condensing)	10% to 90% (non-condensing)	10% to 90% (non-condensing)
Storage	Temperature	-30°C to 70°C/-22°F to 158°F	-30°C to 70°C/-22°F to 158°F	-30°C to 70°C/-22°F to 158°F
	Humidity	10% to 90% (non-condensing)	10% to 90% (non-condensing)	10% to 90% (non-condensing)
MTBF (hr)		787,109.3	560,811.5	560,811.5
Certifications
EMC		FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI	FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI	FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI
Safety		LVD (EN60950-1), BSMI	LVD (EN60950-1), BSMI	LVD (EN60950-1), BSMI

Note:
*1: Actual performance may vary depending on network conditions and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: AES VPN throughput measured based on RFC 2544, using UDP traffic with 1,424-byte packets.
*4: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.

Documentation:

Download the Zyxel ZyWALL 110 Datasheet (PDF).
