Zyxel SFP-SX-D
10 GbE/GbE/FE Fiber Transceivers
Sorry, this product is no longer available, please contact us for a replacement.
More Zyxel Transceiver Modules are available here
Overview:
Reliable Transceiver Modules for Different Connectivity Demands

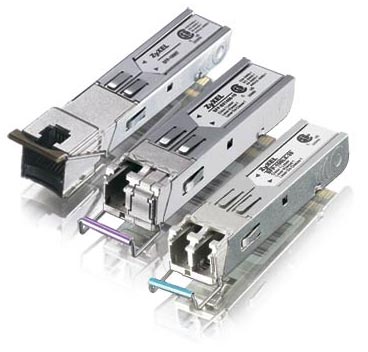

The Zyxel Transceiver Series is a complete range of industry standard, hot-pluggable transceiver modules consists of Fast, Gigabit and 10 Gigabit variations.
Benefits
Standard-based design assures compatibility
The Zyxel transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barrier set by proprietary technologies.
Comprehensive portfolio for different connectivity demands
With Zyxel’s comprehensive Fast, Gigabit and 10 Gigabit transceiver product range, also Direct Attached Cable 1 M/3 M, users can just plug the proper model onto the network to extend the physical coverage.
Hot-swappable design facilitates network maintenance
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
Bi-directional transceivers maximizes usage of existing fiber plant
Traditional fiber optic networking requires two strands of fiber to accomplish communications, in which one strand is reserved for sending signals, while the other is for receiving. On the other hand, bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber by using two separate optical wavelengths: one receives and the other transmits signals. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supporting Digital Diagnostics Monitoring Interface (DDMI) SFP enhances management capability
The enhanced digital interface enables a real time link to be established between the switch and the SFP transceiver. This enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals.
In addition, the DDMI functionality enables the capability to implement digital alarms and warnings. This feature ensures that the business can be proactive in preventative maintenance of the network and ensure business continuity.
DDMI Monitors:
- Temperature
- Supply voltage
- Transmitted bias current
- Transmitted power
- Received power
All features listed above include alarm and warning thresholds.
- Hot-Pluggable with maximum flexibility
- Low power dissipation
- Industry standard compliance
- SFP Multi-Source Agreement (MSA) compliance
- Compact size, high port density
Specifications and Features:
GbE/FE Transceiver Modules | Gigabit SFP | |||
SFP-1000T | SFP-SX-D | SFP-LX-10-D | SFP-BX-1310-10-D | |
Connector | RJ-45 | LC | LC | LC |
Wavelength | - | 850 nm | 1310 nm | 1310 nm (TX) 1490 nm (RX) |
Max Transmission Distance | 100 m | 550 m | 10 km | 10 km |
Receiver Characteristics | ||||
Optical receiver sensibility | - | -17 dBm | -20 dBm | -20 dBm |
Maximum input power | - | -3 dBm | -3 dBm | -3 dBm |
Operational Ranges | ||||
Supply voltage | 3.1 -3.45 V | 3.1 -3.5 V | 3.1 -3.5 V | 3.1 -3.5 V |
Max current | 300 mA | 250 mA | 300 mA | - |
Physical Specifications | ||||
Dimensions (WxDxH) (mm/in.) | 13.40 x 56.00 x 12.40/0.53 x 2.20 x 0.49 | |||
Weight (g/lb.) | 24/0.05 | 24/0.05 | 16/0.04 | 17/0.04 |
With DDMI Features | - | Yes | Yes | Yes |
Direct Attached Cable 10G Series | DAC10G | |
DAC10G-1M | DAC10G-3M | |
Connector | SFP+ to SFP+ | SFP+ to SFP+ |
Max Transmission Distance | 1 m | 3 m |
Operational Ranges | ||
Supply voltage | 3.13 -3.47 V | 3.13 -3.47 V |
Max current | < 1.5 W | < 1.5 W |
Physical Specifications | ||
Dimensions (WxDxH)(mm/in.) | 14 x 58 x 11/0.55 x 2.30 x 0.43 | |
Weight (g/lb.) | 85/0.19 | 164/0.36 |
Environmental Specifications
- Operating temperature: 0°C to 70°C (32°F to 158°F)
- Storage temperature: -40°C to 85°C (-40°F to 185°F)
Safety Certification
- Class 1 Laser
- 21 CFR 1040.10 and 1040.11 compliant
- CSA (10 Gigabit XFP, Gigabit SFP and Fast Ethernet SFP-SX-D)
- TUV
- CE (10 Gigabit SFP+ Series, DAC10G Series)
- FDA (10 Gigabit SFP+ Series)
Supported Switches:
7000 Series | 4700 Series | |||
MS-7206 | XGS4700-48F | XGS-4728F | ||
DAC10G | DAC10G-1M | - | - | - |
DAC10G-3M | - | - | - | |
10 Gigabit XFP | XFP-SR | Yes | Yes | Yes |
FTLX1412D3BCL (XFP-LR) | Yes | Yes | Yes | |
10 Gigabit SFP+ | SFP10G-SR | - | - | - |
SFP10G-LR | - | - | - | |
Gigabit SFP | SFP-1000T | Yes | Yes | Yes |
SFP-SX-D | Yes | Yes | Yes | |
SFP-LX-10-D | Yes | Yes | Yes | |
SFP-BX1310-10-D | Yes | Yes | Yes | |
SFP-BX1490-10-D | Yes | Yes | Yes | |
SFP-LHX1310-40-D | Yes | Yes | Yes | |
SFP-ZX-80-D | Yes | Yes | Yes | |
Fast Ethernet SFP | SFP-100FX-2 | - | Yes | - |
SFP-100TX | - | Yes | - | |
SFP-100LX-20 | - | Yes | - | |
SFP-100BX1310-20-D | - | Yes | - | |
SFP-100BX1550-20-D | - | Yes | - |
4500 Series | 3900 Series | |||
XGS-4526 | XGS-4528F | XS3900-48F | ||
DAC10G | DAC10G-1M | - | - | Yes |
DAC10G-3M | - | - | Yes | |
10 Gigabit XFP | XFP-SR | Yes | Yes | - |
FTLX1412D3BCL (XFP-LR) | Yes | Yes | - | |
10 Gigabit SFP+ | SFP10G-SR | - | - | Yes |
SFP10G-LR | - | - | Yes | |
Gigabit SFP | SFP-1000T | Yes | Yes | - |
SFP-SX-D | Yes | Yes | - | |
SFP-LX-10-D | Yes | Yes | - | |
SFP-BX1310-10-D | Yes | Yes | - | |
SFP-BX1490-10-D | Yes | Yes | - | |
SFP-LHX1310-40-D | Yes | Yes | - | |
SFP-ZX-80-D | Yes | Yes | - | |
Fast Ethernet SFP | SFP-100FX-2 | - | - | - |
SFP-100TX | - | - | - | |
SFP-100LX-20 | - | - | - | |
SFP-100BX1310-20-D | - | - | - | |
SFP-100BX1550-20-D | - | - | - |
3700 Series | |||||
GS3700-24 | GS3700-24HP | GS3700-48 | GS3700-48HP | ||
DAC10G | DAC10G-1M | - | - | - | - |
DAC10G-3M | - | - | - | - | |
10 Gigabit XFP | XFP-SR | - | - | - | - |
FTLX1412D3BCL (XFP-LR) | - | - | - | - | |
10 Gigabit SFP+ | SFP10G-SR | - | - | - | - |
SFP10G-LR | - | - | - | - | |
Gigabit SFP | SFP-1000T | Yes | Yes | Yes | Yes |
SFP-SX-D | Yes | Yes | Yes | Yes | |
SFP-LX-10-D | Yes | Yes | Yes | Yes | |
SFP-BX1310-10-D | Yes | Yes | Yes | Yes | |
SFP-BX1490-10-D | Yes | Yes | Yes | Yes | |
SFP-LHX1310-40-D | Yes | Yes | Yes | Yes | |
SFP-ZX-80-D | Yes | Yes | Yes | Yes | |
Fast Ethernet SFP | SFP-100FX-2 | - | - | - | - |
SFP-100TX | - | - | - | - | |
SFP-100LX-20 | - | - | - | - | |
SFP-100BX1310-20-D | - | - | - | - | |
SFP-100BX1550-20-D | - | - | - | - |
3700 Series | ||||||||
MES-3728 | MGS-3712 | MGS-3712F | XGS3700-24 | XG3700-24HP | XGS3700-48 | XGS3700-48HP | ||
DAC10G | DAC10G-1M | - | - | - | Yes | Yes | Yes | Yes |
DAC10G-3M | - | - | - | Yes | Yes | Yes | Yes | |
10 Gigabit XFP | XFP-SR | - | - | - | - | - | - | - |
FTLX1412D3BCL (XFP-LR) | - | - | - | - | - | - | - | |
10 Gigabit SFP+ | SFP10G-SR | - | - | - | Yes | Yes | Yes | Yes |
SFP10G-LR | - | - | - | Yes | Yes | Yes | Yes | |
Gigabit SFP | SFP-1000T | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
SFP-SX-D | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-LX-10-D | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-BX1310-10-D | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-BX1490-10-D | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-LHX1310-40-D | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-ZX-80-D | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
Fast Ethernet SFP | SFP-100FX-2 | - | - | - | - | - | - | - |
SFP-100TX | - | - | - | - | - | - | - | |
SFP-100LX-20 | - | - | - | - | - | - | - | |
SFP-100BX1310-20-D | - | - | - | - | - | - | - | |
SFP-100BX1550-20-D | - | - | - | - | - | - | - |
3500 Series | ||||
ES3500-8PD | ES3500-24 | ES3500-24HP | ||
DAC10G | DAC10G-1M | - | - | - |
DAC10G-3M | - | - | - | |
10 Gigabit XFP | XFP-SR | - | - | - |
FTLX1412D3BCL (XFP-LR) | - | - | - | |
10 Gigabit SFP+ | SFP10G-SR | - | - | - |
SFP10G-LR | - | - | - | |
Gigabit SFP | SFP-1000T | Yes | Yes | Yes |
SFP-SX-D | Yes | Yes | Yes | |
SFP-LX-10-D | Yes | Yes | Yes | |
SFP-BX1310-10-D | Yes | Yes | Yes | |
SFP-BX1490-10-D | Yes | Yes | Yes | |
SFP-LHX1310-40-D | Yes | Yes | Yes | |
SFP-ZX-80-D | Yes | Yes | Yes | |
Fast Ethernet SFP | SFP-100FX-2 | Yes | Yes | Yes |
SFP-100TX | Yes | Yes | Yes | |
SFP-100LX-20 | Yes | Yes | Yes | |
SFP-100BX1310-20-D | Yes | Yes | Yes | |
SFP-100BX1550-20-D | Yes | Yes | Yes |
2200 Series | ||||||
GS2200-8 | GS2200-8HP | GS2200-24 | GS2200-24P | GS2200-48 | ||
DAC10G | DAC10G-1M | - | - | - | - | - |
DAC10G-3M | - | - | - | - | - | |
10 Gigabit XFP | XFP-SR | - | - | - | - | - |
FTLX1412D3BCL (XFP-LR) | - | - | - | - | - | |
10 Gigabit SFP+ | SFP10G-SR | - | - | - | - | - |
SFP10G-LR | - | - | - | - | - | |
Gigabit SFP | SFP-1000T | Yes | Yes | Yes | Yes | Yes |
SFP-SX-D | Yes | Yes | Yes | Yes | Yes | |
SFP-LX-10-D | Yes | Yes | Yes | Yes | Yes | |
SFP-BX1310-10-D | Yes | Yes | Yes | Yes | Yes | |
SFP-BX1490-10-D | Yes | Yes | Yes | Yes | Yes | |
SFP-LHX1310-40-D | Yes | Yes | Yes | Yes | Yes | |
SFP-ZX-80-D | Yes | Yes | Yes | Yes | Yes | |
Fast Ethernet SFP | SFP-100FX-2 | Yes | Yes | - | - | - |
SFP-100TX | Yes | Yes | - | - | - | |
SFP-100LX-20 | Yes | Yes | - | - | - | |
SFP-100BX1310-20-D | Yes | Yes | - | - | - | |
SFP-100BX1550-20-D | Yes | Yes | - | - | - |
1910 Series | |||||||
GS1910-24 | GS1910-24HP | GS1910-48 | GS1910-48HP | XGS1910-24 | XGS1910-48 | ||
DAC10G | DAC10G-1M | - | - | - | - | Yes | Yes |
DAC10G-3M | - | - | - | - | Yes | Yes | |
10 Gigabit XFP | XFP-SR | - | - | - | - | - | - |
FTLX1412D3BCL (XFP-LR) | - | - | - | - | - | - | |
10 Gigabit SFP+ | SFP10G-SR | - | - | - | - | Yes | Yes |
SFP10G-LR | - | - | - | - | Yes | Yes | |
Gigabit SFP | SFP-1000T | Yes | Yes | Yes | Yes | Yes | Yes |
SFP-SX-D | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-LX-10-D | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-BX1310-10-D | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-BX1490-10-D | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-LHX1310-40-D | Yes | Yes | Yes | Yes | Yes | Yes | |
SFP-ZX-80-D | Yes | Yes | Yes | Yes | Yes | Yes | |
Fast Ethernet SFP | SFP-100FX-2 | Yes | Yes | Yes | Yes | - | - |
SFP-100TX | Yes | Yes | Yes | Yes | - | - | |
SFP-100LX-20 | Yes | Yes | Yes | Yes | - | - | |
SFP-100BX1310-20-D | Yes | Yes | Yes | Yes | - | - | |
SFP-100BX1550-20-D | Yes | Yes | Yes | Yes | - | - |
1100 Series | |||
ES1100-24G | GS1100-24 | ||
DAC10G | DAC10G-1M | - | - |
DAC10G-3M | - | - | |
10 Gigabit XFP | XFP-SR | - | - |
FTLX1412D3BCL (XFP-LR) | - | - | |
10 Gigabit SFP+ | SFP10G-SR | - | - |
SFP10G-LR | - | - | |
Gigabit SFP | SFP-1000T | Yes | Yes |
SFP-SX-D | Yes | Yes | |
SFP-LX-10-D | Yes | Yes | |
SFP-BX1310-10-D | Yes | Yes | |
SFP-BX1490-10-D | Yes | Yes | |
SFP-LHX1310-40-D | Yes | Yes | |
SFP-ZX-80-D | Yes | Yes | |
Fast Ethernet SFP | SFP-100FX-2 | Yes | Yes |
SFP-100TX | Yes | Yes | |
SFP-100LX-20 | Yes | Yes | |
SFP-100BX1310-20-D | Yes | Yes | |
SFP-100BX1550-20-D | Yes | Yes |
Documentation:
Download the Zyxel Fiber Transceiver Accessories Datasheet (PDF).
