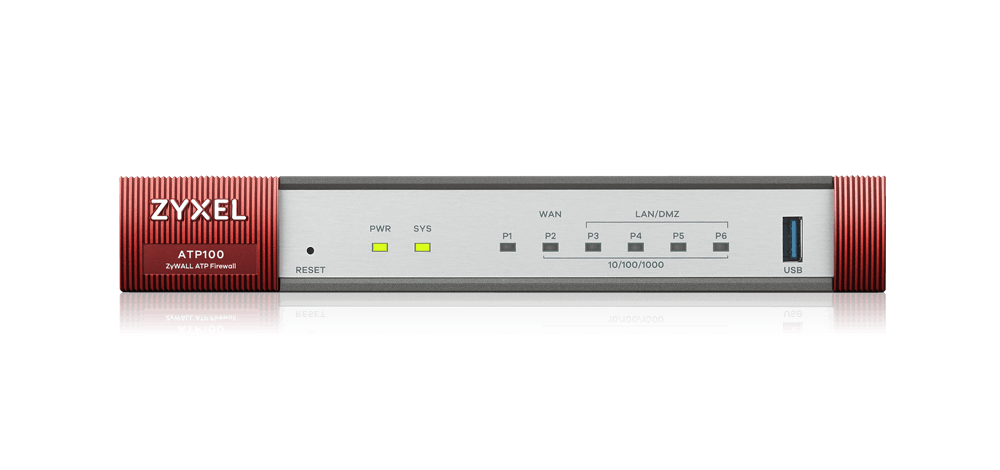

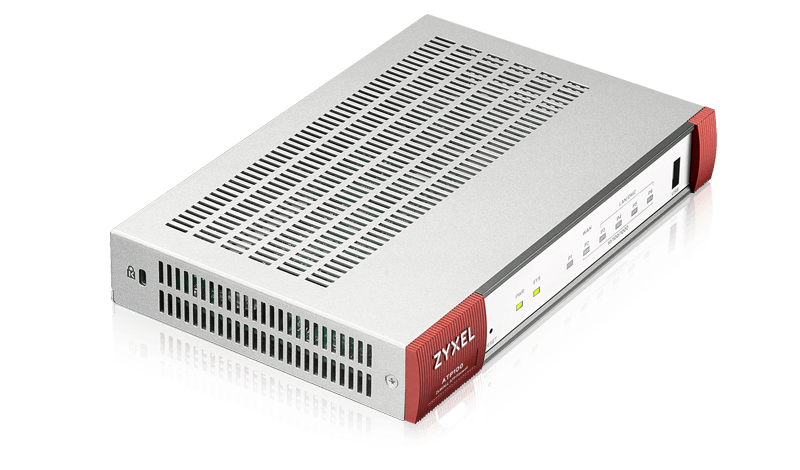

Zyxel ATP100
Next Generation Advanced Threat Protection Firewall
(Includes 1 Year Gold Security UTM Bundle)
List Price:
Our Price: $499.99
List Price:
Our Price: $249.99
List Price:
Our Price: $449.99
Click here to jump to more pricing!
Overview:
Advanced Protection for Evolving Threat
Cyber attacks of today are multiplying in large volumes along with more diverse forms of threats including – crypto jacking, malware, surging ransomware variants, and many more! ZyWALL ATP Firewall is empowered with smart cloud intelligence giving seamless protection against all those Advanced Persistent Threats, achieving ultimate in-depth defense of future unknown attacks.
Block it. Learn it. Prevent it.
Block Unknown Threats
Multi-Layer Protection from default bundled security service can block malicious and suspicious traffic, ensuring wellbeing of your business network
Learn Unknown Threats
Cloud Intelligence identifies every incoming threats so the Cloud Threat Database keeps learning, evolving, and growing stronger after each attack.
Prevent Unknown Threats
Cloud Intelligence extracts top ranked threat information and gives all ATP firewalls constant updates. This global sharing synergy empowers ATP firewalls to prevent all hidden threats.
Cloud Machine Learning
Zyxel Cloud intelligence identifies unknown files from all ATP Firewalls, accumulates results in database and gives all ATP a daily update, effectively turning every new threat into a new piece of intelligence and continuously grow with self-evolving security ecosystem that adapt to new advanced attacks at all times.
Sandboxing
Sandboxing is an isolated cloud environment that contains unknown files to identify new malware types that conventional static security mechanism cannot detect, ensuring protection against zero-day attacks.
Reporting & Analytics
ATP Firewall dashboard gives user-friendly infographic traffic summary and threat statistics. Users can also utilize SecuReporter for further comprehensive threat analysis.
Features & Benefits:
Machine Learning
Zyxel Cloud Intelligence receives unknown files from global ATP gateway's enquiries and stores all information with every new threat recognized, Zyxel Security Cloud becomes a continuously-growing and self-evolving security defense intelligence that learns, grows, and evolves at all times.
Sandboxing
Sandboxing isolates unknown files and identifies if they are new malware types that conventional static security mechanism cannot detect, ensuring network security against zero-day attacks.
Cloud Threat Database
Cloud Threat Database syncs daily with all ATP devices so the machine learning benefits on the cloud can reach out to every ATP. This makes the cloud and all devices a robust security ecosystem that learns together, grows stronger, and always stays immune to new unknown attacks.
Multi-layer Protection
ATP Firewall is designed with multi-layer protection against multiple types of threats from in and out. Sandboxing, Malware Blocker, and Intrusion Prevention block external attacks while Application Security and Web Security empower you to restrict users' inappropriate application usage or web access, all together safeguarding your network without any unattended gaps.
Restrict risky online behaviors
Application Security
Application Security includes Application Patrol and Email Security features, not only does it block malicious attacks, but it also provides managerial control to optimize application traffic, or block undesired applications.
Web Security
Web Security includes Botnet Filter and Content Filter features, covering both URL and IP checking with cloud-synced categories that can evolve with the growing cloud database.
Geo Enforcer
ATP can restrict access from high-risk countries and can know the source or destination of attacks with GeoIP address translation for geographic mapping.
Block security threats
Intrusion Prevention
The IDP (Intrusion Detection and Prevention) feature runs deep inspection to block exploits and attacks from vulnerable applications, ensuring uncompromised security.
Malware Blocker
Anti-Malware feature is empowered by daily synchronization from Cloud Threat Database, ATP malware protection is lifted from a local scope to a comprehensive cloud level with global sharing synergy.
Cloud Sandboxing
Sandboxing contains all unknown files or user patterns in isolation, then emulates the programs to run and identifies whether or not they are malicious. If its malicious, Sandboxing will update this new malware information into Cloud Threat Database.
Analyze & Report Service
SecuReporter sees, analyses, and reports network threats so you can be advised what security actions to take. It is a cloud service that turns logs into intelligence to deliver comprehensive reporting and analytics.
License Service:
ATP100 is by default bundled with a non-transferable one-year Gold Security Pack license. When renewing for the second year with either one-year or two years of Gold Security Pack, the license will be transferable.
License Service | Feature | Gold |
---|---|---|
Sandboxing | Sandboxing | |
Web Security | Content Filter Botnet Filter |
|
Application Security | App Patrol Email Security |
|
Malware Blocker | Anti-Malware Cloud Query Threat Intelligence Maching Learing |
|
Intrusion Prevention | IDP | |
Reputation Filter | IP Reputation | |
Geo Enforcer | GeoIP | |
Managed AP Service | Wireless Controller | 10 |
SecuReporter | SecuReporter Premium |
Specifications:
![]() |
![]() |
![]() |
![]() |
|
---|---|---|---|---|
Hardware Specifications | ||||

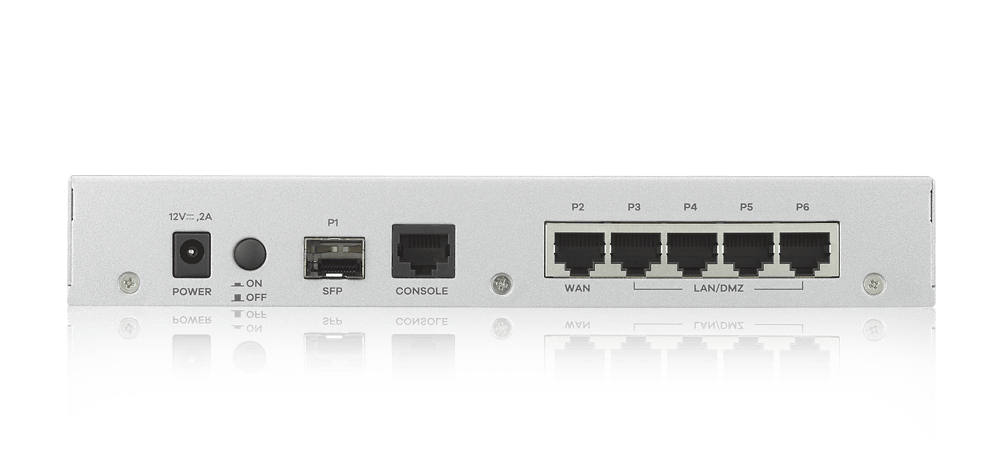

10/100/1000 Mbps RJ-45 ports | 3 x LAN/DMZ, 1 x WAN, 1 x SFP, 1x OPT | 4 x LAN/DMZ, 2 x WAN, 1 x SFP | 7 (Configurable), 1 x SFP | 12 (Configurable), 2 x SFP (Configurable) |
USB3.0 ports | 1 | 2 | 2 | 2 |
Console port | RJ45 | DB9 | DB9 | DB9 |
Rack-mountable | - | Yes | Yes | Yes |
Fanless | Yes | Yes | - | - |
System Capacity & Performance*1 | ||||
SPI firewall throughput (Mbps)*2 | 1,000 | 2,000 | 2,600 | 8,000 |
VPN throughput (Mbps)*3 | 300 | 500 | 900 | 1,500 |
IDP throughput (Mbps)*4 | 600 | 1,200 | 1,700 | 2,700 |
AV throughput (Mbps)*4 | 250 | 450 | 700 | 1,200 |
UTM throughput (AV and IDP)*4 | 250 | 450 | 700 | 1,200 |
Max. TCP concurrent sessions*5 | 300,000 | 600,000 | 1,000,000 | 2,000,000 |
Max. concurrent IPSec VPN tunnels*5 | 40 | 40 | 200 | 1,000 |
Concurrent SSL VPN users | 10 | 10 | 50 | 100 |
VLAN interface | 8 | 16 | 64 | 128 |
WLAN Management | ||||
Managed AP number (1 Year bundled)*6 | 10 | 18 | 34 | 130 |
Security Features*7 | ||||
Sandboxing | Yes | Yes | Yes | Yes |
Content Filter | Yes | Yes | Yes | Yes |
Botnet Filter | Yes | Yes | Yes | Yes |
App Patrol | Yes | Yes | Yes | Yes |
Email Security | Yes | Yes | Yes | Yes |
Anti-Malware | Yes | Yes | Yes | Yes |
Cloud Query | Yes | Yes | Yes | Yes |
Threat Intelligence Maching Learing | Yes | Yes | Yes | Yes |
IDP(Intrusion Detection and Prevention) | Yes | Yes | Yes | Yes |
IP Reputation | Yes | Yes | Yes | Yes |
GeoIP | Yes | Yes | Yes | Yes |
SecuReporter Premium | Yes | Yes | Yes | Yes |
Key Features | ||||
VPN | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec |
SSL (HTTPS) Inspection | Yes | Yes | Yes | Yes |
2-Factor Authentication | Yes | Yes | Yes | Yes |
Microsoft Azure | Yes | Yes | Yes | Yes |
Amazon VPC | Yes | Yes | Yes | Yes |
Device HA Pro | - | - | Yes | Yes |
Power Requirements | ||||
Power input | 12V DC, 2A max. | 12 V DC, 2.5 A max. | 12 V DC, 4.17 A | 100-240 V AC, 50/60 Hz, 2.5 A max. |
Max. power consumption (watt) | 12.5 | 13.3 | 24.1 | 46 |
Heat dissipation (BTU/hr) | 42.65 | 45.38 | 82.23 | 120.1 |
Physical Specifications | ||||
Item | Dimensions (WxDxH)(mm/in.): 216 x 147.3 x 33/8.50 x 5.80 x 1.30 Weight (kg/lb.): 0.85/1.87 |
Dimensions (WxDxH)(mm/in.): 272 x 187 x 36/10.7 x 7.36 x 1.42 Weight (kg/lb.): 1.4/3.09 |
Dimensions (WxDxH)(mm/in.): 300 x 188 x 44/11.81 x 7.4 x 1.73 Weight (kg/lb.): 1.65/3.64 |
Dimensions (WxDxH)(mm/in.): 430 x 250 x 44/16.93 x 9.84 x 1.73 Weight (kg/lb.): 3.3/7.28 |
Packing | Dimensions (WxDxH)(mm/in.): 284 x 190 x 100/11.18 x 7.48 x 3.94 Weight (kg/lb.): 1.4/3.09 |
Dimensions (WxDxH)(mm/in.): 427 x 247 x 73/16.81 x 9.72 x 2.87 Weight (kg/lb.): 2.23 (W/O bracket) / 2.42 (W/ bracket) |
Dimensions (WxDxH)(mm/in.): 351 x 152 x 245/13.82 x 5.98 x 9.65 Weight (kg/lb.): 2.83/6.24 |
Dimensions (WxDxH)(mm/in.): 519 x 392 x 163/20.43 x 15.43 x 6.42 Weight (kg/lb.): 4.8 (W/O bracket) / 10.58 (W/ bracket) |
Included accessories | Power adapter RJ-45 cable RS-232 cable |
Power adapter Rack mounting kit |
Power adapter Power cord Rack mounting kit |
Power cord Rack mounting kit |
Environmental Specifications | ||||
Operating environment | Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 90% (non-condensing) |
Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 90% (non-condensing) |
Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 90% (non-condensing) |
Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 90% (non-condensing) |
Storage environment | Temperature: -30°C to 70°C/-22°F to 158°F Humidity: 10% to 90% (non-condensing) |
Temperature: -30°C to 70°C/-22°F to 158°F Humidity: 10% to 90% (non-condensing) |
Temperature: -30°C to 70°C/-22°F to 158°F Humidity: 10% to 90% (non-condensing) |
Temperature: -30°C to 70°C/-22°F to 158°F Humidity: 10% to 90% (non-condensing) |
MTBF (hr) | 989810.8 | 529,688.2 | 529,688.2 | 947,736 |
Acoustic noise | - | - | 24.5 dBA on < 25°C operating temperature, 41.5 dBA on full FAN speed. | 25.3 dBA on < 25°C operating temperature, 46.2 dBA on full FAN speed. |
Certifications | ||||
EMC | FCC Part 15 (Class B) CE (Class B) RCM (Class B) BSMI |
FCC Part 15 (Class B) CE (Class B) RCM (Class B) BSMI |
FCC Part 15 (Class A) CE EMC (Class A) RCM (Class A) BSMI |
FCC Part 15 (Class A) CE EMC (Class A) RCM (Class A) BSMI |
Safety | LVD BSMI |
LVD BSMI |
LVD BSMI |
LVD BSMI |
Documentation:
Download the Zyxel ATP100 Datasheet (PDF).
