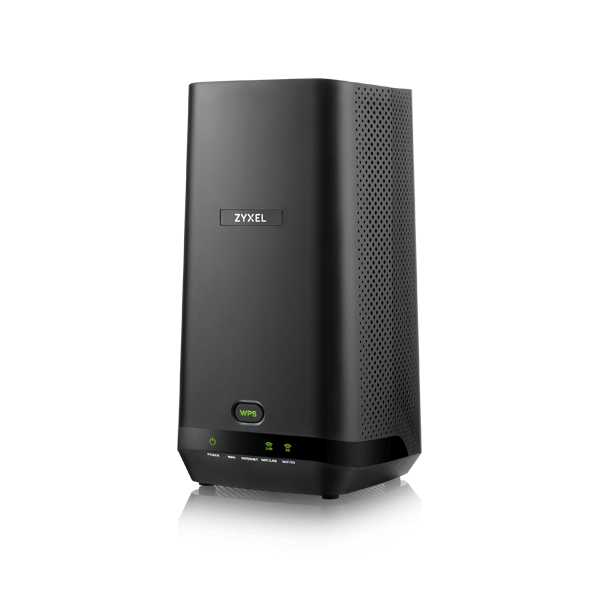

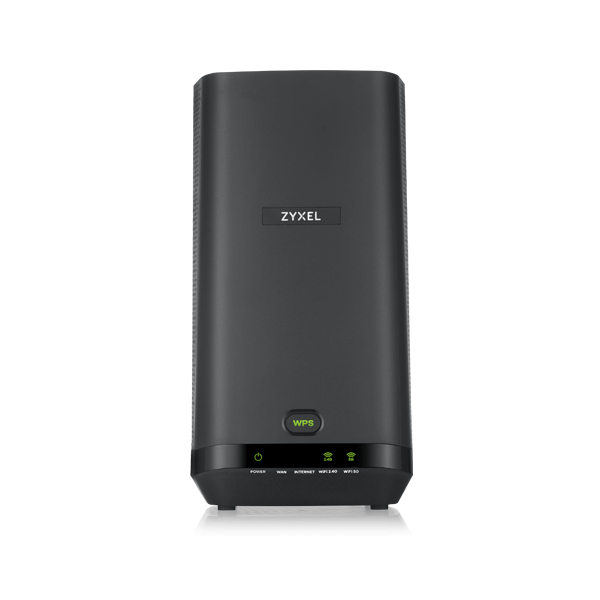

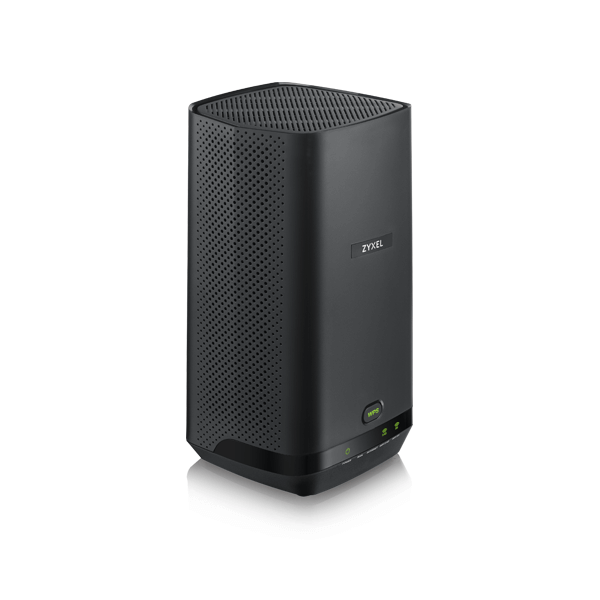

Zyxel Dual-Band Wireless AX Gigabit Ethernet Gateway
EX5510-B0
Overview:
The Zyxel EX5510-B0 Dual-Band Wireless AX Gigabit Ethernet Gateway supports the latest dual-band wireless WiFi 6 (11AX) technology for optimized bandwidth utilization to increase network capacity and the number of simultaneous streams, which allow more subscribers to enjoy superior connectivity with extremely low latency.


WiFi 6 (11AX) for superior performance and coverage

Supports uplink/downlink MU-MIMO for increased network capacity

Supports OFDMA for maximized network efficiency

Zyxel MPro Mesh™ solution (compliant with EasyMesh standards)

Auto-provisioning and remote management through TR-069/TR-098/TR-181

In-house developed OPAL realizes the flexibility and faster time to market
Features:

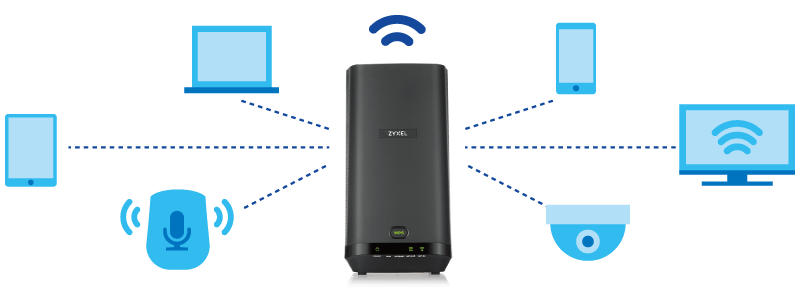

Lightning-fast next-generation technology
The Zyxel EX5510-B0 Dual-Band Wireless AX Gigabit Ethernet Gateway supports the 802.11ax (WiFi 6) standard to offer lightning-fast throughputs of up to 6000 Mbps*. The performance enables operators to provide UHD 4K/8K services to subscribers and hybrid high-throughput applications in homes for a true IoT lifestyle.

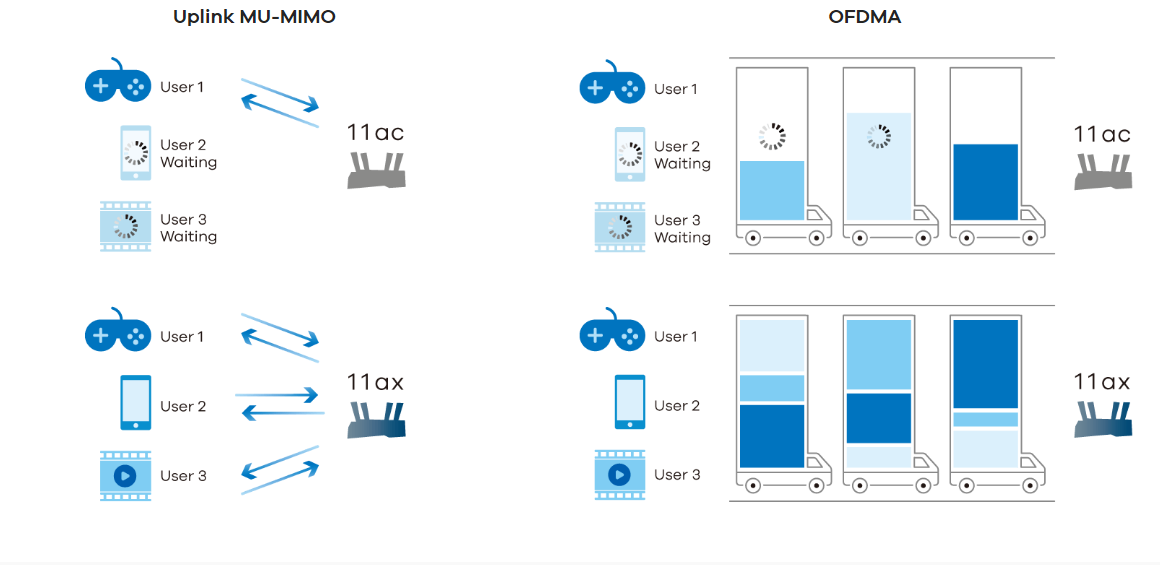

Maximize network capacity for more devices
Support by the unique uplink MU-MIMO, users can enjoy interactive applications such as VR or AR with less latency. Moreover, the revolutionary Orthogonal Frequency Division Multiple Access (OFDMA) technology improves average throughputs to considerably shorten latency and increase network efficiency.

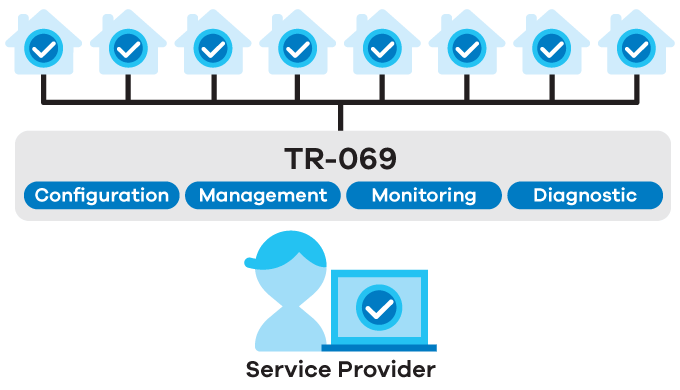

TR-069 remote management
With the TR-069 standard management specifications, the Zyxel EX5510-B0 allows service providers to manage, configure, monitor and diagnose client devices remotely without interfering end users. This unique feature not only offers true “plug-and-play” experience but also reduces deployment complexity, and it also saves operating as well as maintenance costs for service providers.

Zyxel OPAL firmware realizes the flexibility and faster time to market
With same OPAL firmware trunk applied in Zyxel CPE, the EX5510-B0 inherits a rich, field-proven feature set including TR-069 and more. Service providers can expect the same user experience after they migrate to new devices. Furthermore, the lab qualification time can be greatly reduced by using the same OPAL firmware trunk. As a flexible software platform, OPAL, a modular software architecture and open framework, provides the flexibility for easy feature tailoring to assure all the application requests can be addressed.

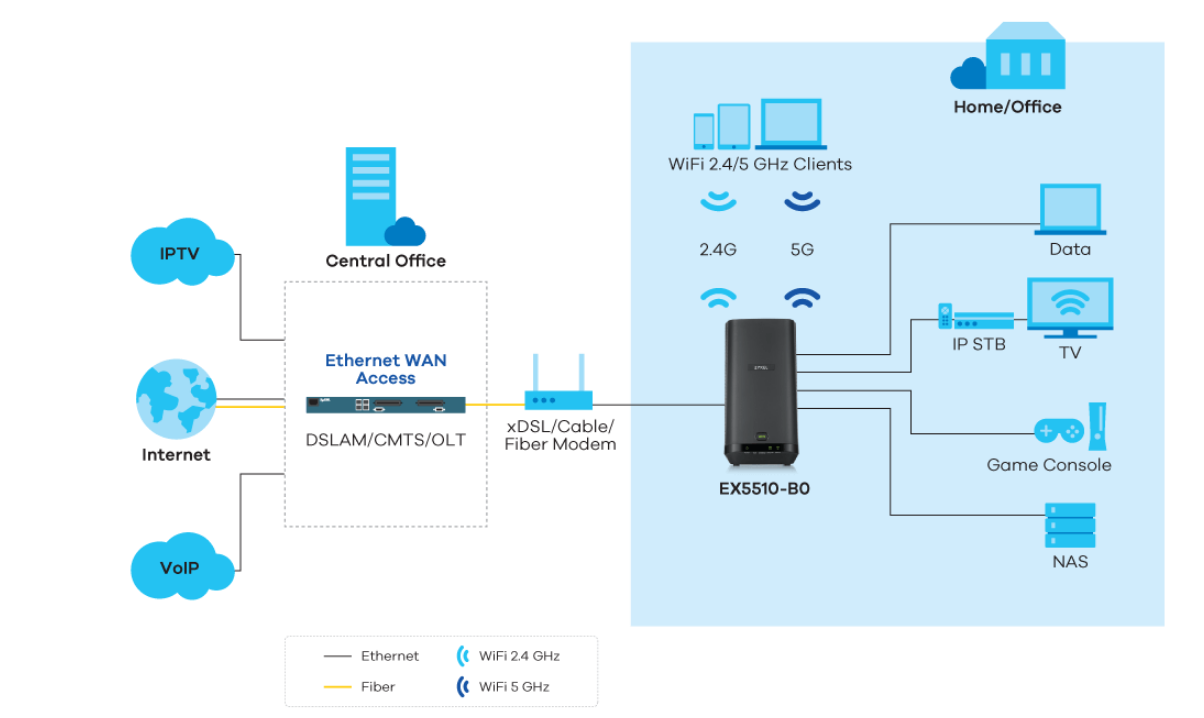

Application Diagram:
*The maximum wireless data transfer rate is derived from IEEE Standard 802.11. The actual data transfer rate will vary from network environment including distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
EX5510-B0 Specifications:
Wireless Standards
- IEEE 802.11 b/g/n/ax 2.4 GHz
- IEEE 802.11 a/n/ac/ax 5 GHz
Wireless Transfer Rates
- Transmit:
- 802.11ax (2.4 GHz) : up to 1148 Mbps
- 802.11ax (5 GHz) : up to 4804 Mbps
Wireless Security
- WPA2-PSK
- WPA3-PSK
WLAN Features
- Auto channel selection
- WiFi Multimedia (WMM)
- Wireless output power management
- Multiple SSID up to 4
- WiFi Protected Setup (WPS)
- Intra-BSS traffic block
- MAC address filtering
- WPS 2.0
- MPro Mesh**
Firewall
- IPv4 / IPv6 firewall (Stateful Packet Inspection)
- Denial-of-Service (DoS) attack prevention
- ICMP blocking
Routing
- IPv4/IPv6
- NAT
- Port forwarding
- WAN connection type: DHCP, PPPoE
- DHCP Option 43/60/121/125
- DHCP server on LAN
- IGMP v2/v3
- IGMP Proxy
- Dynamic DNS
VPN Pass-through
- PPTP
- L2TP
- IPSec
VLAN
- 802.1q tag/tag based VLAN
- VLAN to ETH port mapping
- Bridged/routed VLAN support
Management
- Web GUI (HTTP/HTTPS)
- TR-069/TR-098/TR-181
- Firmware upgrade through GUI/TR-069
- 2-tier level access and administration

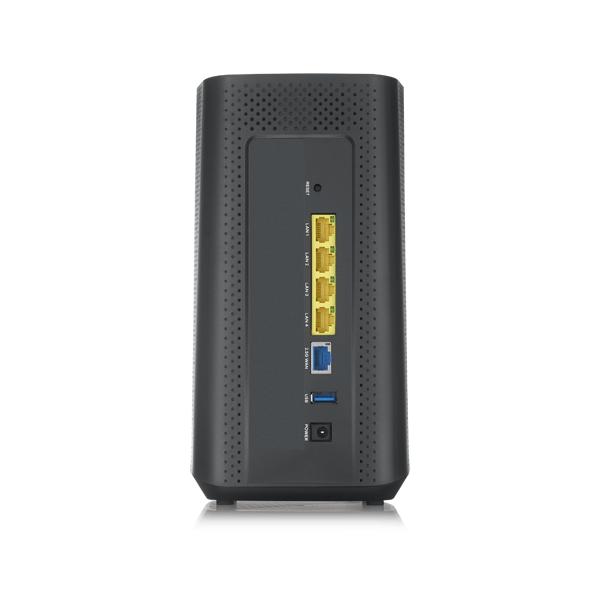

WAN
- One 10/100/1000 Mbps/2.5GbE RJ-45 port
LAN
- Four 10/100/1000 Mbps Ethernet RJ-45 ports
USB
- One USB 3.0 host
LED indicators
- Power
- Ethernet WAN
- Internet
- WiFi 2.4G
- WiFi 5G
- WPS
Button
- WPS
- Reset
Power consumption
- 12 V DC, 3.5 A
- 37.8 Watt max
- 12 V DC, 3.5 A
- 37.8 Watt max
- Item dimensions (WxDxH): 118 x 120 x 225 mm (4.64” x 4.72” x 8.85”)
- Item weight: 793 g (1.75 lb.)
- Packing dimensions (WxDxH): 263 x 180 x 136 mm (10.35” x 7.08” x 5.35”)
- Packing weight: 1387 g (3.06 lb.)
Operating Environment
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
Storage Environment
- Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity: 10% to 95% (Non-condensing)
- FCC, IC
- Gigabit Ethernet Gateway
- Power adapter
- Ethernet cable
- Quick start guide
- Wall mount kit
Documentation:
Download the Zyxel EX5510-B0 Datasheet (PDF).
