Zyxel GS-100 Series Unmanaged Switch

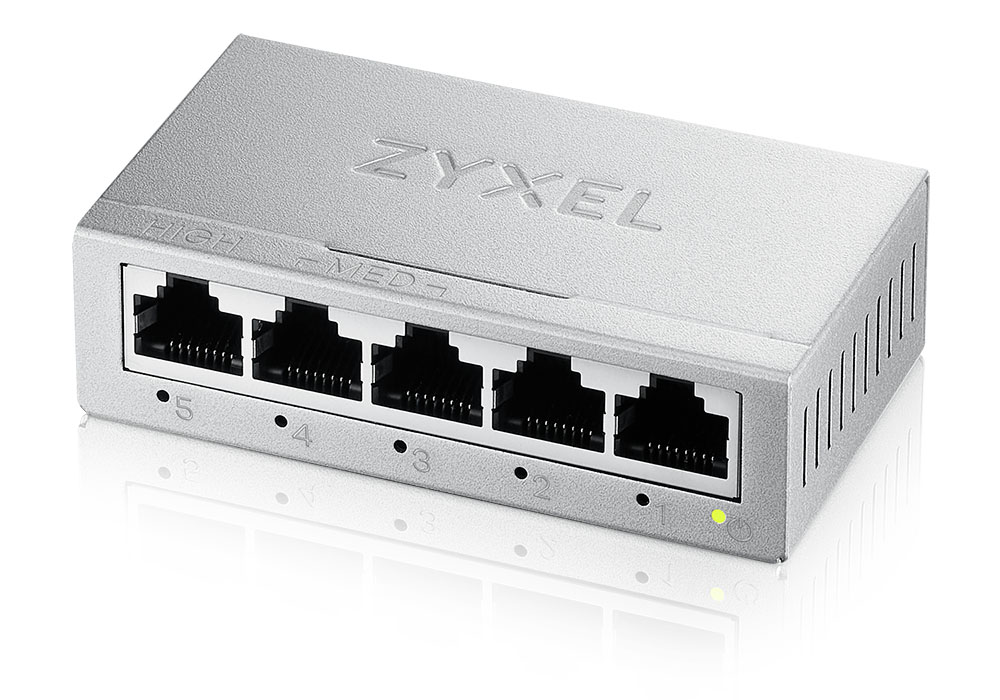

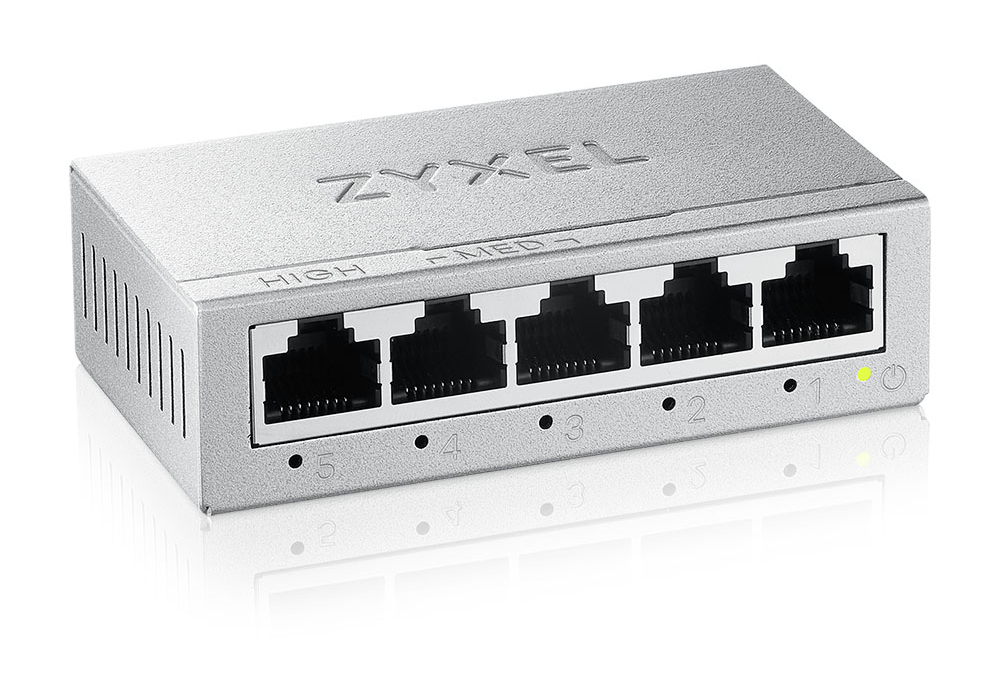

Zyxel GS-105B v5 5-Port Unmanaged Switch

#GS105BV5
List Price: ~~$18.99~~
Our Price: $13.99

Click here to jump to more pricing!

Overview:

The GS-105B v5 and GS-108B v5 are the most compact desktop switches newly introduced in Zyxel Switching portfolio. These two mini-sized 5-port and 8-port desktop unmanaged switches connect network devices for studio or small office network at Gigabit speed. The QoS ports guarantee high quality of video or voice data transmission.

Surfing the network just plug and play

QoS ports optimize performance of network applications

Mini size fits desktop and wall-mounting installations

Durable metal housing design

Silent, and green switch for energy efficiency

Benefits:

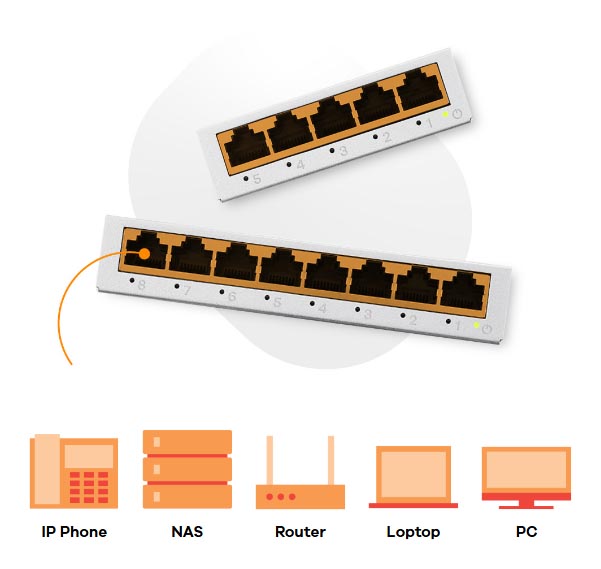

Plug-and-play to handle your daily network connectivity

Without any manual configuration, the GS-100 Series can boost data transfer speed for connected network devices such as IP phones, network storages, PCs and laptops to the network at Gigabit speed just with plug-and play.

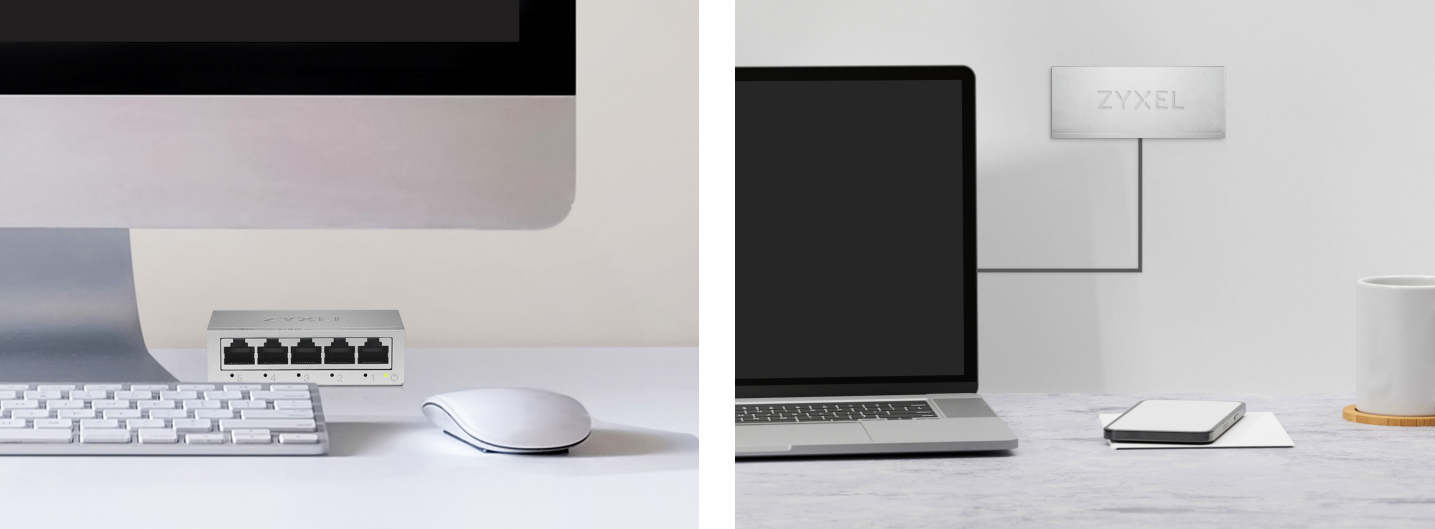

Mini, sturdy switch with alternative wall-mount design

The compact size of the GS-105B v5/GS-105B v5 fits most network installations in your office, whether placed on a desktop or wall-mounted. The durable metal housing design withstands physical impacts and dissipates heat more efficiently, ensuring a stable network experience, better performance, and increased longevity.

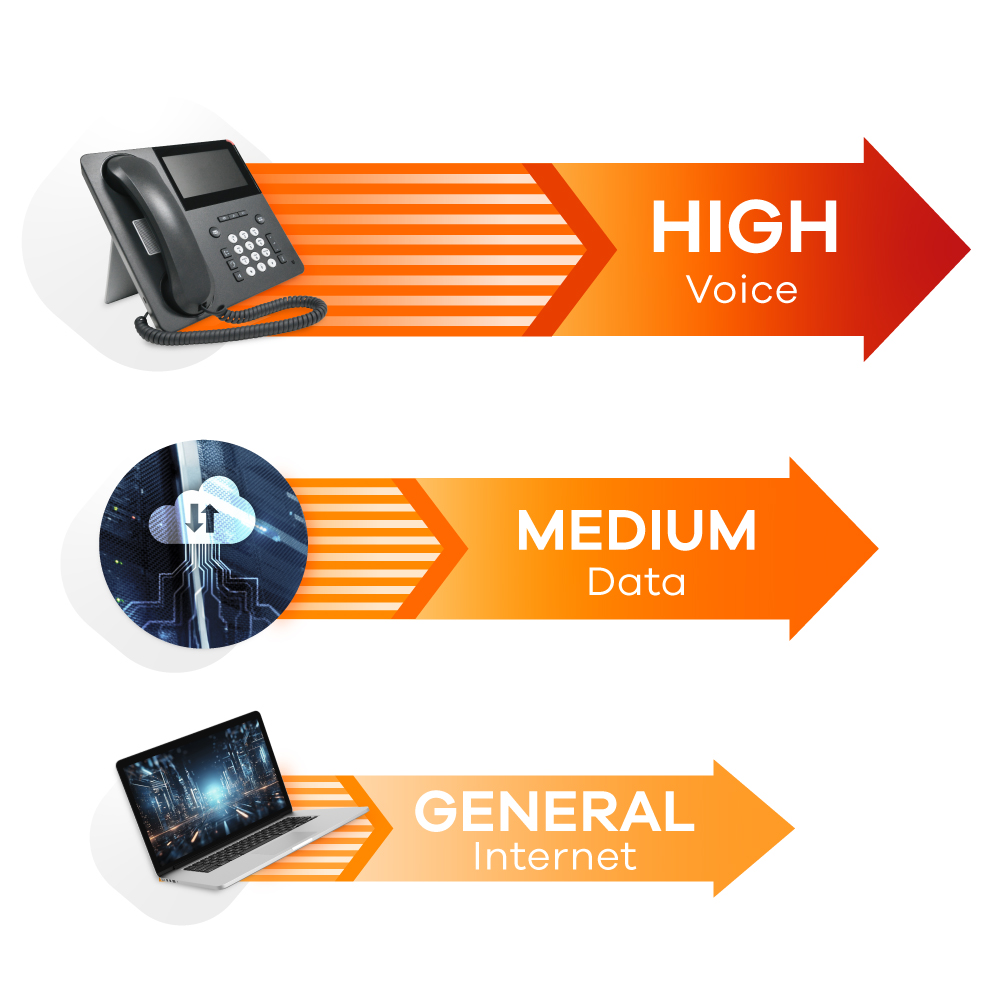

QoS ports for smooth VoIP and data exchange

The GS-105B v5 and GS-108B v5 feature with 3 and 4 QoS ports respectively. The QoS ports come with an assigned high- and medium-priority mechanism to enhance the stability of VoIP and data exchange. Just connect network devices such as IP phones, PCs, laptops or network storages to the high-priority or medium-priority ports of your choice, you can then enjoy smooth VoIP communication and data transfer at the same time.

Green switch saves energy

Compliant with the IEEE 802.3az Energy Efficient Ethernet standard, the GS-105B v5/GS-108B v5 offers power-saving benefits by detecting link status and consuming power more efficiently, all without compromising performance. The fanless design ensures all-time silent operation. They are perfect for noise-free working environments.

Specifications:

GS-105B v5 Specifications
Description
Product name	5-Port GbE Unmanaged Switch
Port Density
Total port count	5
100/1000Mbps	5
Performance
Switching capacity (Gbps)	10
Forwarding rate (Mpps)	7.4
Packet buffer (byte)	128KB
MAC address table	2K
Jumbo frame (byte)	9KB
Power
Adapter AC input	100 - 240V AC, 50/60Hz
Adapter DC output	5V 1A
Power supply	External
Max. power consumption (watts)	2.99
Min. power consumption (watts)	0.44

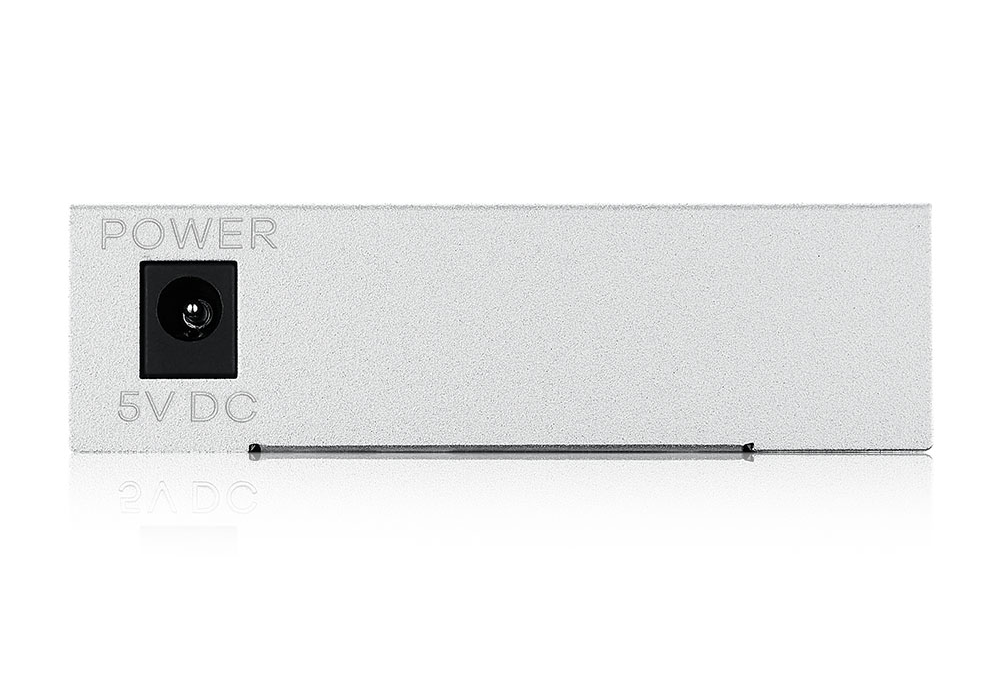

DC jack size (mm/in.)	5.5 x 2.1/0.22 x 0.08
Physical Specifications
Dimensions (WxDxH)(mm/in.)	82.5 x 46.8 x 24/3.25 x 1.84 x 0.94
Weight (kg/lb.)	0.11/0.24
Green Features
Energy-Efficient Ethernet	Yes
Environmental Specifications
Operating Temperature	0°C to 40°C/32°F to 104°F
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-40°C to 70°C/-40°F to 158°F
Storage Humidity	5% to 95% (non-condensing)
MTBF (hr)	259,047
Heat dissipation (BTU/hr)	10.2
Acoustic noise @ 25°C (min/max, dBA)	Fanless, 0

Standard Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet

QoS Ports

Port 3-4: medium-priority QoS ports
Port 5: high-priority QoS port

Features

Auto-MDI/MDIX in all ports
Transmission method:
- Store-and-forward architecture
Port-based QoS support
RJ-45 Ethernet port with metal shielding
Power saving
Durable metal housing
Desktop and wall mount
Fanless

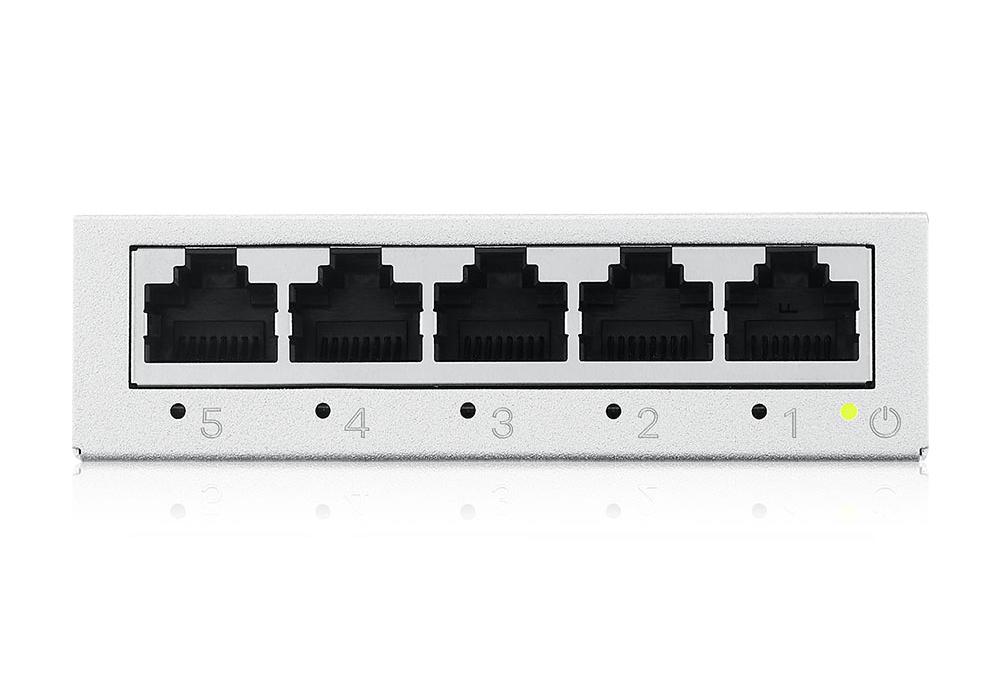

LED Indicator

PWR: Power
Per port: Link/Activity
- Green on: 10/100/1000Mbps
- Blinking green: sending or receiving data

Certification

CE, EAC, FCC, BSMI Class B

Package Contents

Switch
Power adapter
Rubber foot
Wall mount kit
Safety warning and doc.

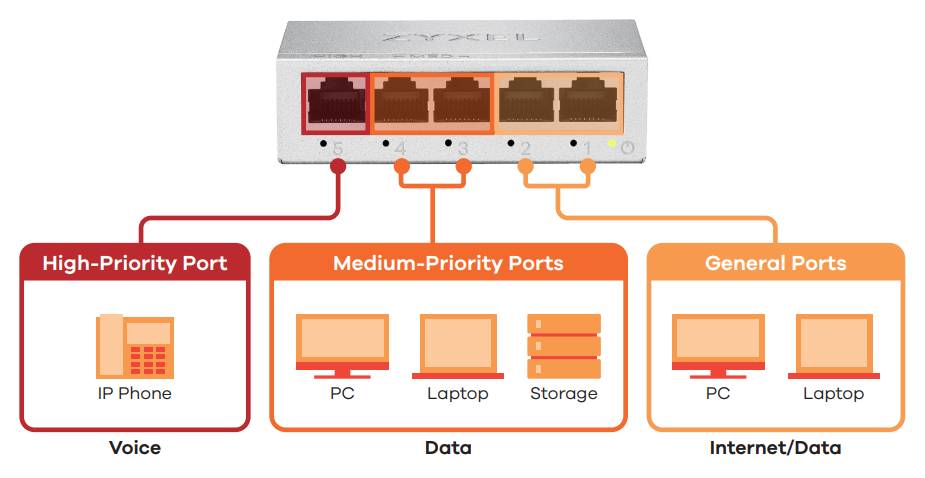

Application Diagram:

GS-105B v5
