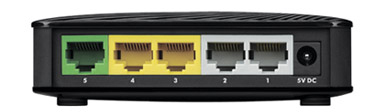

Zyxel GS-105S 5-Port Desktop Gigabit Ethernet Media Switch Discontinued
Prioritize Multimedia Streams for Optimized Video and Online Gaming Enjoyments

Overview:

Prioritize Multimedia Streams for Optimized Video and Online Gaming Enjoyments

The Zyxel GS-105S 5-Port Desktop Gigabit Ethernet Media Switch can easily connect multiple media devices to home networks at blazing-fast Gigabit speed simultaneously. Moreover, the newly designed QoS ports of GS-105S allow smooth video streaming and online gaming as well.

Plug-and-play, stylish design

With easy plug-and-play, you can connect the GS-105S to media players, game consoles and smart TVs to your home network without any configuration effort. With its stylish modern look and streamlined design, the GS-105S fits nicely into any home décor.

Smooth multimedia streaming and gaming

The Zyxel GS-105S features QoS ports for you to assign high, medium or low priorities for your preferred network applications. For instance, if you are a movie enthusiast, you can connect media players or smart TVs to the high-priority ports for smooth video streaming and the best home 3D streaming experience. If you prefer lag-free online gaming, simply connect the game console through the high-priority QoS port and assign media players, PC and other network devices to the medium- or low-priority QoS ports according to your need.

Blazing-fast Gigabit speed

The GS-105S 10/100/1000 Mbps switch is designed for reliable high-performance media networks 10 times faster than Fast Ethernet connections. It perfectly fulfills the demands for multimedia streaming and online gaming.

Adjust power usage

Smartly adjusts power consumption by detecting the link status and the length of connected Ethernet cables. When the GS-105S detects no active data transmission, the device automatically enters the power-saving mode to avoid energy waste.

Detect cable length

The GS-105S can detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the Ethernet cable length is, the less power it consumes.

Green switch saves energy

Compliant with the IEEE 802.3az Energy Efficient Ethernet standard, the GS-105S/GS-108S provides power-saving benefits without compromising performance. Moreover, the GS-105S/GS-108S automatically adjusts power consumption according to the number of active, connected network devices and cable length. That is, fewer active connected network devices or shorter Ethernet cable length allows the switch to consume less power.

• Plug-and-play, stylish design that fits home environments
• Enjoy smooth multimedia streaming and gaming through QoS ports with 3-level prioritization
• Stream multimedia with blazing-fast Gigabit speed
• Green switch design for energy saving

Specifications:

Specifications
System Specifications
Standard	IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3 Nway auto-negotiation IEEE 802.3x full duplex operation and flow control IEEE 802.3az Energy Efficient Ethernet
Performance	Data transfer rate (half duplex/full duplex): Ethernet: 10/20 Mbps Fast Ethernet: 100/200 Mbps Gigabit Ethernet: 1000/2000 Mbps MAC address table: GS-105S: 2 K GS-108S: 8 K Memory buffer: GS-105S: 128 KB GS-108S: 128 KB Switching fabric (non-blocking): GS-105S: 10 Gbps GS-108S: 16 Gbps
Features	Auto-MDI/MDIX in all ports Transmission method: Store-and-forward architecture Port-based QoS support Jumbo frame support up to 9 KB IGMP snooping v1/v2 support (GS-105S)
Hardware Specifications
Interface	GS-105S: Five RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support GS-108S: Eight RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support

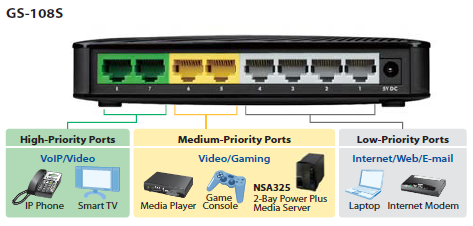

QoS Ports	GS-105S: One high-priority QoS port, two medium-priority QoS ports, and two low-priority QoS ports GS-108S: Two high-priority QoS ports, two medium-priority QoS ports, and four low-priority QoS ports
LED Indicator	PWR: Power Per port: Link/Activity
Power Supply	GS-105S: Input: 100 - 240 V AC Output: 5 V DC, 1 A GS-108S: Input: 100 - 240 V AC Output: 5 V DC, 1 A
Power Consumption	GS-105S: 2.5 watt max. GS-108S: 4.5 watt max.
Physical Specifications	Item dimensions (WxDxH): GS-105S: 106 x 75 x 32 mm (4.17” x 2.95” x 1.26”) GS-108S: 152 x 80 x 32 mm (5.99” x 3.15” x 1.26”) Item weight: GS-105S: 105 g (0.23 lb.) GS-108S: 150 g (0.33 lb.) Packing dimensions (WxDxH): GS-105S: 127 x 82 x 95 mm (5.00” x 3.23” x 3.74”) GS-108S: 157 x 86 x 96 mm (6.18” x 3.39” x 3.78”) Packing weight: GS-105S: 205 g (0.45 lb.) GS-108S: 250 g (0.55 lb.)
Environmental Specifications
Operating Environment	Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 10% to 90% (Non-condensing)
Storage Environment	Temperature: -20°C to 70°C (-4°F to 158°F) Humidity: 10% to 90% (Non-condensing)
Certification	CE, FCC Class B, C-Tick, BSMI
Package Contents	Gigabit switch Power adapter Quick start guide Warranty card

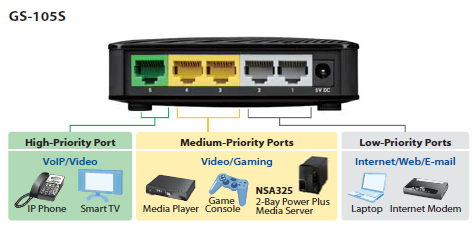

Application Diagram:

Documentation:

Download the Zyxel GS105S Datasheet (PDF).
