Zyxel GS1200-5
Fanless 5 Port GbE L2 Web Managed Switch

Zyxel GS1200-5

Zyxel Products
Zyxel GS1200-5
GS1200-5 - Fanless 5 Port GbE L2 Web Managed Switch
Our Price: $39.99

Click here to jump to more pricing!


The Zyxel GS1200-5/GS1200-8 Web Managed Gigabit Switch provides simple control for better management. Unlike other advanced but complex managed switches, the GS1200 series switch is suitable for most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring.

The Zyxel GS1200-5/GS1200-8 does not require any additional software. It is easy, friendly, and more intuitive with its Web GUI which helps configuration tasks be completed in just a few simple clicks. Simplified for small office users’ network.

  • Easy web management
  • Multicast IGMP snooping v1/v2 and v3 compatible for streaming applications
  • Virtual LAN for enhanced network security
  • Quality of Service for better traffic control
  • Link aggregation increases bandwidth between 2
  • Ethernet ports
  • Advanced energy-savings at work
  • Fanless, noiseless design


Easy web management

This switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. With a few simple clicks, your network will be humming along, so you can get back to business.

IGMP Snooping

Optimized multicast performance, useful for bandwidthintensive IP multicast applications such as online media streaming and time sensitive applications.


Separating traffic within a business such as isolating resources between network administrators, general users, or between employees and public guest users.

Quality of Service

Provide different priorities to different applications or users to guarantee a certain level of performance for maximum data efficiency of your network.

Link Aggregation

Combine two physical ports’ performance to make a single high-bandwidth data path, for faster file transfer and enhanced connection reliability.

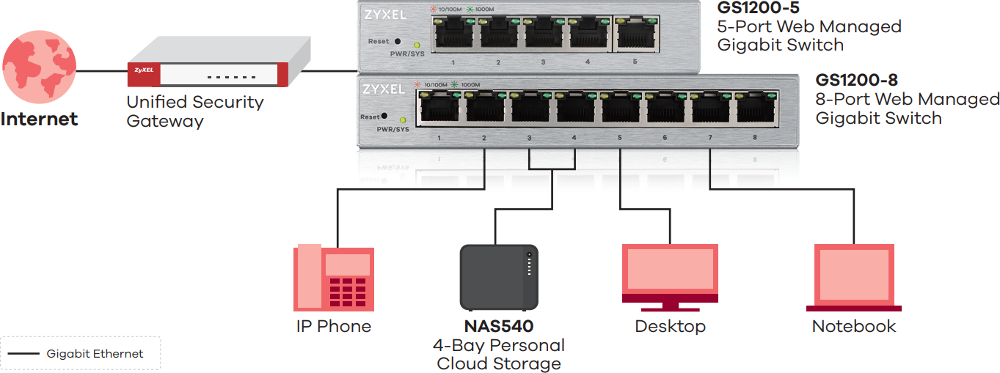

Application Diagram:

Application Diagram


Model GS1200-5 GS1200-8
Product name 5-Port GbE Web Managed Switch 8-Port GbE Web Managed Switch
Port Density
Total port count 5 8
1000BASE-T 5 8
Switching capacity 10 Gbps 16 Gbps
Packet buffer 128 KB 192 KB
MAC address 2K 4K
Jumbo frame 9 KB 9 KB
Power Yes Yes
Per port Yes Yes
Input voltage 5 V DC / 1 A 5 V DC / 1 A
Power supply External External
Maximum power consumption (watt) 2.03 3.31
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
Item Weight (g/lb.)
121 x 75 x 26/4.8 x 3.0 x 1.0
155 x 85 x 26/6.1 x 3.3 x 1.0
Package Dimensions (WxDxH)(mm/in.)
Weight (g/lb.)
127 x 82 x 95/5.0 x 3.2 x 3.7
161 x 90 x 95/6.3 x 3.5 x 3.7
Environmental Specifications
Operating Temperature
Operating Humidity
0°C to 40°C/32°F to 104°F 10% to 90% (non-condensing)
Storage Temperature
Storage Humidity
-40°C to 70°C/-40°F to 158°F 10% to 90% (non-condensing)


Download the Zyxel GS1200-5/GS1200-8 Datasheet (PDF).
