Zyxel GS1350-6HP
5-Port Gigabit PoE+ L2 Web Managed Switch

Overview:

Zyxel introduces the GS1350 Series smart managed switches boasting specialized hardware and software features dedicated to surveillance deployments and applications. With a brand-new titanium grey exterior purpose-built for the surveillance sector, the Series includes four models with large power budgets of up to 375 W. In addition, the GS1350-6HP supports two 802.3bt PoE ports offering a maximum of 60 W per port to fulfill high power consumption PDs such as speed dome or PTZ IP cameras.

• Auto camera recovery
• Large power budget
• Up to 250 meters transmission
• Intuitive PoE usage LED
• Enhanced surge & ESD protection

Benefits:

Advanced PoE management for surveillance

The Zyxel GS1350 Series offers several advanced PoE management features dedicated to surveillance applications. Administrators can access them through the intuitive web-based GUI to manage, monitor and maintain surveillance equipment with ease.

Automated camera recovery

IP-based PDs including cameras from time to time may become malfuntional due to various reasons, like software defect or harrassed by malicious attempts. To reduce the efforts for administrators to recover faulty surveillance devices, the GS1350 Series is capable of detecting and recovering failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.

Continuous power over Ethernet

One of the biggest challenges in surveillance is maintenance. Built with the continuous PoE feature, the GS1350 Series provides uninterrupted power delivery to IP cameras and surveillance devices even if the switch is undergoing maintenance that requires firmware upgrades or reboots due to configuration changes. This greatly reduces the wait time for booting up all the cameras after a power recycle event of a switch.

Unique hardware features

Easy long-distance deployment

Traditionally, PoE switches deliver power and data with a distance limitation of 100 meters or less. The GS1350 Series fulfills the need to deploy IP camera or power devices beyond the limit. With the extended-range mode enabled, the GS1350 Series instantly enables distant deployments of up to 250 meters. Save your money and effort simply with one GS1350 PoE switch.

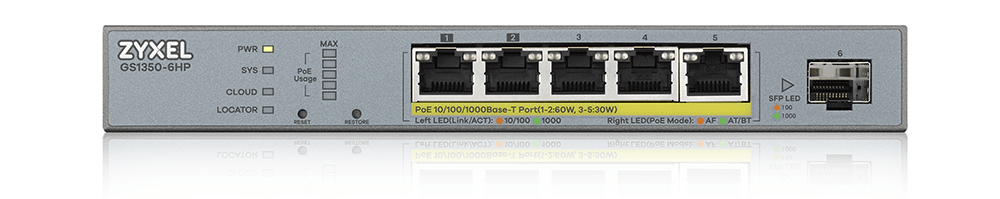

Handy tools on the front panel

The one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations, while its 5-segment LED allows users to instantly identify the PoE power usage. These handy designs are accessible from the front panel for quick, simplified troubleshooting.

Tough protection on every port

Reliability and stability of the Switch are critical to a surveillance network. GS1350’s patented design greatly enhances the surge and ESD (electrostatic discharge) protection on each PoE port, features up to 15 KV ESD and minimum of 4 KV surge protection guarding the switch from damage and network instability due to ESD and lightning surges.

Application Diagram:

Specifications:

	GS1350-6HP	GS1350-12HP	GS1350-18HP	GS1350-26HP
Model
Product name	5-port GbE Smart Managed PoE Switch with GbE Uplink	8-port GbE Smart Managed PoE Switch with GbE Uplink	16-port GbE Smart Managed PoE Switch with GbE Uplink	24-port GbE Smart Managed PoE Switch with GbE Uplink
Switch class	Smart Managed	Smart Managed	Smart Managed	Smart Managed
Port Density
Total port count	6	12	18	26
100/1000 Mbps	5	10	16	24
Gigabit SFP	1	2	-	-
Gigabit combo (RJ-45/SFP)	-	-	2	2
Configurable extended range ports	5	8	16	16
PoE
PoE ports	5	8	16	24
Total PoE budget (watt)	60	130	250	375
PoE Standard	802.3af/at 802.3bt (port 1-2)	802.3af/at	802.3af/at	802.3af/at
Performance
Switching capacity (Gbps)	12	24	36	52
Forwarding rate (Mpps)	8.9	17.8	26.7	38.7
Packet buffer (byte)	525 K	525 K	525 K	525 K
MAC address table	8 K	8 K	8 K	8 K
Input	52 V - 57 V DC	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz
Max. power consumption (watt)	72	160.3	300.9	448.9
Dimensions (WxDxH)(mm/in.)	193 x 84 x 26 / 7.6 x 3.31 x1.02	267 x 162 x 44 / 10.51x 6.38 x1.73	330 x 230 x 44 / 12.99 x 9.06 x1.73	441 x 270 x 44 / 17.36 x10.63 x 1.73
Weight (kg/lb.)	0.41/0.9	1.63/3.59	2.42/5.34	3.58/7.89
Included accessories	Power adapter Wall-mount kit	Power cord Rack mounting kit	Power cord Rack mounting kit	Power cord Rack mounting kit
Ethernet port surge protection	4 KV	4 KV	4 KV	4 KV
Power supply surge protection: Line-GND	4 KV	4 KV	4 KV	4 KV
Power supply surge protection: Line-Line	2 KV	2 KV	2 KV	2 KV
Ethernet port ESD protection (air/contact)	15 KV/8 KV	15 KV/8 KV	15 KV/8 KV	15 KV/8 KV
Operating	Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing)	Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing)	Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing)	Temperature: -20°C to 50°C/-4°F to 122°F Humidity: 5% to 95% (non-condensing)
Storage	Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing)	Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing)	Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing)	Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing)
MTBF (hr)	2,021,885.87	1,065,025.45	1,699,692.18	888,495
Heat dissipation (BTU/hr)	245.52	546.62	1,026.07	1,530.75
Acoustic noise @ 25°C (dBA)	0 (Fanless)	27.3	39	40.1
Features
Standard Compliance	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-Tx Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000 Base-X IEEE 802.3x flow control IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (GS1350-6HP) IEEE 802.3az EEE support / Green Ethernet IEEE 802.1p CoS support
Resilience and Availability	IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.3ad LACP (Max # Trunks/Links per Trunk): GS1350-6HP: 3/6 GS1350-12HP: 6/8 GS1350-18HP: 8/8 GS1350-26HP: 8/8 Loop guard Dual configuration files Dual images
Traffic Control	802.1Q Static VLANs: 256 Port-based VLAN Voice VLAN MAC-based VLAN Vendor ID based VLAN VLAN Trunking LACP algorithm of source/destination IP
Security	Layer 2 MAC filtering Static MAC forwarding SSH v2 SSL Port isolation CPU protection SHA2 HTTPS Certification Login authentication by RADIUS RADIUS accounting Authorization on RADIUS Multiple RADIUS servers DHCP Snooping
Quality of Service (QoS)	802.1p queuing methods: SPQ, WRR, WFQ Storm control: broadcast, multicast, unknown unicast (DLF) Port-based rate limiting (ingress/egress) 802.3x flow control 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable) DiffServ (DSCP)
Layer 2 Multicast	L2 Multicast Static L2 Multicast Forwarding IGMP snooping (v1,v2,v3) IGMP snooping normal leave IGMP snooping fast leave Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering IGMP querier mode IGMP proxy mode & snooping mode selection
Manageability	SNMP v1,v2c, v3 SNMP trap group RMON (1,2,3,9) ICMP echo/echo reply Syslog Display port utilization IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default
PoE Management	Power-up mode selection Scheduled PoE Neighbor PD detection Auto PD recovery Continuous PoE Extended range* PoE consumption/classification modes Port PoE Priority Customizable maximum power per port PoE Wide range detection LLDP-Power via MDI * Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
IPv6 Management	IPv6 over Ethernet (RFC 2464) IPv6 addressing architecture (RFC 4291) Dual stack (RFC4213) ICMPv6 (RFC4884) Path MTU (RFC 1981) Minimum Path MTU size of 1280 (RFC 5905) Encapsulation for maximum PMTU size of 1500 Neighbor Discovery (RFC4861)
Device Management	Web interface Setup Wizard Full managed CLI through Telnet/SSHv2 Management through Web, SNMP Remote firmware upgrade by FTP/Web Configuration saving and retrieving Configure clone DHCP client DHCP relay per VLAN Daylight saving NTP (IPv4/IPv6) Port mirroring Restore to last custom default
MIB	Zyxel private common MIB RFC 1066 TCP/IP-based MIB RFC 1213, 1157 SNMPv2c/v3 MIB RFC 1493 bridge MIB RFC 1643 Ethernet MIB RFC 1757 RMON group 1,2,3,9 RFC 2011, 2012, 2013 SNMPv2 MIB RFC 2233 SMIv2 MIB RFC 2358 Ethernet-like MIB RFC 2674 bridge MIB extension RFC 2819, 2925 Remote Management MIB RFC 3621 Power Ethernet MIB RFC 4293 Management Information Base (MIB) for IP RFC 4292 IP forwarding table MIB RFC 4022 management information base for transmission control protocol RFC 4113 management information base for user datagram protocol
Zyxel One Network	ZON Utility Discovery of Zyxel switches, APs and gateways Centralized and batch configurations: IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Password configuration One-click quick association with Zyxel AP Configurator (ZAC) Automatic detection of the latest firmware Displays device serial number and hardware version Cloud mode on/off option for Hybrid series devices Smart Connect Discover neighboring devices One-click remote management access to the neighboring Zyxel devices Reset neighboring devices remotely to factory defaults Power cycle neighboring powered devices (PoE switches only)
Certifications	EMC: CE, FCC, C-Tick, Class A BSMI CNS13438 Safety: LVD EN62368-1 BSMI CNS14336-1 RoHS compliant
Installation Features	Ethernet port lightning surge protection Power supply lightning surge protection ESD(electrostatic discharge) protection Extended range of up to 250 meters* Fixed link speed at 10 Mbps Limited to 802.af PDs and cameras * Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.

Documentation:

Download the Zyxel GS1350 Series Datasheet (PDF).
