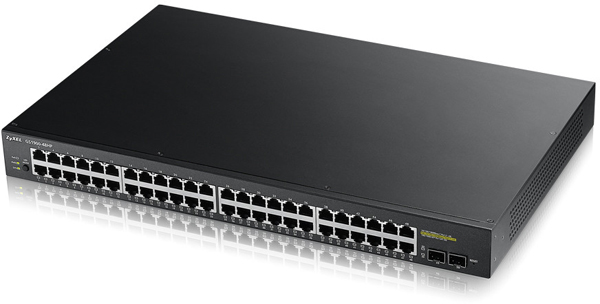

Zyxel GS1900-48HP
48-port GbE Smart Managed PoE Switch with GbE Uplink
Sorry, this product is no longer available, replaced by the GS1900-48HPV2.
Overview:
Simple, Fast and Smart Managed Switches for Small Business Connectivity
The Zyxel GS1900 Series of 8/10/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more flexibility and connectivity. The 1900 Series consists of nine (9) models—the GS1900-8, GS1900-8HP, GS1900-10HP, GS1900- 16, GS1900-24E, GS1900-24, GS1900-24HP, GS1900-48 and GS1900-48HP. Providing GbE switches with power-saving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. In addition, the PoE models GS1900-8HP/10HP/24HP/48HP Gigabit switch complies with the IEEE 802.3at Power over Ethernet (PoE) Plus standard. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your office environments.
- 10/100/1000 Mbps GbE ports
- Easy browser-based switch management
- Quick and easy set up wizard
- Advanced network error prevention features (loop protection, dual images, storm control, DoS and SSL)
- Fanless design (GS1900-8/8HP/10HP/16/24/24E)
- Green Ethernet IEEE 802.3az support and intelligent Zyxel green features
- High-power PoE support IEEE 802.3at (GS1900- 8HP/10HP/24HP/48HP)
- Limited life-time warranty*
- Zyxel One Network is supported
Benefits:
Versatility and flexibility for different needs
The complete Zyxel GS1900 Series has an essential portfolio of 8/10/16/24/48-port compact desktop and rackmount size with GbE connectivity. All models support multiple deployment methods to fulfill the needs for small offices and meeting room environments such as wall-, under table- or desktop-mounting and rackmount options*1. It’s now quick and effortless to enjoy the high-speed business network applications without a hitch. Additionally, the GS1900-10HP/24/24HP/48/48HP is equipped with 2 extra SFP slots to provide 100M and GbE speeds for long-distance deployments.
The GS1900-8HP/10HP/24HP/48HP features IEEE 802.3at PoE Plus with up to 30 W powers per port to flexibly extend network deployment, especially for high-power devices such as Wi-Fi APs, IP cams and IP phones. The 802.3at PoE Plus capability makes the switch ideal for connecting numerous powered devices to form a flawless business network.
Zyxel ONE Network experience
Aiming for relieving our customers from repetitive operations of deploying andmanaging a network, Zyxel ONE Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. Zyxel ONE Network presents an easy-to-use tool, Zyxel ONE Network Utility (ZON Utility), to realize speed network setup. Zyxel Smart Connect** allows Zyxel networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. Zyxel ONE Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
Simple, intuitive wizard set up
For small businesses that want to manage their infrastructure in advance, the Zyxel GS1900 Series comes with a friendly built-in Web-based browser for simple configuration and management. Moreover, the friendly step-by-step intuitive wizard helps avoiding multiple complicated configuration pages for quick set up with few clicks in the matter of minutes. To guide the users from start-up, VLAN, Guest VLAN to QoS setting, the Zyxel Series offers four most common steps and combines them into a quick and easy setup wizard; which does not just save deployment time and efforts, but is also helpful especially for the non-IT staff.
Avoiding network errors with easy management
The Zyxel GS1900 Series is equipped with advanced management features to make the network stable and secure: loop protection that prevents network flooding, dual images to provide a backup FW if one crashes and storm control to ensure network efficiency, friendly on/off DoS with simple click to enable/disable instead of several setup pages, while SSL ensures the management frames are well encrypted when the device is accessed. The GS1900 Series provides network error prevention features and integrated network security for reduced risk and improved data streaming.
Energy saving for IEEE 802.3az
As operating overheads such as electric bills increase constantly due to the arising green awareness, businesses have to avoid unnecessary energy waste. The built-in IEEE 802.3az Energy Efficient Ethernet (EEE) and more Zyxel innovative green features of Zyxel GS1900 Series can reduce energy consumption of Ethernet devices through multiple intelligent ways.
- Traffic detection—Energy Efficient Ethernet (EEE) compliance
The IEEE 802.3az Energy Efficient Ethernet (EEE) feature automatically detects network traffic and adjusts power consumption dynamically, as such the switch can reduce power consumption during low link utilization periods. - Inactive link detection
The inactive link detection function automatically reduces power usage when inactive links or devices are detected. The Zyxel GS1900 Series can adjust power consumption according to the link status and number of the active network devices. - Cable length detection
This green feature enables the switch to automatically detect the length of connected Ethernet cables and adjust power usage accordingly. The shorter the cable length, the less power it consumes.
Intelligence to power more devices (GS1900-8HP/24HP/48HP)
Zyxel’s Intelligent PoE feature provides two PoE supply modes: classification mode and consumption mode. Especially in consumption mode, the GS1900-8HP/24HP/48HP reserves the actual required power automatically, and you can set power feeding priorities on different ports to get the optimized use of power resource. This capability increases the number of devices connected and deliver a better ROI for the business. In addition, the GS1900-8HP supports the IEEE 802.3at standard on all 8 ports, providing a maximum of 30 watts per port, total 70 watts. Besides, the GS1900-24HP and 48HP both provide 170 watts of total budget power for devices with higher power requirements such as IP phones, IP cameras and wireless access points.
* Rack mountable (16-, 24- and 48-port models)
Key Applications:
Specifications:
| Model | GS1900-8 | GS1900-8HP | GS1900-10HP | GS1900-16 | GS1900-24E | |
|---|---|---|---|---|---|---|
| Product name | 8-port GbE Smart Managed Switch | 8-port GbE Smart Managed PoE Switch | 8-port GbE Smart Managed PoE Switch with GbE Uplink | 16-port GbE Smart Managed Switch | 24-port GbE Smart Managed Switch | |
 |
 |
|
 |
 |
||
| Port Density | ||||||
| 10/100/1000 BASE-T, fixed | 8 | - | - | 16 | 24 | |
| 10/100/1000 BASE-T, PoE, fixed | - | 8 | 8 | - | - | |
| SFP 100/1000 Mbps | - | - | 2 | - | - | |
| Performance | ||||||
| Switching capacity (Gbps) | 16 | 16 | 20 | 32 | 48 | |
| Switch forwarding rate (Mpps) | 11.9 | 11.9 | 14.88 | 23.8 | 35.7 | |
| Packet buffer (byte) | 525 K | 525 K | 525 K | 525 K | 525 K | |
| MAC address | 8 K | 8 K | 8 K | 8 K | 8 K | |
| Jumbo frame (byte) | 9 K | 9 K | 9 K | 9 K | 9 K | |
| Power | ||||||
| Input voltage of AC | 100 - 240 V AC, 50/60 Hz | |||||
| Max. power consumption (watt) | 6.5 | 90 | 96.2 | 11 | 14.6 | |
| PoE power budget (watt) | - | 70 | 77 | - | - | |
| Physical Specifications | ||||||
| Item Dimensions (WxDxH) (mm/in.) | 250 x 104 x 27/9.84 x 4.10 x 1.06 | 250 x 104 x 27/9.84 x 4.10 x 1.06 | 250 x 104 x 27/9.84 x 4.10 x 1.06 | 216 x 133 x 42/8.50 x 5.23 x 1.65 | 267 x 162 x 42/10.51 x 6.37 x 1.65 | |
| Item Weight (kg/lb.) | 0.65/1.43 | 0.72/1.57 | 0.72/1.59 | 0.97/2.13 | 1.56/3.44 | |
| Packing Dimensions (WxDxH) (mm/in.) | 302 x 227 x 64/11.89 x 8.94 x 2.52 | 302 x 227 x 64/11.89 x 8.94 x 2.52 | 302 x 227 x 64/11.89 x 8.94 x 2.52 | 325 x 223 x 71/12.80 x 8.78 x 2.80 | 325 x 223 x 71/12.80 x 8.78 x 2.80 | |
| Packing Weight (kg/lb.) | 1.04/2.30 | 1.51/3.33 | 1.53/3.37 | 1.80/3.97 | 2.05/4.52 | |
| Included accessories | Power adapter, Wall mount kit | Power cord, Power adapter, Wall mount kit | Power cord, Power adapter, Wall mount kit | Power cord, Power adapter, Wall mount kit | Power cord, Power adapter, Wall mount kit | |
| Green Feature | ||||||
| Fanless | Yes | Yes | Yes | Yes | Yes | |
| Environmental Specifications | ||||||
| Operating temperature | 0°C to 50°C/32°F to 122°F | |||||
| Storage temperature | -40°C to 70°C/-40°F to 158°F | |||||
| Operating humidity | 10% to 95% (non-condensing) | |||||
| MTBF (hr) | 862,561 | 926,199 | 801,113 | 843,668 | 804,714 | |
| Heat dissipation (BTU/hr) | 22.17 | 306.90 | 65.472 | 37.51 | 49.79 | |
| Acoustic noise (dBA) | 0 | 0 | 0 | 0 | 0 | |
| Model | GS1900-24 | GS1900-24HP | GS1900-48 | GS1900-48HP | |
|---|---|---|---|---|---|
| Product name | 24-port GbE Smart Managed Switch with GbE Uplink | 24-port GbE Smart Managed PoE Switch with GbE Uplink | 48-port GbE Smart Managed Switch with GbE Uplink | 48-port GbE Smart Managed PoE Switch with GbE Uplink | |
 |
 |
 |
 |
||
| Port Density | |||||
| 10/100/1000 BASE-T, fixed | 24 | - | 48 | 24 | |
| 10/100/1000 BASE-T, PoE, fixed | - | 24 | - | 24 | |
| SFP 100/1000 Mbps | 2 | 2 | 2 | 2 | |
| Performance | |||||
| Switching capacity (Gbps) | 52 | 52 | 100 | 100 | |
| Switch forwarding rate (Mpps) | 39 | 39 | 74 | 74 | |
| Packet buffer (byte) | 525 K | 525 K | 1.5 M | 1.5 M | |
| MAC address | 8 K | 8 K | 8 K | 8 K | |
| Jumbo frame (byte) | 9 K | 9 K | 9 K | 9 K | |
| Power | |||||
| Input voltage of AC | 100 - 240 V AC, 50/60 Hz | ||||
| Max. power consumption (watt) | 16 | 215 | 36.9 | 250 | |
| PoE power budget (watt) | - | 170 | - | 170 | |
| Physical Specifications | |||||
| Item Dimensions (WxDxH) (mm/in.) | 440 x 131 x 44/17.32 x 5.16 x 1.73 | 440 x 310 x 45/17.32 x 12.20 x 1.77 | 440 x 200 x 44/17.32 x 7.87 x 1.73 | 440 x 330 x 45/17.32 x 13 x 1.77 | |
| Item Weight (kg/lb.) | 2.09/4.60 | 4.03/8.88 | 2.9/6.39 | 4.24/9.35 | |
| Packing Dimensions (WxDxH) (mm/in.) | 561 x 217 x 82/21.97 x 8.54 x 3.23 | 583 x 451 x 98/22.95 x 17.76 x 3.86 | 509 x 292 x 93/20.03 x 11.50 x 3.66 | 583 x 451 x 98/22.95 x 17.76 x 3.86 | |
| Packing Weight (kg/lb.) | 2.85/6.28 | 5.1/11.24 | 4.3/9.48 | 5.31/11.70 | |
| Included accessories | Power cord, Rack mounting kit | Power cord, Rack mounting kit | Power cord, Rack mounting kit | Power cord, Rack mounting kit | |
| Green Feature | |||||
| Fanless | Yes | - | - | - | |
| Environmental Specifications | |||||
| Operating temperature | 0°C to 50°C/32°F to 122°F | ||||
| Storage temperature | -40°C to 70°C/-40°F to 158°F | ||||
| Operating humidity | 10% to 95% (non-condensing) | ||||
| MTBF (hr) | 432,673 | 318,142 | 229,313 | 175,767 | |
| Heat dissipation (BTU/hr) | 55 | 787.71 | 108.77 | 853 | |
| Acoustic noise (dBA) | 0 | 48.7 | 38.2 | 49.9 | |
Features:
Standard Compliance
Resilience and Availability
Traffic Management and QoS
Class of Service (CoS)
Security
|
Layer 2 Multicast
IPv6
Discovery
Network Management
MIB
Certifications
Zyxel One Network
|
Documentation:
Download the Zyxel GS1900 Series Datasheet (PDF).
