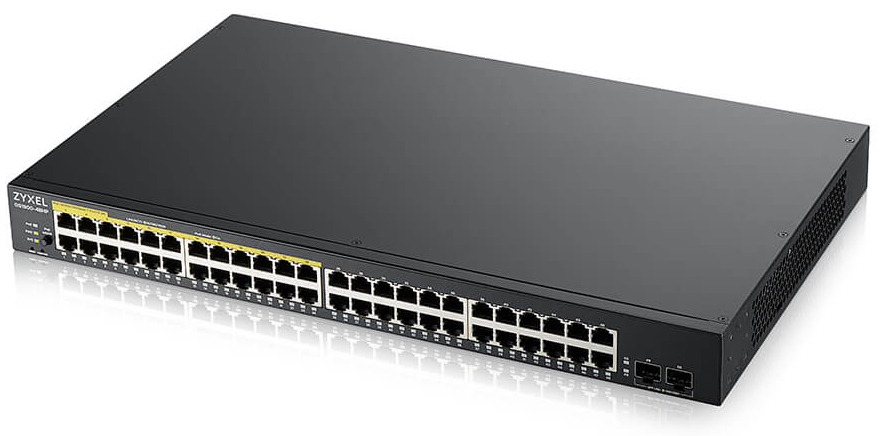

Zyxel GS1900-48HPV2
48-port GbE Smart Managed PoE Switch with GbE Uplink

Zyxel GS1900-48HPV2

GS1900-48HPV2 hardware is backordered indefinitely and cannot be purchased, please check Switches for a viable in-stock replacement, please contact us for further assistance.


Zyxel Products
Zyxel GS1900 Series
GS1900-48HPV2 - 48-port GbE Smart Managed PoE Switch with GbE Uplink
*Backorder
#GS1900-48HPV2
Our Price: $629.99

Click here to jump to more pricing!


Overview:

The Zyxel GS1900 Series offers 8/10/16/24/48-port GbE Smart Managed Switch with Gigabit speed and essential managing functions that bring flexibility and connectivity to your business network. The GS1900 Series provides power-saving functions and full IPv6 support to ensure your network to be ready for future expansions. In addition, the PoE models support the IEEE 802.3at providing a maximum of 30 watts per port. The smart fan and fanless designs of the GS1900 Series empower your networks with silent operation in your office.

  • Smart fan and fanless design offer near silent operations in both desktop and rack-mount environment
  • Easy browser-based switch management, with quick and easy set up wizard
  • Manage advanced features easily through user-friendly web interface
  • Intelligent IEEE 802.3at PoE+ allows to power more devices

Benefits:

Versatility and flexibility for different needs

The complete Zyxel GS1900 Series has an essential portfolio of 8/10/16/24/48- port compact desktop and rackmount size with GbE connectivity. All models support multiple deployment methods to fulfill the needs for small offices and meeting room environments such as wall, under table or desktop mounting and rackmount options. It’s now quick and effortless to enjoy the high-speed business network applications without a hitch. Additionally, the GS1900-10HP/ 24/24HPv2/48/48HPv2 is equipped with 2 extra SFP slots to provide 100M and GbE speeds for long-distance deployments.

Experience whisper-silent operations

The GS1900 Series includes fanless and built-in smart fan models. The smart fan is designed to automatically adjust speeds based on the device temperature, offering near silence while the GS1900 Series is in operation. Ideal for your office environment no matter if it’s on the desktop or mounted on a rack.

Simple, intuitive wizard set up

For small businesses that want to manage their infrastructure in advance, the Zyxel GS1900 Series comes with a friendly built-in Web-based browser for simple configuration and management. Moreover, the friendly step-by-step intuitive wizard helps avoiding multiple complicated configuration pages for quick set up with few clicks in the matter of minutes. To guide the users from start-up, VLAN, Guest VLAN to QoS setting, the Zyxel Series offers four most common steps and combines them into a quick and easy setup wizard; which does not just save deployment time and efforts, but is also helpful especially for the non-IT staff.

Intelligence to power more devices (PoE models)

PoE models of GS1900 Series support IEEE 802.3at providing a maximum of 30 W per port features with default PoE consumption mode to deliver only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business.

Web managed with advanced features

Designed to support advanced features like VLAN (for segregation of your public and private networks), enhanced Quality of Service (for better bandwidth management), IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention, this switch helps you segregate and prioritize traffic streams and keep up with your network as it grows.

Plug into the power of the Zyxel One Network

Aiming for relieving our customers from repetitive operations of deploying and managing a network, Zyxel One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. Zyxel One Network presents an easy-to-use tool, Zyxel One Network Utility (ZON Utility), to realize speed network setup. It is a unified installation tool to discover and configure Zyxel Switches, WLAN and Gateways in the network. Users can easily maintain the network in a single platform.

Key Applications:

Key Applications

Specifications:


Model GS1900-48HPV2
Product name 48-port GbE Smart Managed PoE Switch with GbE Uplink
  GS1900-24hpv2
Port Density
Total Port Count 50
100/1000 Mbps 48
SFP 100/1000 Mbps 2
PoE
802.3at PoE ports 24
Total PoE budget (Watts) 170
Performance
Switching capacity (Gbps) 100
Forwarding rate (Mpps) 74
Packet buffer (byte) 525 K
MAC address 8 K
Jumbo frame (byte) 9 K
Power
Input voltage of AC 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 220.5
Physical Specifications
Item Dimensions (WxDxH) (mm/in.) 441 x 270 x 44/ 17.36 x 10.63 x 1.7
Item Weight (kg/lb.) 3.55/7.83
Packing Dimensions (WxDxH) (mm/in.) 622 x 358 x 108/ 24.49 x 14.09 x 4.25
Packing Weight (kg/lb.) 5.04/11.11
Included accessories Power cord, Rack mounting kit
Environmental Specifications
Operating temperature 0°C to 50°C/32°F to 122°F
Storage temperature -40°C to 70°C/-40°F to 158°F
Operating humidity 10% to 95% (non-condensing)
MTBF (hr) 612,215
Heat dissipation (BTU/hr) 747.9
Acoustic noise (dBA) 27.8/36.9

Features:

GS1900 Series
Standard Compliance
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Ethernet
  • IEEE 802.3ab (1000BASE-T) Ethernet
  • IEEE 802.3x flow control
  • IEEE 802.3az EEE support
  • IEEE 802.1p CoS support
  • IEEE 802.3af PoE (GS1900-8HP/10HP/24HP/48HP)
  • IEEE 802.3at PoE plus (GS1900-8HP/10HP/24HP/48HP)
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure
  • Store and forward
  • Auto MDI/MID-X

Resilience and Availability

  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.3ad LACP
  • Dual configuration files
  • Dual images

Traffic Management and QoS

  • IEEE 802.1Q VLAN tagging
  • IEEE 802.3ad LACP
  • Guest VLAN
  • Voice VLAN
  • Storm control
  • IEEE 802.1p priority queues per port
  • IEEE 802.1p Queuing method (scheduler)
  • Input priority mapping
  • Rate limiting per port (ingress/egress)
  • IEEE 802.3x flow control

Class of Service (CoS)

  • IEEE 802.1p class of service (SPQ, WRR)
  • Port-based CoS
  • IP TOS precedence

Security

  • IEEE 802.1x
  • Port security
  • Layer 2 MAC filtering
  • Static MAC forwarding
  • RADIUS
  • TACACS+
  • SSL
  • Management VLAN
  • CPU defense engine
  • DoS prevention

IPv6

  • IPv6 over Ethernet (RFC 2464)
  • Dual-stack (RFC 4213)
  • ICMPv6 (RFC 4884)
  • Neighbor discovery (RFC 4861)
  • Auto configuration
  • Static IPv6 address and prefix length
  • Static IPv6 default gateway
  • IPv6 duplicate address detection
Layer 2 Multicast
  • IGMP snooping (v1, v2, v3)

Manageability

  • SNMP v1, v2, v3
  • RMON (1, 2, 3, 9)
  • ICMP echo/echo reply
  • Syslog
  • IEEE 802.1AB LLDP
  • IEEE 802.1AB LLDP-MED
  • New for V2.60 LLDP-Power via MDI

MIB

  • RFC 1213 MIB II
  • RFC 2819 RMON (group 1, 2, 3, 9)
  • RFC 1215 generic traps
  • RFC 1493 bridge
  • Zyxel private common MIB

Device Management

  • Web interface
  • Remote firmware upgrade by Web
  • Configuration saving and retrieving
  • Firmware upgrade via SNMP
  • DHCP client
  • Daylight saving
  • NTP
  • Port mirroring
  • Scheduled PoE
  • PoE default consumption mode
  • Time range group for scheduled PoE
  • Certifications

    • EMC
      • CE, FCC, C-Tick, Class A (GS1900-24/24HP/48/48HP)
      • CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E)
      • BSMI CNS13438
    • Safety
      • LVD EN60950-1
      • BSMI CNS14336-1
      • CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24)
    • RoHS compliant

    Zyxel One Network

    • ZON Utility
      • Discovery of Zyxel switches, APs and gateways
      • Centralized and batch configurations
        • IP configuration
        • IP renew
        • Device factory reset
        • Device reboot
        • Device locating
        • Web GUI access
        • Firmware upgrade
        • Password configuration
        • One-click quick association with Zyxel AP Configurator (ZAC)

        Warranty

          Limited Time Warranty

    Documentation:

    Download the Zyxel GS1900 -24HPV2 Datasheet (PDF).
