Zyxel 24-Port GbE L2 Managed Switch (PoE)
GS2220-28HP

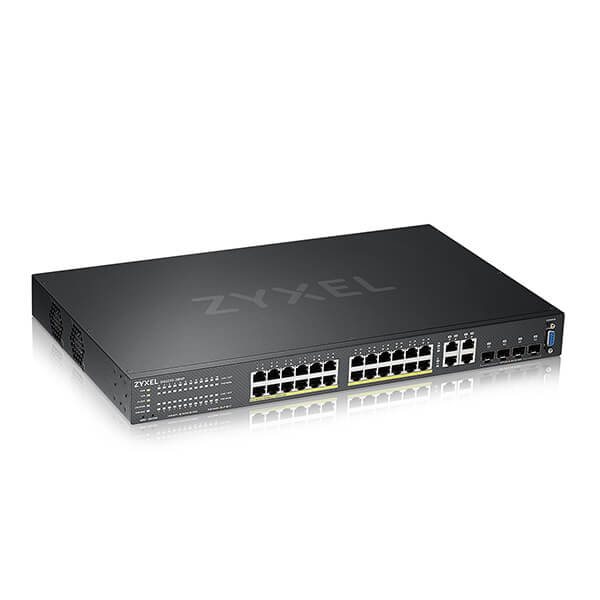

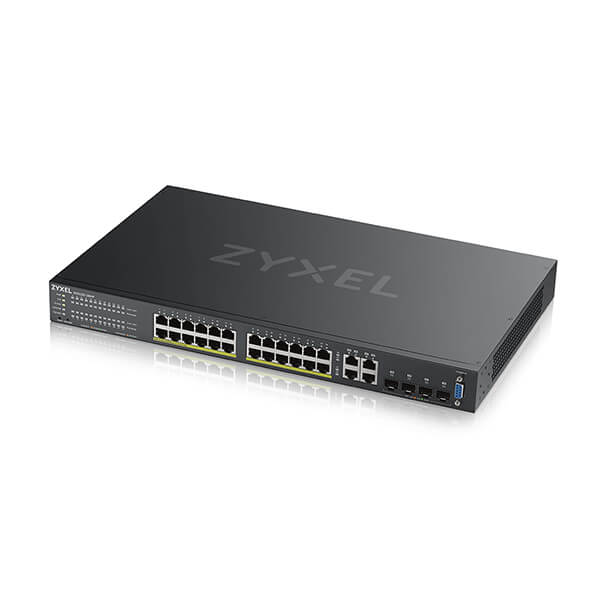

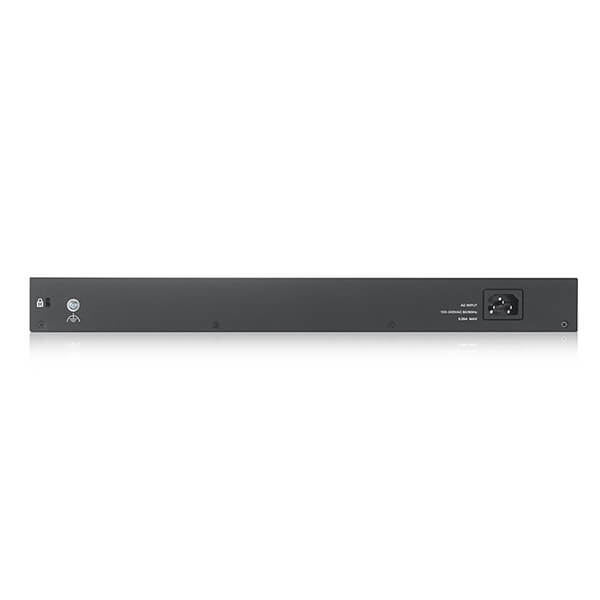

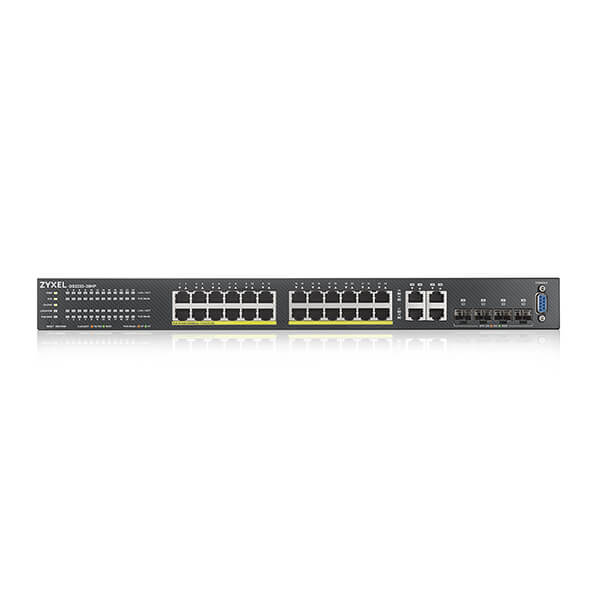

Zyxel GS2220-28HP Front Left Zyxel GS2220-28HP Front Zyxel GS2220-28HP back Zyxel GS2220-28HP iso Left
Zyxel GS2220-28HP
Zyxel Products
Zyxel GS2220-28HP
24- Port Gigabit POE+ Managed Switch + 1YR Nebula Pro
#GS2220-28HP
List Price: $1,049.99
Our Price: $749.99

Overview:


Tri Mode Switch

Industry first
tri-mode switch

The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNM


Powerful L2 features

The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses, and educational institutions greater agility and more effective traffic management for the converged applications of today.

Powerful Image

Networked AV

Tailor-made experience for Networked AV

An intuitive wizard that prompts for high level requirement for network infrastructure, follow up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompany with condensed function menu help you manage and monitor the system with ease.


Manage it your way!

The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.


Manage it your way

Flexible port combination

The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.


Flexible Port Combinations

Features:

Item Features
Standard Compliance
  • IEEE 802.3u 100BASE-TX Ethernet*
  • IEEE 802.3ab 1000BASE-T Ethernet*
  • IEEE 802.3z 1000BASE-X*
  • IEEE 802.3af PoE*
  • IEEE 802.3at PoE plus*
  • IEEE 802.3az EEE*
  • IEEE 802.3x flow control
  • IEEE 802.1AB LLDP/LLDP-MED
  • IEEE 802.3ad LACP aggregation*
  • IEEE 802.1D Spanning Tree Protocol (STP)*
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.1Q VLAN tagging
  • IEEE 802.1p Class of Service (CoS) prioritization*
  • IEEE 802.1X port authentication*
* Cloud and standalone modes supported features
Resilience and Availability
  • IEEE 802.1D Spanning Tree Protocol (STP)*
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.3ad LACP
  • Loop guard*
  • Root guard
  • BPDU guard
  • ErrDisable recovery
  • MRSTP (Zyxel Proprietary)
  • Dual configuration files
  • Dual images*
* Cloud and standalone modes supported features
Traffic Control
  • 802.1Q static VLANs*/dynamic VLANs: 1 K/4 K
  • Port-based VLAN
  • Protocol-based VLAN
  • IP subnet-based VLAN
  • MAC-based VLAN
  • Private VLAN
  • Voice VLAN*
  • Vendor ID based VLAN*
  • VLAN ingress filtering
  • LACP algorithm of source/ destination IP or MAC
  • GVRP
  • L2PT
* Cloud and standalone modes supported features
Security
  • Port security*
  • Layer 2 MAC filtering
  • Layer 3 IP filtering
  • Layer 4 TCP/UDP socket filtering
  • Static MAC forwarding
  • Multiple RADIUS servers*
  • Multiple TACACS+ servers
  • 802.1x VLAN and 802.1p assignment by RADIUS
  • Login authentication by RADIUS
  • Login authentication by TACACS+
  • TACACS+ accounting
  • RADIUS accounting
  • Authorization on RADIUS
  • Authorization on TACACS+
  • SSH v2
  • SSL
  • MAC freeze
  • DHCP snooping IPv4
  • DHCP snooping IPv6
  • ARP inspection
  • Static IP-MAC-Port binding
  • Policy-based security filtering
  • Port isolation
  • IP source guard (IPv4/IPv6)
  • MAC search*
  • Guest VLAN*
  • ACL packet filtering (IPv4/IPv6)
  • CPU protection
  • Interface related trap enable disable (by port)
  • MAC-based authentication per VLAN
* Cloud and standalone modes supported features
Quality of Service (QoS)
  • No. of hardware queues per port: 8*
  • Storm control and event log: Broadcast, multicast, unknown unicast (DLF)*
  • Port-based rate limiting* (ingress/ egress)
  • Rate limiting per IP/TCP/UDP per port
  • Policy-based rate limiting
  • 802.3x flow control
  • 802.1p Class of Service (SPQ, WFQ, WRR, hybrid-SPQ combination capable)
  • DiffServ (DSCP)
* Cloud and standalone modes supported features
Layer 2 Multicast
  • L2 multicast*
  • IGMP snooping (v1, v2, v3)*
  • IGMP snooping fast leave*
  • Configurable IGMP snooping timer and priority*
  • IGMP snooping statistics*
  • IGMP throttling*
  • MVR support
  • IGMP filtering*
  • IGMP snooping immediate leave*
  • IGMP proxy mode & snooping mode selection*
  • MLD snooping
* Cloud and standalone modes supported features
Manageability
  • SNMP v1, v2c, v3
  • SNMP trap group
  • RMON (1, 2, 3, 9)
  • ICMP echo/echo reply
  • Syslog*
  • IEEE 802.1AB LLDP
  • Cloud support on V4.70 IEEE 802.1AB LLDP-MED*
  • Custom default
  • Syslog (IPv4/IPv6)
  • Display port utilization*
  • Support NebulaFlex Pro for Cloud Management
* Cloud and standalone modes supported features
IPv6 Management
  • IPv6 over Ethernet (RFC 2464)
  • IPv6 addressing architecture (RFC 4291)
  • Dual stack (RFC 4213)
  • ICMPv6 (RFC 4443)
  • Path MTU (RFC 1981)
  • Minimum path MTU size of 1280 (RFC 5095)
  • Encapsulation for maximum PMTU of 1500
  • Neighbor discovery (RFC 4861)
  • DHCPv6 relay
  • Default DHCP client mode*
* Cloud and standalone modes supported features
Device Management
  • Standalone management by Web interface
  • Cloud management by Nebula Control Center*
  • Zyxel iStackingTM
  • Web interface
  • Management through Console, Telnet, SNMP
  • Remote firmware upgrade by FTP/ Web/TFTP
  • New for V4.70 Networked AV mode by Web Interface
  • Configuration saving and retrieving*
  • Multiple logins supported
  • Configure clone*
  • Multilevel CLI
  • CLI (Cisco-like)
  • DHCP relay per VLAN
  • DHCP client IPv4*
  • DHCP client IPv6
  • DHCP option 82
  • New for V4.70 Auto PD Recovery
  • Daylight saving*
  • NTP supports IPv4/IPv6
  • Port mirroring*
  • RS-232 out-of-band console port
  • Scheduled PoE*
  • PoE default consumption mode*
  • Restore to last custom default
* Cloud and standalone modes supported features
MIB
  • Zyxel new private MIB
  • RFC 1066 TCP/IP-based MIB
  • RFC 1213, 1157 SNMPv2c/v3 MIB
  • RFC 1493 bridge MIB
  • RFC 1643 Ethernet MIB
  • RFC 1757 RMON group 1, 2, 3, 9
  • RFC 2011, 2012, 2013 SNMPv2 MIB
  • RFC 2233 SMIv2 MIB
  • RFC 2358 Ethernet-like MIB
  • RFC 2674 bridge MIB extension
  • RFC 2819, 2925 remote management MIB
  • RFC 3621 power Ethernet MIB
  • RFC 4022 management information base for transmission control protocol
  • RFC 4113 management information base for user datagram protocol
  • RFC 4292 IP forwarding table MIB
  • RFC 4293 Management Information Base (MIB) for IP
  • Cable diagnostic MIB
Certifications

Safety

  • LVD
  • BSMI

EMC

  • FCC Part 15 (Class A)
  • CE (Class A)
  • BSMI ENC

RoHS

  • Level A
Zyxel One Network

ZON Utility*

  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Password configuration
    • One-click quick association with Zyxel AP Configurator (ZAC)
  • Automatic detection of the latest firmware
  • Displays device serial number and hardware version
  • Cloud mode on/off option for Hybrid series devices
* Cloud and standalone modes supported features

Smart Connect

  • Discover neighboring devices
  • One-click remote management access to the neighboring Zyxel devices
  • Reset neighboring devices remotely to factory defaults
  • Power cycle neighboring powered devices (PoE switches only)
Limited life-time warranty
  • Warranty terms, service availability, and service response times may vary from country or region to country or region

Application Diagram:


Application Diagram

Specifications:

Model
GS2220-28
GS2220-28HP
GS2220-50
GS2220-50HP
Description
Product name 24-port GbE L2 Switch with GbE Uplink 24-port GbE L2 PoE Switch with GbE Uplink 48-port GbE L2 Switch with GbE Uplink 48-port GbE L2 PoE Switch with GbE Uplink
Layer 2 Layer 2 Layer 2 Layer 2 Layer 2
Port Density
Total port count 28 28 50 50
100/1000 Mbps 24 24 44 44
Gigabit Combo (RJ-45/SFP) 4 4 4 4
Gigabit SFP - - 2 2
PoE
802.3at PoE ports - 24 - 48
Total PoE budget (watts) - 375 - 375
Performance
Switching capacity (Gbps) 56 56 100 100
Forwarding rate (Mpps) 42 42 74 74
Packet buffer (byte) 1.5 M 1.5 M 1.5 M 1.5 M
MAC address table 16 K 16 K 16 K 16 K
Flash/RAM (MB) 32/256 32/256 32/256 32/256
Power
Input 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt) 22.5 463.5 36.9 474.3
Physical Specifications
Dimensions (WxDxH)(mm/in.) 441 x 131 x 44/ 17.36 x 5.16 x 1.73< 441 x 270 x 44/ 17.36 x 10.63 x 1.73 440 x 200 x 44.5/ 17.32 x 7.87 x 1.75 441 x 270 x 44/ 17.36 x 10.63 x 1.73
Weight (kg/lb.) 2.2/4.85 3.8/8.38 2.9/6.39 4.1/9.04
Environmental Specifications
Acoustic noise (min/max, dBA) 0 27.2/49.8 23.6/47.3 26.5/49.5

Documentation:

Download the Zyxel GS2220-28HP Datasheet (PDF).
