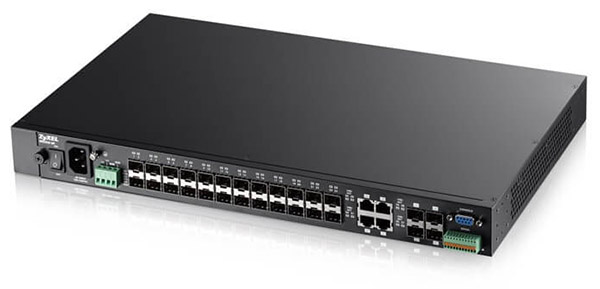

Zyxel MGS3520-28F Discontinued
24-Port GbE Layer 2 Fiber Switch

Overview:

Telco-class Layer 2 Gigabit Carrier Ethernet Switch

The MGS3520 Series GbE L2 Managed Switch is specially designed for service providers to deliver profitable Ethernet services. With the high-performance hardware platform, service providers can easily extend network topologies while enabling robust security, QoS and management functions to help customers fulfilling differentiated needs for Metro Ethernet services.

• Front access design; external alarm input/output block
• Fully managed Layer 2 switching solution
• IPTV, L2 multicast, IGMP snooping, and MVR for convergence
• Enhanced network protection with IP source guard, DHCP snooping, ARP inspection, CPU protection
• L2, L3, and L4 filtering, MAC freeze, port isolation for access control
• Future-proofed with IPv6 support
• Policy-based QoS optimizes multiservice quality
• High redundancy and resilient architecture with RSTP and port trunking
• Remote configuration & management via IEEE 802.3ah (OAM)
• Tiered service provisioning: the build-in rate limiting feature to control both ingress and egress date rate

Benefits:

Advanced QoS for significant services

Consistent service quality and reliable connecting ability in a converged network is the key for service providers to win customers and build loyalty; therefore the ability to control traffic flow and set traffic policy becomes more critical than ever. The MGS3520 Series offers wire-speed flow control that classifies and prioritizes the incoming packets according to the predefine QoS policies that meet requirements of service providers.

In terms of classification, the Differentiated Services Code Point (DSCP) field and the 802.1p class of service (CoS) field are identified to assess the priority of incoming packets. Classification and reclassification can be based on criteria as specific as rules based on IP, MAC addresses, VLAN ID or TCP/ UDP port number. For bandwidth management, the MGS3520 Series provides 8 priority queues per port for different types of traffics, allowing service providers to set rule-based rate limitations that take full advantage of constrained network resources and guarantee the best performance.

Enhanced security for protection among customers

Avoiding subscribers affecting each other on a shared network or shared device is a major concern for service providers. The MGS3520 Series offers a complete set of security features to protect user data while administrating the traffics. The intrusion lock function detects the “plugged” and “unplugged”status change of Ethernet cables, and the switch would deactivate a specific port automatically if needed, and the 802.1X authentication can secure the network from unauthorized users. Port security provides the ability to deny unauthorized users from accessing the network. Moreover, the 802.1X feature cooperating with RADIUS is useful to prevent unauthorized access based on username and password (or other credentials) and acts as powerful access control for converged networks with mixed wired and wireless access.

The MGS3520 Series provides a multilayer (L2/L3/L4) ACL suite of sophisticated policy-based control mechanisms that enables service providers to deploy easily based on actual network environment needs via a Web GUI or command line interface to prevent abnormal or illegal access. The policies can be defined to deny packets based on source and destination MAC addresses, IP addresses or TCP/UDP ports.

Resilient and redundant design

A quick recovery and round-the-clock network is vital for service providers to establish a robust network. The MGS3520 Series provides comprehensive features to make sure network is well operated. The IEEE 802.3ad Link Aggregation feature reduces network downtime by providing redundant paths and bandwidth aggregation to critical connections, while IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) allow immediate recovery from failed connections by sending packets via the backup link. Furthermore, since the MGS3520 Series supports backup power system, the power is supplied to the switch in case of an unexpected outage.

Agile traffic control for converged networking applications

Design for access layer converged data, video and voice applications, the Zyxel MGS3520 Series has a rich Layer 2 feature set that can shape the traffic

for diverse VoIP, video conference, and IPTV deployment. Supporting L2 multicast and IGMP snooping, the MGS3520 Series can support large IPTV deployments, which using bandwidth efficiently by directing multicast traffic to the subscribers only. The Multicast VLAN Registration (MVR) function ensures better network security by allowing a single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. These advanced traffic control features of the MGS3520 Series provide hotels, businesses, and educational institutions greater agility and more effective traffic management for converged applications of today.

Future-Proof connectivity for evolving networks

The Zyxel MGS3520 Series helps business and organizations stay ahead and get ready for future IPv6 networks. It supports dual stack (IPv4 and IPv6) and IPv6 host that allows business and organizations to deploy the MGS3520 switch at the network edge today, and easily migrate to the next-generation Internet Protocol in the future. With support for IPv6 ACL packet filtering, the MGS3520 L2 Gigabit switch can create secured IPv6 networks that are protected from illegal IPv6 clients. The MGS3520 Series is designed with a comprehensive set of IPv6 management features that include ICMPv6, neighbor discovery and DHCPv6 relay, which facilitate the migration to next-generation networking applications without an extensive equipment upgrade.

Optimized design for Metropolitan Area Network (MAN)

The MGS3520 Series adopts the “front access” design for technicians to easily wire and maintain outdoor cabinets. The external alarm input/output block connects mechanical cabinet parts to the management network and offers better protection to the equipment.

Carrier switches supports Digital Diagnostics Monitoring Interface (DDMI) SFP

The enhanced digital interface allows real-time access to device operating parameters, and includes optional digital features such as soft control and monitoring of SFP I/O signals. In addition, it fully incorporates the functionality needed to implement digital alarms and warnings.

The digital diagnostic monitoring interface enables users to have the capability of performing component monitoring, fault isolation and failure prediction tasks on their transceiver-based applications.

DDMI Monitors

• Temperature
• Supply voltage
• Transmitted bias current
• Transmitted power
• Received power

All features listed above include alarm and warning thresholds

Application Diagram:

Active Fiber with IPTV Service

Specifications:

Model		MGS3520-28F*	MGS3520-28
Product name		24-port GbE L2 Fiber Switch	24-port GbE L2 Copper Switch
Fan type		Fan-Tray	Fanless
Surge protection (6KV)		Yes	-
CO-LPR (Dying gasp)		Yes	Yes
Hardware monitor		Yes	Yes
Port Density
100/1000 GbE BASE-T, fixed		-	24
Open SFP (Dual rate: GbE/ FE)		24	-
Combo GbE ports (GbE/FE)		4	4
Performance
Switching capacity (Gbps)		56	56
Switching forwarding rate (Mpps)		41.67	41.67
Packet buffer (MB)		12 Mbit	12 Mbit
MAC address		16 K	16 K
Power Requirement
AC power model with BPS DC 12 V		AC power input (100 V to 240 V); BPS DC power input (11.2 V to 12.8 V)
DC power 48 V model		36 V - 75 V DC	-
Physical Specifications
Item	Dimensions (WxDxH) (mm/in.)	440 x 270 x 44 / 10.4 x 10.6 x 1.73	440 x 270 x 44 / 10.4 x 10.6 x 1.73
	Weight (kg/lb.)	3.72 / 8.2	3.09 / 6.83
Packing	Dimensions (WxDxH) (mm/in.)	512 x 314 x 384 / 20.15 x 12.36 x 15.11	500 x 283 x 71 / 19.68 x 11.14 x 2.79
	Weight (kg/lb.)	4.42 / 9.77	3.636 / 8.04
Environmental Specifications
Operating	Temperature	0°C to 50°C/32°F to 122°F
	Humidity	10% to 95% (Non-condensing)
Storage	Temperature	-40°C to 70°C/-40°F to 158°F
	Humidity	5% to 95% RH (Non-condensing)

Features:

Standard Compliance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-Tx Ethernet IEEE 802.ab 1000BASE-T Ethernet IEEE 802.3z 1000BASE-X IEEE 802.3x flow control IEEE 802.1d spanning tree protocol IEEE 802.1w rapid spanning tree protocol IEEE 802.1s multiple spanning tree protocol IEEE 802.1p class of service, priority protocols IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication IEEE 802.3ad LACP aggregation IEEE 802.1ad VLAN stacking IEEE 802.3az Energy Efficient Ethernet (EEE) User Security and Authentication IEEE 802.1X authentication IP source guard (static IP/MAC binding, DHCP snooping, ARP inspection) IP subnet VLAN & VLAN isolation Limiting MAC number per port Loop guard prevents a switch from being affected by another switch which is already in a looping status MAC filtering per port secures access to each port MAC freeze Port security, port isolation, port mirroring, intrusion lock RADIUS MAC authentication Static MAC forwarding per port: only specified MAC addresses can access the network (port security) Wire speed filtering per MAC/IP/TCP/UDP Wire speed mirroring per MAC/IP/TCP/UDP Wire speed rate limiting per MAC/IP/TCP/UDP GVRP, automatic VLAN member registration Guest VLAN CPU protection IP-MAC-Port binding Network Administration Security SSH v1/v2 SSL RADIUS accounting TACACS+ authentication, accounting NTP, daylight saving Traffic Management and QoS Broadcast storm control IEEE 802.1p with 8 hardware priority queues per port for different types of traffic IEEE 802.1ad QinQ/selected QinQ IEEE 802.1Q tag-based and port-based VLAN Weighted Fair Queuing (WFQ)/WRR/SPQ scheduling algorithm Policy based rate limiting Policy based bandwidth control Port based traffic shaping/rate limiting Rule-based traffic mirroring IGMP snooping (v1, v2, v3) IGMP filtering Jumbo frame support (9K Bytes) for high performance data backup or recovery services Support GVRP, automatic VLAN member registration Multicast VLAN Registration (MVR) BPDU transparency Selective Q-in-Q Network Management Intuitive Web-based management with all features configurable Text-based configuration profile for massive deployment Telnet CLI (Cisco like) SNMP v1, v2c, v3, trap group RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events) or traffic management, monitoring, and analysis Firmware upgrade, configuration backup/restore via ftp Alarm led indicator for early warning of hardware troubles Send system trap to trap server DHCP relay, DHCP relay per VLAN, DHCP relay option 82, DHCP client Port mirroring: supports source/destination/port mirroring IEEE 802.3ah Ethernet operations, administration and management IEEE 802.1ag CFM CO-LPR (Dying gasp) sflow

Intelligent ACL (L2/L3/L4 Access List Control) Based on port Based on MAC + VLAN ID Based on IP address (source/destination) Based on protocol type Based on TCP/UDP port number MIB information Link Aggregation IEEE 802.3ad LACP link aggregation compliant Support static manually port trunking Up to 6 aggregation groups, 8 ports/per group randomly selected VLAN trunking Redundancy for Fault Backup IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) provides rapid convergence of spanning tree independent of spanning-tree timer IEEE 802.1s multiple spanning tree provides link availability in multiple VLAN environments by allowing multiple spanning trees MRSTP—Multiple RSTP MIB Zyxel new private MIB RFC 1066 TCP/IP-based MIB RFC 1213, 1157 SNMPv2c/v3 MIB RFC 1493 bridge MIB RFC 1643 Ethernet MIB RFC 1757 RMON group 1, 2, 3, 9 RFC 2011, 2012, 2013 SNMPv2 MIB RFC 2233 SMIv2 MIB RFC 2358 Ethernet-like MIB RFC 2674 bridge MIB extension RFC 2819, 2925 remote management MIB RFC 3621 power Ethernet MIB RFC 4022 management information base for transmission control protocol RFC 4113 management information base for user datagram protocol RFC 4292 IP forwarding table MIB RFC 4293 Management Information Base (MIB) for IP Safety Certification LVD: EN609501: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013 EMC CE: EN55022: 2010 + AC: 2011 EN61000-3-2: 2006 + A1: 2009 + A2: 2009 EN61000-3-3: 2013 EN55024: 2010 AS/NZS CISPR 22: 2009 + A1: 2010 FCC Part 15, subpart B ICES-003 Issue 5 RoHS Level A

Accessories

Gigabit (non-DDMI)
Model	Type	Description
SFP-SX-S	LC connector	GbE SFP SX Multi-Mode 550 m (1804 ft) commercial type transceiver
SFP-LX-5S	LC connector	GbE SFP LX wavelength=1310, 5 km (5468 yd) commercial type transceiver
SFP-LX-15S	LC connector	GbE SFP LX wavelength=1310, 15 ~ 20 km (16404 ~ 21872 yd) commercial type transceiver
SFP-LHX-40S	LC connector	GbE SFP LHX wavelength=1310, 40 km (43744 yd) commercial type transceiver
SFP-ZX-80S	LC connector	GbE SFP ZX wavelength=1550, 80 km (87488 yd) commercial type transceiver
Gigabit (with DDMI)
Model	Type	Description
SFP-SX-DS	LC connector	GbE SFP SX Multi-Mode 550 m (1804 ft) commercial type transceiver, DDMI version
SFP-LX-5DS	LC connector	GbE SFP LX 5 km (5468 yd) commercial type transceiver, DDMI version
SFP-LX-15DS	LC connector	GbE SFP LX 15 ~ 20 km (16404 ~ 21872 yd) commercial type transceiver, DDMI version
SFP-BXA-20DS	LC connector	GbE SFP; BX 20 km (21872 yd) Bidirectional Type-A 1310 ~ 1550Tx, DDMI version
SFP-BXB-20DS	LC connector	GbE SFP; BX 20 km (21872 yd) Bidirectional Type-B 1550 ~ 1310Tx, DDMI version
SFP-BXC-20DS	LC connector	GbE SFP; BX 20 km (21872 yd) Bidirectional Type-C 1310 ~ 1490Tx, DDMI version
SFP-BXD-20DS	LC connector	GbE SFP; BX 20 km (21872 yd) Bidirectional Type-D 1490 ~ 1310Tx, DDMI version
SFP-LHX-40DS	LC connector	GbE SFP LHX wavelength=1310, 40 km (43744 yd) commercial type transceiver, DDMI version
SFP-ZX-80DS	LC connector	GbE SFP ZX wavelength=1550, 80 km (87488 yd) commercial type transceiver, DDMI version

Documentation:

Download the Zyxel MGS3520 Series Datasheet (PDF).
