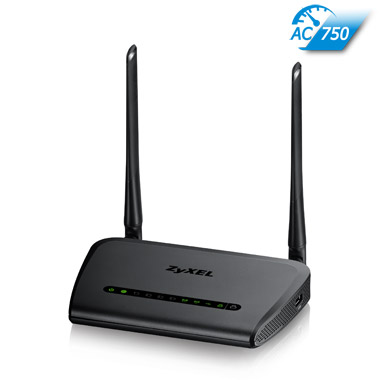

Zyxel NBG-6515 Discontinued
AC2200 MU-MIMO Dual-Band Wireless Gigabit Router

Overview:

Next-generation Wireless Networking

Are you experiencing slow wireless speeds on your favorite new mobile device? Give it the speed it deserves — upgrade your home network with the Zyxel NBG6515, AC750 Dual-Band Wireless Gigabit Router. Equipped with the latest 802.11ac technology, the NBG6515 boosts wireless speeds to as high as 750 Mbps* on your wireless network.

A dual-band wireless network allows you to create two wireless networks: one 2.4 GHz network for regular Web browsing, news reading, social networking, uploading photos/videos and downloading files, while the other wireless network at 5 GHz allows bandwidth-hogging, timesensitive activities such as HD video streaming or multiplayer online gaming.

• Latest 802.11ac technology for modern wireless mobile devices
• Wireless data speeds of up to 750 Mbps*
• Powerful, reliable wireless coverage with advanced antennas
• Connect wireless devices quickly with the WPS button
• Quick, easy to setup

Benefits:

Powered by the latest 802.11ac technology

The Zyxel NBG6515 enables you to utilize the latest wireless technology to achieve faster wireless speeds among the latest wireless mobile devices, which enable smoother HD video streaming, lag-free multiplayer gaming and overall faster wireless online activities.

Powerful, reliable wireless coverage with advanced antennas

Equipped with two external antennas (3 dBi: 2.4 GHz, 5 dBi: 5 GHz), the Zyxel NBG6515 provides strong wireless coverage throughout the premises. Enjoy reliable wireless Internet access wherever you are at home.

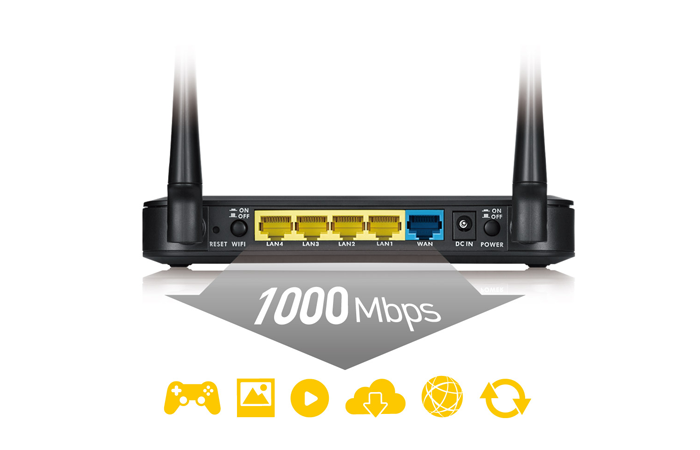

Gigabit Ethernet ports for fast wired networks

Create a wired network of up to 1000 Mbps taking advantage of the Zyxel NBG6515’s Gigabit Ethernet ports, which ensures your wired network gets the highest data speed for HD video streaming or faster large data transfers.

Supports for access point and repeater modes

Not only does the Zyxel NBG6515 share Internet access, it also acts as a dedicated wireless access point to create a wireless network, upgrade the existing one, or extend your existing wireless network with the repeater mode.

Stream and share your digital contents with a USB drive

Connect a USB storage device to the Zyxel NBG6515 for it to share the stored photos, music and videos throughout your network with its DLNA support. It’s great for the existing set top boxes or video game consoles with DLNA support to create a connected home theater experience.

Specifications:

Model:	NBG-6515
System Specifications
Wireless Standard	802.11 b/g/n 2.4 GHz 802.11 a/n/ac 5 GHz
Wireless Transfer Rate	Transmit: 300 Mbps* for 2.4 GHz 433 Mbps* for 5 GHz Receive: 300 Mbps* for 2.4 GHz 433 Mbps* for 5 GHz
Wireless Features	AP mode Universal repeater mode Guest Wi-Fi Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Wireless scheduling Wireless output power management Auto channel selection MAC address filtering
Routing	Network Address Translation (NAT) Connection type: Static IP, DHCP, PPPoE DHCP server/client Dynamic DNS Bandwidth management Auto-IP change Support IPv6 UPnP
VPN Pass-through	IPSec/PPTP/L2TP
Firewall	Deny of Service (DoS) Prevention
USB Support	Mass storage support by SMB/CIFS/FTP Print server
Media Server	DLNA
System Management	Online firmware upgrade Remote management
Hardware Specifications
WAN	One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN	Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
USB	Two USB 2.0 ports
LED indicator	Power WAN LAN 1 - 4 Wireless 2.4 GHz Wireless 5 GHz USB WPS
Antenna	2 non-detachable external antennas (3 dBi for 2.4 GHz and 5 dBi for 5 GHz)
Buttons	Power on/off button Wireless on/off button WPS button Reset button Switch button for Router/AP/Repeater
Power	12 V DC, 1.0 A (EU: EU plug+UK plug, US: US plug only)
Physical Specification
Item dimensions (WxDxH)(mm/in.)	175 x 115 x 23 mm (6.89" x 4.52" x 0.9")
Item weight (kg/lb)	265.4 g (0.59 lb.)
Packing dimensions (WxDxH)(mm/in.)	293 x 164 x 44 mm (11.5" x 6.45" x 1.7")
Packing weight (kg/lb)	US: 540 g (1.19 lb.) EU: 590 g (1.3 lb.)
Package Contents	Wireless router Power adapter Ethernet cable Quick start guide Warranty card
Environmental Specification
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 90% (Non-condensing)
Storage Temperature	-30°C to 70°C (-22°F to 158°F)
Storage Humidity	10% to 95% (Non-condensing)
Certification
Safety	CE-LVD, BSMI
EMC	CE, FCC, IC, BSMI

* The maximum wireless data transfer rates of up to 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz in simultaneous transmission are derived from the IEEE Standard 802.11 specifications. Actual data transfer rates may vary from network conditions including: distance, network traffics, building site material/construction, interference from other wireless devices and other adverse factors.

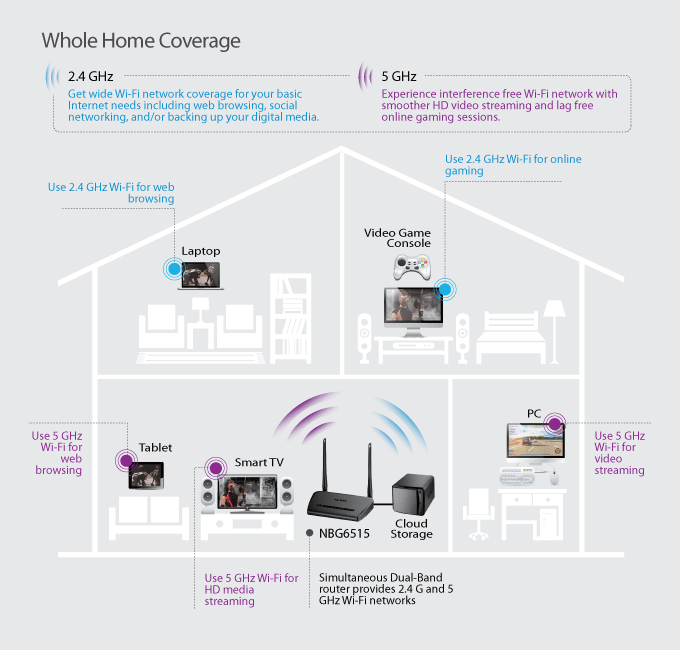

Diagram:

Documentation:

Download the Zyxel NBG-6515 Datasheet (PDF).
