Zyxel P660HN-51
ADSL2+ High Power 11n Gateway

Zyxel P660HN-51

Sorry, this product is no longer available, please contact us for a replacement.


ADSL2+ High Power 11n Gateway

The 802.11n Wireless ADSL2+ Gateway specializes in home networking applications with enhanced features. High power wireless and telco-class features including IPv6 routing make the an easy choice for ADSL service providers.

  • Integrated high-power 802.11n access point
  • Standards based WPS for easy WLAN security setup
  • NetUSB™ ports share printers and storages wirelessly
  • Dual IPv6 / IPv4 routing supports multiple networks
  • Robust SPI firewall protection
  • Effective bandwidth management for IPTV and other services


Fast Media Network

802.11n Technology for Extreme Performance and Coverage

The P-660HN-5x Series featuring 802.11n Technology provides the ultimate solution for speed and coverage. With data rates of up to 300 Mbps, the P-660HN-5x Series provides stable and reliable wireless connections for high-speed data and multimedia delivery. It eliminates dead zones and extends coverage by using IEEE 802.11n technology and is backward compatible with any IEEE 802.11b/g Wi-Fi certified device.

NetUSB™ shares USB devices wirelessly

Robust SPI Firewall Security

The Stateful Packet Inspection (SPI) Firewall works on the network layer by examining header and footer of a packet, and it also ensures the packet belongs to a valid session. Based on SPI, Denial of Service (DoS), and DDoS features, the P-660HN-5x Series provides the first-line defense against hackers, network intruders, and other harmful threats.


TR-069 Remote Management

With TR-069 standard management specifications, service providers are able to manage and configure client devices remotely without manual intervention from end users. This unique feature not only offers user true “Plug and Play” experience but also reduces the complexity of deployment, therefore saves operating and maintenance costs for service providers.


Wi-Fi Protection Setup (WPS)

WPS is a standard for easy and secure establishment of wireless networks. With WPS, the device will automatically configure a wireless network with a network name (SSID), and strong WPA data encryption and authentication. WPS makes the configuration of secure personal wireless networks as simple as pushing a button or entering a Personal Identification Number (PIN) code.


Quality of Service (QoS) Support

The P-660HN-5x Series comes equipped with essential ATM QoS features. Service providers can freely design their QoS policy and prioritize the mission-critical services such as IPTV and VoIP based on their service plans. This increases network efficiency and productivity to enable service providers to bring real multi-play into the daily life of residential users.

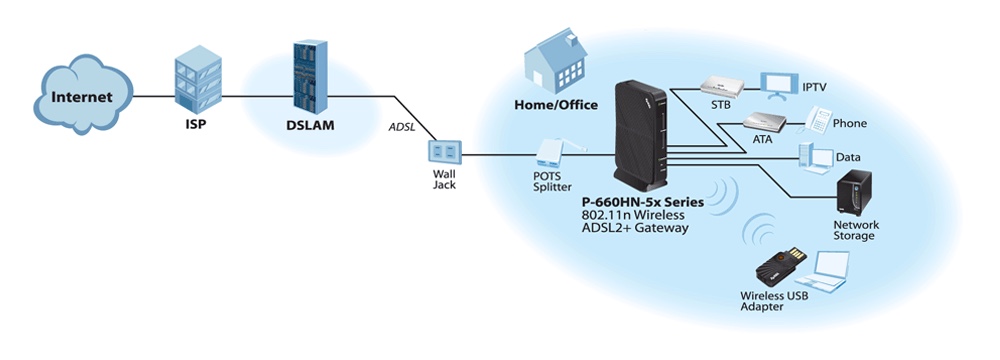

Application Diagram:

Application Diagram

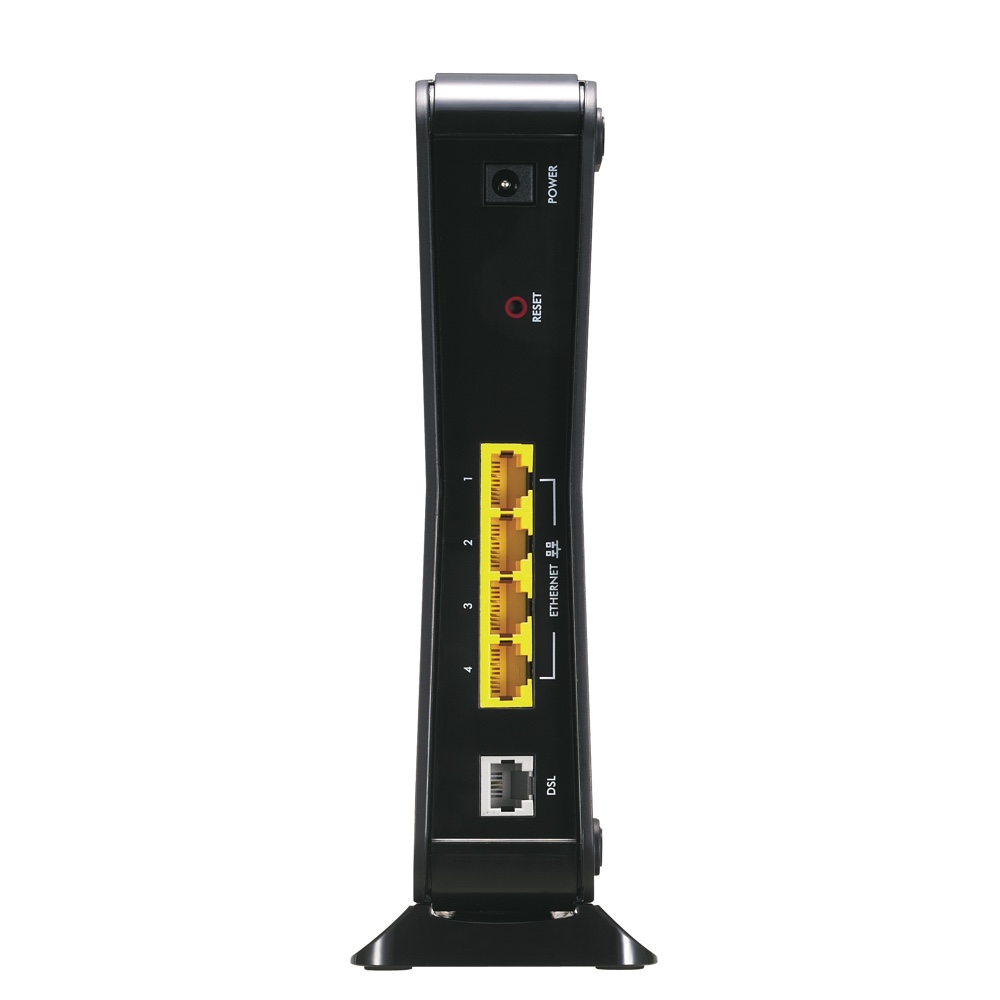

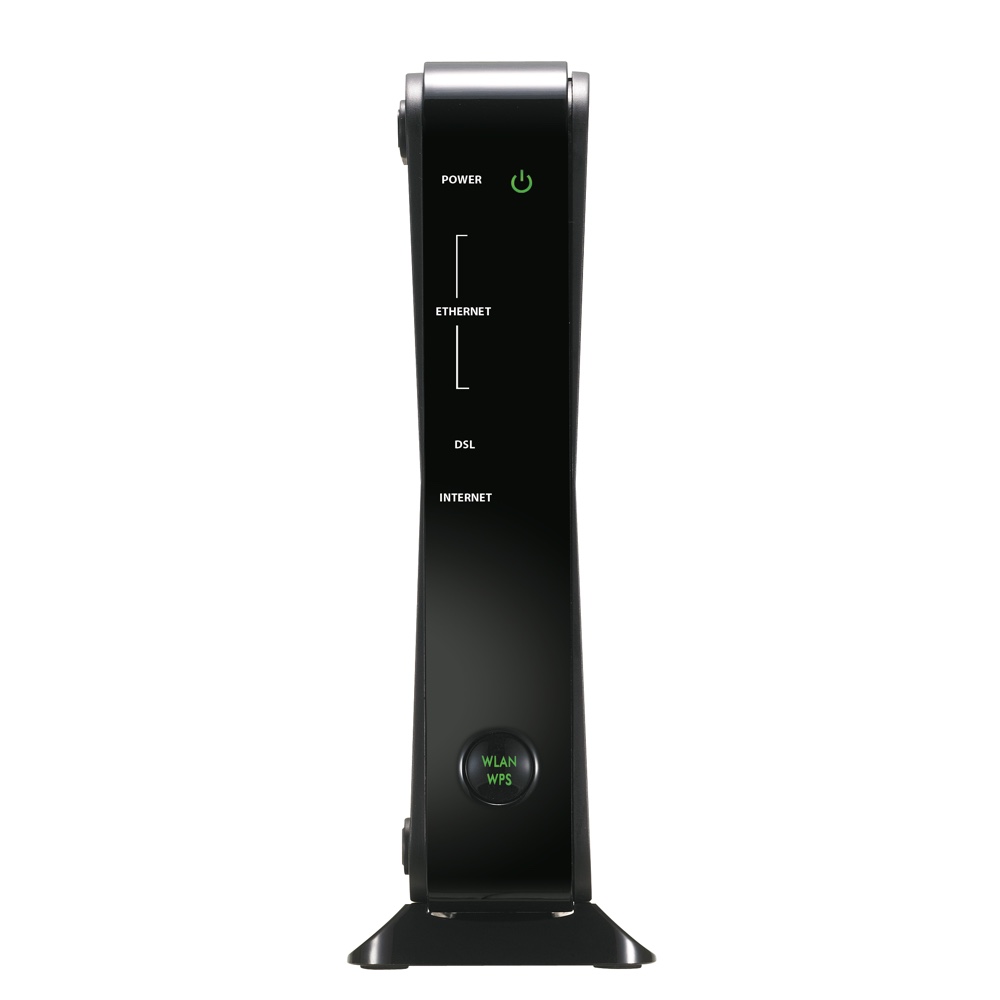

Top View Rear Panel View

P660HN-51 Specifications
System Specifications
ADSL Compliance
  • ITU 992.1 (G.dmt)
  • ITU 992.3 ADSL2 (G.dmt.bis)
  • ITU 992.5 ADSL2+
  • Reach-Extended ADSL (RE ADSL)
  • Annex L/M support
  • IEEE 802.11n compliance, backward compatible with 11b/g
  • Frequency Operation: 2.4 GHz
  • 64/128 bits WEP data encryption
  • WPA/WPA2 (Wi-Fi Protected Access) Security
  • Wi-Fi Multimedia (WMM)
  • Wi-Fi Protected Setup (WPS)
  • NAT
  • Dynamic DNS
  • DHCP Server/Client/Relay
  • RIP I/RIP II support
  • IGMPv1 and v2 support
  • UPnP support
  • 802.1Q/1P
  • Stateful Packet Inspection (SPI)
  • Denial of Service (DoS) Prevention
VPN Pass-through
  • PPTP
  • L2TP
  • IPSec
  • Multiple VPN (IPSec, PPTP) pass-through
  • Packet Filtering
  • URL keyword blocking
  • Embedded Web Configuration
  • TR-069/TR-098, TR-106, TR-111 support
  • Logs and Statistics
  • Remote Management Control: Telnet, FTP, Web, and DNS
Hardware Specifications
  • 1 x RJ-11 for P-660HN-51
  • 4 x RJ-45
LED displays
  • Power
  • Ethernet (1 - 4)
  • DSL
  • Internet
  • Wireless On/Off button
  • WPS button
  • Reset button
  • Power On/Off button
Power 12 V DC 1 A
Physical Specifications
Item Dimensions (WxDxH) 40 x 132 x 188 mm (1.57” x 5.2” x 7.4”)
Weight (kg/lb.) 374 g (0.83 lb)
Packing Dimensions (WxDxH) 100 x 156 x 273 mm (3.94” x 6.14” x 10.75”)
Weight (kg/lb.) 786 g (1.74 lb)
Environmental Specifications
Operating Temperature 0°C to 40°C (32°F to 104°F)
Humidity 20% ~ 85% RH (non-condensing)
Storage Temperature Temperature: -20°C ~ 60°C
Humidity 20% ~ 90% RH (non-condensing)
Safety CE, CSA


Download the Zyxel P660HN-51 Datasheet (PDF).
