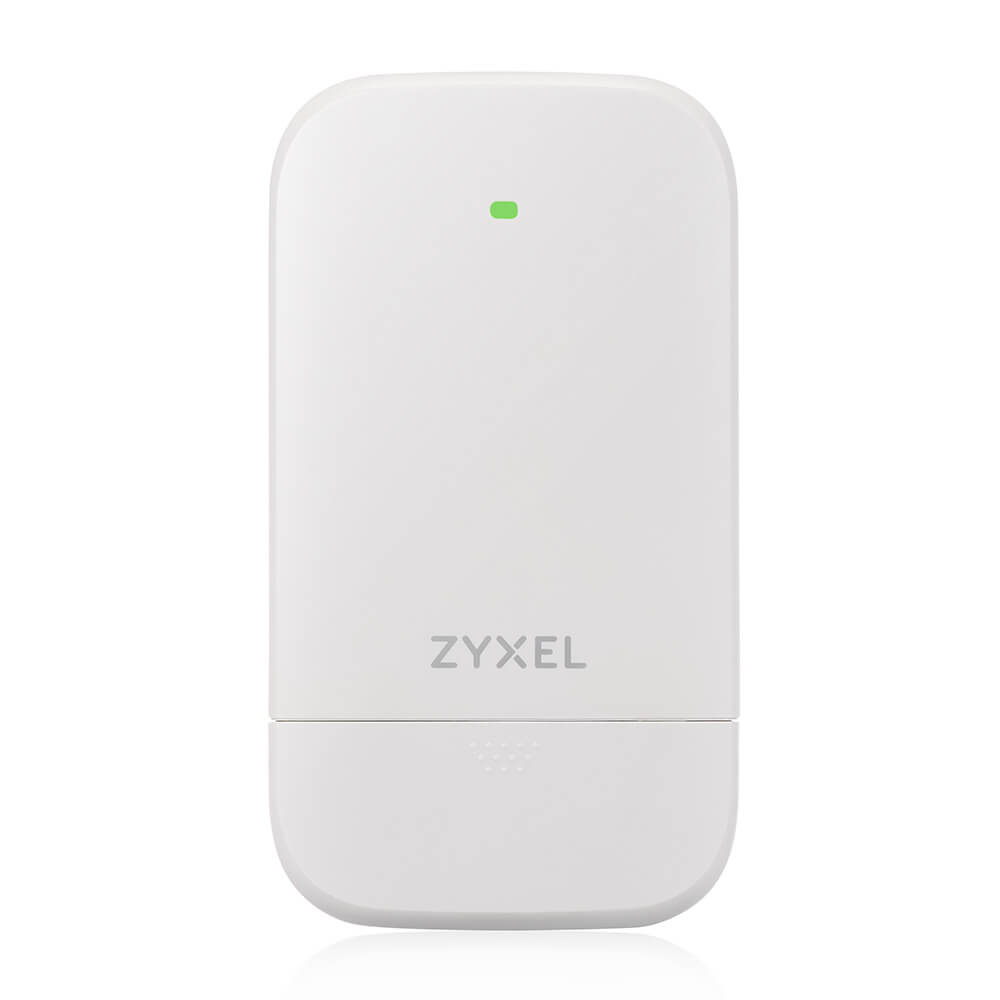

Zyxel PoE12-3PD
Zyxel PoE Extender
Zyxel 802.3bt Outdoor PoE Extender
#POE12-3PD
Get a Quote!
Click here to jump to more pricing!
Overview:
Empower Your Network with Greater Flexibility
The PoE12-3PD is a Gigabit PoE Extender designed for point to multipoint PoE applications, which effortlessly extend the range of power and data connectivity when your devices are located at a distance that far away from power source or connection to a PoE Switch. It features four RJ-45 Gigabit Ethernet ports, offering one (1) PoE++ PoE input port with up to 60W power input and three PoE output to your devices. Instead of connecting to an AC adapter, connecting via a PoE switch enables better visibility for network management to cover the edge of your network. It features three PoE+ ports to power a variety of PoE devices, including IP cameras, VoIP handsets, IoT device, Sensors, PoE switches and wireless access points. PoE12-3PD is good for residential and commercial network environment.
Built-in with one Gigabit IEEE802.3bt PoE++ (60W) input port and three Gigabit IEEE802.3at PoE+ output ports
Up to 45W power budget to setup versatile devices at the edge of your network
Monitor status anytime anywhere through Nebula Cloud
Outdoor waterproof enclosure with IP55 protection design
6KV surge to safeguard sensitive network devices
Works reliably in extreme environment with wide range temperature (-20 to 50°C)
Benefits:

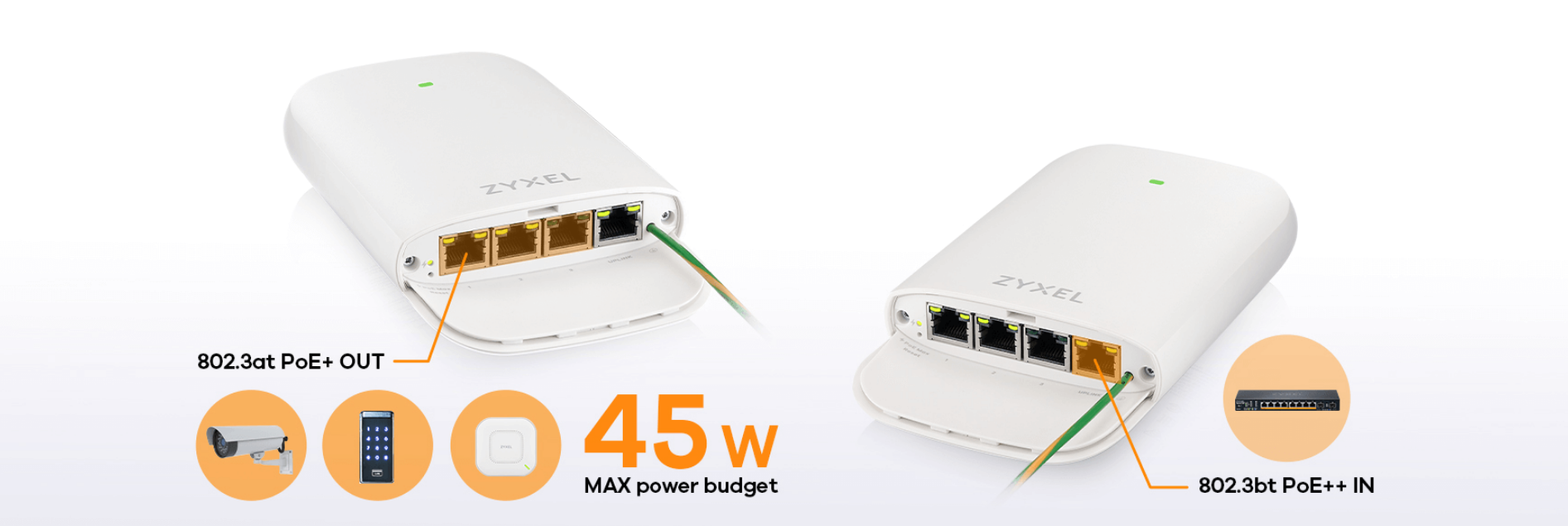

Flexible PoE Connections

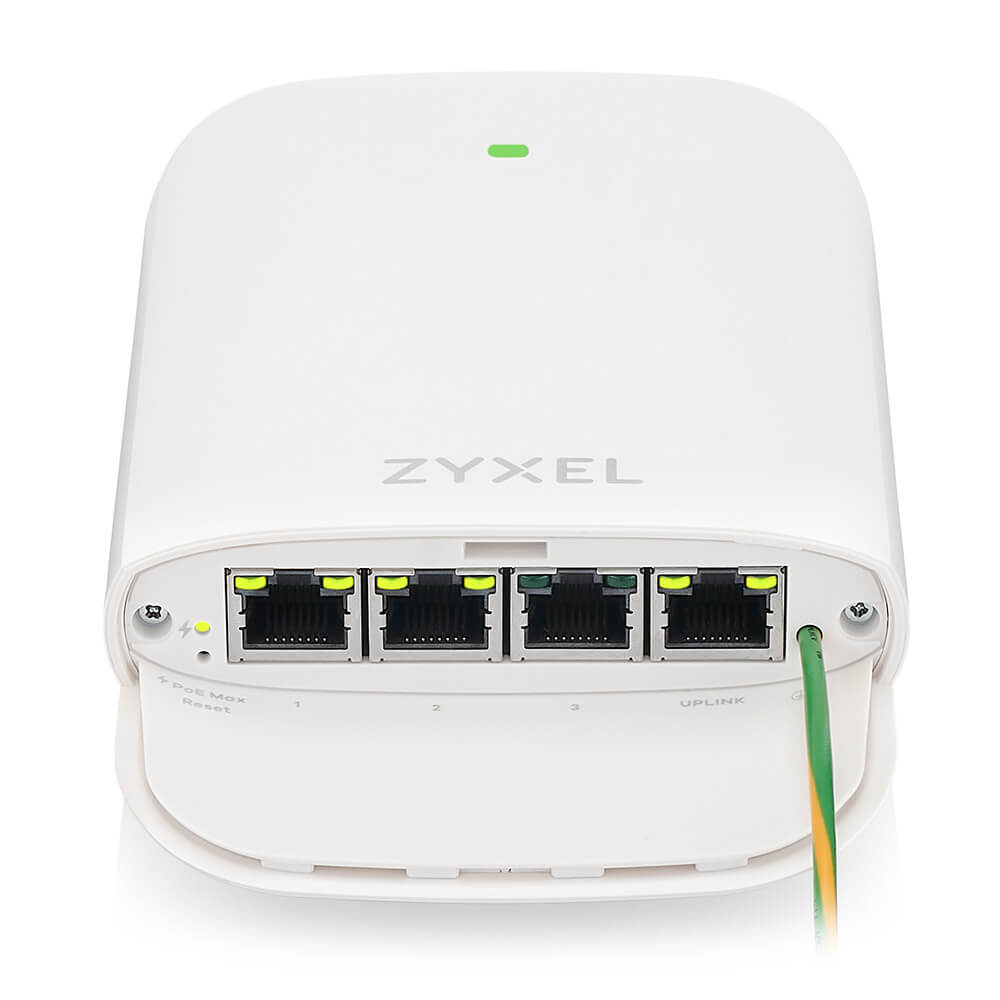

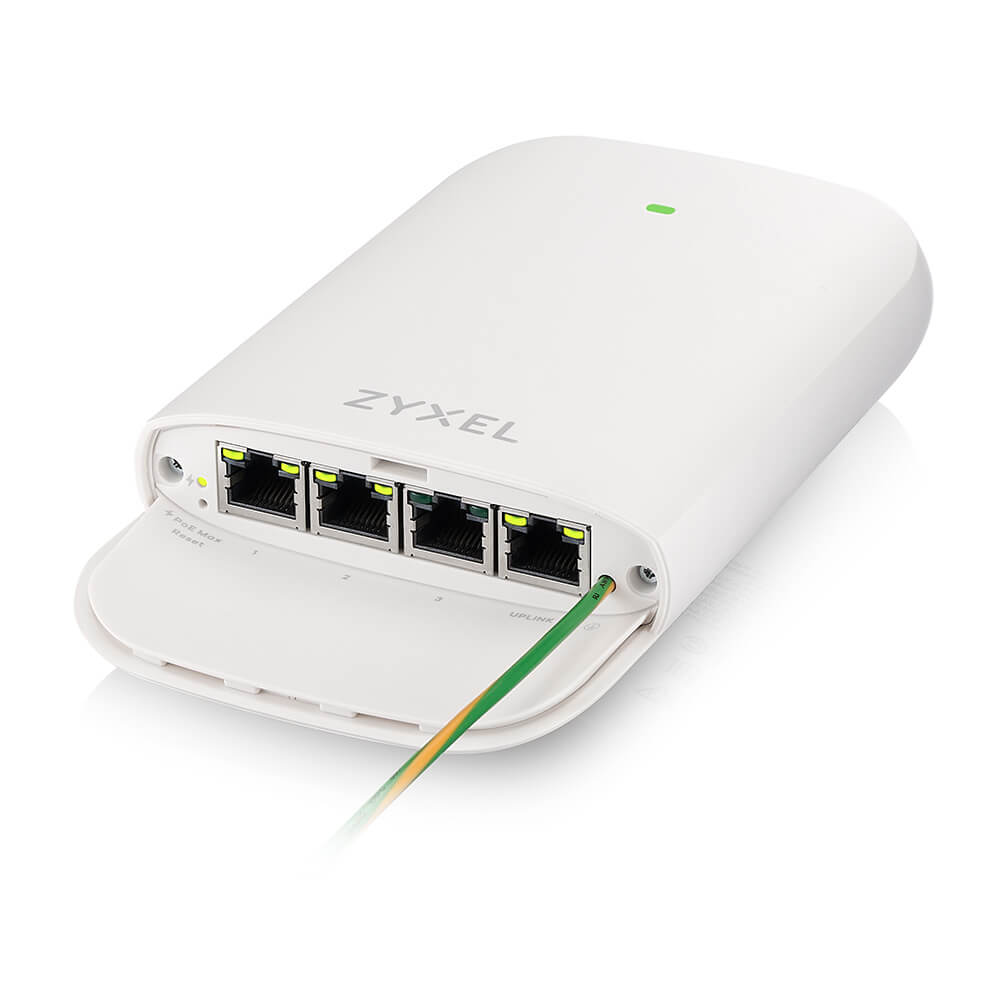

The PoE12-3PD offers four RJ-45 Gigabit Ethernet ports, providing one PoE input and three PoE output links to your devices. The 802.3bt PoE++ input port receives up to 60W from the PoE switch, while the three 802.3at PoE+ output ports deliver up to 30W per port, with a maximum total power budget of 45W to your devices, including wireless access points, IP cameras, access control systems, IoT devices, smart home devices, sensors, and so on.
Extend Your Network with Ease
The PoE12-3PD is a Gigabit PoE Extender designed for point to multipoint PoE applications. It effortlessly extends the range of power and data connectivity beyond the standard maximum distance of 100 meters, reaching even to the edge of your network.

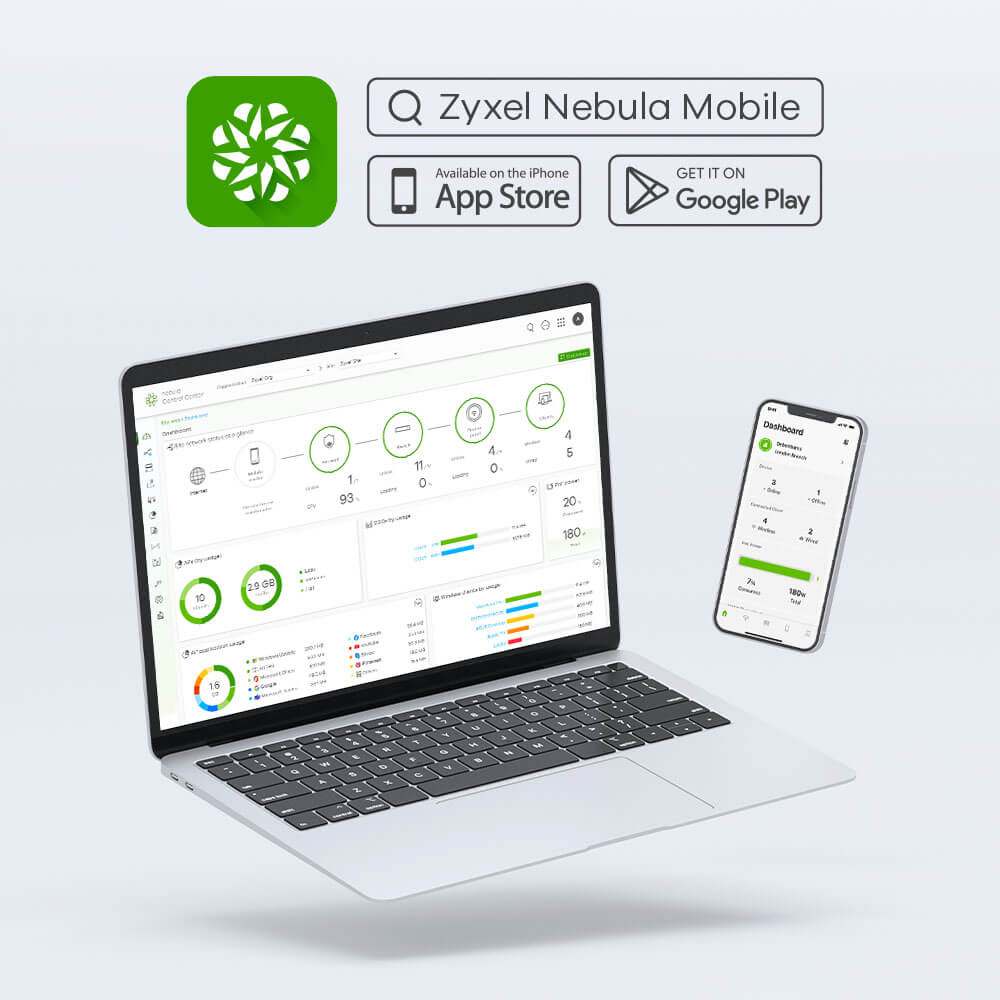

Check the Status Wherever & Whenever
With support from Nebula, you can monitor the status of the PoE12-3PD through the Nebula control center via both the web interface and mobile app, enabling convenient access anytime, anywhere.
Continuous PoE
With Continuous PoE capability the PoE12-3PD ensures non-stop power supply to IP cameras while it is undergoing firmware upgrade or rebooting.

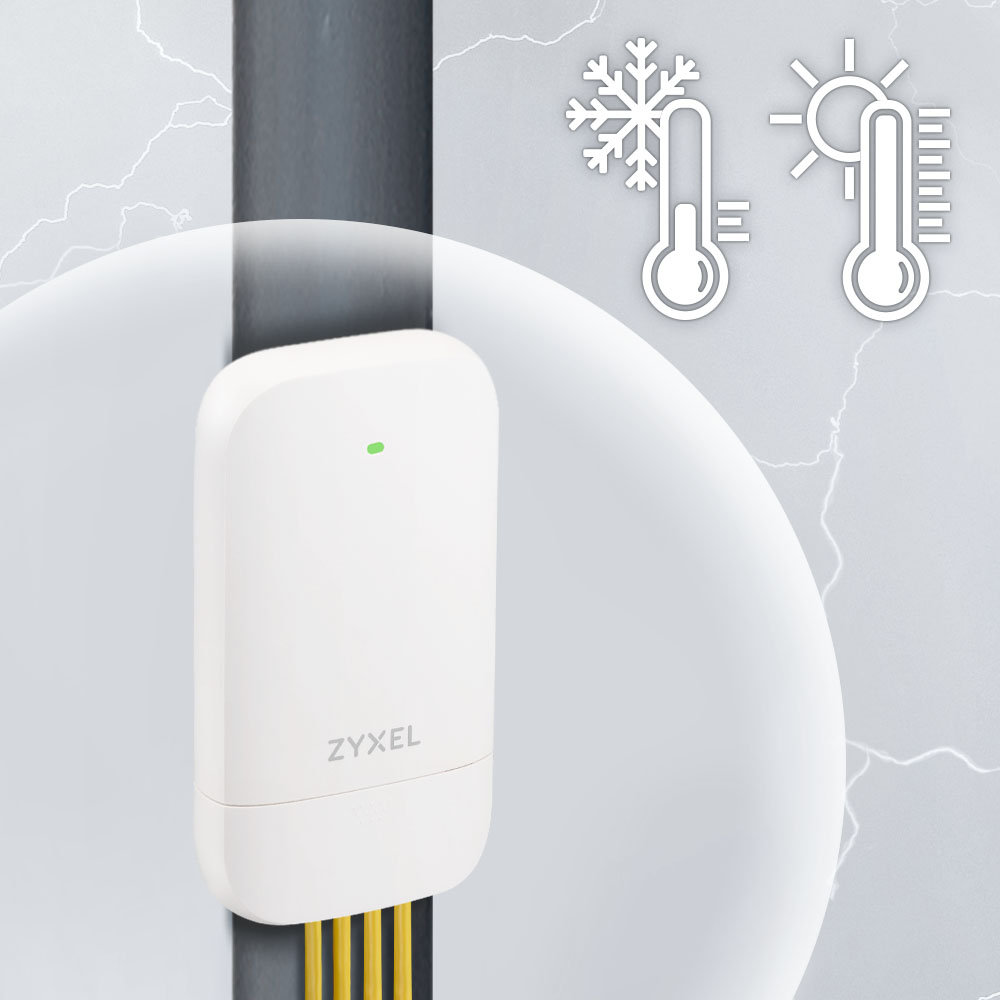

Robust Design for Harsh Environment
With 6KV surge protection and designed to handle wide-range temperatures (-20 to 50), it can be placed in a variety of challenging locations and adapted to a broad range of field applications, such as outdoor, factory, and smart building installations.

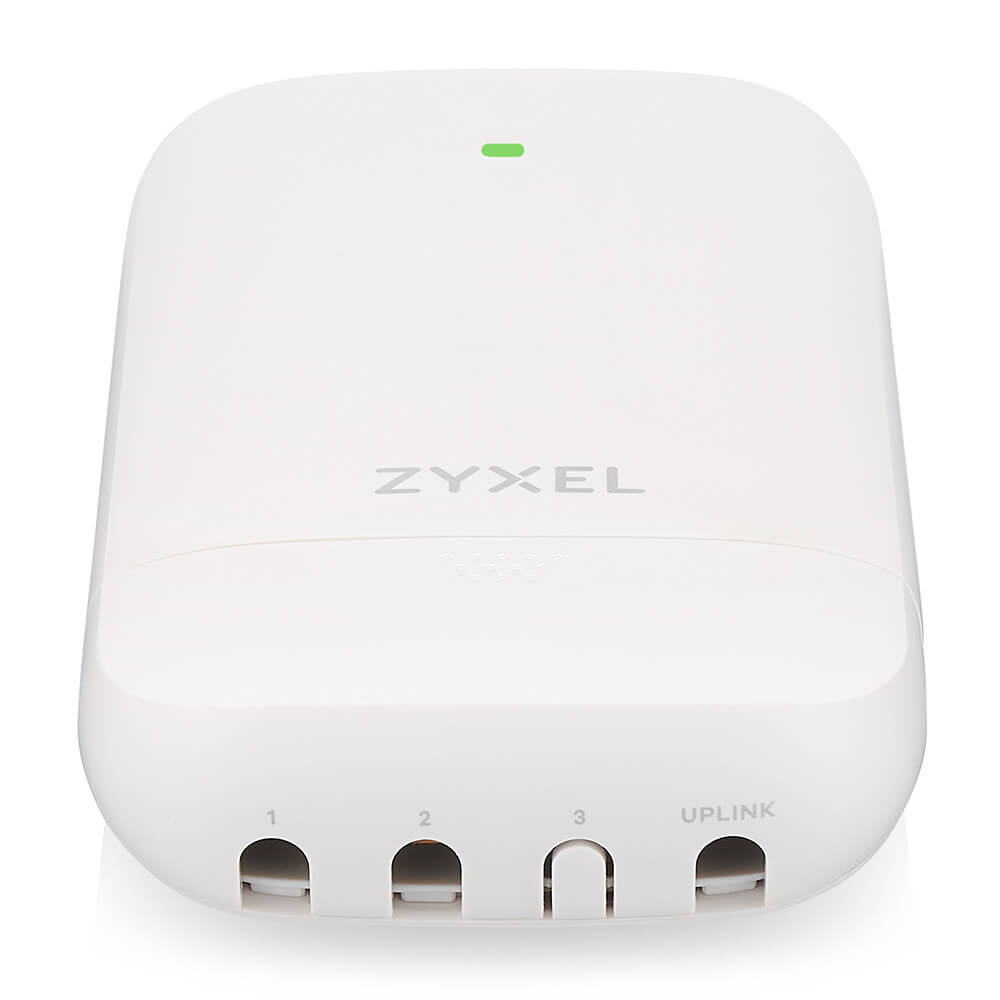

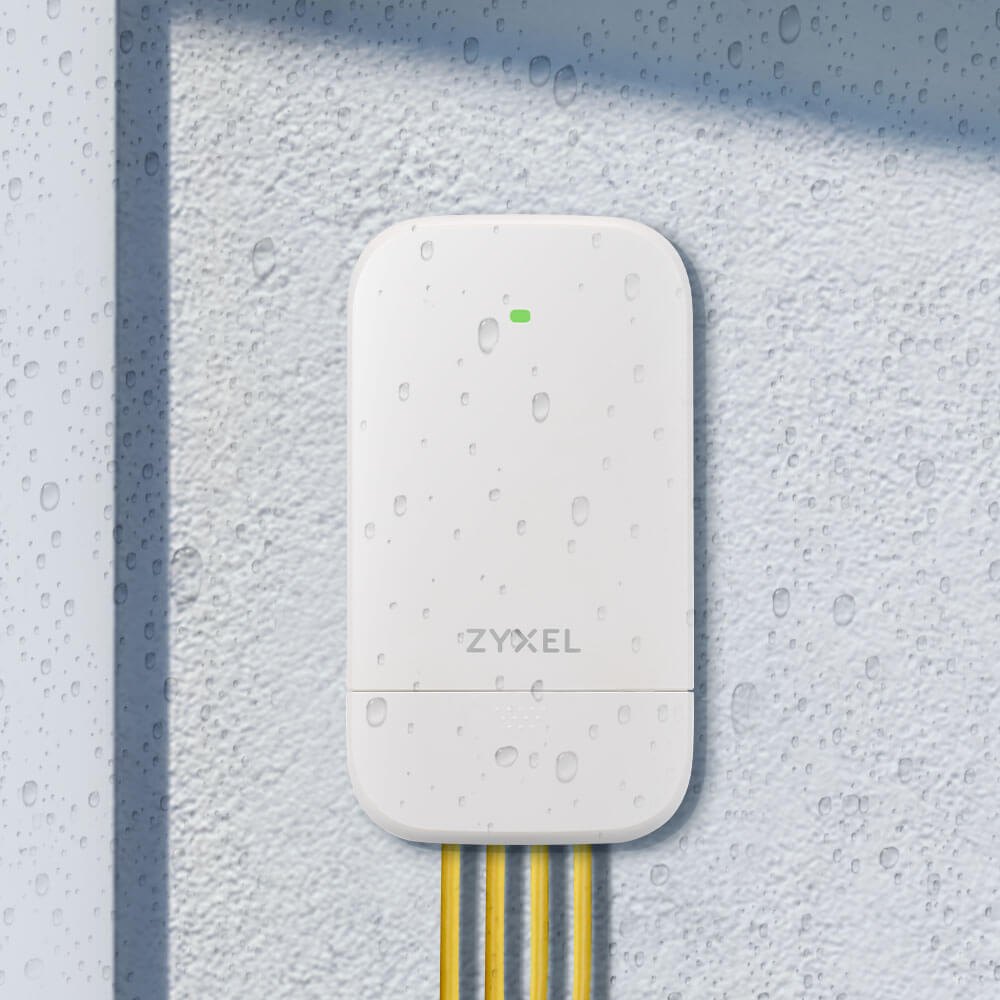

Easy-to-Install and Aesthetically Designed Exterior

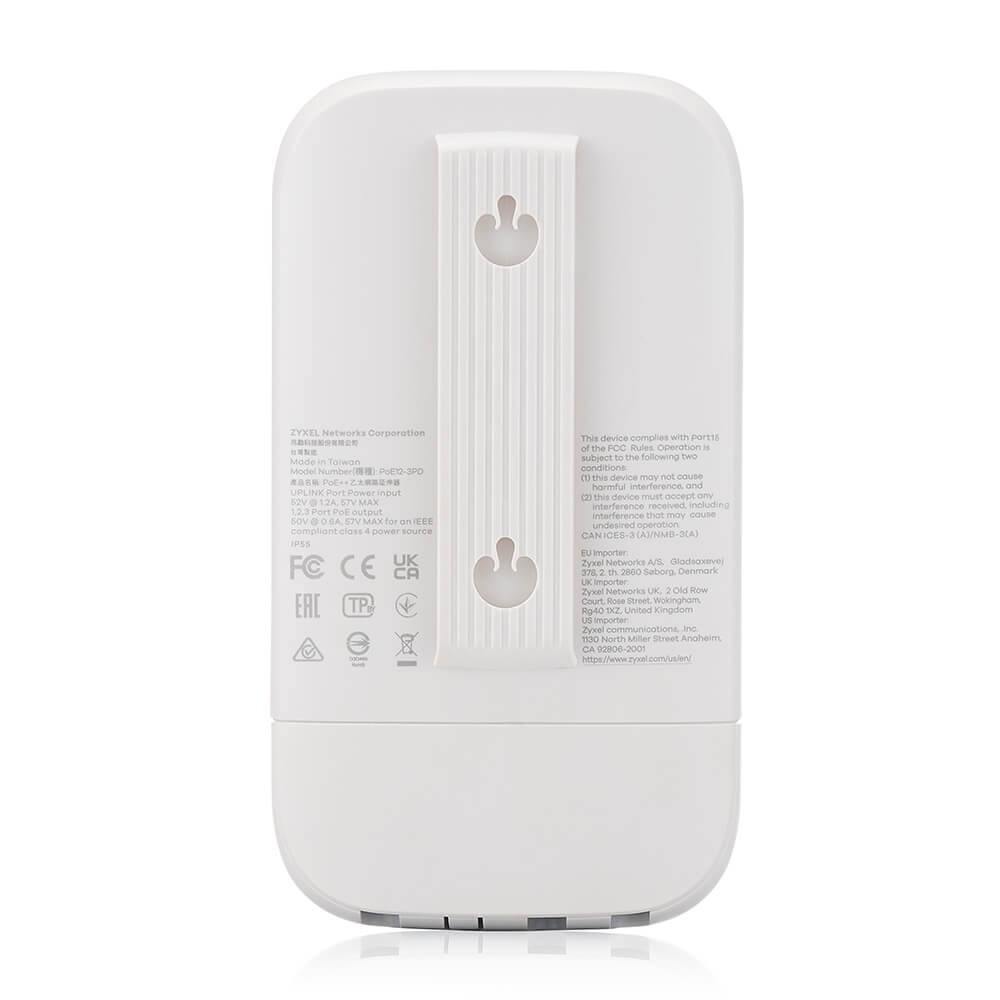

To install the PoE12-3PD, just plug and play, no other settings required, no additional AC adapter required as well. Additionally, designed with wall- and pole-mount and IP55 enclosure, the PoE12-3PD can be easily installed in both indoor and outdoor locations.
Suitable for Versatile Applications
With its compact and lightweight housing design, the PoE12-3PD easily extends your network for indoor or even outdoor applications.
Application Diagram:
Specifications:
| PoE12-3PD Specification |
| Total Port Count |
4 |
| 100/1000 Mbps |
4 |
| PoE power budget |
45 W with 802.3bt 60 W input power
19 W with 802.3at 30 W input power
7 W with 802.3af 15 W input power |
| PoE Standard |
802.3at PoE+, 802.3bt PoE++ |
| Switching capacity (Gbps) |
8 |
| Forwarding rate (Mpps) |
5.95 |
| Packet buffer (byte) |
128 K |
| MAC address table |
2 K |
| Jumbo frame (byte) |
9 K |
| Input |
802.3bt (60 W) PoE input only (no external power supply) |
| Max. power consumption |
3.73 W (Idle mode)
51 W (all ports, PoE on) |
| Item Dimensions |
180 x 99 x 35.9/ 7.09 x 3.9 x 1.41 |
| Item Weight |
0.257/0.57 |
| Fanless |
Yes |
| Ethernet port surge protection |
6 KV |
| Ethernet port ESD protection (air/contact) |
8 KV/ 6 KV |
| Operating temperature |
-20°C to 50°C/-4°F to 122°F |
| Operating humidity |
10% to 95% (non-condensing) |
| Storage humidity |
-40°C to 70°C/-40°F to 158°F |
| Storage temperature |
10%-95% non-condensing |
| MTBF (hr) |
743,502 |
| Heat dissipation (BTU/hr) |
20.5 |
Standard
- IEEE802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-Tx Ethernet
- IEEE 802.3ab 1000Base-T Ethernet
- IEEE 802.3z 1000 Base-X
- IEEE 802.3x flow control
- IEEE 802.3af PoE
- IEEE 802.3at PoE plus
- IEEE 802.3bt (60 W) PoE over 4 pair
Features
- Continuous PoE
- Remove Port PoE on/off
- Support Port status (including PoE status, consuming)
- Device Factory Reset
- IP55 waterproof rating enclosure
- Support wide temperature
- Firmware upgrade
- System log
- NTP
- Nebula Cloud management
- Web GUI
Zyxel One Network
ZON Utility
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations:
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
- Automatic detection of the latest firmware
- Displays device serial number and hardware version
- Cloud mode on/off option for Hybrid series devices
- Intuitive Cloud connection status
Smart Connect
- Discover neighboring devices
LED Indicator
- PWR/Cloud
- Per-port Link/ACT
- PoE MAX
- Per-port PoE: PD port and PSE port
- Reset
Certification
- Safety
- EMC
- RoHS compliant
Package Contents
- PoE extender
- Safety warning and doc
