Zyxel UAG50 Discontinued

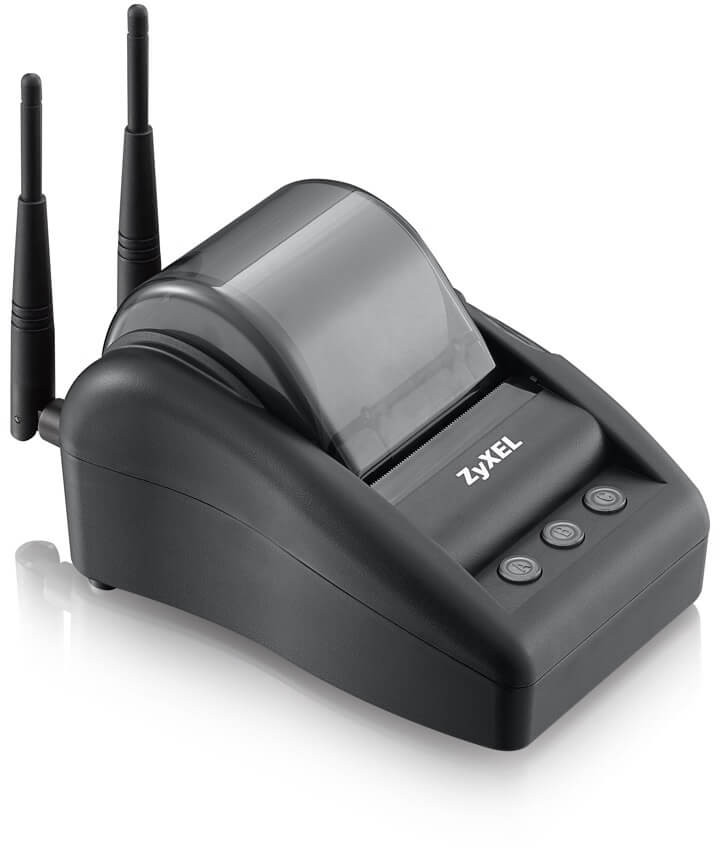

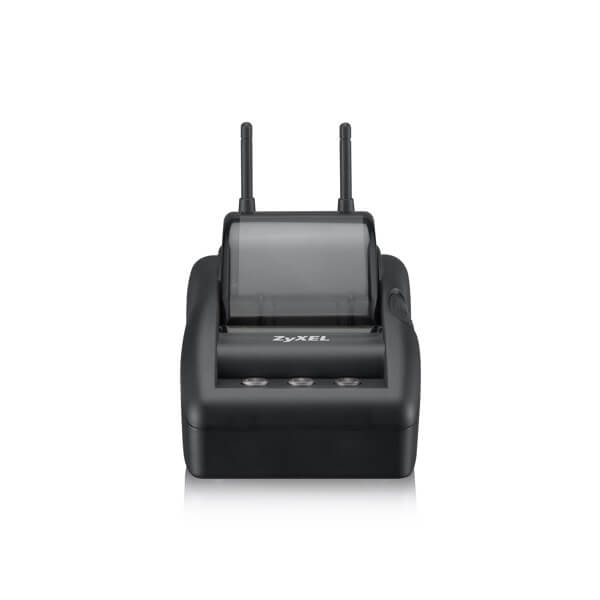

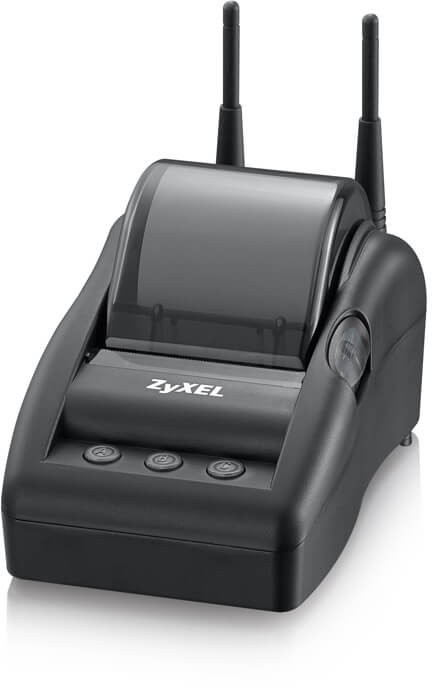

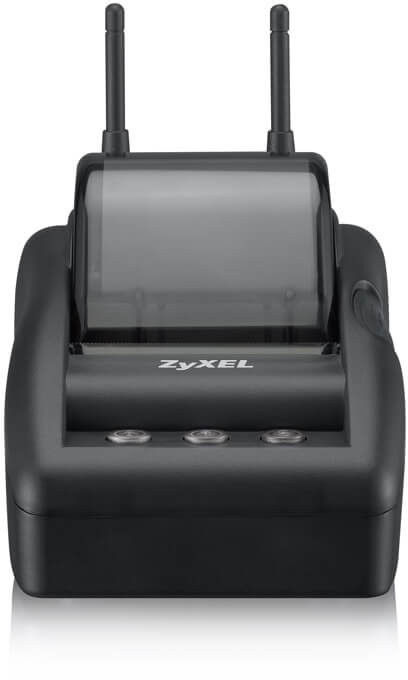

802.11n Hotspot Service Gateway w/50 Concurrent Device support and Built-In 3 Button Thermal Printer

Overview:

Brand-new all-in-one access hotspot combines gateway and printer functions to meet the need of micro bistros or coffee shops

• Built-in thermal printer
• Supports 100 concurrent logins
• Integrated account generator, Web-based authentication portal and billing system
• Facilitates compliance with data retention regulations
• Supports 10 billing profiles
• Supports external RADIUS servers
• Equal bandwidth management

Benefits:

Generate revenue

The Zyxel UAG50 is designed with advanced billing, user authentication, and access control features that help organizations like hotels manage guest accounts, block unauthorized access, and generate revenue with Internet services. It facilitates monetization of networking investments by offering Internet access as a paid service, or a free service with limitations and premium when a purchase is made.

Increasing customer loyalty

In smaller public areas such as coffee shops, bistros or bars, almost every customer has wireless-capable mobile devices such as smartphones, tablets and even laptops on hand. To satisfy this fast-growing demand, venue owners need a solution that provides ideal Wi-Fi bandwidth, capacity and performance.

The Zyxel UAG50 supports up to 50 users and gives equal bandwidth to each user for them to enjoy high-quality Wi-Fi Internet access, which leads to higher customer loyalty.

Application Diagram:

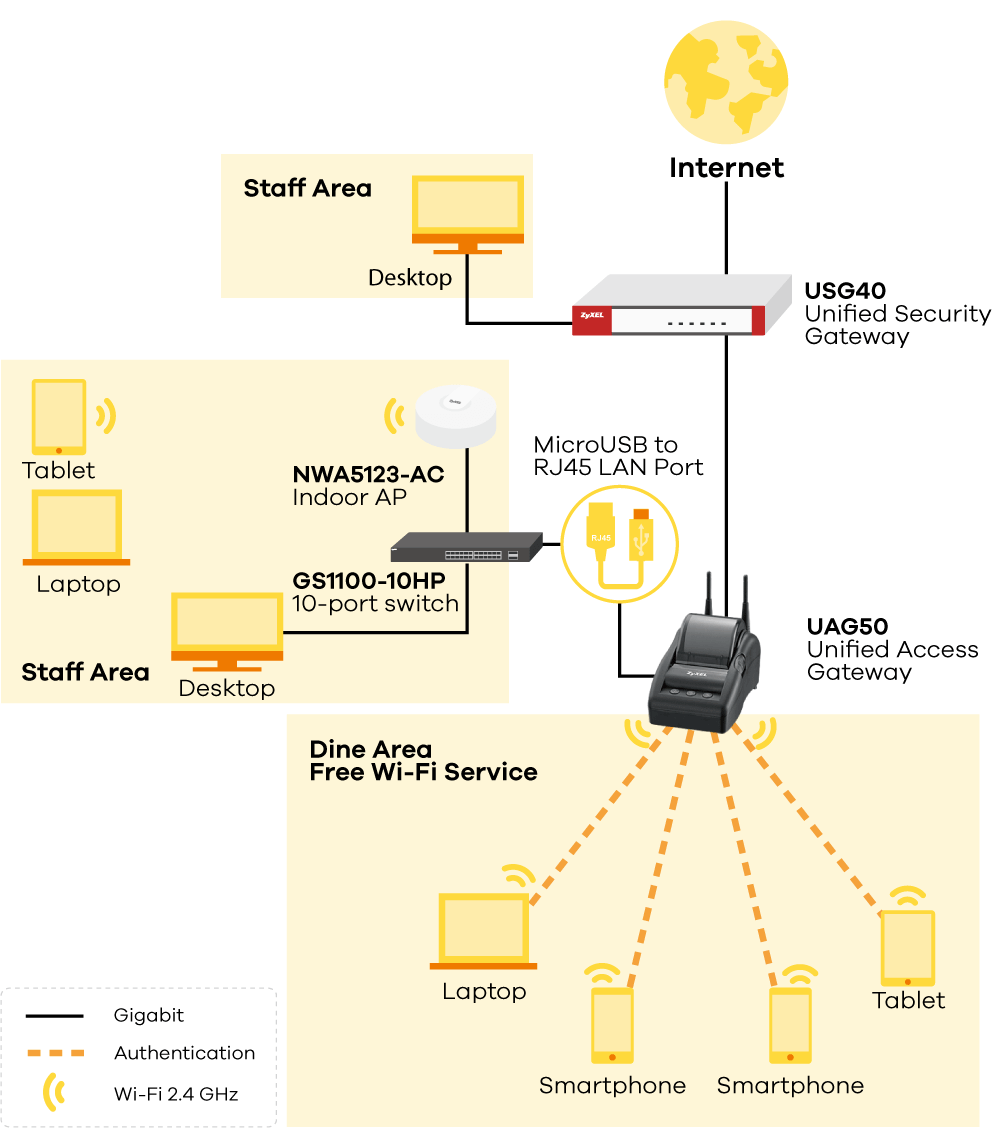

Café Shop Application - Free Wi-Fi Service

• UAG50 provides a MicroUSB-to-RJ45 LAN port for further usage.
• At vendors providing free Wi-Fi services, customer can access the Internet by just pushing a button to complete authentication without other unnecessary procedures.

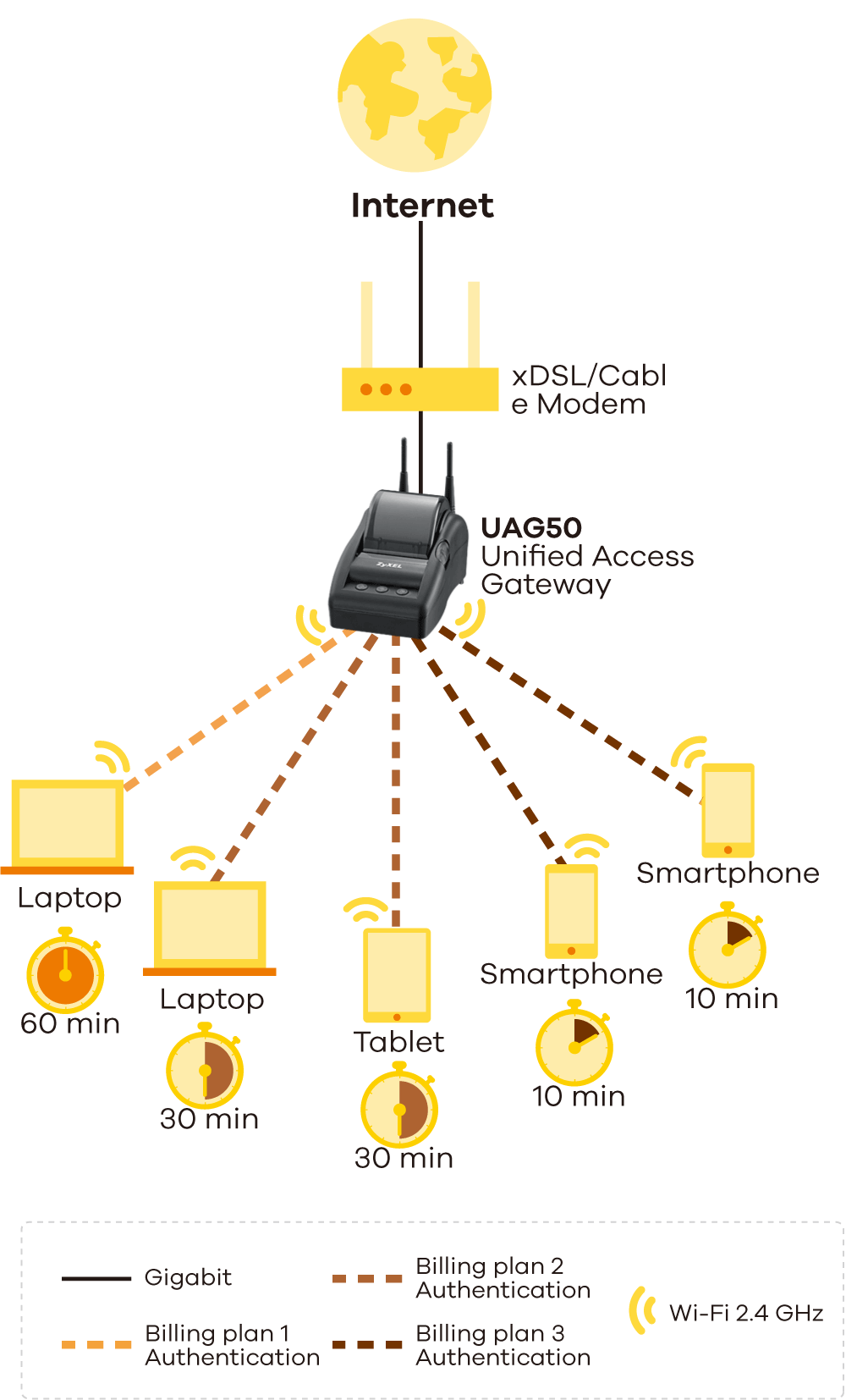

Bistro Application - Time/Quota Wi-Fi Service

• UAG50 provides several billing models to suit different business tactics.
• Vendors can also set different billing terms depending on access time, so customers can choose from different buttons on demand for the required authentication process to connect to the Internet

Specifications:

UAG50 Specifications
Hardware Specifications

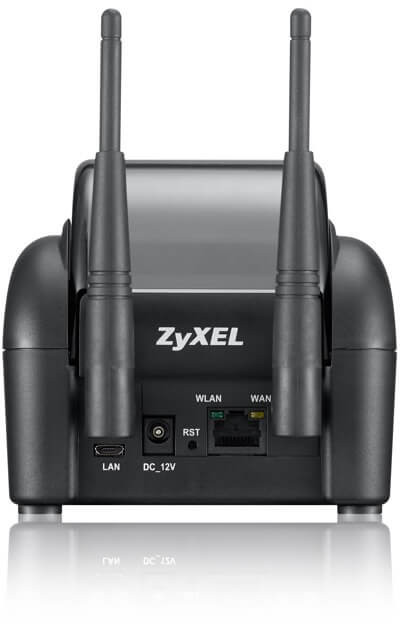

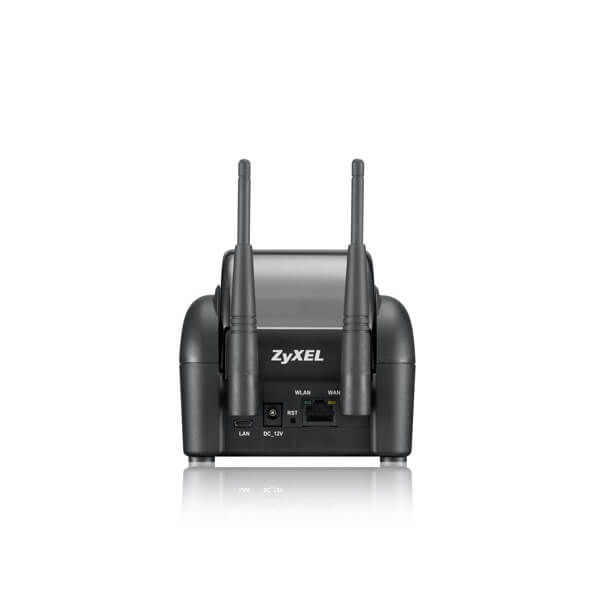

RJ-45 ports		1 x USB LAN, 1 x WAN
USB ports		1
Ticket printer support		Yes (All-in-One)
System Capacity & Performance*1
Routing throughput (Mbps)*2		85
Concurrent Device Upgrade (default/max.)		100/100
Max. concurrent sessions*3		16,385
DHCP pool size		253
Wireless Specifications
Standard compliance		802.11 b/g/n
Wireless frequency		2.4 GHz
Power Requirements
Power input		100 - 240 VAC, 50/60 Hz
Max. power consumption (watt)		12 V, 1.5 A
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	109 x 155 x 90/4.29 x 6.10 x 3.54
	Weight (kg/lb.)	828.4/1.83
Packing	Dimensions (WxDxH)(mm/in.)	150 x 190 x 145/5.91 x 7.48 x 5.71
	Weight (kg/lb.)	1,049/2.31
Environmental Specifications
Operating	Temperature	0°C to 50°C/32°F to 122°F
	Humidity	20% to 80% (non-condensing)
Storage	Temperature	-10°C to 60°C/14°F to 140°F
	Humidity	20% to 95% (non-condensing)
MTBF (hr)		42,486
Certifications
EMC		EMC FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI
Safety		LVD (EN60950-1), BSMI

Documentation:

Download the Zyxel UAG50 Series Datasheet (PDF).
