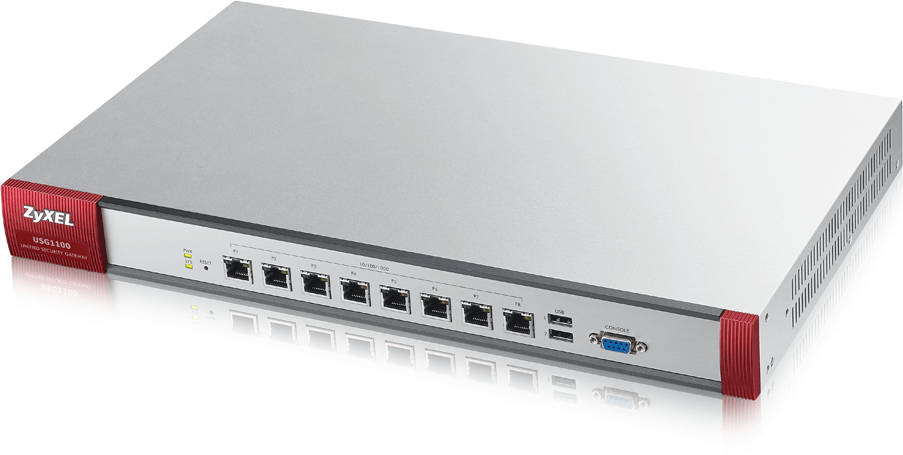

Zyxel USG 1100
Uncompromising Security and Performance for Next Generation Business Needs
Our Price: $1,980.00
Powerful, Robust Anti-malware Protection for Medium- to Large-sized Businesses
As business grows and network expands, more and more users and devices as well as new applications like cloud-based services would join the network. It means that high network availability for sustainable business, more workplace Wi-Fi and up-to-date regulations for application usages are eagerly needed. Without an effective solution to control, optimize or block social and some other Web applications, businesses would risk not only losing productivity but also exposing company network to new threats.
The new Zyxel USG Extreme Series are Next Generation Firewalls (NGFW) designed to deliver high availability, anti-malware protection and consolidated policy enforcement for medium-to large-sized businesses and campuses. The Zyxel USGs provides WAN and VPN load balancing and failover ensures nonstop business communications, while incorporating bestin-breed anti-virus, anti-spam, content filtering and application intelligence technology for effective application optimization and comprehensive network protection.
- High-performance, high-value Next Generation Firewall (NGFW) for medium and large-sized businesses and campuses
- Anti-malware protection with firewall, anti-virus, antispam, content filtering, IDP, next-generation application intelligence and SSL inspection
- Robust SSL, IPSec and L2TP over IPSec VPN connectivity and VPN High Availability (HA)
- Unified security policy streamlines the configuration and management efforts
- Built-in WLAN controller for centralized AP management and effortless WLAN scalability of up to 18 APs
Powerful and Robust
Zyxel’s USG Extreme Series is built on a powerful multi-core platform to deliver high performance that helps growing businesses to overcome challenges during the expansion. In order to satisfy the needs for always-online communications, the Series features multi-WAN load balancing/failover and a comprehensive mobile broadband USB modem support list for WAN backup operations. In addition, the Series supports IPSec load balancing and failover to provide additional resiliency for the most missioncritical VPN deployments.
Protection and optimization
The Zyxel USG Extreme Series provides extensive anti-malware protection and effective control of Web applications—like Facebook, Google Apps and Netflix—with industry-leading firewall, anti-virus, anti-spam, content filtering, IDP and application intelligence. These security measures are enhanced with SSL inspection, which helps block threats that are hidden in SSL encrypted connections and facilitates deeper policy enforcement.
Unified security policy streamlines the configuration of firewall and every security feature to offer faster, easier and more consistent policy management. From a single interface, users can apply all policy criteria to every UTM feature with reduced complexity. The integrated WLAN controller also enables users to management up to 18 APs from a centralized user interface.
Best TCO for Wi-Fi Expansion
Addressing the connectivity needs in the BYOD trend, the Zyxel USG Extreme Series helps businesses deploying or expanding a managed Wi-Fi network with minimized efforts. Integrated with Zyxel AP Controller technology, the Series enables businesses to easily scale up the WLAN and to provide seamless Wi-Fi coverage in places like meeting rooms and guest reception areas.
Dual-WAN & Mobile Broadband
The Zyxel USG Advanced Series provides non-stop Internet uptime with multi-WAN and mobile broadband support. Multi-WAN works with two or more Ethernet WAN connections for active-active WAN load balancing or active-passive failover. Comprehensive mobile broadband USB modems are also supported for WAN backup.
VPN High Availability (HA)
Zyxel USGs feature VPN HA to satisfy the demands of the most mission-critical VPN deployments. Supporting advanced GRE over IPSec technology, users can deploy two IPSec VPN tunnels for active-active VPN load balancing or active-passive failover.
Unified Security Policy
Unified security policy offers object-based management and a unified configuration interface for firewall and all security-related policies. Users can easily apply all policy criteria to every UTM feature, reduce configuration time, and get more streamlined policy management.
Powered by Kaspersky SafeStream II gateway anti-virus, Zyxel USGs provide comprehensive and real-time protection against malware threats before they enter the network. Zyxel USGs can identify and block over 650,000 viruses right at the gate and provide high-speed scanning with stream-based virus scanning technology.
With a cloud-based IP reputation system, Zyxel anti-spam can deliver accurate, zero-hour spam outbreak protection by analyzing up-to-the-minute sender reputation data from highly diverse traffic sources. It can detect spam outbreaks in the first few minutes of emergence regardless of spam language or format.
Zyxel USGs support high-throughput IPSec, L2TP over IPSec and SSL VPN for a wide range of site-to-client and site-to-site VPN deployments. Reinforced with the advanced SHA-2 encryption, the Zyxel USGs provide the most secure VPN for business communications.
Integrated WLAN Controller
The integrated WLAN controller supports CAPWAP, and enables centralized authentication and access management of multiple APs in the network. The Zyxel USG Advanced Series can manage 2 APs by default, and up to 18 APs with license upgrade.
Zyxel’s USG Advanced Series can identify, categorize and control over 3,000 social, gaming, productivity, and other Web applications and behaviors. Users can prioritize productive applications, throttle acceptable ones, and block unproductive applications to boost productivity and prevent bandwidth abuse.
SSL inspection enables the Zyxel Advanced Series to provide not only comprehensive security, but also deeper policy enforcement. It enables the USG’s application intelligence, IDP, content filtering and anti-virus to inspect traffic in SSL encrypted connections and block threats that usually go unseen.
Zyxel content filtering helps screen access to websites that are not business related or malicious. With a massive, cloud-based database of over 140 billion URLs that are continuously analyzed and tracked, Zyxel provides highly accurate, broad and instant protection against malicious Web content.
Intrusion Detection and Prevention (IDP)
|Application Intelligence and Optimization
Unified Security Policy
Anti-Malware Protection and Application Optimization
- Enabling anti-virus, anti-spam and intrusion prevention, business networks gain deep, extensive protection against all types of malware threats
- Content filtering enables businesses to deny access to Websites that are malicious or not business-related
- Application intelligence technology not only enable businesses to block or throttle non-productive Web applications, but also optimize Web applications that increase productivity
- Branch offices, partners and home users can deploy Zyxel USGs/ ZyWALLs for site-to-site IPSec VPN connections
- Branch offices can additionally deploy IPSec VPN HA (load balancing and failover) for always online VPN connectivity
- Remote users can securely access company resources with their computers or smartphones via SSL, IPSec and L2TP over IPSec VPN
- The headquarter USG/ZyWALL can also establish an IPSec VPN connection with Microsoft Azure for secured access to a variety of cloud-based applications

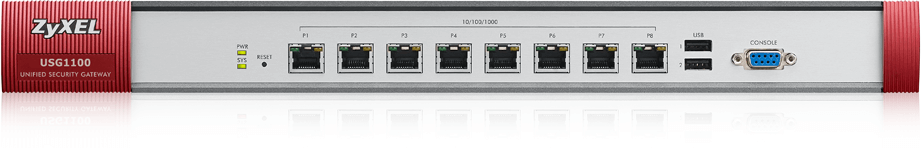

|10/100/1000 Mbps RJ-45 ports||8 (configurable)|
|Console port||Yes (DB9)|
|System Capacity & Performance*1|
|SPI firewall throughput (Mbps)*2||6,000|
|VPN throughput (Mbps)*3||800|
|IDP throughput (Mbps)*4||550|
|AV throughput (Mbps)*4||500|
|UTM throughput (AV and IDP)*4||500|
|Unlimited user licenses||Yes|
|Max. concurrent sessions*5||300,000|
|New TCP session rate||12,000|
|Max. concurrent IPsec VPN tunnels||1,000|
|Max. concurrent SSL VPN users||255|
|Included SSL VPN user no.||55|
|AP Controller (APC) ver.||1.0|
|Managed AP number (default/max.)||2/18|
|Key Software Features|
|Virtual Private Network (VPN)||Yes (IPSec, SSL, L2TP over IPSec)|
|Content Filtering (CF)||Yes|
|Application intelligence and optimization||Yes|
|Intrusion Detection and Prevention (IDP)||Yes|
|Single Sign-On (SSO)||Yes|

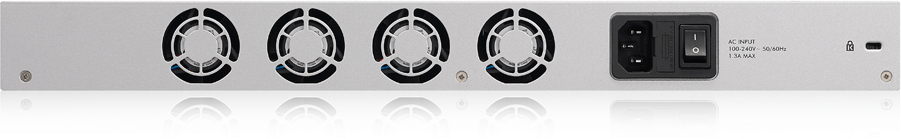

|Power input||100 - 240 V AC, 50/60 Hz, 1.3 A max.|
|Max. power consumption (watt)||58.5|
|Item||Dimensions (WxDxH)(mm/in.)||430 x 250 x 44 / 16.93 x 9.84 x 1.73|
|Weight (kg/lb.)||3.3 / 7.28|
|Packing||Dimensions (WxDxH)(mm/in.)||519 x 392 x 163 / 20.43 x 15.43 x 6.42|
|Weight (kg/lb.)||4.8 / 10.58|
|Operating||Temperature||0°C to 40°C (32°F to 104°F)|
|Humidity||10% to 90% (non-condensing)|
|Storage||Temperature||-30°C to 70°C (-22°F to 158°F)|
|Humidity||10% to 90% (non-condensing)|
|EMC||FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI|
|Safety||LVD (EN60950-1), BSMI|
*1: Actual performance may vary depending on network conditions and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets).
*4: AV and IDP throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
*5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
6: Product availability varies by country and region. Please contact local sales team regarding availability in your region.
|Description||Performance Series||Advanced Series||Extreme Series|
|Firewall throughput||400 Mbps||1.0 Gbps||1.6 Gbps||1.9 Gbps||5.0 Gbps||6.0 Gbps||7.0 Gbps|
|VPN throughput||100 Mbps||180 Mbps||400 Mbps||500 Mbps||650 Mbps||800 Mbps||900 Mbps|
(AV and IDP)
|50 Mbps||90 Mbps||250 Mbps||300 Mbps||400 Mbps||500 Mbps||600 Mbps|
|Max. TCP concurrent sessions||20,000||40,000||60,000||80,000||100,000||300,000||500,000|
2.4 & 5 GHz
|Managed AP number (default/max.)||2/10||2/10||2/18||2/18||2/18||2/18||2/18|
|Unified security policy||Yes||Yes||Yes||Yes||Yes||Yes||Yes|
Download the Zyxel ZyWALL Next Generation USG Series Datasheet (PDF).
