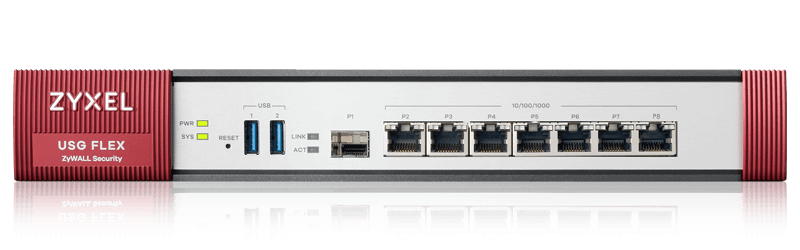

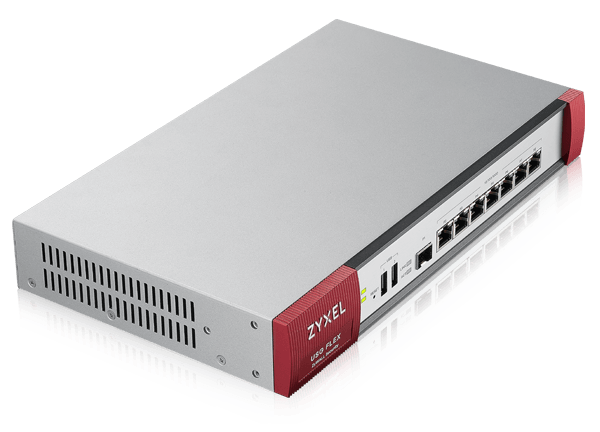

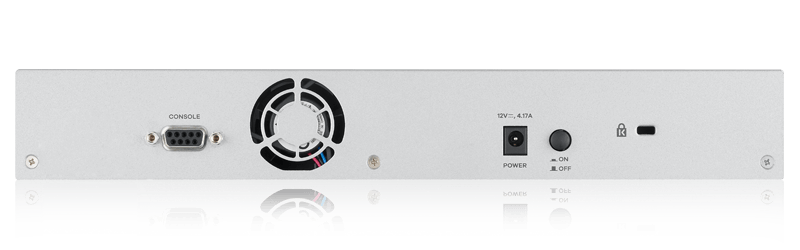

Zyxel USG FLEX 500 Firewall
Up to 5 times UTM performance gain
List Price:
Our Price: $699.99
List Price:
Our Price: $999.99
Click here to jump to more pricing!
Overview:
The latest USG FLEX series provides one single management platform on the cloud while expanding and strengthening the protection from firewalls to access points with automatic responses. The newly designed USG FLEX Series is capable of minimizing computing power usage and maximizing firewall performance, delivering up to 5x UTM performance with cloud flexibility and collaborative protection to help connect and secure small or mid-sized business users.
Flexibility to adapt to on-premises or Nebula cloud management
Optional Gold Security Pack unlocks Sandboxing and Reputation Filter
High assurance multi-layered protection
DNS and URL content filter ensures the web security
Device Insight provides better visibility and control
Automatically contains threats at the network edge
Secure WiFi guarantees remote work security
Add two-factor authentication for an extra layer of protection
Features:
Comprehensive Reputation Filtering Service
USG FLEX Firewall delivers enhanced Reputation filtering functionality and security through its powerful combination of both reputation and category-based filtering.
When it comes to the Zyxel Reputation Filter, we are talking about three services: IP Reputation, DNS threat Filter, and URL threat filter.
IP Reputation
Provides a database of known malicious public IP addresses that enables the gateway to take action on receiving traffic from/to an IP address on the list.
URL Threat Filter
Helps mitigate malware and phishing attacks by blocking malicious webpages by filtering the malicious traffic based on URL category.
DNS Threat Filter
If a domain has been known to be e.g. phishing before, the firewall will automatically block that domain. DNS Threat Filter is effective against any IP protocol.
Same Security Across Networks
We offer a wide array of products that allow different remote access options including firewalls for headquarters and branch offices, remote access points with Secure WiFi andVPN clientfor off-site employees, extending endpoint protection.
Safeguarding Remote Connectivity to Your Corporate Network
Businesses striking a balance on productivity and security protection becomes a priority with growing number of devices. Whether it is a wired, wireless, or a IoT device, the Secure WiFi service is used to build a secure L2 tunnel for Work-From-Home user to extend the working experience easily and securely, as if you were in the office with the safety of both two-factor authentication and secure tunnel, which boosts up productivity and eases IT support. The Secure WiFi service also unlocks the number of managed APs to maximum for the USG FLEX firewall.
Deep Insight Into All Your Devices
Device Insight gives you more visibility of your networks including wired, wireless, BYOD, and IoT devices. You can create access policy with device contextual such as OS version or device category to enforce network segmentation. This reduces the attack surface and prevents threats from spreading. It also helps SMB(s) reduce time spent on investigation. Continuing with our goal of providing our customers with increased visibility, ZyxelSecuReportergives your organization comprehensive endpoint inventory dashboard.
Level Up Security with 2FA Network Access
Password is not enough to secure your network access. You need a second form of authentication to ensure unauthorized users can’t access your company’s databases, email accounts and more. Google Authentication allows your organizations to authenticate the identities of users accessing your networks through remote desktops and personal mobile devices.
Comprehensive Web Filtering Service
USG FLEX Firewall delivers enhanced web filtering functionality and security through its powerful combination of both reputation and category-based filtering. The dynamic content categorization analyzes the content of a previously unknown website and domain, then determines if it belongs to an undesirable category including gambling, pornography, games, and many others. A newly added DNS content filter offers a better approach to inspect web access, particularly when the website is deploying ESNI (Encrypted Server Name Indication) where the traditional URL filtering is not applicable to the destination domain.
Stay Ahead of Threats with CDR
Collaborative Detection & Response (CDR) is used to identify threats and risks posed in the more complex organization workforce, workload, and workplace. USG FLEX firewalls to Nebula provides network admins with a rule-based security policy. The firewalls detect a threat on any of the connected clients and will sync with the Nebula control center, then automatically respond to cyber threats and contain the device(s) at the edge (Wireless Access Point) of your network. It is a perfect fit for IT to address the requirements of a decentralized network infrastructure and provide automatic protection.
Analytics Report and Enhanced Insights
USG FLEX series dashboard gives user-friendly traffic summary and threat statistic visuals. UtilizeSecuReporterfor further threat analysis with correlation feature design, making it easy to proactively trackback network status to prevent the next threat event. Centralized visibility of network activities for you to easily manage multiple clients.
Comprehensive Connectivity
ZyWALL USG FLEX series not only protects your network, but it also support hospitality features including hotspot and concurrent device upgrade. You can buy time-based bundle, so only pay what you need. We also provide Wireless Health Monitor giving you visibility into the connection state of client and access point issues, allowing network administrators to easily troubleshoot issues.
Why USG FLEX:
USGFLEX Flexible Deployment with Precise Protection
The latest USG FLEX 100 provides one single management platform on the cloud while expanding and strengthening the protection from firewalls to access points with automatic responses. The newly designed USG FLEX Series is capable of minimizing computing power usage and maximizing firewall performance, delivering up to 5x UTM performance with cloud flexibility and collaborative protection to help connect and secure small or mid-sized business users.
Nebula Together
USG FLEX firewalls, the new addition to theNebula cloud managementfamily, strongly empowers the full-blown Zyxel Security Matrix in Nebula, further optimizing Nebula with holistic security and protection for SMB business networks. Zyxel provides a centralized provisioning security policy to the remote workforce from Nebula and traffic shaping eliminating the network bottleneck to fuel the best business productivity.
Zero Trust Networks Security
Remote working is here to stay, USG FLEX series applies the principles of zero trust access. It ensures the same security controls are applied to HQ, branch offices, home, or wherever your remote workers reside. Create access policy with device contextual such as OS version or device category to enforce network segmentation. This reduces the attack surface and prevents threats from spreading.
USG FLEX minimizes risk by adding granular policies and access authentication for the ever-growing needs of a secure workplace. Improve protection across identities, devices, applications, and network. Reduce risk and build trust across your entire digital assets.
High Assurance Multi-layered Protection
USG FLEX is designed with multi-layer protection against multiple types of threats from in and out. Multiple security services empower you to restrict users' inappropriate application usage or web access. Zyxel offers leading-industry DNS content filter, eliminating blind spots in all encrypted traffic with TLS 1.3 without the need to deploy SSL inspection. All together safeguarding your network without any unattended gaps.
Simplified and Unified Licensing Experience
We know the experience from license purchase and renewals are equally important to our partners. We've optimized the licensing management platform and brought a consistent migration path between on-premise and our cloud platform. We make sure our partners can quickly adapt to a secure environment without the hassle but retaining the flexibility for those who need to practice the same security across networks scenarios.
Just Connect with Nebula
Just connect with a single vendor
Resellers, Managed Service Providers (MSPs) and network Administrators will find Simplicity, Scalability, Flexibility, reduced IT risk and reduced costs through Zyxel’s Cloud Networking Management platform, Nebula a single-vendor approach.
Just Connect without the complexity
Nebula offers powerful, effortless and scalable network connectivity that works together to remove the complexity and security risks often associated with having a mixed vendor approach to networking.
Launch an entire network in minutes
Connect, protect and manage Security, Switch, Wireless and LTE/5G connectivity via our centralized Cloud platform, Nebula.
Just Connect, with an unmatched portfolio
Serving customers with over 80 Nebula enabled devices via an ever-growing portfolio, Zyxel is unmatched in its approach to onboarding new and existing products via NebulaFlex. From Deploying a home office to delivering connectivity to distributed network configurations, Zyxel’s Portfolio of Nebula enabled products can accommodate all types of budgets, functionality and scalability for now and for the future.
Specifications:
| Model | USG FLEX 100*11 | USG FLEX 100AX | USG FLEX 100W | USG FLEX 200 | USG FLEX 500 | USG FLEX 700 |
|---|---|---|---|---|---|---|
| Hardware Specifications | ||||||
| WiFi standard | N/A | 802.11 ax/ac/n/g/b/a | 802.11 a/b/g/n/ac | N/A | N/A | N/A |
| 10/100/1000 Mbps RJ-45 ports | 4 x LAN/DMZ, 1 x WAN | 4 x LAN/DMZ, 1 x WAN | 4 x LAN/DMZ, 1 x WAN, 1 x SFP | 4 x LAN/DMZ, 2 x WAN, 1 x SFP | 7 (configurable), 1 x SFP (configurable) | 12 (configuratble), 2 x SFP (configurable) |
| USB3.0 ports | 1 | 1 | 1 | 2 | 2 | 2 |
| Console port | Yes (RJ-45) | Yes (RJ-45) | Yes (RJ-45) | Yes (DB9) | Yes (DB9) | Yes (DB9) |
| Rack-mountable | N/A | N/A | N/A | Yes | Yes | Yes |
| Fanless | Yes | Yes | Yes | Yes | N/A | N/A |
| System Capacity & Performance*1 | ||||||
| SPI firewall throughput (Mbps)*2 | 900 | 900 | 900 | 1,800 | 2,300 | 5,400 |
| VPN throughput (Mbps)*3 | 270 | 270 | 270 | 450 | 810 | 1,100 |
| VPN IMIX throughput (Mbps)*3 | 100 | 100 | 100 | 240 | 240 | 550 |
| IPS throughput (Mbps)*4 | 540 | 540 | 540 | 1,100 | 1,150 | 2,000 |
| Anti-Malware throughput (Mbps)*4 | 360 | 360 | 360 | 570 | 800 | 1,450 |
| UTM throughput (Anti-Malware and IPS)(Mbps)*4 | 360 | 360 | 360 | 550 | 800 | 1,350 |
| Max. TCP concurrent sessions*5 | 300,000 | 300,000 | 300,000 | 600,000 | 1,000,000 | 1,600,000 |
| Recommended gateway-to-gateway IPsec VPN tunnels | 20 | 20 | 20 | 50 | 150 | 250 |
| Max. concurrent IPsec VPN tunnels*6 | 50 | 50 | 50 | 100 | 300 | 500 |
| Concurrent SSL VPN users | 30 | 30 | 30 | 60 | 150 | 150 |
| VLAN interface | 8 | 8 | 8 | 16 | 64 | 128 |
| Speedtest Performance | ||||||
| SPI firewall throughput (Mbps)*10 | 848 | 848 | 848 | 931 | 935 | 934 |
| Security Service | USG FLEX 100*11 | USG FLEX 100AX | USG FLEX 100W | USG FLEX 200 | USG FLEX 500 | USG FLEX 700 |
| Sandboxing*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Web Filtering*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Application Patrol*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Anti-Malware*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| IPS*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Reputation Filter*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Geo Enforcer | Yes | Yes | Yes | Yes | Yes | Yes |
| SecuReporter*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Collaborative Detection & Response*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Device Insight | Yes | Yes | Yes | Yes | Yes | Yes |
| Security Profile Sync*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| SSL (HTTPS) Inspection | Yes | Yes | Yes | Yes | Yes | Yes |
| 2-Factor Authentication | Yes | Yes | Yes | Yes | Yes | Yes |
| Email Security | Yes | Yes | Yes | Yes | Yes | Yes |
| VPN Features | ||||||
| VPN | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec |
| Microsoft Azure | Yes | Yes | Yes | Yes | N/A | N/A |
| Amazon VPC | Yes | Yes | Yes | Yes | Yes | Yes |
| WLAN Management | ||||||
| Default number of managed AP | 8 | 8 | 8 | 8 | 8 | 8 |
| Recommend max. AP in 1 AP Group | 10 | 10 | 10 | 20 | 60 | 200 |
| Secure WiFi Service*7 | Yes | Yes | Yes | Yes | Yes | Yes |
| Maximum Number of Tunnel-Mode AP | 6 | 6 | 6 | 10 | 18 | 130 |
| Maximum Number of Managed AP | 24 | 24 | 24 | 40 | 72 | 520 |
| Management & Connectivity | ||||||
| Nebula Cloud Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Nebula Cloud Monitoring Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Device HA Pro | N/A | N/A | N/A | N/A | Yes | Yes |
| Link Aggregation (LAG) | N/A | N/A | N/A | N/A | Yes | Yes |
| Hotspot Management*7 | N/A | N/A | N/A | Yes | Yes | Yes |
| Ticket printer support*9/ Support Q'ty (max.) | N/A | N/A | N/A | Yes (SP350E)/10 | Yes (SP350E)/10 | Yes (SP350E)/10 |
| Concurrent devices logins (default/max.)*7*8 | 64 | 64 | 64 | 200 | 200/300 | 500/2000 |
| Security Service | USG FLEX 100*11 | USG FLEX 100AX | USG FLEX 100W | USG FLEX 200 | USG FLEX 500 | USG FLEX 700 |
| Power input | 12 V DC, 2 A max. | 12 V DC, 2.5 A max. | 12 V DC, 2 A max. | 12 V DC, 2.5 A max. | 12 V DC, 4.17 A | 100-240 V AC, 50/60 Hz, 2.5 A max. |
| Max. power consumption (Watt Max.) | 12.5 | 24.3 | 12.5 | 13.3 | 24.1 | 46 |
| Heat dissipation (BTU/hr) | 42.65 | 55.37 | 42.65 | 45.38 | 82.23 | 120.1 |
| Physical Specifications | ||||||
| Item Dimensions (WxDxH)(mm/in.) | 216 x 147.3 x 33/ 8.50 x 5.80 x 1.30 |
216 x 149.28 x 33/ 8.50 x 5.88 x 1.30 |
216 x 147.3 x 33/ 8.50 x 5.80 x 1.30 |
272 x 187 x 36/ 10.7 x 7.36 x 1.42 |
300 x 188 x 44/ 16.93 x 7.4 x 1.73 |
430 x 250 x 44/ 16.93 x 9.84 x 1.73 |
| Item Weight (kg/lb.) | 0.85/1.87 | 1.00/2.20 | 0.85/1.87 | 1.4/3.09 | 1.65/3.64 | 3.3/7.28 |
| Packing Dimensions (WxDxH)(mm/in.) | 284 x 190 x 100/ 11.18 x 7.48 x 3.94 |
284 x 190 x 100/ 11.18 x 7.48 x 3.94 |
284 x 190 x 100/ 11.18 x 7.48 x 3.94 |
427 x 247 x 73/ 16.81 x 9.72 x 2.87 |
351 x 152 x 245/ 13.82 x 5.98 x 9.65 |
519 x 392 x 163/ 20.43 x 15.43 x 6.42 |
| Packing Weight (kg/lb.) | 1.40/3.09 | 1.53/3.37 | 1.40/3.09 | 2.23 (W/O bracket) 2.42 (W/ bracket) |
2.83/6.24 | 4.8/10.58 |
| Included accessories | • Power adapter • RJ-45 - RS-232 cable for console connection |
• Power adapter with plug • RJ-45 - RS-232 cable for console connection • Antenna |
• Power adapter • RJ-45 - RS-232 cable for console connection |
• Power adapter • Rack mounting kit |
• Power adapter • Power cord • Rack mounting kit |
• Power adapter • Rack mounting kit |
| Environmental Specifications | ||||||
| Operating Temperature | 0°C to 40°C/ 32°F to 104°F |
0°C to 40°C/ 32°F to 104°F |
0°C to 40°C/ 32°F to 104°F |
0°C to 40°C/ 32°F to 104°F |
0°C to 40°C/ 32°F to 104°F |
0°C to 40°C/ 32°F to 104°F |
| Operating Humidity | 10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
| Storage Temperature | -30°C to 70°C/ -22°F to 158°F |
-30°C to 70°C/ -22°F to 158°F |
-30°C to 70°C/ -22°F to 158°F |
-30°C to 70°C/ -22°F to 158°F |
-30°C to 70°C/ -22°F to 158°F |
-30°C to 70°C/ -22°F to 158°F |
| Storage Humidity | 10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
10% to 90% (non-condensing) |
| MTBF (hr) | 989,810 | 766,228 | 989,810 | 529,688 | 529,688 | 947,736 |
| Acoustic Noise | N/A | N/A | N/A | N/A | 24.5 dBA on < 25°C Operating temperature, 41.5 dBA on full FAN speed |
24.5 dBA on < 25°C Operating temperature, 41.5 dBA on full FAN speed |
| Certifications | ||||||
| EMC | FCC Part 15 (Class B), CE EMC (Class B), BSMI | FCC Part 15 (Class B), IC EMC (Class B), CE EMC (Class B), RCM (Class B), BSMI | FCC Part 15 (Class B), CE EMC (Class B), BSMI | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI |
| Safety | LVD (EN60950-1), BSMI | LVD (EN62368-1), BSMI | LVD (EN60950-1), BSMI | LVD (EN60950-1), BSMI | LVD (EN60950-1), BSMI | LVD (EN60950-1), BSMI |
| Wireless Specifications | USG FLEX 100AX | USG FLEX 100W |
|---|---|---|
| Standard compliance | 802.11 ax/ac/n/g/b/a | 802.11 a/b/g/n/ac |
| Wireless frequency | 2.4/5 GHz | 2.4/5 GHz |
| Radio | 2 | 2 |
| SSID number | 4 | 4 |
| Maximum transmit power (Max. total channel) | US (FCC) 2.4 GHz: 29.8 dBm, 2 antennas US (FCC) 5 GHz: 32.6 dBm, 2 antennas EU (ETSI) 2.4 GHz: 19.93 dBm (EIRP), 2 antennas EU (ETSI) 5 GHz: 22.99 dBm (EIRP), 2 antennas |
US (FCC) 2.4 GHz: 25 dBm, 3 antennas US (FCC) 5 GHz: 25 dBm, 3 antennas EU (ETSI) 2.4 GHz: 20 dBm (EIRP), 3 antennas EU (ETSI) 5 GHz: 20 dBm (EIRP), 3 antennas |
| No. of antenna | 2 detachable antennas | 3 detachable antennas |
| Antenna gain | 3 dbi @2.4 GHz/5 GHz Data rate | 2 dBi @ 2.4 GHz 3 dBi @ 5 GHz |
| Data rate |
|
|
| Frequency band |
|
|
| Receive sensitivity |
|
|
*: This matrix with firmware ZLD5.37 or later.
*1: Actual performance may vary depending on system configuration, network conditions, and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: VPN throughput measurement are based on RFC 2544 (1,424-byte UDP packets); IMIX: UDP throughput based on a combination of 64 byte, 512 byte, and 1424 byte packet sizes.
*4: AV (with Express Mode) and IDP throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
*5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
*6: Including Gateway-to-Gateway and Client-to-Gateway.
*7: With Zyxel service license to enable or extend the feature capacity.
*8: This is the recommend maximum number of concurrent logged-in devices.
*9: With Hotspot Management license support.
*10: The Speedtest result is conducted with 1 Gbps WAN link in real world and it is subject to fluctuate due to quality of the ISP link.
*11: USG FLEX 100 rev1 is adopting a new hardware design equipped with 4 x LAN/DMZ, 1 x WAN.
Software Features:
Security Service
Firewall
- Routing and transparent (bridge) modes
- Stateful packet inspection
- SIP NAT traversal
- H.323 NAT traversal*2
- ALG support for customized ports
- Protocol anomaly detection and protection
- Traffic anomaly detection and protection
- Flooding detection and protection
- DoS/DDoS protection
Unified Security Policy
- Unified policy management interface
- Support Content Filtering, Application Patrol, firewall (ACL)
- Firewall: SSL inspection*2
- Policy criteria: source and destination IP address, user group, time
- Policy criteria: zone, user*2
Intrusion Prevention System (IPS)
- Support both intrusion detection and prevention
- Support allowlist (whitelist) to deal with false positives involving known benign activity*2
- Support rate-based IPS signatures to protect networks against application-based DoS and brute force attacks*2
- Signature-based and behavior-based scanning
- Support exploit-based and vulnerability-based protection
- Support Web attacks like XSS and SQL injection
- Streamed-based engine
- Support SSL inspection*2
- Inspection on various protocols: HTTP, FTP, SMTP, POP3, and IMAP
- Inspection on various protocols: HTTPs, FTPs, SMTPs, POP3s, and IMAPs*2
- Customizable signature & protection profile*2
- Automatic new signature update mechanism support
Application Patrol
- Smart single-pass scanning engine
- Identifies and control thousands of applications and their behaviors
- Support up to 25 application categories
- Granular control over the most popular applications
- Prioritize and throttle application
- Real-time application statistics and reports
- Identify and control the use of DoH (DNS over HTTPS)
Anti-Malware
- High performance query-based scan engine (Express Mode)
- Works with over 30 billion of known malicious file identifiers and still growing
- Multiple file types supported
- Stream-based scan engine (Stream Mode)
- No file size limitation
- HTTP, FTP, SMTP, and POP3 protocol supported
- SSL inspection support*2
- Automatic signature update
Email Security*2
- Transparent mail interception via SMTP and POP3 protocols
- Spam and Phishing mail detection
- Block and Allow List support
- Supports DNSBL checking
URL Threat Filter
- Botnet C&C websites blocking
- Malicious URL blocking
- Supports External URL blacklist
Web Filtering
- HTTPs domain filtering
- SafeSearch support: Google, YouTube, and Microsoft Bing*2
- Allow List websites enforcement
- URL Block and Allow List with keyword blocking
- Customizable warning messages and redirect URL
- Customizable Content Filtering block page
- URL categories increased to 111
- CTIRU (Counter-Terrorism Internet Referral Unit) support
- Support DNS base filtering (domain filtering)
Geo Enforcer
- Geo IP blocking
- Geographical visibility on traffics statistics and logs
- IPv6 address support*2
IP Exception
- Provides granular control for target source and destination IP
- Supports security service scan bypass for IPS, Anti-Malware and URL Threat Filter
Device Insight
- Agentless scanning for discovery and classification of devices
- View all devices on the network, including wired, wireless, BYOD, IoT, and SecuExtender (remote endpoint) on SecuReporter
- Visibility of network devices (switches, wireless access points, firewalls) from Zyxel or 3rd party vendors
Collaborative Detection & Response (CDR)
- Support Alert/Block/Quarantine containment actions
- Prevent malicious wireless clients network access with blocking feature
- Customizable warning messages and redirect URL
- Bypass by IP or MAC address with exempt list
VPN
IPSec VPN
- Key management: IKEv1 (x-auth, mode-config), IKEv2 (EAP, configuration payload)
- Encryption: DES, 3DES, AES (256-bit)
- Authentication: MD5, SHA1, SHA2 (512-bit)
- Perfect forward secrecy (DH groups) support 1, 2, 5, 14, 15-18, 20-21
- PSK and PKI (X.509) certificate support
- IPSec NAT traversal (NAT-T)
- Dead Peer Detection (DPD) and relay detection
- VPN concentrator
- Route-based VPN Tunnel Interface (VTI)
- VPN high availability (Failover, LB)
- GRE over IPSec*2
- NAT over IPSec
- L2TP over IPSec
- SecuExtender Zero Trust VPN Client
- Support native Windows, iOS/macOS and Android (StrongSwan) client provision*2
- Support 2FA Email/SMS*2
- Support 2FA Google Authenticator
SSL VPN
- Supports Windows and macOS X
- Supports full tunnel mode
- Supports 2-Factor authentication
Networking
Secure WiFi
- Secure Tunnel for Remote AP
- L2 access between home office and HQ (Secured Tunnel)
- GRE Tunnel for Campus AP
- Enforcing 2FA with Google Authenticator
- WPA2 Enterprise (802.1x) supported
- Wireless Storm Control
- Applicable regardless of the On premise/Nebula-managed mode of the USG FLEX
WLAN Management*2
- Supports AP Controller (APC) version 4.00
- 802.11ax WiFi 6 AP and WPA3 support
- 802.11k/v/r support
- Supports auto AP FW update
- Scheduled WiFi service
- Dynamic Channel Selection (DCS)
- Client steering for 5 GHz priority and sticky client prevention
- Auto healing
- Customizable captive portal page
- WiFi Multimedia (WMM) wireless QoS
- CAPWAP discovery protocol
- Multiple SSID with VLAN
- Supports ZyMesh
- Support AP forward compatibility
- Rogue AP Detection
Mobile Broadband*2
- WAN connection failover via 3G and 4G* USB modems
- Auto fallback when primary WAN recovers
IPv6 Support*2
- Dual stack
- IPv4 tunneling (6rd and 6to4 transition tunnel)
- SLAAC, static IP address
- DNS, DHCPv6 server/client
- Static/Policy route
- IPSec (IKEv2 6in6, 4in6, 6in4)
Connection
- Routing mode
- Bridge mode and hybrid mode*2
- Ethernet and PPPoE
- NAT and PAT
- NAT Virtual Server Load Balancing
- VLAN tagging (802.1Q)
- Virtual interface (alias interface)
- Policy-based routing (user-aware)*2
- Policy-based NAT (SNAT)
- • GRE*2
- Dynamic routing (RIPv1/v2 and OSPF, BGP)*2
- DHCP client/server/relay
- Dynamic DNS support
- WAN trunk for more than 2 ports
- Per host session limit
- Guaranteed bandwidth
- Maximum bandwidth
- Priority-bandwidth utilization
- Bandwidth limit per user*2
- Bandwidth limit per IP
- Bandwidth management by application
- Link Aggregation support*1 *2
Management
Nebula Cloud Mode
- Unlimited Registration & Central Management (Configuration, Monitoring, Dashboard, Location Map & Floor Plan Visual) of Nebula Devices
- Zero Touch Auto-Deployment of Hardware/Configuration from Cloud
- Over-the-air Firmware Management
- Central Device and Client Monitoring (Log and Statistics Information) and Reporting
- Security Profile Sync
Nebula Cloud Monitoring Mode
- Monitor device on/off status
- Firmware upgrade operation
- Manage firewall licenses
- Access remote GUI (requires Nebula Pro Pack)
- Backup and restore firewall configurations (requires Nebula Pro Pack)
Authentication
- • Local user database
- External user database: Microsoft Windows Active Directory, RADIUS, LDAP
- Cloud user database*3
- IEEE 802.1x authentication
- Captive portal Web authentication
- XAUTH, IKEv2 with EAP VPN authentication
- IP-MAC address binding
- SSO (Single Sign-On) support*2
- Supports 2-factor authentication (Google Authenticator, SMS*2 /Email*2
System Management
- Role-based administration
- Multi-lingual Web GUI (HTTPS and HTTP)
- Command line interface (console, web console, SSH and telnet)*2
- SNMP v1, v2c, v3
- System configuration rollback*2
- Configuration auto backup*2
- Firmware upgrade via FTP, FTP-TLS*2
- Firmware upgrade via Web GUI*2
- New firmware notify and auto upgrade
- Dual firmware images
Logging/Monitoring
- Comprehensive local logging
- Syslog (to up to 4 servers)
- Email alerts (to up to 2 servers)
- Real-time traffic monitoring
- Built-in daily report
- Cloud CNM SecuReporter
*: For specific models supporting the 3G and 4G dongles on the list, please refer to the Zyxel product page at 3G dongle document
*1: Supported models USG FLEX 500/700
*2: Only supported in On Premises Mode
*3: Only supported in Nebula Cloud Mode
License Service:
Applicable on cloud mode
Applicable on premises mode
Device Purchase
| Bundled with UTM* | Device Only | |
|---|---|---|
| Gold Security Pack | No License Included*3 |
|
| UTM Security Pack*1 | ||
| Hospitality Pack | ||
| Nebula Pro Pack*2 | ||
| Nebula Plus Pack | ||
| Secure WiFi |
*: Default bundle with UTM Security Pack is only applicable on USG FLEX 100/100AX/100W/200/500/700.
*1: UTM Security Pack gives additional 30-day trial of service on top of its formal 1-year license duration.
*2: 1-year Nebula Pro Pack is given free to USG FLEXs that are default bundled with UTM Security Pack.
*3: Without UTM bundle you can also purchase licenses later. However the bundle option is highly advisable with lower total costs and seamless protection. Pay less and secure more!
License Purchase
| License Pack | Single License | |
|---|---|---|
| Gold Security Pack* | Web Security Anti Malware SecuReporter |
|
| UTM Security Pack* | ||
| Hospitality Pack*1 | ||
| Nebula Pro Pack | ||
| Nebula Plus Pack | ||
| Secure WiFi |
*: Only applicable on USG FLEX 100/100AX/100W/200/500/700.
*1: Only applicable on USG FLEX 200/500/700.
License Pack
| Service | Gold Security Pack | UTM Security Pack | Hospitality Pack |
|---|---|---|---|
| Sandboxing | |||
| Reputation Filter | |||
| Web Filtering | |||
| Anti-Malware | |||
| IPS | |||
| Application Patrol | |||
| SecuReporter | |||
| Collaborative Detection & Response | |||
| Network Premium | |||
| Email Security | |||
| Security Profile Sync | |||
| Hotspot Management service* | |||
| Concurrent Device Upgrade*1 | |||
| Nebula Pro Pack Services | |||
| Secure WiFi |
*: Hotspot Management is only applicable on USG FLEX 200/500/700.
*1: Only applicable on USG FLEX 500/700 to allow additional connected clients.
Documentation:
Download the Zyxel USG Flex Firewalls Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
List Price:
Our Price: $699.99
List Price:
Our Price: $999.99
List Price:
Our Price: $45.99
List Price:
Our Price: $499.99
List Price:
Our Price: $899.99
List Price:
Our Price: $200.00
List Price:
Our Price: $360.00
List Price:
Our Price: $300.00
List Price:
Our Price: $540.00
List Price:
Our Price: $200.00
List Price:
Our Price: $360.00
List Price:
Our Price: $399.99
List Price:
Our Price: $719.99
List Price:
Our Price: $139.99
List Price:
Our Price: $269.99
