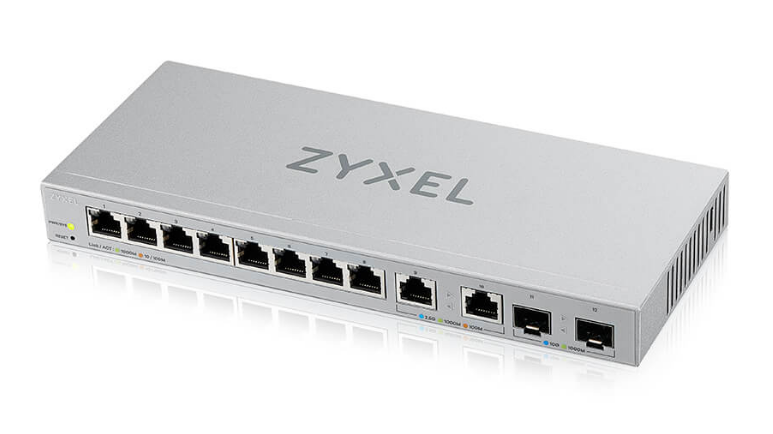

Zyxel XGS1210-12
12-Port Gigabit Web-Managed Multi-Gig Switch
Overview:
Kick your connections into top gear
The Zyxel XGS1210-12 comes with eight gigabit Ethernet ports, two 2.5 Gigabit ports, and two 10 Gigabit SFP+ uplink ports. Deliver your data swiftly to your client devices from your NAS or other core networking essential with 10 Gigabit SFP+. Connect the latest 802.11ax access points to the 2.5 Gigabit ports for true maximum wireless speed delivery.It has been designed specifically for customers who require an affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.
10G Acceleration for All
The XGS1210-12 provides two SFP+ ports compatible with 10GbE which offers higher transmission speeds and allows customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.
Easy to Use, No Setup Required
Its easy plug-and-play design allows you to connect the XGS1210-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.

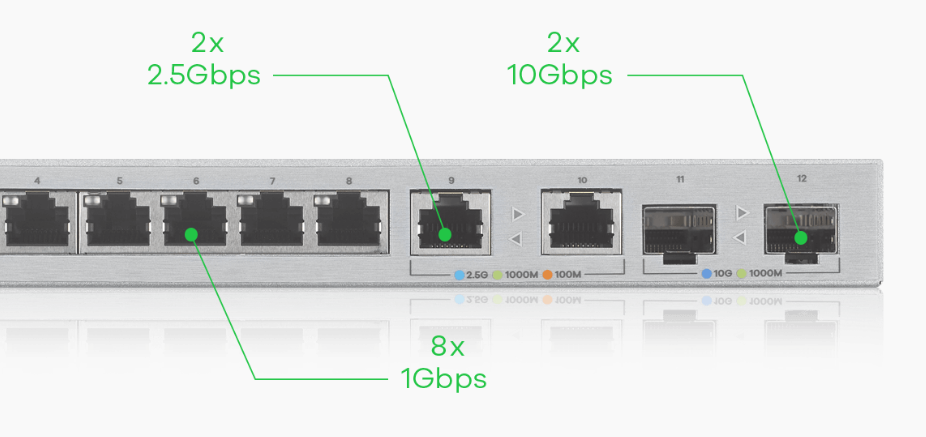

Multi-Gigabit Speed Support
Support data transmission speed among 10G, 2.5G, 1G, or 100M capable of servicing a range of network devices such as gaming consoles, laptops, desktops, workstations, servers, network attached storage (NAS) devices, or wireless access points. The XGS1210-12 also features a handy LED indicator that shows the link rate with different colors.
Features:

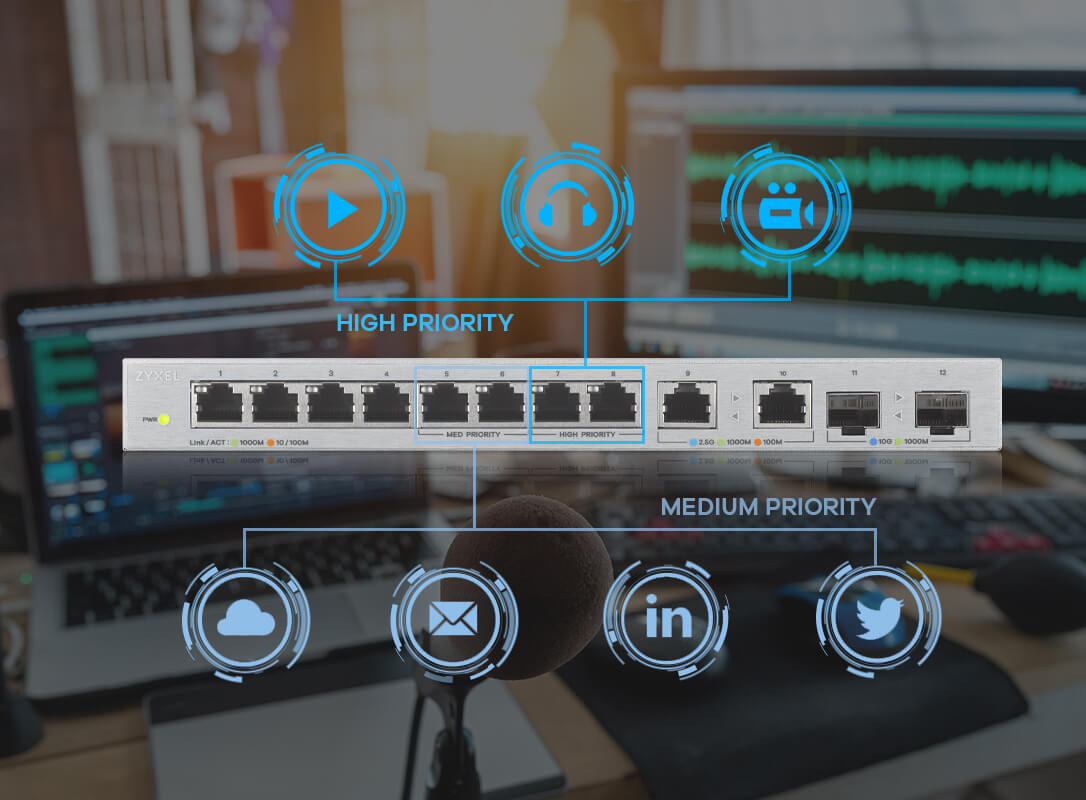

QoS for better traffic control
The Zyxel XGS1210-12 comes with two high-priority and two medium priority ports, which provides enhanced download quality, all while giving you a better surfing, gaming, and streaming experience on other devices.
Fanless, noiseless design
Extend your network without disrupting your quiet business environment. XGS1210-12 features a fanless design that ensures silent operation and greater reliability over time with no additional moving parts.
Energy-Savings at Work
Built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

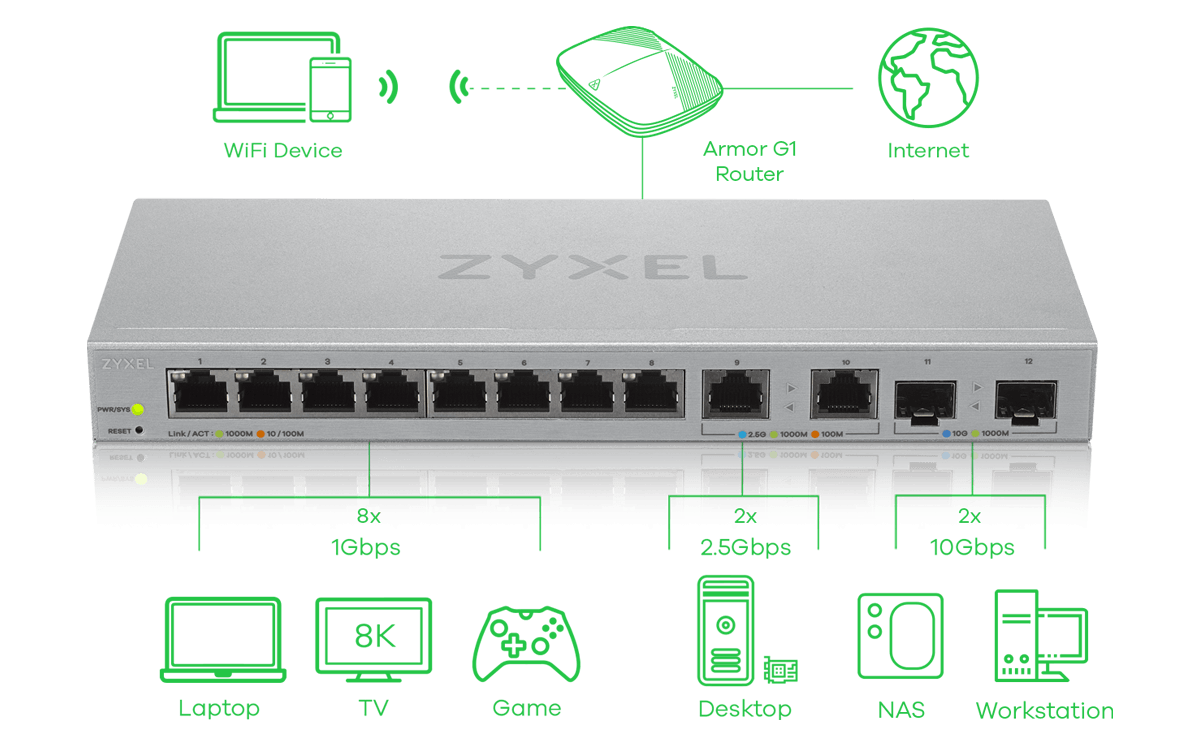

Maximum Flexibility for Your Gig
Attempting to meet today’s demand for more bandwidth, increasing expenditures, difficult deployments, and other complex issues, the XGS1210-12 has been designed to overcome these challenges. XGS1210-12 offers additional flexibility for complex deployments and enables a hybrid high-speed network for homes and/or offices.
Specifications:
System Specifications
Standard
- IEEE 802.3 10BASE-TX Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE802.3ab 1000BASE-T
- IEEE 802.3bz 2500BASE-T Gigabit Ethernet
- SFF-8431
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3x full duplex operation and flow control
Performance
- Switching capacity: 66 Gbps
- Switching forwarding rate: 49 Mpps
- MAC address table: 16 K
- Packet buffer: 1.5 MB
- Jumbo frame support up to 12 KB
Features
- Web-based management
- Auto-MDI/MDIX in all ports
- System password
- VLAN (Port supported)
- Port-based QoS
- 802.1p QoS
- Broadcast storm control
- Loop detection/prevention
- DHCP client
- Static Link aggregation
- Port mirroring
- Weighted Round Robin (WRR) priority QoS
- IGMP snooping v1/v2/and v3 compatible
- Supported multicast groups: 128
- Firmware update
Hardware Specifications

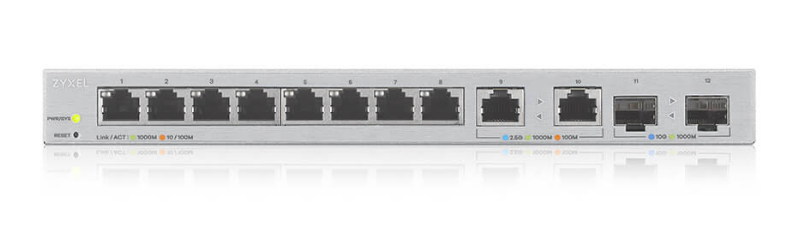

Interface
- 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
- 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
- 2 x SFP+
- Hardware reset button
LED Indicator
- PWR: Power
- Port 1~8: Link/Activity
- Green: 1000 Mbps
- Amber: 10/100 Mbps
- Port 9~10: Link/Activity
- Sky Blue : 2.5Gbps
- Green : 1Gbps
- Amber: 100Mbps
- Port 11~12: Link/Activity
- Blue: 10Gbps
- Green : 1000Mbps

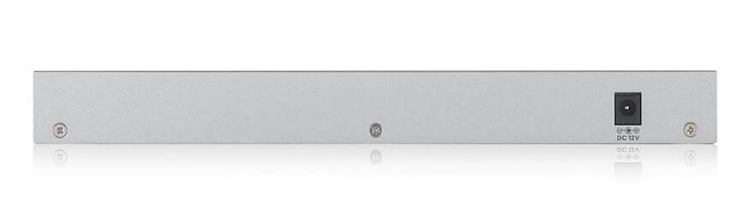

Power Supply
- AC-to-DC external power adapter
- Input: 100-240V~50-60Hz
- Output: 12V DC/1.5A
Physical Specifications
- Item dimensions (WxDxH): 250 x 104 x 27mm(9.84” x 4.10” x 1.06”)
- Item weight: 768g (1.69 lb.)
- Packing dimensions (WxDxH): 306 x 225 x 64mm (12.04” x 8.86” x 1.06”)
- Packing weight: 1217g (2.68 lb)
Environmental Specifications
Operating Environment
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
Storage Environment
- Temperature: -40°C to 70°C (-32°F to 158°F)
- Humidity: 10% to 90% (Non-condensing)
Package Contents
- Switch
- Power adapter
- Quick Start Guide
- Safety warning and DoC
Documentation:
Download the Zyxel XGS1210-12 Datasheet (PDF).
