Zyxel XGS1250-12
12-Port Gigabit UnManaged Multi-Gig Switch

Zyxel Products
Zyxel XGS1250-12
XGS1250-12 - 8-Port Gigabit Web Managed Switch with 3-Port 10G Copper +1-Port SFP+
#XGS1250-12
List Price: $289.99
Our Price: $219.99

More pricing below, click here!

Overview:


Double the 10G Capability!

XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Zyxel Double the 10G Capability


Multi-Speed Devices 2.5 Gbps 5 Gbps 10 Gbps
RJ-45
10 Gbps SFP+
Intel Z390 Motherboard - - -
WiFi 6 AP (2x2) - - -
WiFi 6 AP (4x4) - - -
NAS -

Why Multi-Gigabit?

Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.




Using Your Current Cabling Is Fine!

The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Cable specs 100 Mbps 1 Gbps 2.5 Gbps 5 Gbps 10 Gbps
Cat 5e -
Cat 6 Up to 55M
Cat 6a

Features:



Whisper-silent, Energy-saving at Work

The built-in smart fan is designed to automatically adjust speeds based on the device’s temperature; you can barely hear the sound while the switch is in operation. Also, the Energy Efficient Ethernet function is able to detect network traffic and adjusts power consumption dynamically to reduce business operating expenses.

Zyxel Whisper-Silent Feature

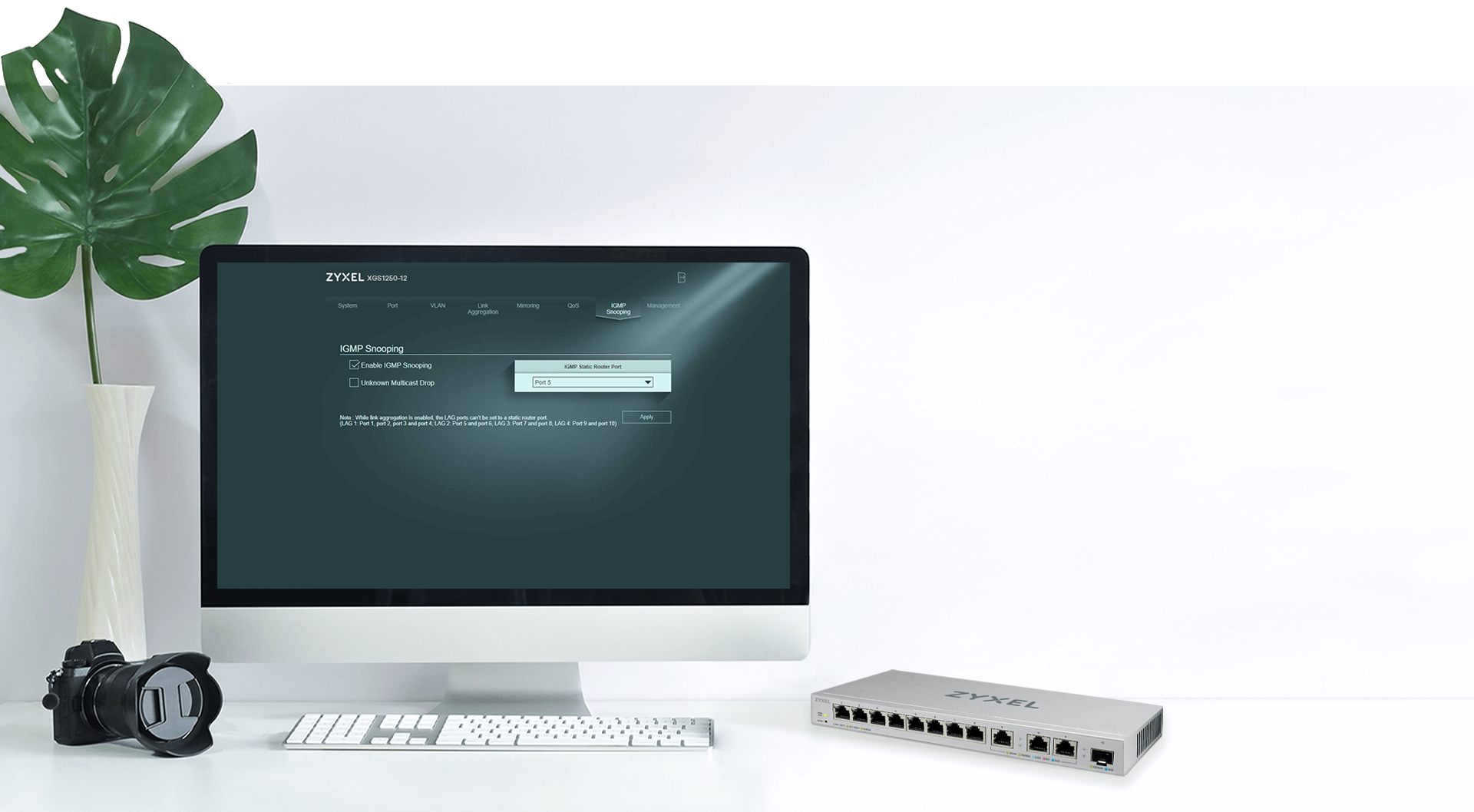

Zyxel Easy Web Management


Easy Web Management

The XGS1250-12 comes with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring which are configurable through a user-friendly web-based interface. It’s the most ideal solution to simplify networks for home and small office users.

Specifications:

System Specifications

Standard

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3an 10GBASE-T
  • IEEE 802.3ae 10 Gbit/s Ethernet over fiber
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3x full duplex operation and flow control
  • IEEE 802.1p QoS

Performance

  • Switching capacity: 96 Gbps
  • Switching forwarding rate: 71.42 Mpps
  • MAC address table: 16 K
  • Packet buffer: 1.5 MB
  • Jumbo frame support up to 12 KB

Features

  • Web-based management
  • Auto-MDI/MDIX in all ports
  • System password
  • VLAN (Port supported)
  • Port-based QoS
  • 802.1p QoS
  • Broadcast storm control
  • Loop detection/prevention
  • DHCP client
  • Static Link aggregation
  • Port mirroring
  • Weighted Round Robin (WRR) priority QoS
  • IGMP snooping v1/v2/and v3 compatible
  • Supported multicast groups: 128
  • Support Zyxel One Network (ZON Utility)

Hardware Specifications

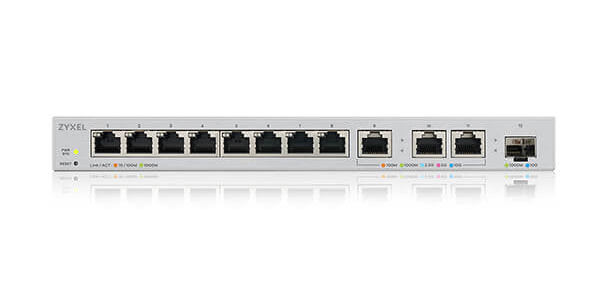

Interface

  • 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
  • 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
  • 2 x SFP+
  • Hardware reset button
  • 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
  • 3 x RJ-45 100M/1G/2.5G/5G/10G Ethernet port with metal shielding
  • 1 x SFP+
  • Hardware reset button

LED Indicator

  • PWR: Power
  • Port 1-8: Link/Activity
    • Green: 1000 Mbps
    • Amber: 10/100 Mbps
  • Port 9-11: Link/Activity
    • Blue : 10Gbps
    • Purple : 5Gbps
    • Sky Blue : 2.5Gbps
    • Green : 1Gbps
    • Amber: 100Mbps
  • Port 12: Link/Activity
    • Blue: 10Gbps
    • Green : 1Gbps

Power Supply

  • AC-to-DC external power adapter
  • Input: 100-240V~50-60Hz
  • Output: 12V DC/2A



Physical Specifications

  • Item dimensions (WxDxH): 250 x 104 x 27 mm (9.84" x 4.10" x 1.06")
  • Item weight: 783 g (1.73 lb.)
  • Packing dimensions (WxDxH): 306 x 225 x 64 mm (12.04" x 8.86" x 1.06")
  • Packing weight: 1350 g (2.98 lb.)



Environmental Specifications

Operating Environment

  • Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity: 10% to 90% (Non-condensing)

Storage Environment

  • Temperature: -40°C to 70°C (-32°F to 158°F)
  • Humidity: 10% to 90% (Non-condensing)



Package Contents

  • Switch
  • Power adapter
  • Quick Start Guide
  • Safety warning and DoC

Documentation:

Download the Zyxel XGS1250-12 Datasheet (PDF).
