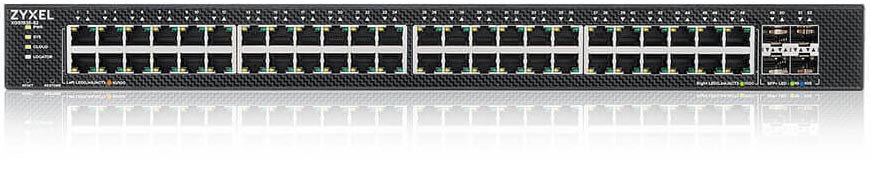

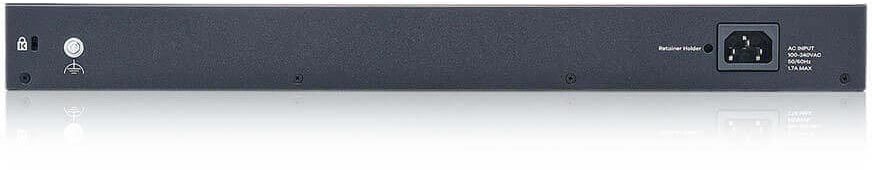

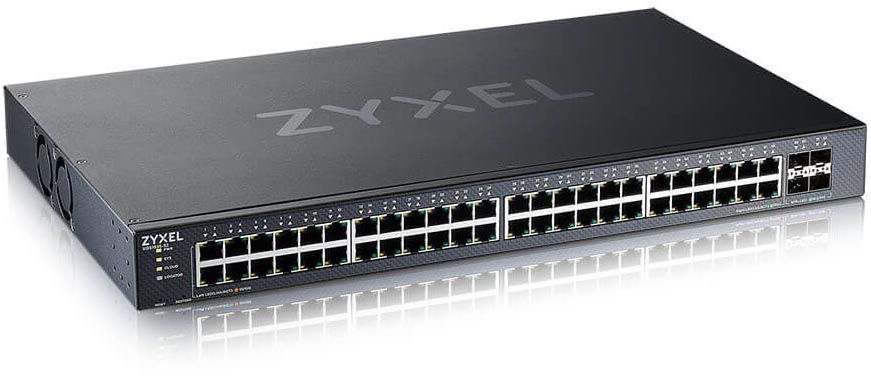

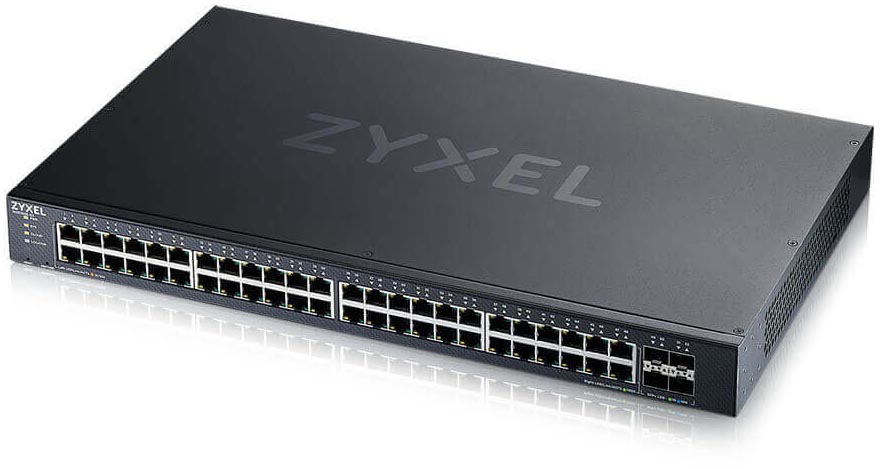

Zyxel XGS1935-52
48-port GbE Lite-L3 Smart Managed Switch with 4 10G Uplink
Overview:
Hassle-Free to Migrate Your Network to 10GbE
The Zyxel XGS1935 Series is a family of Lite-L3 Smart Managed Switch that consists of four models, including 28- and 52-port, PoE and non-PoE options. The four models all come with four addition 10GbE fiber connectivity cater to your business’s increasing need for high network speeds. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.
Handles the latest high-bandwidth applications easily with four built-in SFP+ uplinks
Nebula ecosystem offers a unified cloud network experience, from wired, wireless and security gateway
PoE models support 802.3at PoE+ and provide 375W power budget
Easy management and setup with web-based interface and user-friendly wizard
Supports static routing to optimize internal traffic and enhance network performance
Smart fan design offers silent operations in your office
Benefits:
Using 10GbE Uplink Switch With Reasonable Price
With Gigabit connectivity plus four 10GbE uplinks, the XGS1935 Series is an ideal option for those who need basic functions, easier management, and a more reasonable price to upgrade their networks and ensure network efficiency for continuous business productivity.
Manage It Your Way!
The support of NebulaFlex allows you to easily switch network management modes between standalone, and our license-free Nebula cloud management platform. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.
Web-managed with advanced features
You can configure and manage advanced features like static routing, VLAN, QoS, IGMP Snooping, Link Aggregation, IPv6 and DoS prevention through an intuitive built-in Web-based browser. Moreover, the friendly step-by-step intuitive wizard helps avoiding multiple complicated configuration pages for quick set up with few clicks in the matter of minutes.
Powering more devices intelligently
The PoE models XGS1935-28HP and XGS1935-52HP are designed with compact dimensions and support PoE+ delivering 30W per port, making them ideal for dense PoE deployments. With a 375W high-power budget, they can meet the demands of power-hungry devices. Additionally, the power consumption mode improves budget efficiency for a better ROI, allowing more PD devices to be connected within the system.
Built with nature in mind
The XGS1935 series is built with a more compact chassis, reducing packaging by up to 36% and weight by up to 22% compared to the previous XGS1930 series. These efforts have resulted in a 48% increase in units per pallet and a reduced carbon footprint.
Anytime, Anywhere with Nebula Mobile App
- Easy device onboarding: QR code scan
- At a glance of network status
- Remote control your network
- Reboot AP, Camera by PoE power cycle
- Block clients with unusual traffic
Application Diagram:
Standalone Management
Cloud Management
Specifications:
| XGS1935-28 | XGS1935-28HP | XGS1935-52 | XGS1935-52HP | |
|---|---|---|---|---|
| Models | ||||
| Product name | 24-port GbE Lite-L3 Smart Managed Switch with 4 10G Uplink | 24-port GbE PoE Lite-L3 Smart Managed Switch with 4 10G Uplink | 48-port GbE Lite-L3 Smart Managed Switch with 4 10G Uplink | 48-port GbE PoE Lite-L3 Smart Managed Switch with 4 10G Uplink |
| Switch class | Smart Managed | Smart Managed | Smart Managed | Smart Managed |
| Port Density | ||||
| Total port count | 28 | 28 | 52 | 52 |
| 100/1000 Mbps | 24 | 24 | 48 | 48 |
| 10 Gigabit SFP+ | 4 | 4 | 4 | 4 |
| PoE | ||||
| IEEE 802.3at (PoE+) | - | 24 | - | 48 |
| Total PoE budget (Watts) | - | 375 | - | 375 |
| Performance | ||||
| Switching capacity (Gbps) | 128 | 128 | 176 | 176 |
| Forwarding rate (Mpps) | 95.2 | 95.2 | 130.9 | 130.9 |
| Packet buffer (byte) | 1.5 M | 1.5 M | 1.5 M | 1.5 M |
| MAC address table | 16K | 16K | 16K | 16K |
| Jumbo frame (byte) | 9K | 9K | 9K | 9K |
| L3 forwarding table | Max. 512 IPv4 entries; Max. 512 IPv6 entries |
Max. 512 IPv4 entries; Max. 512 IPv6 entries |
Max. 512 IPv4 entries; Max. 512 IPv6 entries |
Max. 512 IPv4 entries; Max. 512 IPv6 entries |
| Routing table | 32 | 32 | 32 | 32 |
| VLAN routing | Yes | Yes | Yes | Yes |
| IP interface (IPv4/IPv6) | 32/32 | 32/32 | 32/32 | 32/32 |
| Flash/RAM | 32 MB/512 MB | 32 MB/512 MB | 32 MB/512 MB | 32 MB/512 MB |
| Power | ||||
| Input | 100 to 240 V AC, 50/60 Hz | 100 to 240 V AC, 50/60 Hz | 100 to 240 V AC, 50/60 Hz | 100 to 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 23.2 | 452.6 | 45.6 | 470.1 |
| Min. power consumption (watt) | 11.5 | 471 | 24.7 | 32.2 |
| Physical Specifications | ||||
| Item | Dimensions (WxDxH) 440 x 270 x 43 mm/ 17.32 x 10.63 x 1.69 in. Weight 3.1 kg/6.83 lb. |
Dimensions (WxDxH) 440 x 270 x 43 mm/ 17.32 x 10.63 x 1.69 in. Weight 3.6 kg/7.94 lb. |
Dimensions (WxDxH) 440 x 270 x 43 mm/ 17.32 x 10.63 x 1.69 in. Weight 3.7 kg/8.16 lb. |
Dimensions (WxDxH) 440 x 270 x 43 mm/ 17.32 x 10.63 x 1.69 in. Weight 4.1 kg/9.04 lb. |
| Packing | Dimensions (WxDxH) 508 x 394 x 90 mm/ 20 x 15.51 x 3.54 in. Weight 4.58 kg/10.1 lb. |
Dimensions (WxDxH) 508 x 394 x 90 mm/ 20 x 15.51 x 3.54 in. Weight 5.13 kg/11.31 lb. |
Dimensions (WxDxH) 508 x 394 x 90 mm/ 20 x 15.51 x 3.54 in. Weight 5.16 kg/11.38 lb. |
Dimensions (WxDxH) 508 x 394 x 90 mm/ 20 x 15.51 x 3.54 in. Weight 5.64 kg/12.43 lb. |
| Included accessories |
|
|||
| Green Feature | ||||
| Energy-Efficient Ethernet | Yes | Yes | Yes | Yes |
| ESD/Surge Protection | ||||
| Ethernet port surge protection | 4KV | 4KV | 4KV | 4KV |
| Power supply surge protection - Line-GND | 2KV | 2KV | 2KV | 2KV |
| Power supply surge protection - Line-Line | 1KV | 1KV | 1KV | 1KV |
| Ethernet port ESD protection (air/contact) | 8KV/6KV | 8KV/6KV | 8KV/6KV | 8KV/6KV |
| Environmental Specifications | ||||
| Operating | Temperature -20°C to 50°C/-4°F to 122°F Humidity 10% to 90% (non-condensing) |
|||
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) |
|||
| MTBF (hr) | 518,332 | 786,686 | 919,583 | 562,941 |
| Heat dissipation (BTU/hr) | 79.162 | 264.782 | 155.594 | 324.495 |
| Acoustic noise @ 25°C (min/max, dBA) | Fanless, 0 | 23.9/48.8 | 25.2/50.2 | 24.9/50.4 |
Features:
Standard Compliance
- IEEE 802.3 10BASE-T Ethernet*
- IEEE 802.3u 100BASE-TX Ethernet*
- IEEE 802.3ab 1000BASE-T Ethernet*
- IEEE 802.3z 1000BASE-X*
- IEEE 802.3ae 10-Gigabit Ethernet Over Fiber*
- IEEE 802.3af PoE*
- IEEE 802.3at PoE Plus*
- IEEE 802.3az EEE
- IEEE 802.3x flow control
- IEEE 802.3ad LACP aggregation*
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.1p Class of Service (CoS) prioritization*
- IEEE 802.1X port authentication*
Resilience and Availability
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.3ad LACP (Max # Trunks/ Links per Trunk): 12/8 for 28/28HP, 24/8 for 52/52HP*
- Loop guard*
- Dual configuration files
- Dual images*
Traffic Control
- 802.1Q Static VLANs*/Dynamic VLANs: 1K/4K
- Support up to 4K VLAN ID*
- Independent VLAN Learning (IVL)*
- L2PT
- Port-based VLAN*
- Voice VLAN*
- VLAN trunking
- GVRP
Security
- 802.1X*
- Port security*
- MAC authentication*
- Static MAC forwarding
- SSL
- Static ARP
- Policy-based security filtering
- Port isolation
- MAC search
- Guest VLAN*
- PPPoE relay agent
- PPPoE option 82
- PPPoE IA
- Interface related trap enable/ disable (by port)
- CPU protection
- SHA2 HTTPS certification*
- Login authentication by RADIUS*
- RADIUS accounting
- Authorization on RADIUS*
- Multiple RADIUS servers*
- 802.1x VLAN and bandwidth assignment by RADIUS*
- ACL packet filtering* (IPv4)
Quality of Service (QoS)
- No. of hardware queues per port: 8*
- 802.1p queuing methods: SPQ, WRR, WFQ*
- Storm control: broadcast, unknown L2MC, unknown unicast (DLF)*
- Rate limiting per port
- Policy-based rate limiting
- Policy-based prioritization
Layer 2 Multicast
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations:
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
- Automatic detection of the latest firmware
- Displays device serial number and hardware version
- Cloud mode on/off option for Hybrid series devices
- Intuitive Cloud connection status
Layer 3 Routing
- Static route
- Assigned DHCP relay with specific source IP interface
Manageability
- SNMP* v1, v2c, v3
- SNMP trap group
- RMON (1, 2, 3, 9)
- Syslog (IPv4/v6)*
- IEEE 802.1AB LLDP*
- IEEE 802.1AB LLDP-MED*
IPv6 Management
- IPv6 over Ethernet (RFC 2464)
- IPv6 addressing architecture (RFC 4291)
- Dual stack (RFC 4213)
- ICMPv6 (RFC4884)
- Path MTU (RFC 1981)
- Minimum path MTU size of 1280 (RFC 5095)
- Encapsulation for maximum MTU of 1500
- Neighbor discovery (RFC 4861)
- DHCPv6 relay
- Default DHCP client mode*
- Duplicated Address Detection (DAD)
Device Management
- Support NebulaFlex™ for hybrid mode
- Standalone management by Web interface
- Cloud management by Nebula Control Center*
- Setup Wizard
- Management through Telnet
- Management through Web, SNMP
- Firmware upgrade by FTP/Web
- Configuration saving and retrieving
- Multiple login supported
- Configure clone
- DHCP relay per VLAN
- DHCP client IPv4*
- DHCP client IPv6
- DHCP option 82
- Daylight saving*
- NTP Server (IPv4/IPv6) – Support DNS format
- Display port utilization*
- Port mirroring*
- Scheduled PoE*
- PoE default consumption mode*
- PoE power management extended configuration*
- Web login warning page
- Restore to last custom default
MIB
- Zyxel Common MIB
- RFC 1066 TCP/IP-based MIB
- RFC 1213, 1157 SNMPv2c/v3 MIB
- RFC 1493 bridge MIB
- RFC 1643 Ethernet MIB
- RFC 1757 RMON Group 1, 2, 3, 9
- RFC 2011, 2012, 2013 SNMPv2 MIB
- RFC 2233 SMIv2 MIB
- RFC 2358 Ethernet-like MIB
- RFC 2674 bridge MIB extension
- RFC 2819, 2925 remote management MIB
- RFC 3621 power Ethernet MIB
- RFC 4022 management information base for transmission control protocol
- RFC 4113 management information base for user datagram protocol
- RFC 4292 IP forwarding table MIB
- RFC 4293 Management Information Base (MIB) for IP
Certification
- Safety
- LVD
- BSMI
- EMC
- FCC Part 15 (Class A)
- CE (Class A)
- BSMI EMC
- RoHS compliant
- Level A
Zyxel One Network
- ZON Utility*
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations:
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
- Automatic detection of the latest firmware
- Displays device serial number and hardware version
- Cloud mode on/off option for Hybrid series devices
- Intuitive Cloud connection status
- Smart Connect
- Discover neighboring devices
- One-click remote management access to the neighboring Zyxel devices
- Reset neighboring devices remotely to factory defaults
- Power cycle neighboring powered devices (PoE switches only)
Warranty
- Limited life-time warranty**
* Nebula Cloud and Standalone modes supported features. Some Nebula features may need an extra license to work. For more details on the features and licenses, check Nebula Licensing Table.
** Warranty terms, service availability, and service response times may vary from country or region to country or region.
