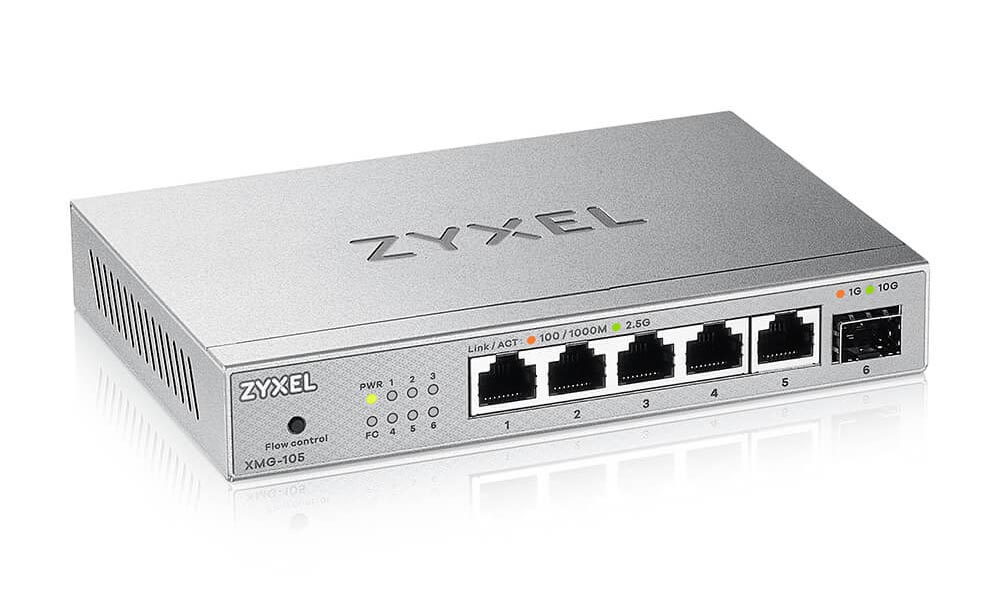

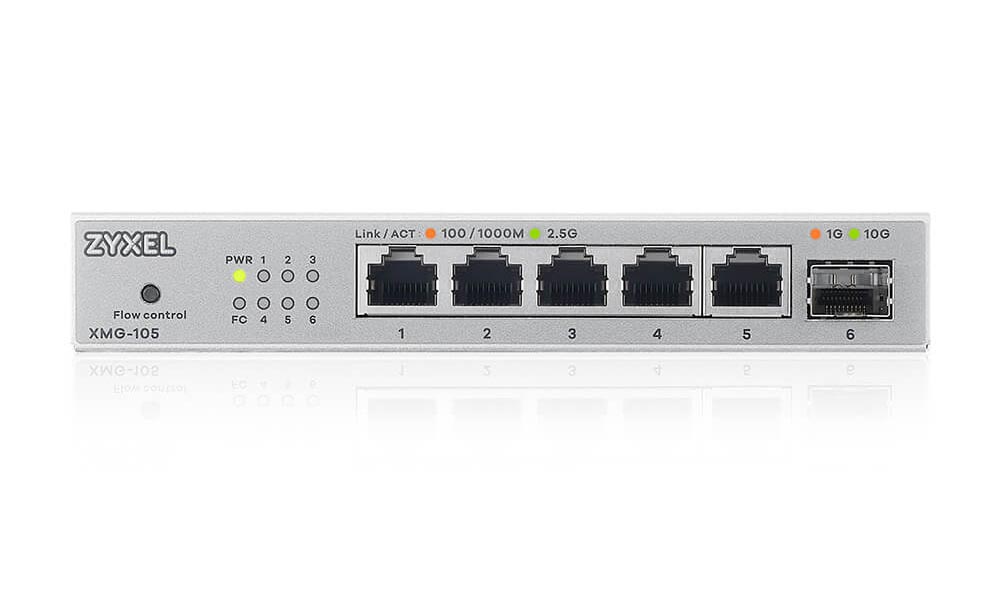

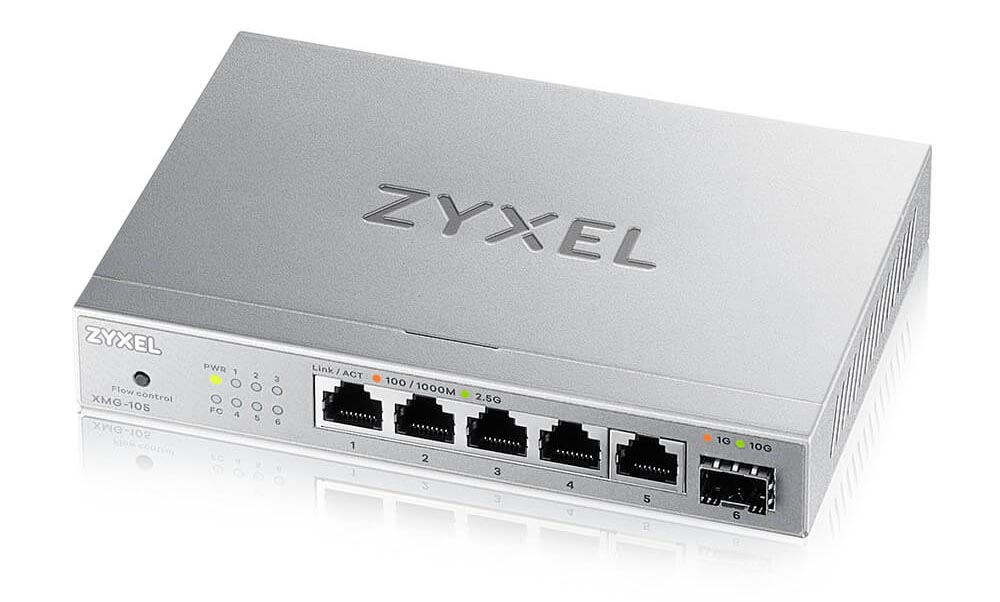

Zyxel XMG-105
5-Port 2.5G Unmanaged Switch with 10G Uplink

Zyxel Products

Zyxel XMG100 Series Unmanaged Switch

Zyxel 5-Port 2.5G Unmanaged Switch with 10G Uplink

#XMG105
List Price: ~~$109.99~~
Our Price: $79.99

Click here to jump to more pricing!

Overview:

The Zyxel XMG-100 Series 2.5 Gigabit switch is designed to upgrade and expand network to a higher speed and better performance network. It is the most ideal choice for home, SOHO, or small office users who need more bandwidth for their network with demands coming from online gaming activities, multimedia streaming services or faster wireless network connectivity. All ports are equipped with 2.5 Gigabit Ethernet speed, allowing easy network speed upgrade. In addition, this Series offers an extra SFP+ slot for high-bandwidth network uplink or access to a Network-Attached Storage (NAS).

Full speed 2.5G Ethernet ports for WiFi 6/6E router or AP connections

Extra 10G SFP+ for NAS or Uplink connectivity

70 W or 100 W power budget with 802.3bt PoE++ (60 W) ports to power up versatile PD devices

Increase home networking speed up to 2.5X without extra cabling cost

Access Internet just plug-and-play, no configuration required

Silent, stable, and power-efficient operation

Benefits:

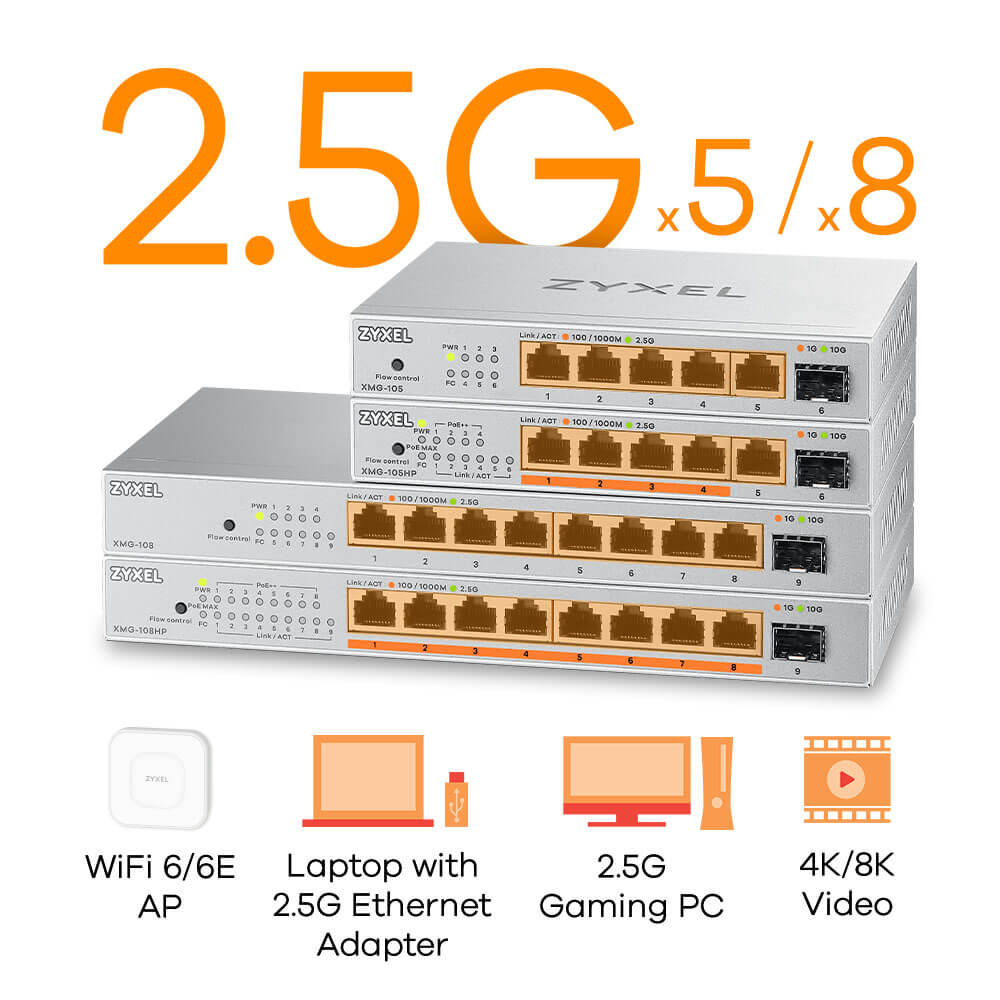

Plug-and-play to Upgrade Your Network to WiFi 6/6E

The XMG-100 Series of 2.5G switches includes 5- and 8-port models with or without PoE options. These switches are equipped with multi-gig ports supported up to 2.5G and can easily be connected to the latest 2.5G–capable network devices including WiFi 6/6E APs, 5G CPE, 2.5G storage, 4K/8K TV, PC with 2.5G NIC and gaming consoles. This streamlined plug-and-play technology enables high-performance networking and a smoother home entertainment or multi-media creation experience.

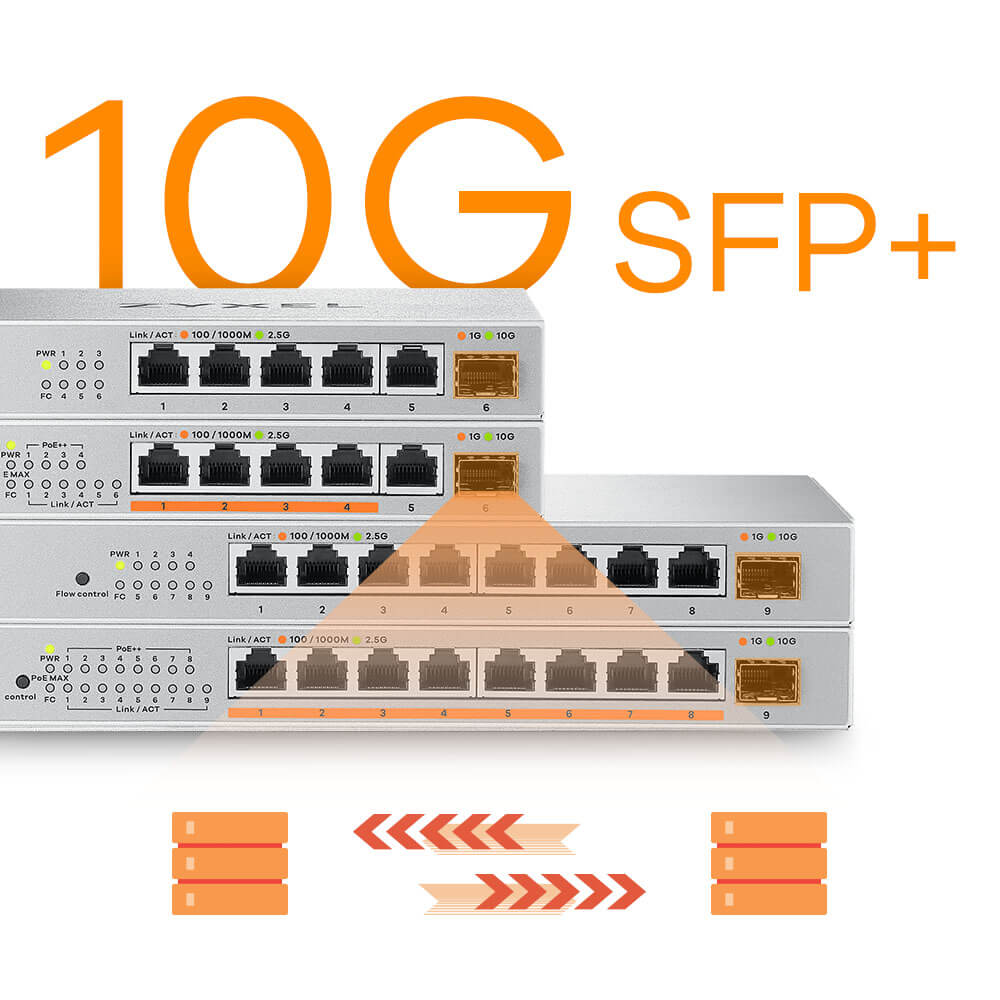

Extra 10G Port to Streamline Large File Transfers

The 10-Gigabit SFP+ model increases the network speed for quicker uploads and downloads through a NAS and server, allowing content creators or self-media individuals to work more efficiently. Large files, such as high-resolution videos or images, can be transferred in significantly less time, saving valuable production hours.

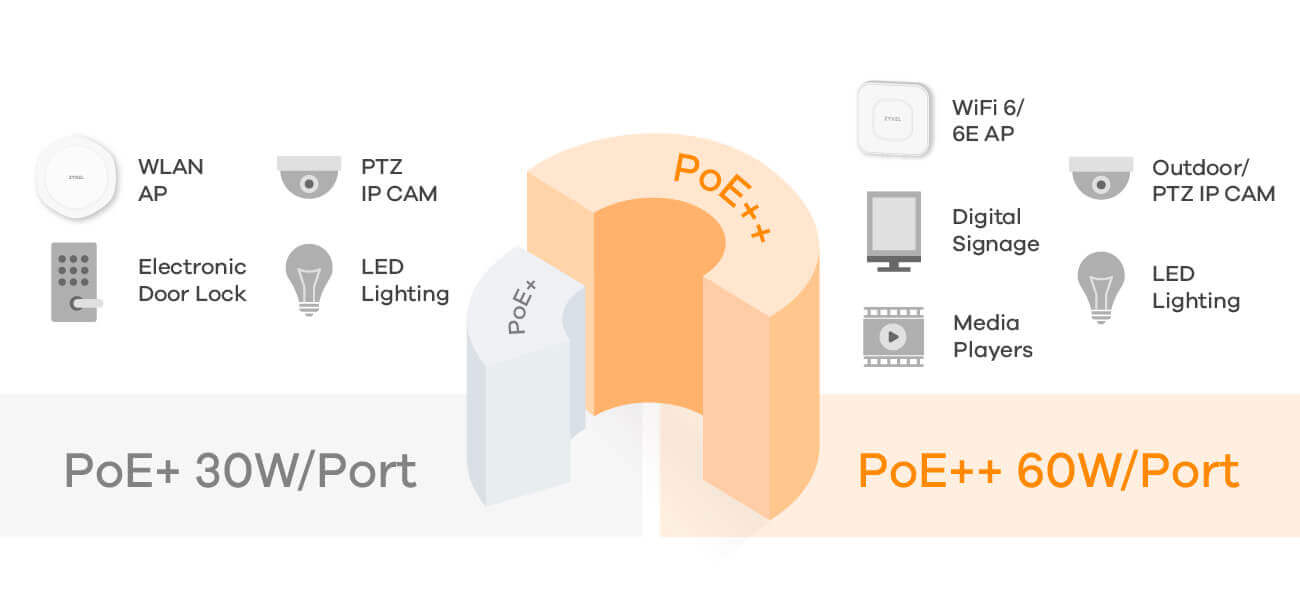

Single Cable for Both Power and Data

PoE models come with either 4 or 8 uninterrupted PoE++ (60W) ports and a budget-friendly PoE budget of 70W or 100W – deploying PoE devices like WiFi 6/6E APs, PTZ cameras and IoT devices has never been easier.

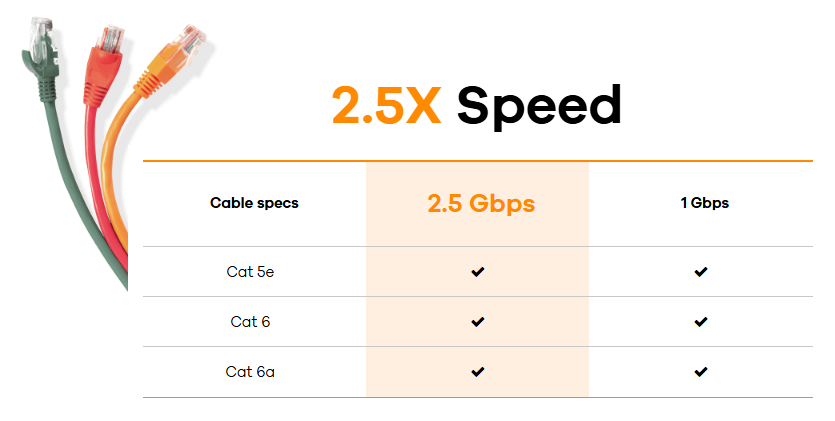

2.5G Super-Fast Speeds Without Re-cabling

You can use your current Cat 5e cables to increase your home networking speed from 1Gbps to 2.5Gbps, eliminating the need for any costly re-cabling.

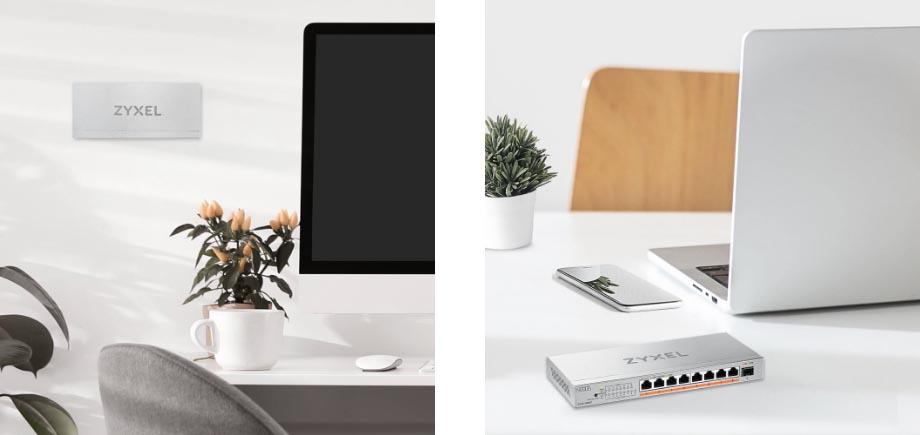

Silent Operation and Flexible Deployment

The XMG-100 Series has a robust and fanless design for stable and silent operation, and is perfect for noise-free environments in the home or studio. Its compact design offers the flexibility to place the switch on a desktop or mount it on a wall.

Accelerate your Networking Experience

The XMG-100 Series offers home or SOHO users who need lag-free and non-intermittent network services for their online gaming or multimedia streaming services, a faster, more secure connection.

Specifications:

XMG-105 Specifications
Description
Product name	5-Port 2.5G Unmanaged Switch with 10G Uplink
Port Density
Total port count	6
2.5GBASE-T	5
1G SFP/10G SFP+	1
Performance
Switching capacity (Gbps)	45
Forwarding rate (Mpps)	33.5
Packet buffer (byte)	1 MB
MAC address table	4 K
Jumbo frame (byte)	12 K
Power
Input	100 - 240V AC, 50/60Hz
Power supply	External
Max. power consumption (watts)	5.54
Min. power consumption (watts)	0.84
Physical Specifications
Dimensions (WxDxH)(mm/in.)	160 x 110 x 26 / 6.30 x 4.33 x 1.02
Weight (kg/lb.)	0.451 / 0.99
Green Features
Fanless	Yes
Environmental Specifications
Operating Temperature	-20°C to 40°C / -4°F to 104°F
Operating Humidity	10% to 95% (non-condensing)
Storage Temperature	-40°C to 70°C / -40°F to 158°F
Storage Humidity	5% to 95% (non-condensing)
MTBF (hr)	1,988,168
Heat dissipation (BTU/hr)	19.79

Standard Compliance

IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3z 1000BASE-X
IEEE802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3ae 10 Gbit/s Ethernet over fiber
IEEE 802.3af PoE
IEEE 802.3at PoE plus
IEEE 802.3bt (60 W) PoE over 4 pair
IEEE 802.3x full duplex operation and flow control
IEEE 802.1p QoS
IEEE 802.3 Nway auto-negotiation
IEEE 802.3az Energy Efficient Ethernet (deactivated by default)

Features

100M, 1G and 2.5G ports for multi speed
Fanless and quiet
Plug and Play, Easy use and Quick Install
Desktop and Wall mount
Auto-MDI/MDIX in all ports
Loop detection

LED Indicator

PWR
Per-port Link/ACT

Certification

CE, EAC, FCC, BSMI Class B

Package Contents

Switch
Power adapter
Quick start guide
Safety warning and doc.

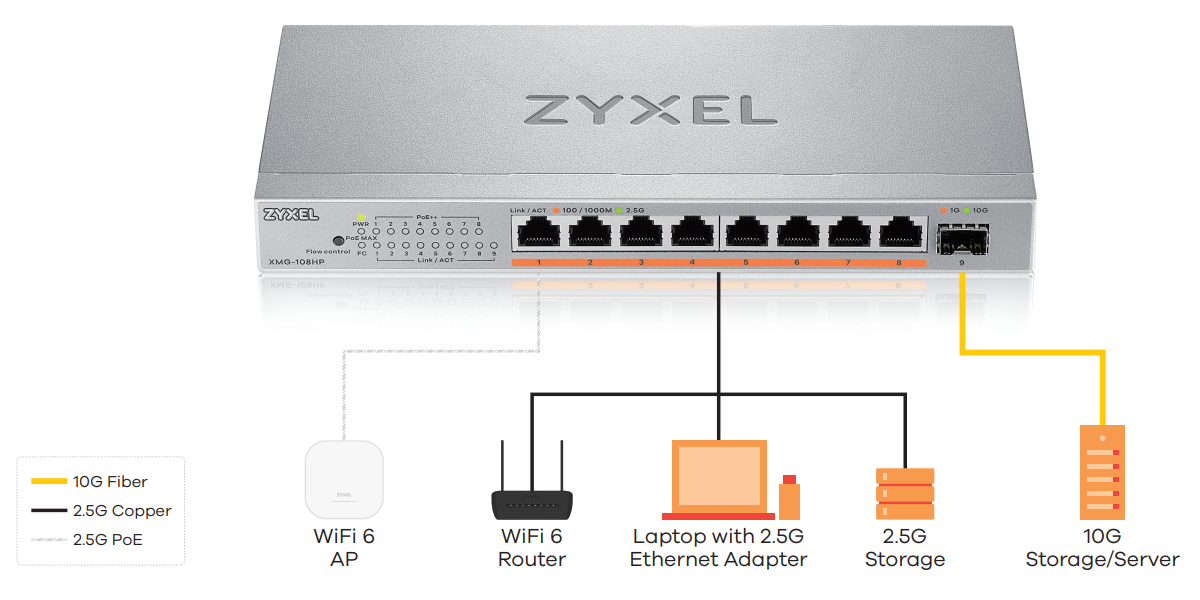

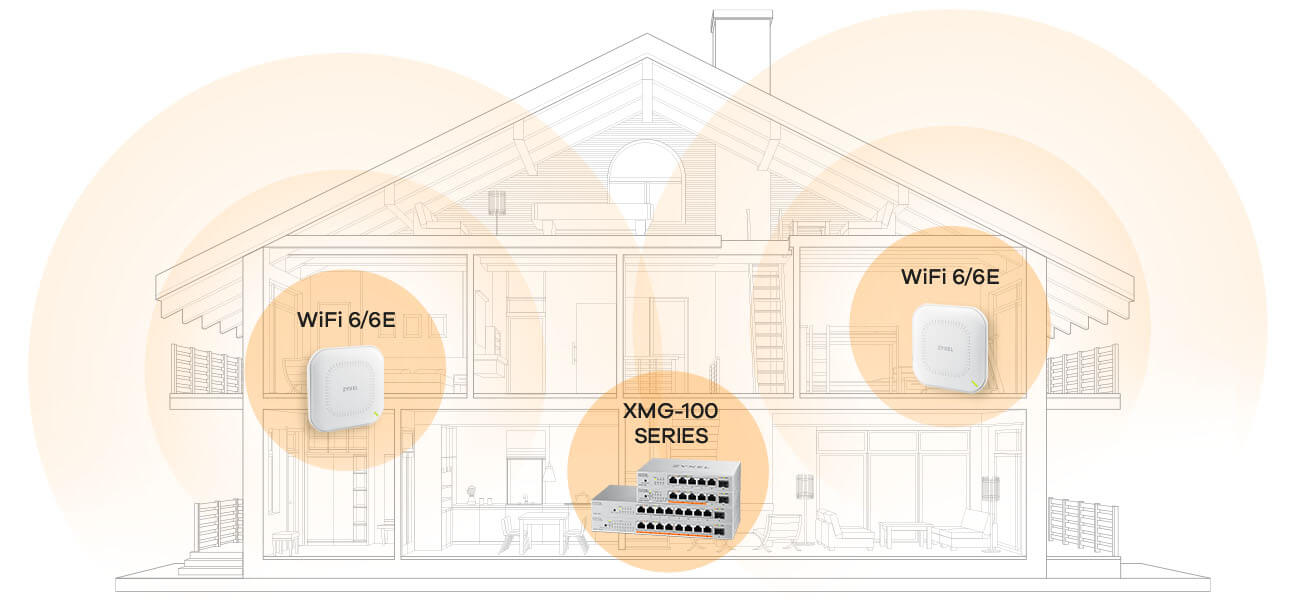

Application Diagram:
