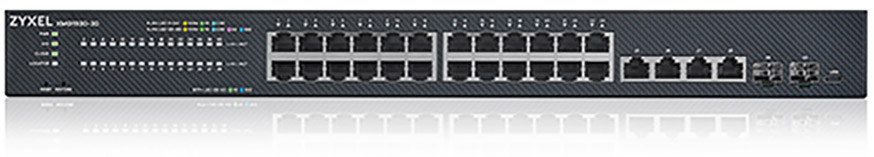

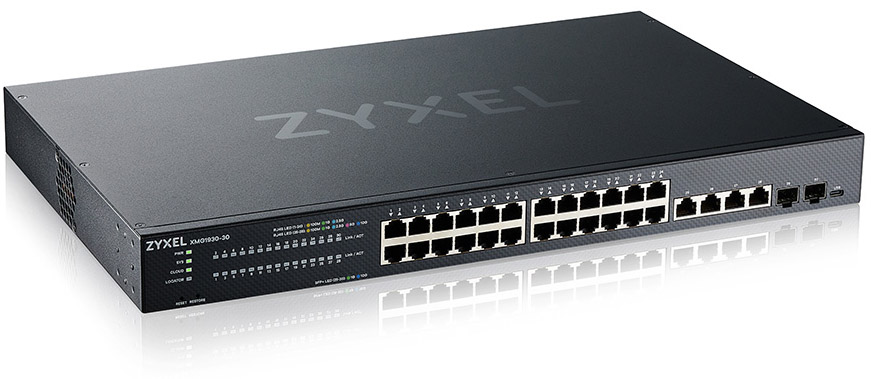

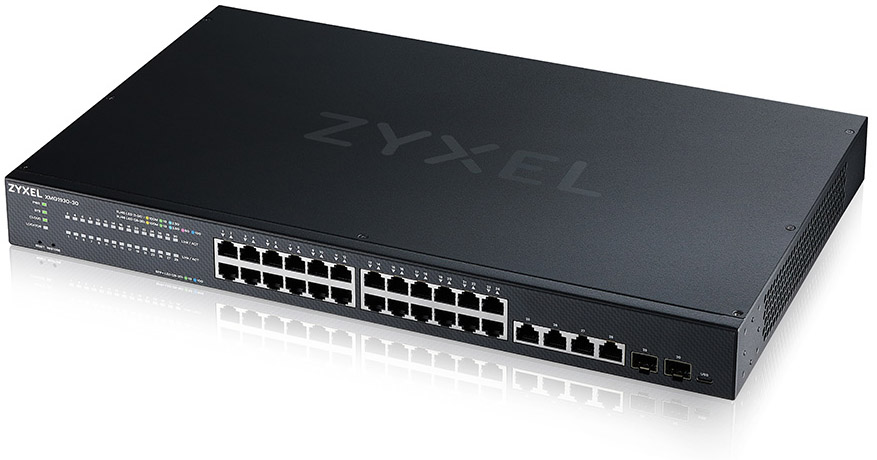

Zyxel XMG1930-30
24-port 2.5G Multi-Gig Lite-L3 Smart Managed Switch with 6 10G Uplink
List Price:
Our Price: $1,099.99
Overview:
The Backbone to Embrace the New Era of Multi-Gigabit
The XMG1930 series is a family of Multi-Gigabit Lite-L3 Smart Managed switches including 2 models, with and without PoE options. On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
- Multi-Gigabit supports with 2.5G and 10G combinations offering flexibility for high density Multi-Gig deployments
- Up to SIX 10G uplinks including both copper and fiber options providing extensibility and resilience for networks
- PoE model supports both 802.3bt PoE++ (60 W) and 802.3at PoE+ with a high-power budget of up to 700 W to easily connect WiFi 6/6E APs or IoT devices in your network
- Nebula ecosystem offers a unified cloud network experience, from wired, wireless and security gateway
- Access and manage the full feature sets included from the first day of purchase through the local web GUI
Benefits:
Nebula Cloud-Managed Multi-Gigabit Switches
The XMG1930 series is a family of Multi-Gigabit Lite-L3 Smart Managed switches including 2 models, with and without PoE options. This Series features a high Multi-Gig port density for WiFi 6/6E wireless access points, servers, and workstations. Both models support NebulaFlex, and come with simplicity, useful features and superior performance.

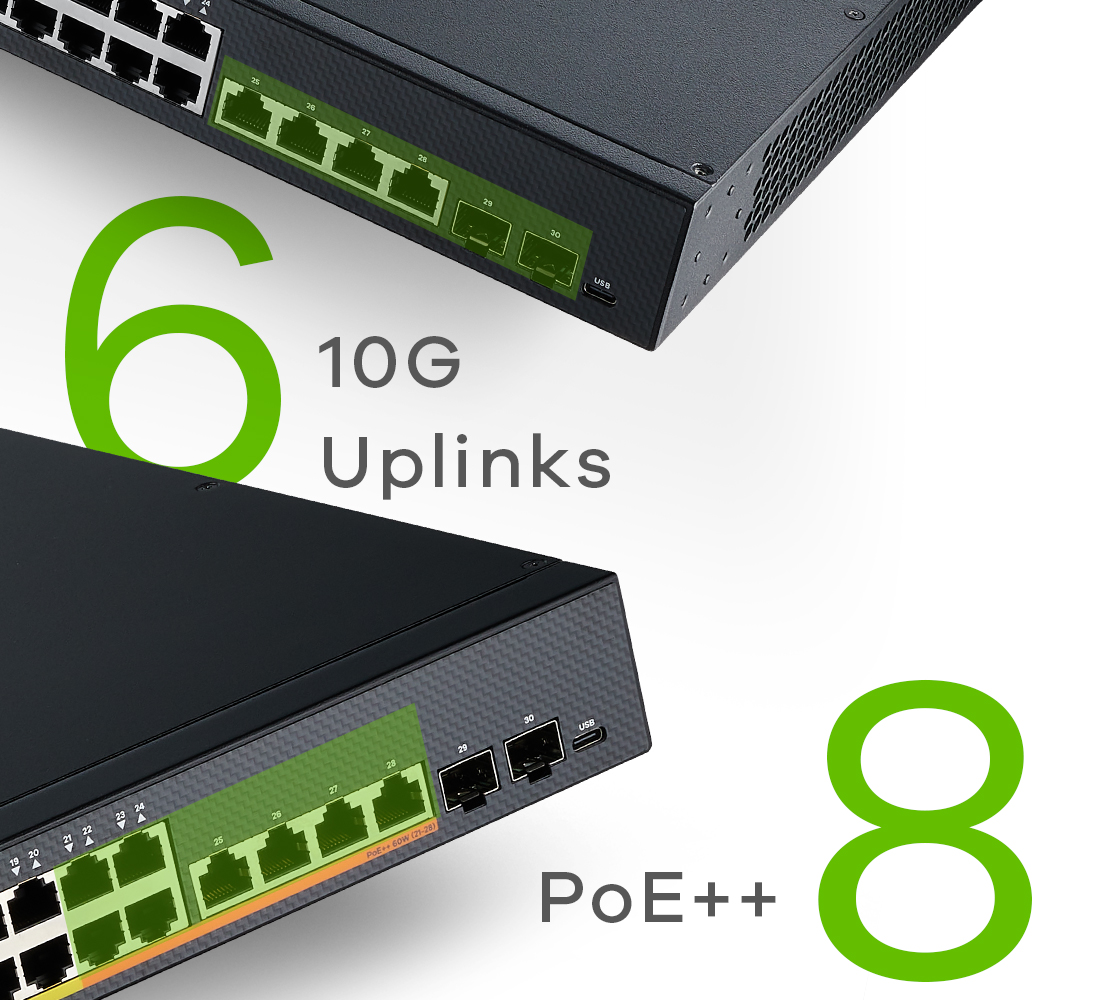

The Ideal Solution To Upgrade Your Network with Extensibility and Resilience
There are up to six 10G uplinks including both copper and fiber options which are capable of network expansion and flexible deployment for Service Providers to upgrade network service, as well as 8 PoE++ (60W) ports to adopt WiFi 6/6E and incoming WiFi 7 APs without hassles.
Manage it your way!
The XMG1930 Series supports free Nebula cloud management. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller. Typical standalone mode is still available for your preference.

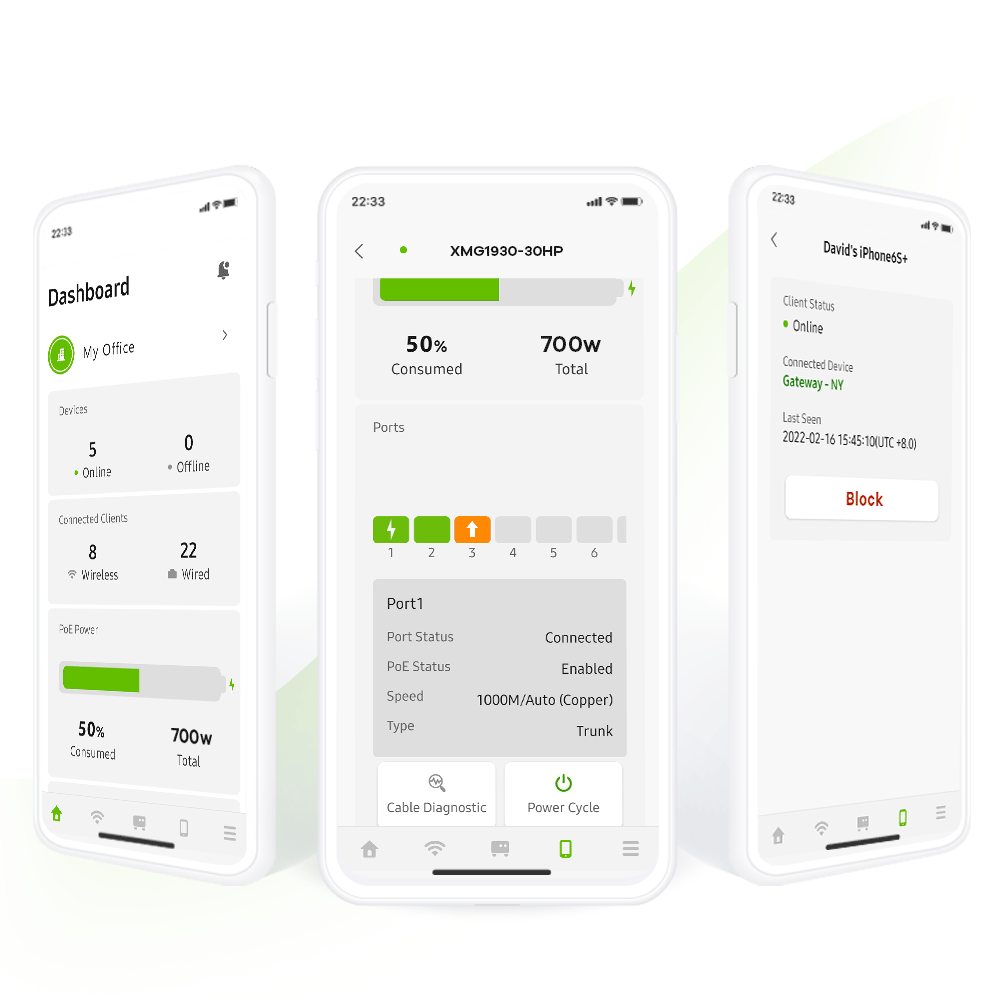

Anytime, Anywhere with Nebula Mobile App
- Easy device onboarding: QR code scan
- At a glance of network status
- Remote control your network
- Reboot AP, Camera by PoE power cycle
- Block clients with unusual traffic
Just Connect with Nebula
Just connect with a single vendor
Resellers, Managed Service Providers (MSPs) and network Administrators will find Simplicity, Scalability, Flexibility, reduced IT risk and reduced costs through Zyxel’s Cloud Networking Management platform, Nebula a single-vendor approach.
Just Connect without the complexity
Nebula offers powerful, effortless and scalable network connectivity that works together to remove the complexity and security risks often associated with having a mixed vendor approach to networking.
Launch an entire network in minutes
Connect, protect and manage Security, Switch, Wireless and LTE/5G connectivity via our centralized Cloud platform, Nebula.
Just Connect, with an unmatched portfolio
Serving customers with over 80 Nebula enabled devices via an ever-growing portfolio, Zyxel is unmatched in its approach to onboarding new and existing products via NebulaFlex. From Deploying a home office to delivering connectivity to distributed network configurations, Zyxel’s Portfolio of Nebula enabled products can accommodate all types of budgets, functionality and scalability for now and for the future.

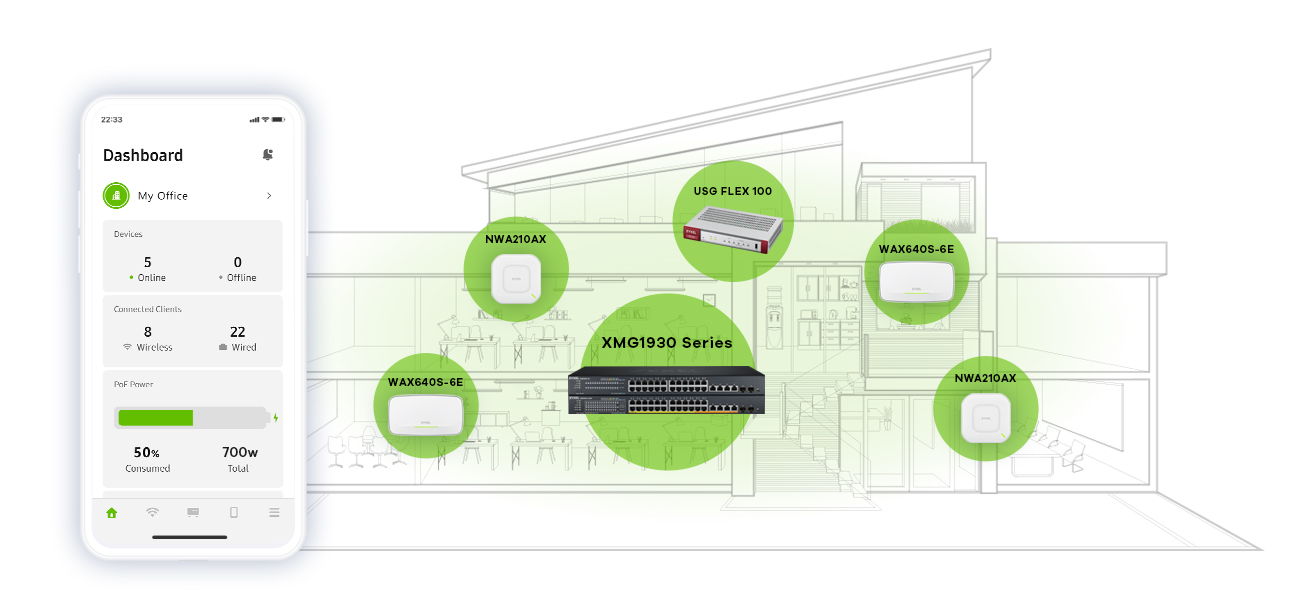

The Nebula Ecosystem
The support of Zyxel Nebula allows your business to experience a unified cloud network from Switch, AP, Firewall to 5G/LTE routers anytime with just a few simple clicks.
Dedicated Networked AV Mode
The XMG1930 series includes a tailor-made networked AV mode when used in standalone mode. You can switch interfaces to simplify the installation of AVoIP with an intuitive wizard that prompts high level requirements for this type of network infrastructure; leveraging from AI intelligence, the switch is then able to remove the complexity by applying all the necessary details to set up a professional AVoIP deployment in minutes.
When deployed in Networked AV mode the switch gives you a dedicated dashboard allowing quick access to the key AV network elements such as IGMP and IP information as well as fast access to configuration functions often associated with AVoIP deployments.
Application Diagram:

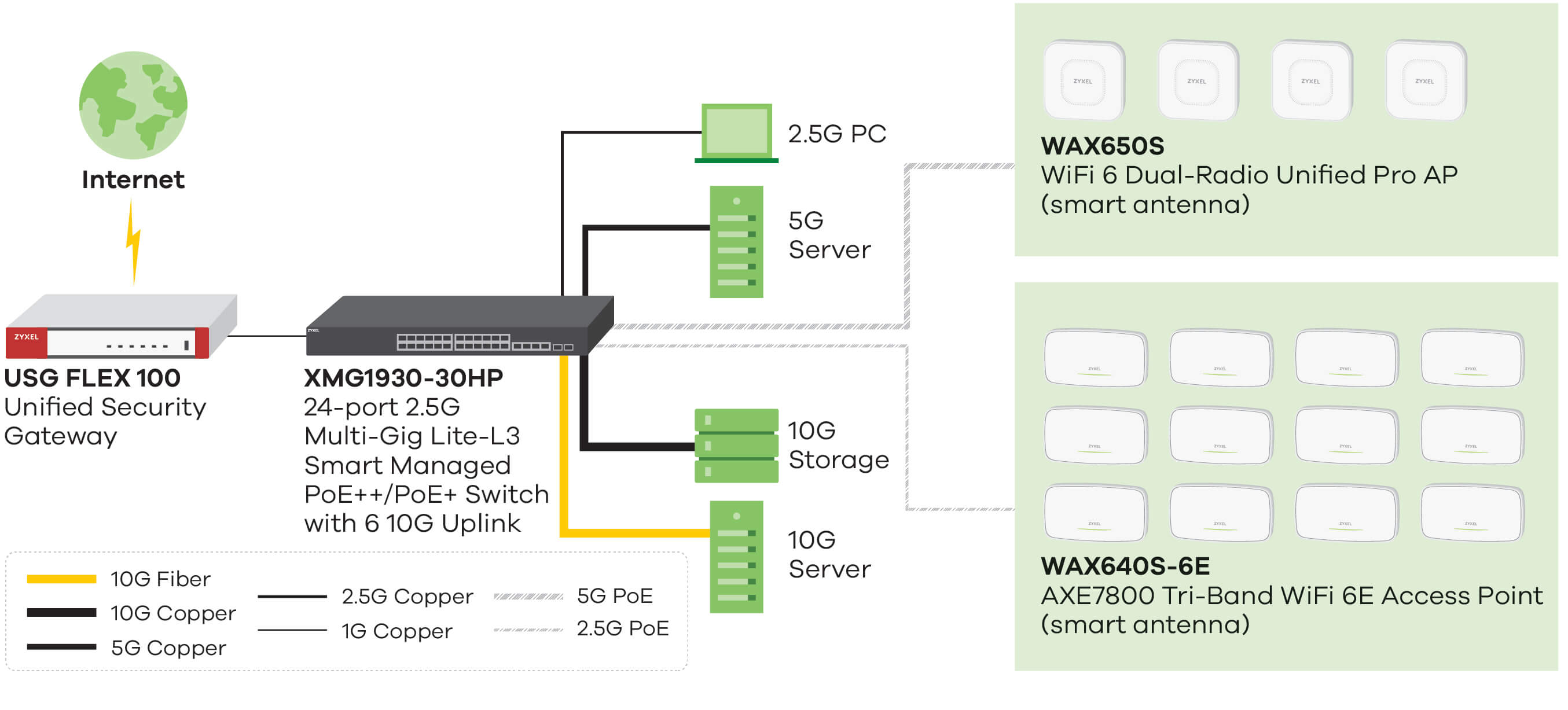

High-density WiFi 6/6E Deployment
XMG1930-30HP, supporting both 802.3bt PoE++ (60 W) and 802.3at PoE+ with a high-power budget of up to 700 W, is designed for connecting WiFi 6/6E and WiFi 7 wireless access points easily in your network.

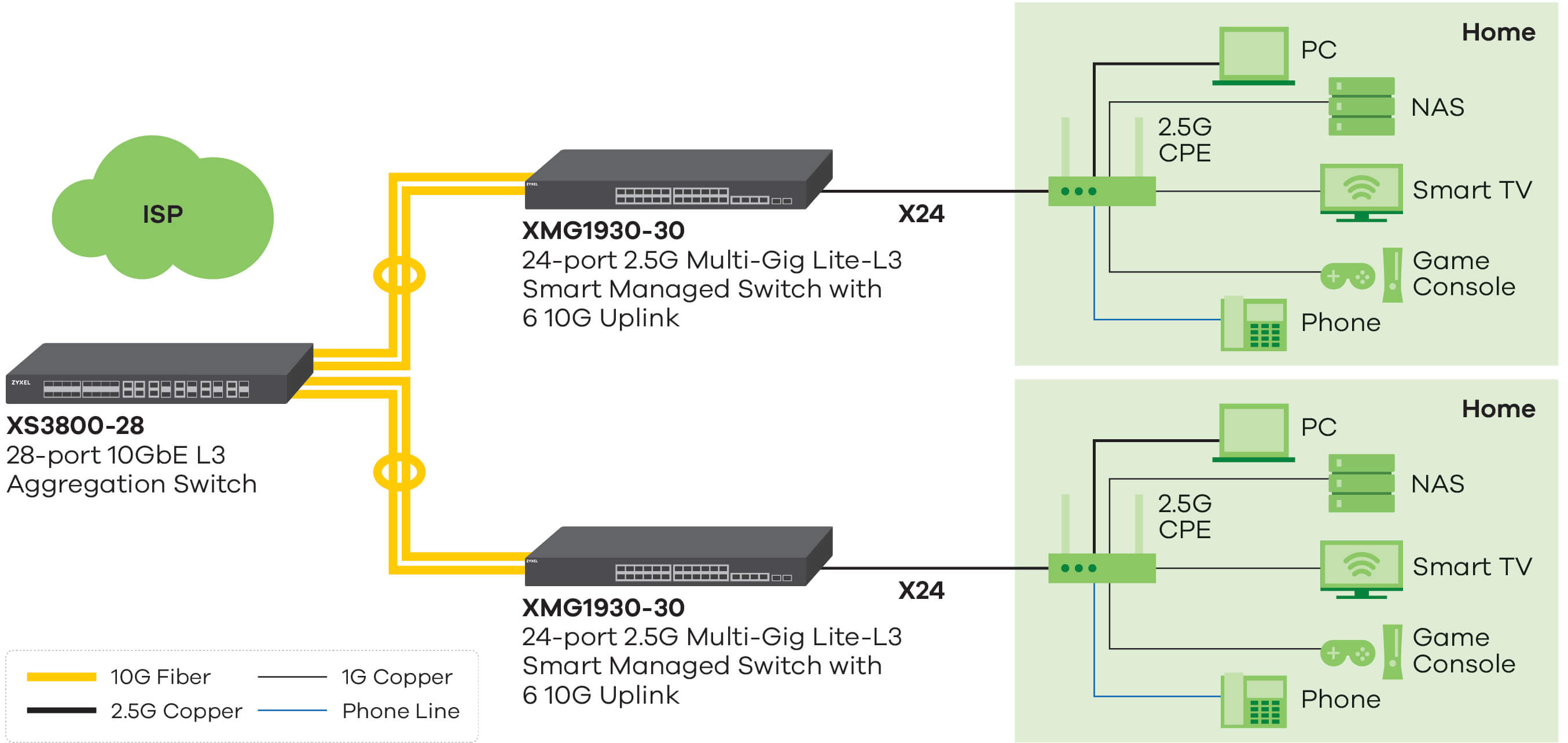

FTTX Application
XMG1930-30 is ideal for high speed Internet Service Providers to upgrade speed offering from traditional 1G to 2.5G for every user.
Specifications:
| XMG1930-30 | XMG1930-30HP | |
|---|---|---|
| Models | ||
| Product name | 24-port 2.5G Multi-Gig Lite-L3 Smart Managed Switch with 6 10G Uplink | 24-port 2.5G Multi-Gig Lite-L3 Smart Managed PoE++/PoE+ Switch with 6 10G Uplink |
| Switch class | Smart Managed | Smart Managed |
| Port Density | ||
| Total port count | 30 | 30 |
| 100M/1G/2.5G Ethernet (RJ-45) | 24 | 24 |
| 1G/2.5G/5G/10G Ethernet (RJ-45) | 4 | 4 |
| 1G SFP/10G SFP+ | 2 | 2 |
| PoE | ||
| PoE ports | - | 28 |
| Total PoE budget (Watts) | - | 700 |
| IEEE 802.3at (PoE+) | - | Port 1 - 20 |
| IEEE 802.3bt (PoE++, 60 W) | - | 100M/1G/2.5G: Port 21 - 24 1G/2.5G/5G/10G: Port 25 - 28 |
| Performance | ||
| Switching capacity (Gbps) | 240 | 240 |
| Forwarding rate (Mpps) | 178.5 | 178.5 |
| Packet buffer (byte) | 2 MB | 2 MB |
| MAC address table* | 16 K | 16 K |
| Jumbo frame (byte) | 12 K | 12 K |
| L3 forwarding table* | 512 IPv4 entries; Max. 512 IPv6 entries | 512 IPv4 entries; Max. 512 IPv6 entries |
| Routing table* | 32 | 32 |
| VLAN routing | Yes | Yes |
| IP interface | 32/32 | 32/32 |
| Flash/RAM | 32 MB/256 MB | 32 MB/256 MB |
| Power | ||
| Input | 100 to 240 V AC, 50/60 Hz | 100 to 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 67.1 | 864.1 |
| Min. power consumption (watts) | 43.2 | 47.8 |
| Physical Specifications | ||
| Item | Dimensions (WxDxH)(mm/in.) 441 x 270 x 44/17.36 x 10.63 x 1.73 Weight (kg/lb.) 3.81/8.4 |
Dimensions (WxDxH)(mm/in.) 441 x 330 x 44/17.36 x 12.99 x 1.73 Weight (kg/lb.) 4.85/10.69 |
| Packing | Dimensions (WxDxH)(mm/in.) 622 x 357 x 109/24.49 x 14.06 x 4.29 Weight (kg/lb.) 4.91/10.82 |
Dimensions (WxDxH)(mm/in.) 592 x 505 x 97/23.31 x 19.88 x 3.82 Weight (kg/lb.) 6.04/13.32 |
| Included accessories |
|
|
| ESD/Surge Protections | ||
| Ethernet port surge protection | 1 KV | 2 KV |
| Power supply surge protection | Line-GND: 4 KV Line-Line: 2 KV |
Line-GND: 6 KV Line-Line: 6 KV |
| Ethernet port ESD protection (air/contact) | 8 KV/4 KV | 8 KV/4 KV |
| Environmental Specifications | ||
| Operating | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
|
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
|
| MTBF (hr) | 532,217.59 | 587,922.31 |
| Heat dissipation (BTU/hr) | 67.1 | 864.1 |
| Acoustic noise @ 25°C (dBA) | 26/47.6 | 27.9/51.6 |
* Access Layer 3 license comes with larger table size to expand network capacity for broader access network deployment.
Features:
Standard Compliance
- IEEE 802.3z 1000BASE-X*
- IEEE 802.3ab 1000BASE-T Ethernet*
- IEEE 802.3an 10G BASE-T Ethernet*/**
- IEEE 802.3bz 2.5GBASE-T/5GBASE-T*
- IEEE 802.3ae 10 Gbit/s Ethernet over fiber*
- IEEE 802.3af PoE*
- IEEE 802.3at PoE plus*
- IEEE 802.3bt (60 W) PoE over 4 pair*
- IEEE 802.3x flow control
- IEEE 802.3ad LACP aggregation*
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.1p Class of Service (CoS) prioritization*
- IEEE 802.1X port authentication*
Resilience and Availability
- IEEE 802.1D Spanning Tree Protocol (STP)*
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)*
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
- IEEE 802.3ad LACP* (Max # Trunks/ Links per Trunk): 15/8
- Loop guard*
- Dual configuration files
- Dual images*
Traffic Control
- 802.1Q Static VLANs*/Dynamic VLANs: 1K/4K
- Support up to 4K VLAN ID*
- Independent VLAN Learning (IVL)*
- L2PT
- Port-based VLAN*
- Voice VLAN*
- VLAN trunking
- GVRP
Security
- 802.1X*
- Port security*
- MAC authentication*
- Static MAC forwarding
- SSL
- Static ARP
- Policy-based security filtering
- Port isolation
- MAC search
- Guest VLAN*
- PPPoE relay agent
- PPPoE option 82
- PPPoE IA
- Interface related trap enable/disable (by port)
- CPU protection
- SHA2 HTTPS certification*
- Login authentication by RADIUS*
- RADIUS accounting
- Authorization on RADIUS*
- Multiple RADIUS servers (IPv4*/IPv6)
- 802.1x VLAN and bandwidth assignment by RADIUS*
- ACL packet filtering (IPv4/IPv6)
Quality of Service (QoS)
- No. of hardware queues per port: 8*
- 802.1p queuing methods: SPQ, WRR, WFQ*
- Storm control: broadcast, unknown L2MC, unknown unicast (DLF)*
- Rate limiting per port
- Policy-based rate limiting
- Policy-based prioritization
Layer 2 Multicast
- L2 multicast group: 1K
- IGMP snooping (v1, v2, v3)*
- Configurable IGMP snooping timer and priority
- IGMP snooping statistics
- IGMP throttling
- IGMP filtering
- Static multicast
Routing
- Static route
- DHCP relay
Manageability
- SNMP v1, v2c, v3
- SNMP trap group
- RMON (1, 2, 3, 9)
- Syslog (IPv4/v6)*
- IEEE 802.1AB LLDP
- IEEE 802.1AB LLDP-MED
- Custom default
- Display port utilization*
- Support NebulaFlex for hybrid mode
IPv6 Management
- IPv6 over Ethernet (RFC 2464)
- IPv6 addressing architecture (RFC 4291)
- Dual stack (RFC 4213)
- ICMPv6 (RFC 4884)
- Path MTU (RFC 1981)
- Minimum path MTU size of 1280 (RFC 5095)
- Encapsulation for maximum MTU of 1500
- Neighbor discovery (RFC 4861)
- DHCPv6 relay
- Default DHCP client mode*
- Duplicated Address Detection (DAD)
Device Management
- Standalone management by Web interface
- Cloud management by Nebula Control Center*
- Management through Telnet
- New for V4.80 Auto configuration recovery (only for cloud mode)
- New for V4.80 New Web interface
- Zyxel iStacking
- Management through Web, SNMP
- Firmware upgrade by FTP/Web
- Configuration saving and retrieving
- Multiple login supported
- Configure clone
- DHCP relay per VLAN
- DHCP client IPv4*
- DHCP client IPv6
- DHCP option 82
- Daylight saving*
- NTP Server (IPv4/IPv6) – Support DNS format
- Scheduled PoE*
- PoE default consumption mode*
- PoE power management extended configuration*
- Web login warning page
- Restore to last custom default
- Fiber module rescue
MIB
- Zyxel private common MIB
- RFC 1066 TCP/IP-based MIB
- RFC 1213, 1157 SNMPv2c/v3 MIB
- RFC 1493 bridge MIB
- RFC 1643 Ethernet MIB
- RFC 1757 RMON Group 1, 2, 3, 9
- RFC 2011, 2012, 2013 SNMPv2 MIB
- RFC 2233 SMIv2 MIB
- RFC 2358 Ethernet-like MIB
- RFC 2674 bridge MIB extension
- RFC 2819, 2925 remote management MIB
- RFC 3621 power Ethernet MIB
- RFC 4022 management information base for transmission control protocol
- RFC 4113 management information base for user datagram protocol
- RFC 4292 IP forwarding table MIB
- RFC 4293 Management Information
- Base (MIB) for IP
Certifications
ZON Utility*
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
- Automatic detection of the latest firmware
- Displays device serial number and hardware version
- Cloud mode on/off option for Hybrid series devices
- New for V4.80 Intuitive Cloud connection status
Smart Connect
- Discover neighboring devices
- One-click remote management access to the neighboring Zyxel devices
- Reset neighboring devices remotely to factory defaults
- Power cycle neighboring powered devices (PoE switches only)
Zyxel One Networ
- IEEE 802.3ah OAM (Link Discovery, Loopback)
- BPDU Guard
- Root Guard
- IP source guard (IPv4/IPv6)
- DHCPv6 Snooping
- IPv6 DHCP trust
- ARP Inspection
- ARP Freeze
- Anti-ARP Scan
- MAC Freeze
- DHCP Server Guard
- MVR support
- IGMP Snooping Immediate Leave
- MLD Snooping (MLD v1)
- sFlow
- IEEE 802.3x Flow Control
- Diffserv (DSCP)
- Auto PD recovery
- ZUID
- MAC-based authentication per VLAN
- Compound Authentication
- DHCP Client Option60
- Multiple TACACs+ server
- Login authentication by TACACS+
- TACACS+ Accounting
- Authorization on TACACS+
Access L3 License*** (New for V4.80)
- Multilevel CLI
- CLI (Cisco-like)
- Expanding Network Capacity
- IEEE 802.1Q Static VLAN
- IPv4 Address table
- MAC table
- IPv4/IPv6 Static route
- ACL
- Networked AV mode
- Protocol-Based VLAN
- IP subnet-based VLAN
- MAC-based VLAN
- VLAN isolation
- IEEE 802.1AD VLAN stacking (QinQ)
- VLAN mapping
- MRSTP (Zyxel Proprietary)
- BPDU transparency
- Flex link
Warranty
- Limited life-time warranty****
* Nebula Cloud and Standalone modes supported features. Some Nebula features may need an extra license to work. For more details on the features and licenses, check Nebula Licensing Table.
** Zyxel recommends best performance of 10G connection with S/FTP cable length up to 80 meters.
*** The license needs to be purchased separately, and is only for standalone mode.
**** Warranty terms, service availability, and service response times may vary from country or region to country or region.
Documentation:
Download the Zyxel XMG1930 Series Datasheet (PDF).
