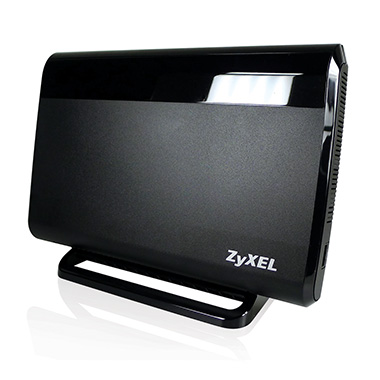

Zyxel EMG3425
AC2200, High-Power, Managed WiFi Ethernet Gateway for Gigabit Homes

Overview:

The Zyxel EMG3425 is a premium wireless, gigabit Ethernet gateway ideally suited for FTTH deployments and cable MSOs. It will exceed subscribers WiFi expectations with combined dual-band speeds of 2200Mbps over 5GHz 11ac and 2.4GHz 11n. The latest 802.11ac Wave 2 standard MU-MIMO and Explicit Beamforming technology further maximizes bandwidth utilization to generate sucient horse power for demanding applications like video streaming and online gaming to multiple wireless clients. With over 25 years of experience and extensive industry-wide interoperability, Zyxel oers service providers solid products with reduced deployment times and lasting subscriber experience.

• AC2200, dual-band WiFi
• 1.7Gbps* 802.11ac Wave 2 technology delivering performance boosting features that include Multi-User MIMO (MU-MIMO) and Beamforming.
• Carrier-class WiFi performance with 4x4 antenna configuration for 5GHz and 3x3 antenna configuration for 2.4GHz for simultaneous video streaming and online gaming
• High powered Wi-Fi on both the 5GHz and 2.4GHz bands for extended coverage and performance
• FTTH capable with gigabit Ethernet WAN port
• 802.1q, port-based VLAN and DHCP support for triple-play services
• TR-69 support for remote device provisioning and management
• 5 gigabit Ethernet ports and two USB port

Benefits:

Carrier-Class Wi-Fi for Seamless Mobility

The EMG3425 offers dual-band Wi-Fi with performance boosting features that include Multi-User MIMO (MU-MIMO) and Beamforming for simultaneous, lag-free streaming and gaming. Rated at AC2200, the new RGs deliver speeds of up to 1.7 Gbps* over 5 GHz and 450 Mbps* over 2.4GHz. High powered Wi-Fi on both 5 GHz and 2.4 GHz APs extend coverage, unleashing the best wireless experience for homes with a growing number of Wi-Fi devices. In addition, the ability to create multiple Wi-Fi networks with up to 4 SSIDs helps operators easily create separate WLAN networks for video, data, and guests.

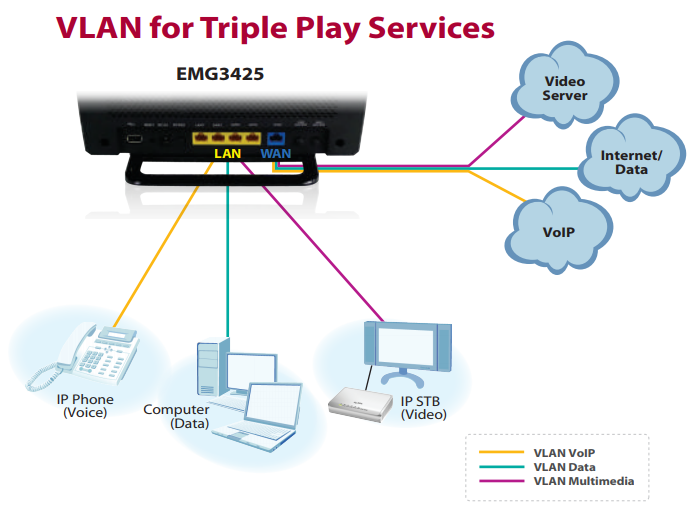

Triple-Play Powerhouse

The built-in 802.1 q port-based VLAN and DHCP features, advanced QoS and IGMP support enable efficient provisioning of voice, video, and data services while maintaining high Quality of Experience (QoE).

TR-069 Remote Provisioning and Management

The EMG3425 supports TR-069 that simplifies remote configuration, upgrades, and management, thereby reducing cost and improving customer satisfaction. The EMG3425 is also firmware upgradable to the latest TR-181 data model which enhances service provider visibility into subscribers' LAN network for improved customer support.

Two-Tiered Configuration for Smart Management

The Zyxel EMG3425 provides two-tiered administration management, so service providers can use two different privilege levels for device configurations. Service providers can retain full manaement privileges while releasing partial administration rights for subscribers via user-friendly configuration portal.

* Listed wireless data transfer rates are the theoretical maximum. The actual data transfer rate may vary depending on the network environment.

Specifications:

EMG3425 Specifications:
System Specifications
Wireless Standard	IEEE 802.11b/g/n 2.4 GHz IEEE 802.11a/n/ac 5 GHz
Wireless Transfer Rate	Transmit: 450 Mbps* for 2.4 GHz 1733 Mbps* for 5 GHz Receive: 450 Mbps* for 2.4 GHz 1733 Mbps* for 5 GHz
Wireless Security	64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2- PSK
Wireless Features	MU-MIMO Support Auto channel selection Wi-Fi Multimedia (WMM) Wireless scheduling Wireless output power management Multiple SSID up to 4 Wi-Fi Protected Setup (WPS)
Firewall	Stateful Packet Inspection (SPI) Denial-of-Service (DoS) attack prevention ICMP blocking
Routing	IPv4/IPv6 NAT Port forwarding WAN connection type: DHCP, PPPoE DHCP option 60/121/125 DHCP server on LAN IGMP v1/v2 IGMP proxy Dynamic DNS
VPN Pass-through	PPTP L2TP IPSec
VLAN	802.1q tag/tag based VLAN VLAN to ETH port mapping Bridged/routed VLAN support
Management	Bandwidth management QoS Web GUI (HTTP/HTTPS) TR-069/TR-098 SNMP v1/v2c & MIB II Firmware upgrade through GUI/TR-069 2-tier level access and administration Customized factory default
Other	Parental control UPnP USB media sharing

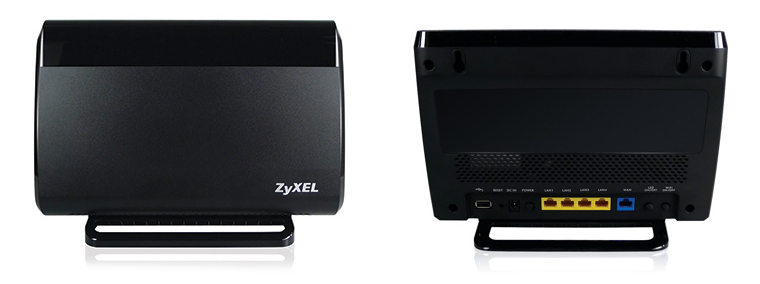

Hardware Specifications
WAN	One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
LAN	Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support
LED indicators	LED indicators: Power WAN Internet WLAN (2.4 GHz) WLAN (5 GHz) LAN (1 - 4) WPS USB (1 - 2)
Internal antennas	Internal antenna x 7: 3 for 2.4 GHz; 4 for 5 GHz
Buttons	Power on/off Wireless on/off LED on/off WPS Reset
Power	12V DC, 3A
Power consumption	30 watt max
Physical Specifications
Item dimensions (WxDxH)(mm/in.)	260.4 x 168.6 x 43.5 mm (10.25" x 6.64" x 1.71")
Item weight (kg/lb.)	590 g (1.3 lb.)
Packing dimensions (WxDxH)(mm/in.)	280 x 202 x 96 mm (11.02" x 7.95" x 3.78")
Packing weight (kg/lb.)	1,140 g (2.51 lb.)
Environmental Specifications
Operating temperature	0°C to 40°C (32°F to 104°F)
Operating humidity	10% to 90% (Non-condensing)
Storage temperature	-30°C to 70°C (-22°F to 158°F)
Storage humidity	10% to 95% (Non-condensing)
Certification
Safety	CE-LVD
EMC	CE, FCC, IC
Package Contents
Package Contents	Wireless router Power adapter Ethernet cable Quick start guide

* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.

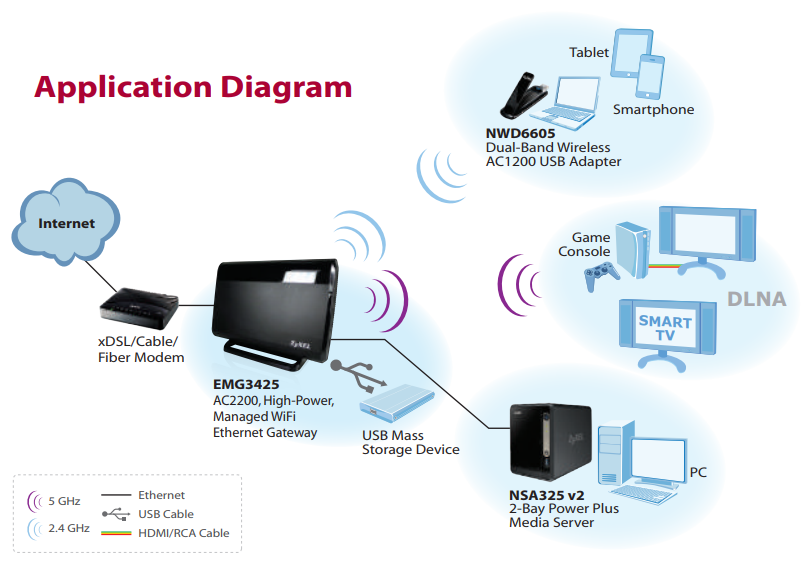

Application Diagram:

Documentation:

Download the Zyxel EMG3425 Datasheet (PDF).
