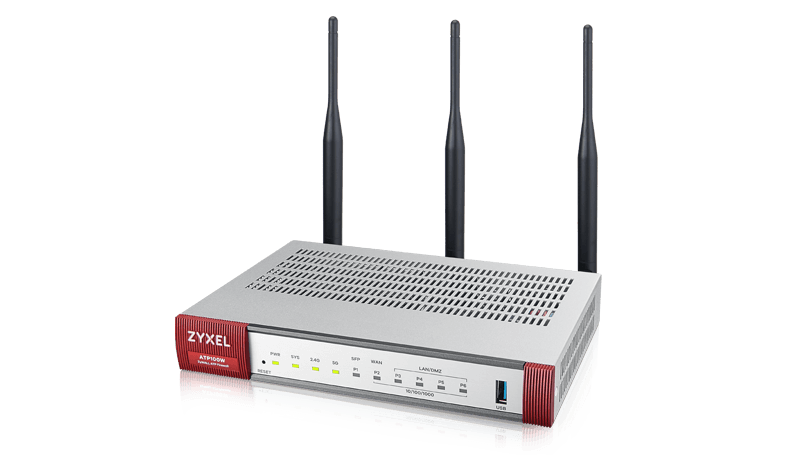

Zyxel ATP100W Discontinued
Next-Gen Firewall for SMBs
Sorry, this product is no longer available
Please contact us to explore replacement options or consider visiting our Legacy Products Licensing page, where you can purchase licenses for our discontinued products.
Overview:
Next-Gen Firewall for SMBs
The Zyxel ZyWALL ATP100/100W/200/500/700/800 is an Advanced Threat Protection Firewall Series dedicated for small and medium businesses, empowered by cloud intelligence to level up network protection, especially in tackling unknown threats. The ZyWALL ATP Firewall Series not only supports all Zyxel security service such as Web security, Application Security, Malware Blocker, Reputation Filter, etc., but also sandboxing and SecuReporter, and, last but not least, an infographic dashboard, delivering high performance and ensuring comprehensive protection as a self-evolving solution.
- Machine learning threat intelligence with global sync
- Sandboxing defeats unknown threats
- Hybrid scanning leveling up malware blocking
- High assurance multi-layered protection
- Reporting and analytics on cloud and device
Features:
Self-evolving cloud intelligence
Cloud intelligence receives all unknown files or user patterns from Zyxel ATP firewall’s enquiry then identifies and archives inspection results by Threat Intelligence Machine Learning. It then pushes the most top-ranked threat signature into all ATP firewalls so that all ATP devices are all within the seamless defense shield against new unknown threats. With the real-time cloud-device synchronization, the cloud intelligence becomes a continuously-growing and self-evolving security defense ecosystem, adaptive to external attacks and also more importantly keeping all ATP firewalls in sync at all times.
Sandboxing emulates unknown to known
Sandboxing is an isolated cloud environment to contain unknown files that cannot be identified by existing security service on device and to emulate those unknown files to identify whether they are malicious or not. Key values from sandboxing is to inspect packet behavior in isolation so the potential threat does not enter the network at all, and also to identify new malware types which the conventional static security mechanism may not detect. Cloud sandboxing with Zyxel ATP Firewall Series is preventive measure for zero-day attacks of all sorts.
High assurance multi-layered protection
Traditionally a one-to-one solution is designed to stop a specific attack. Malware has evolved and is capable of approaching your networks in every stages of attack. This traditional protection inevitably fails. The ZyWALL ATP Firewall Series is designed with multi-layered protection to guard against threats with multiple vectors from in and out.
It contains comprehensive security features like botnet filter, sandboxing, app patrol, content filtering, reputation filter, anti-malware, and IDP. As soon as your devices begin to get up and running, ATP firewalls are a sure way to start safeguarding your network without any unattended openings for attack.
Hybrid scanning leveling up malware blocking
ATP series not only supports a stream-based engine that scans files at the gateway for viruses and other threats but also runs cloud query simultaneously to leverage the multiple-sourced databases from Zyxel security cloud, a machine learning threat intelligence that can adapt to new unknown threats. This hybrid mode protection effectively maximizes malware detection rate without sacrificing throughput.
Reputation Filter preemptive IP threat defense
Reputation Filter matches up IP addresses with a real-time cloud database that tracks malicious cyber activities and determines if its address is reputable or not. This improves blocking efficiency, reduces hardware utilization, all while giving administrators additional network resources to quickly and easily address any issues.
Web Security with optimized Content Filter
ATP Firewall delivers enhanced web filtering functionality and security through its powerful combination of reputation and category-based filtering. The dynamic content categorization analyzes the content of a previously unknown website and determines if it belongs to an undesirable category including gambling, pornography, games, and many others. CTIRU (Counter-Terrorism Internet Referral Unit) is included to restrict access to terrorism material online.
Visualize unknown threat analytics and reports
ATP Firewall dashboard gives user-friendly traffic summary and threat statistic visuals. Utilize SecuReporter for a suite of analysis and reporting tools, including network security threats identification/analysis, security services, events, usage of the applications, websites, and traffic. Analyze sandboxing scanning activity details, show the top ranked botnet threat websites, and their types, while listing out which internal hosts are controlled. IP Reputation analytics offer IP attack details and their risk.
Specifications:
| Model | ZyWALL ATP100 |
ZyWALL ATP100W |
ZyWALL ATP200 |
ZyWALL ATP500 |
ZyWALL ATP700 |
ZyWALL ATP800 |
|---|---|---|---|---|---|---|
| Hardware Specifications | ||||||
| Wireless standard | - | 802.11 a/b/g/n/ac | - | - | - | - |
| Interface | 3 x LAN/DMZ, 1 x WAN, 1 x SFP, 1x OPT | 3 x LAN/DMZ, 1 x WAN, 1 x SFP, 1x OPT | 4 x LAN/DMZ, 2 x WAN, 1 x SFP | 7 (Configurable), 1 x SFP | 12 (Configurable), 2x SFP (Configurable) | 12 (Configurable), 2 x SFP (Configurable) |
| USB3.0 ports | 1 | 1 | 2 | 2 | 2 | 2 |
| Console port | RJ45 | RJ45 | DB9 | DB9 | DB9 | DB9 |
| Rack-mountable | - | - | Yes | Yes | Yes | Yes |
| Fanless | Yes | Yes | Yes | - | - | - |
| System Capacity & Performance | ||||||
| SPI firewall throughput (Mbps) | 1,000 | 1,000 | 2,000 | 2,600 | 6,000 | 8,000 |
| VPN throughput (Mbps) | 300 | 300 | 500 | 900 | 1,200 | 1,500 |
| IDP throughput (Mbps) | 600 | 600 | 1,200 | 1,700 | 2,200 | 2,700 |
| AV throughput (Mbps) | 380 | 380 | 630 | 900 | 1,600 | 2,000 |
| UTM throughput (AV and IDP) | 380 | 380 | 600 | 890 | 1,500 | 1,900 |
| Max. TCP concurrent sessions | 300,000 | 300,000 | 600,000 | 1,000,000 | 1,600,000 | 2,000,000 |
| Max. concurrent IPsec VPN tunnels | 40 | 40 | 100 | 300 | 1,000 | 1,000 |
| Concurrent SSL VPN users | 30 | 30 | 60 | 150 | 150 | 500 |
| VLAN interface | 8 | 8 | 16 | 64 | 128 | 128 |
| Wireless Specifications | ||||||
| Standard compliance | - | 802.11 a/b/g/n/ac | - | - | - | - |
| Wireless frequency | - | 2.4 / 5 GHz | - | - | - | - |
| Radio | - | 2 | - | - | - | - |
| SSID number | - | 8 | - | - | - | - |
| No. of antenna | - | 3 detachable antennas | - | - | - | - |
| Antenna gain | - | 2 dBi @ 2.4 GHz 3 dBi @ 5 GHz |
- | - | - | - |
| Data rate | - | 802.11n: up to 450Mbps 802.11ac: up to 1300Mbps |
- | - | - | - |
| WLAN Management | ||||||
| Managed AP number (default/max.) (1 Year bundled) | 8 / 24 | 8 / 24 | 8 / 40 | 8 / 72 | 8 / 264 | 8 / 520 |
| Recommend max. AP in 1 AP Group | 10 | 10 | 20 | 60 | 200 | 300 |
| Security Features | ||||||
| Sandboxing | Yes | Yes | Yes | Yes | Yes | Yes |
| Web Security | Yes | Yes | Yes | Yes | Yes | Yes |
| Application Security | Yes | Yes | Yes | Yes | Yes | Yes |
| Malware Blocker | Yes | Yes | Yes | Yes | Yes | Yes |
| Intrusion Prevention (IDP) | Yes | Yes | Yes | Yes | Yes | Yes |
| Reputation Filter | Yes | Yes | Yes | Yes | Yes | Yes |
| Geo Enforcer | Yes | Yes | Yes | Yes | Yes | Yes |
| SecuReporter Premium | Yes | Yes | Yes | Yes | Yes | Yes |
| Key Features | ||||||
| VPN | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec |
| SSL (HTTPS) Inspection | Yes | Yes | Yes | Yes | Yes | Yes |
| 2-Factor Authentication | Yes | Yes | Yes | Yes | Yes | Yes |
| Microsoft Azure | Yes | Yes | Yes | Yes | Yes | Yes |
| Amazon VPC | Yes | Yes | Yes | Yes | Yes | Yes |
| Device HA Pro | - | - | - | Yes | Yes | Yes |
| Power Requirements | ||||||
| Power input | 12V DC, 2A max. | 12V DC, 2A max. | 12V DC, 2.5A max. | 12V DC, 4.17A | 100-240V AC, 50/60Hz, 2.5A max. | 100-240V AC,50/60Hz, 2.5A max. |
| Max. power consumption (watt) | 12.5 | 12.5 | 13.3 | 24.1 | 46 | 46 |
| Heat dissipation (BTU/hr) | 42.65 | 42.65 | 45.38 | 82.23 | 120.1 | 120.1 |
| Physical Specifications | ||||||
| Item | ||||||
| Dimensions (WxDxH)(mm/in.) | 216 x 147.3 x 33/8.50 x 5.80 x 1.30 | 216 x 147.3 x 33/8.50 x 5.80 x 1.30 | 272 x 187 x 36/10.7 x 7.36 x 1.42 | 300 x 188 x 44/11.81 x 7.4 x 1.73 | 430 x 250 x 44/16.93 x 9.84 x 1.73 | 430 x 250 x 44/16.93 x 9.84 x 1.73 |
| Weight (kg/lb.) | 0.85/1.87 | 0.85/1.87 | 1.4/3.09 | 1.65/3.64 | 3.3/7.28 | 3.3/7.28 |
| Packing | ||||||
| Dimensions (WxDxH)(mm/in.) | 284 x 190 x 100/11.18 x 7.48 x 3.94 | 284 x 190 x 100/11.18 x 7.48 x 3.94 | 427 x 247 x 73/16.81 x 9.72 x 2.87 | 351 x 152 x 245/13.82 x 5.98 x 9.65 | 519 x 392 x 163/20.43 x 15.43 x 6.42 | 519 x 392 x 163/20.43 x 15.43 x 6.42 |
| Weight (kg/lb.) | 1.4/3.09 | 1.40/3.09 | 2.42/5.34 | 2.83/6.24 | 4.8/10.58 | 4.8/10.58 |
| Included accessories | Power adapter RJ-45 cable RS-232 cable |
Power adapter RJ-45 cable RS-232 cable |
Power adapter Rack mounting kit (optional, by regions) |
Power adapter Power cord Rack mounting kit |
Power adapter Rack mounting kit |
Power cord Rack mounting kit |
| Environmental Specifications | ||||||
| Operating environment | ||||||
| Temperature | 0°C to 40°C/32°F to 104°F | 0°C to 40°C/32°F to 104°F | 0°C to 40°C/32°F to 104°F | 0°C to 40°C/32°F to 104°F | 0°C to 40°C/32°F to 104°F | 0°C to 40°C/32°F to 104°F |
| Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) |
| Storage environment | ||||||
| Temperature | -30°C to 70°C/-22°F to 158°F | -30°C to 70°C/-22°F to 158°F | -30°C to 70°C/-22°F to 158°F | -30°C to 70°C/-22°F to 158°F | -30°C to 70°C/-22°F to 158°F | -30°C to 70°C/-22°F to 158°F |
| Humidity | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) | 10% to 90% (non-condensing) |
| MTBF (hr) | 989810.8 | 989810.8 | 529,688.2 | 529,688.2 | 947,736 | 947,736 |
| Acoustic noise | - | - | - | 24.5 dBA on < 25°C operating temperature, 41.5 dBA on full FAN speed. | 25.3 dBA on < 25°C operating Temperature, 46.2 dBA on full FAN speed. | 25.3 dBA on < 25°C operating temperature, 46.2 dBA on full FAN speed. |
| Certifications | ||||||
| EMC | FCC Part 15 (Class B) CE EMC (Class B) BSMI |
FCC Part 15 (Class B) CE EMC (Class B) BSMI |
FCC Part 15 (Class B) CE EMC (Class B) C-Tick (Class B) BSMI |
FCC Part 15 (Class A) CE EMC (Class A) C-Tick (Class A) BSMI |
FCC Part 15 (Class A) CE EMC (Class A) C-Tick (Class A) BSMI |
FCC Part 15 (Class A) CE EMC (Class A) C-Tick (Class A) BSMI |
| Safety | LVD (EN60950-1) BSMI |
LVD (EN60950-1) BSMI |
LVD (EN60950-1) BSMI |
LVD (EN60950-1) BSMI |
LVD (EN60950-1) BSMI |
LVD (EN60950-1) BSMI |
Documentation:
Download the Zyxel ATP100W (PDF).
