NWA110AX
802.11ax (WiFi 6) Dual-Radio PoE Access Point

Zyxel Products
Zyxel NWA110AX
2x2 WiFi 6 (802.11ax) AP 1G LAN - NebulaFlex
#NWA110AX
List Price: $279.99
Contact us for better pricing!

Click here to jump to more pricing!


Overview:

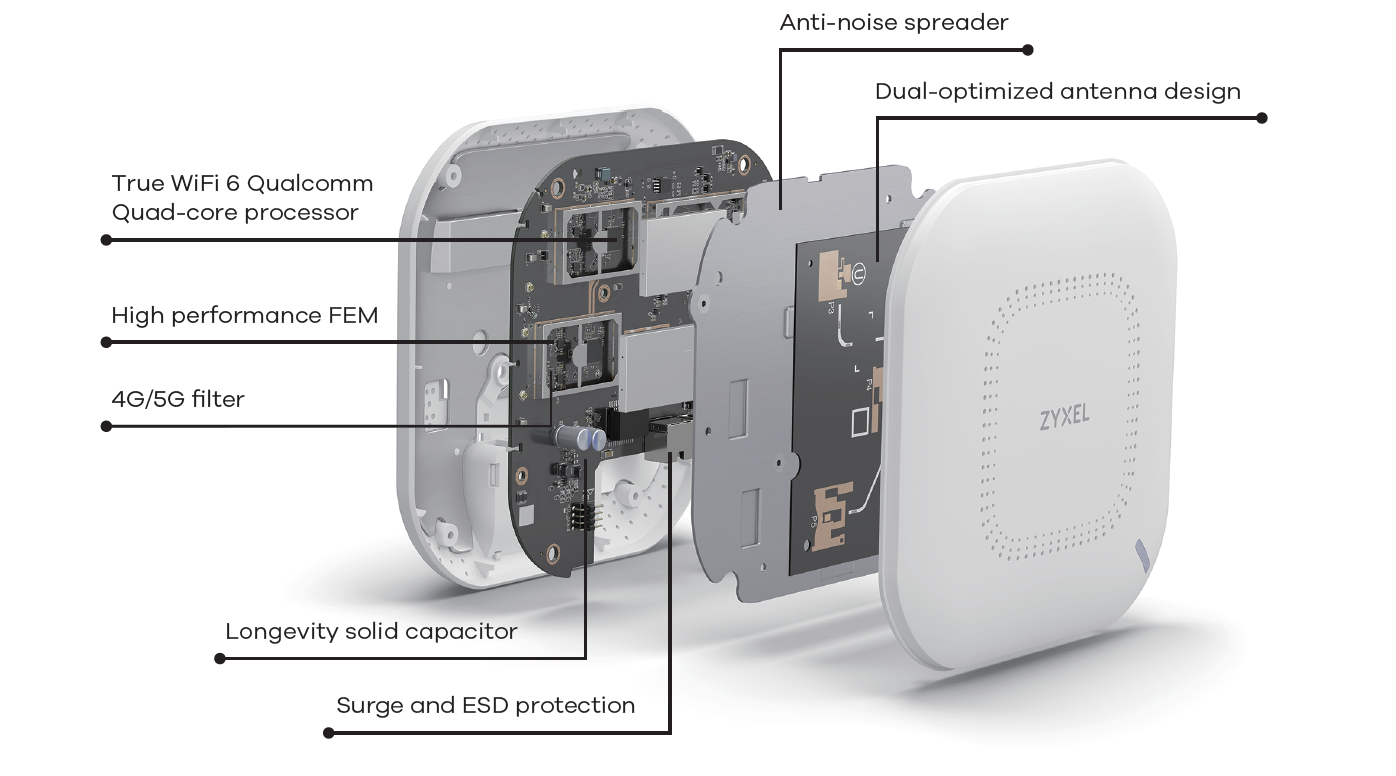

The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products. Also, it uses the second generation transmit beamforming technology incorporating Low End Sensitivity Improvements and Time Domain Channel Smoothing allowing data rates to increase for not only MUMIMO clients, but for all existing ones as well.

The NAX110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi6 has to offer without the need to upgrade existing PoE+ switches.

The NWA110AX with NebulaFlex offers the full flexibility for users to switch among standalone or cloud-managed modes.

Zyxel WAX650S


Dual-radio (dual 4x4 MIMO) 802.11ax AP

Dual-radio (dual 2x2 MIMO) 802.11ax AP provides maximum data rate of 1775 Mbps

OFDMA

OFDMA is arguably the best innovation of WiFi, delivering the highest performance and low latency for all scenarios

Smart antenna

NebulaFlex allows users to switch between standalone or intuitive Nebula cloud managed modes as needed

NebulaFlex Pro

NebulaFlex Pro allows users to switch among standalone, onpremises controller managed or intuitive Nebula cloud managed modes as needed

Advanced Cellular Coexistence

Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks.
The latest WPA3 security protocol provides safer connectivity


*1The licensing terms may vary depending on part numbers or regions Please contact your local sales representative.

Benefits:

Bringing next generation WiFi within reach

WiFi 6 made tremendous improvement by introducing new technologies such as orthogonal frequency-division multiple access (ODFMA), and spatial re-use, which is also referred to as Basic Service Set (BSS) coloring. It aims to satisfy the all requirements from rapidly growing mobile users simultaneously. Zyxel’s new NWA110AX is a true WiFi 6 access point which support essential 11ax functions that delivers faster performance and massive increased-capacity make the user experience even better.

Apart from running at 25% faster speed, NWA110AX can also maximize the WiFi efficiency by allowing simultaneous data transmission for multiple clients; thus, the air time contention is no longer an issue here.

NebulaFlex Pro – simply manage it your way!

The NebulaFlex provides extended flexibility, allowing users to easily switch among standalone, or our intuitive cloud-managed NCC (Nebula Control Center) modes any time according to your needs without additional cost while protecting wireless technology investments

The Nebula cloud management platform provides centralized control and visibility over all Nebula networking devices. Simply you only need to register the device on NCC, and it will automatically join, auto provision and begin to give real-time information. The intuitive platform allows you to group your access points together, control centrally, gain access to diagnostics tools and additional features like captive portal all under a single platform.

4G/5G cellular network coexistence

With the exponential growth of mobile devices in the wireless network, users start to experience degraded performance, such as ping drops and high latency, however whenever user shutdown the mobile equipment, wireless service resumes working smooth. Thus, to enable 4G/5G cellular network coexistence and minimize interference from 4G/5G antennas or signal boosters, the NWA110AX has built-in 4G/5G interference filters. As a result, the visible or invisible 4G/5G indoor antennas in the environment is no longer an issue when installing APs.

Application Diagram:

Key Applications

Specifications:


p
Model NWA110AX
Product name 802.11ax (WiFi 6) Dual-Radio PoE Access Point
Wireless
Standard IEEE 802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4 GHz 575 Mbps
5 GHz 1200 Mbps
Frequency band
2.4 GHz (IEEE 802.11 b/g/n/ax)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
Frequency band
5 GHz (IEEE 802.11 a/n/ac)
  • USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40-, 80-MHz
Conducted typical transmit output power US (2.4 GHz/5 GHz) 23/23 dBm
EU (2.4 GHz/5 GHz) 20/22 dBm
RF Design
Antenna type 2x2 + 2x2 MIMO embedded antenna
Antenna gain 2.4 GHz Peak gain 5 dBi
5 GHz Peak gain 6 dBi
Minimum receive sensitivity Min. Rx sensitivity up to -101 dBm
WLAN Feature
Band steering Yes
WDS Yes (V6.10)
Fast roaming Pre-authentication, PMK caching and 802.11r/k/v
DCS Yes
Load Balancing Yes
Security
Encryption WEP/WPA/WPA2-PSK/WPA3
Authentication WPA/WPA2/WPA3-Enterprise/EAP/IEEE 802.1X/RADIUS authentication
Access management L2-isolation/MAC filtering
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating Mode Cloud managed/standalone
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
Zyxel Wireless Optimizer
  • WiFi AP planning
  • WiFi coverage detection
  • Wireless health management
Web UI/CLI Yes
SNMP Yes
Physical Specifications
Dimensions (WxDxH)(mm/in.) 180 x 180 x 39/7.09 x 7.09 x 1.54
Weight (g/lb.) (WxDxH)(mm/in.) 453/1.00
Included accessories
  • Mount plate
  • Mounting screws
  • Power adapter
MTBF (hr) 635,837

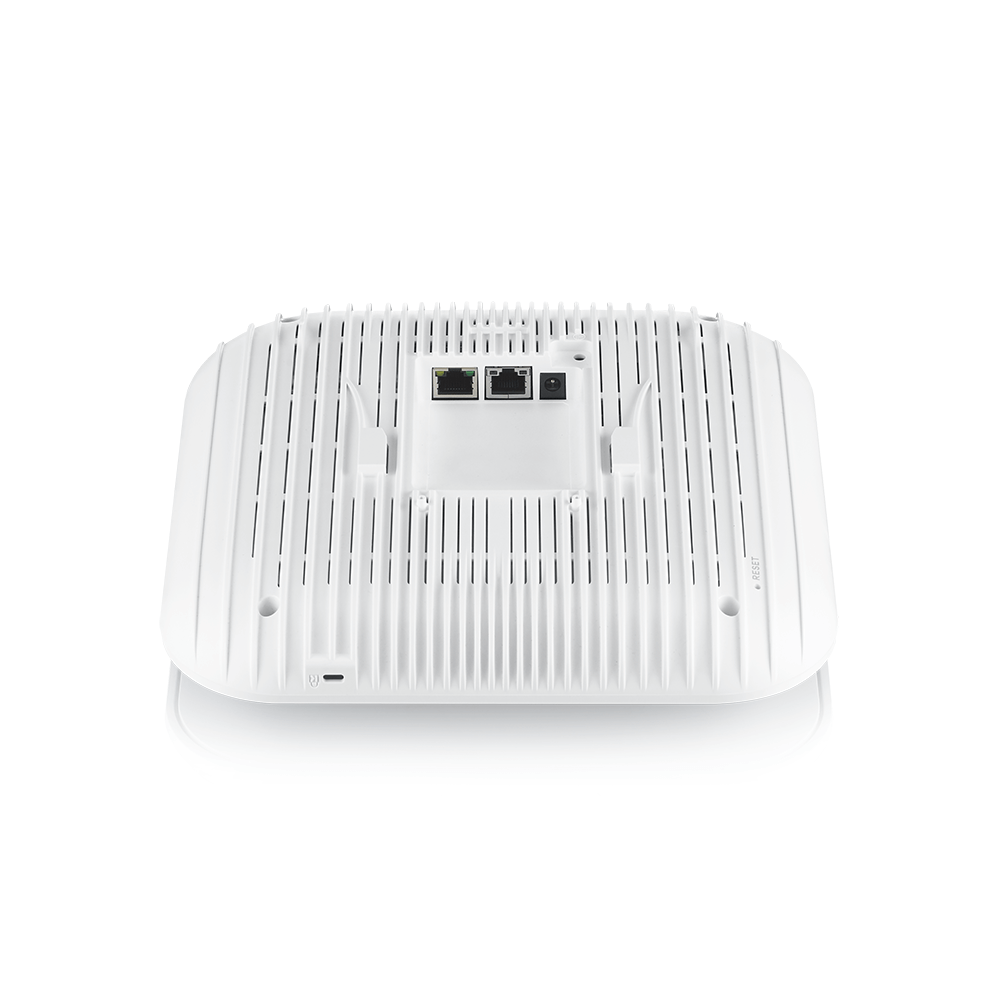

Physical Interfaces
Ethernet port 1 x 10/100/1000M LAN
Power PoE (802.3)at: power draw 17 W
DC input: 12 VDC 1.5 A
Environmental Specifications
Operating Humidity:10% to 95% (non-condensing)
Temperature: 0°C to 50°C/32°F to 122°F
Storage Humidity: 10% to 90% (non-condensing)
Temperature: -30°C to 70°C/-22°F to 158°F
Certifications
Radio FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024,
EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety Safety EN 60950-1, IEC 60950-1, BSMI CNS14336-1

Documentation:

Download the Zyxel NWA110AX Datasheet (PDF).
