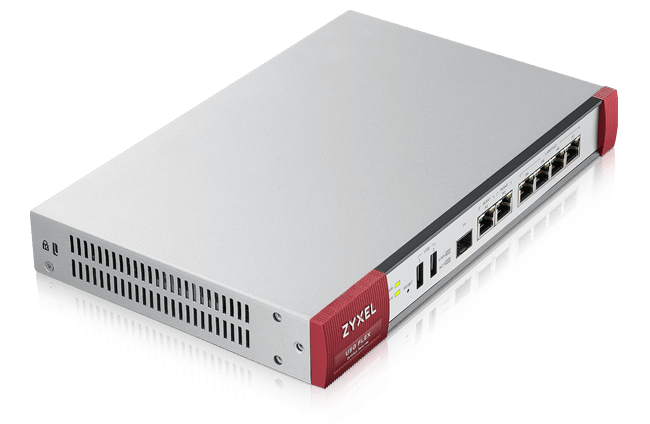

Zyxel USG FLEX 200 Firewall
Maximizes UTM performance by minimizing computing power usage

Hardware Specifications

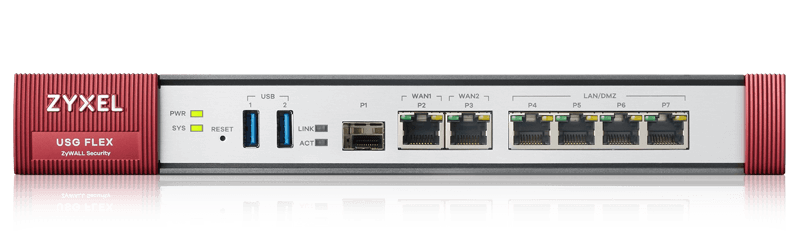

10/100/1000 Mbps RJ-45 ports

4 x LAN/DMZ, 1 x WAN, 1 x SFP

4 x LAN/DMZ, 1 x WAN, 1 x SFP

4 x LAN/DMZ, 2 x WAN, 1 x SFP

7 x (Configurable), 1 x SFP

12 (configuratble), 2 x SFP (configurable)

USB3.0 ports

1

1

2

2

2

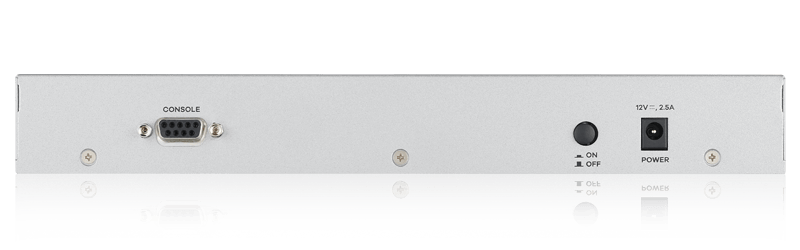

Console port

Yes (RJ-45)

Yes (RJ-45)

Yes (DB9)

Yes (DB9)

Yes (DB9)

Rack-mountable

-

-

Yes

Yes

Yes

Fanless

Yes

Yes

Yes

-

-

System Capacity & Performance*1

SPI firewall throughput (Mbps)*2

900

900

1,800

2,300

5,400

VPN throughput (Mbps)*3

270

270

450

810

1,100

VPN IMIX throughput (Mbps)*3

100

100

100

240

550

IDP throughput (Mbps)*4

540

540

1,100

1,150

2,000

AV throughput (Mbps)*4

360

360

570

800

1,450

UTM throughput (AV and IDP)*4

360

360

550

800

1,450

Max. TCP concurrent sessions*5

300,000

300,000

600,000

1,000,000

1,600,000

Max. concurrent IPsec VPN tunnels*6

40

40

100

300

500

Concurrent SSL VPN users

30

30

60

150

150

VLAN interface

8

8

16

64

128

Concurrent devices logins (default/max.)*7*8

64

64

200

200 / 300

500 / 800

Speedtest Performance

SPI firewall throughput (Mbps)*11

760

760

810

810

840

WLAN Management

Managed AP number (default/max.)*7

8 / 24

8 / 24

8 / 40

8 / 72

8 / 264

Recommend max. AP in 1 AP Group

10

10

20

60

200

Security Service

Anti-Malware*7

Yes

Yes

Yes

Yes

Yes

IPS (IDP)

Yes

Yes

Yes

Yes

Yes

Application Patrol*7

Yes

Yes

Yes

Yes

Yes

Email Security

Yes

Yes

Yes

Yes

Yes

Web filtering (CF)*7*9

Yes

Yes

Yes

Yes

Yes

SecuReporter Premium*7

Yes

Yes

Yes

Yes

Yes

Key Features

VPN

IKEv2, IPSec, SSL, L2TP/IPSec

IKEv2, IPSec, SSL, L2TP/IPSec

IKEv2, IPSec, SSL, L2TP/IPSec

IKEv2, IPSec, SSL, L2TP/IPSec

IKEv2, IPSec, SSL, L2TP/IPSec

SSL (HTTPS) inspection

Yes

Yes

Yes

Yes

Yes

2-Factor Authentication

Yes

Yes

Yes

Yes

Yes

Hotspot Management*7

-

-

Yes

Yes

Yes

Ticket printer support*10 / Support Q'ty (max.)

-

-

Yes (SP350E) / 10

Yes (SP350E) / 10

Yes (SP350E) / 10

Microsoft Azure

Yes

Yes

Yes

Yes

Yes

Amazon VPC

Yes

Yes

Yes

Yes

Yes

Device HA Pro

-

-

-

Yes

Yes

Link Aggregation (LAG)

-

-

-

Yes

Yes

Power Requirements

Power input

12V DC, 2A max.

12V DC, 2A max.

12V DC, 2.5A max.

12V DC, 4.17A

100-240V AC, 50/60Hz, 2.5A max.

Max. power consumption (Watt Max.)

12.5

12.5

13.3

24.1

46

Heat dissipation (BTU/hr)

42.65

42.65

45.38

82.23

120.1

Physical Specifications

Item

Dimensions (WxDxH) (mm/in.)

216 x 147.3 x 33/

8.50 x 5.80 x 1.30

216 x 147.3 x 33/

8.50 x 5.80 x 1.30

272 x 187 x 36/

10.7 x 7.36 x 1.42

300 x188 x 44/ 16.93 x 7.4 x 1.73

430 x 250 x 44/

16.93 x 9.84 x 1.73

Weight (Kg/lb.)

0.85/1.87

0.85/1.87

1.4/3.09

1.65/3.64

3.3/7.28

Packing

Dimensions (WxDxH) (mm/in.)

284 x 190 x 100/

11.18 x 7.48 x 3.94

284 x 190 x 100/

11.18 x 7.48 x 3.94

427 x 247 x 73/

16.81 x 9.72 x 2.87

351 x 152 x 245/

13.82 x 5.98 x 9.65

519 x 392 x 163/

20.43 x 15.43 x 6.42

Weight (kg/lb.)

1.40/3.09

1.40/3.09

2.23 (W/O bracket)

2.42 (W/ bracket)

2.83/6.24

4.8/10.58

Included accessories

•  Power adapter

•  RJ-45 - RS-232 cable for console connection

•  Power adapter

•  RJ-45 - RS-232 cable for console connection

•  Power adapter

• Rack mounting kit (optional, by regions)

•  Power adapter

•  Power cord

•  Rack mounting kit

•  Power cord

•  Rack mounting kit

Environmental Specifications

Operating

Temperature

0°C to 40°C (32°F to 104°F)

0°C to 40°C (32°F to 104°F)

0°C to 40°C (32°F to 104°F)

0°C to 40°C (32°F to 104°F)

0°C to 40°C (32°F to 104°F)

Humidity

10% to 90% (non-condensing)

10% to 90% (non-condensing)

10% to 90% (non-condensing)

10% to 90% (non-condensing)

10% to 90% (non-condensing)

Storage

Temperature

-30°C to 70°C (-22°F to 158°F)

-30°C to 70°C (-22°F to 158°F)

-30°C to 70°C (-22°F to 158°F)

-30°C to 70°C (-22°F to 158°F)

-30°C to 70°C (-22°F to 158°F)

Humidity

10% to 90% (non-condensing)

10% to 90% (non-condensing)

10% to 90% (non-condensing)

10% to 90% (non-condensing)

10% to 90% (non-condensing)

MTBF (hr)

989810.8

989810.8

529688.2

529688.2

947736

Acoustic Noise

-

-

-

24.5dBA on < 25degC
Operating Temperature,
41.5dBA on full FAN speed

24.5dBA on < 25degC
Operating Temperature,
41.5dBA on full FAN speed

Certifications

EMC

FCC Part 15 (Class B), CE EMC (Class B),BSMI

FCC Part 15 (Class B), CE EMC (Class B),BSMI

FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI

FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI

FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI

Safety

LVD (EN60950-1), BSMI

LVD (EN60950-1), BSMI

LVD (EN60950-1), BSMI

LVD (EN60950-1), BSMI

LVD (EN60950-1), BSMI

*: This matrix with firmware ZLD4.50 or later.

*1: Actual performance may vary depending on system configuration, network conditions, and activated applications.

*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).

*3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets).

*4: AV (with Express Mode) and IDP throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.

*5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool

*6: Including Gateway-to-Gateway and Client-to-Gateway.

*7: With Zyxel service license to enable or extend the feature capacity.

*8: This is the recommend maximum number of concurrent logged-in devices.

*9: SafeSearch function in CF need to enable SSL inspection firstly and not for small business models.

*10: With Hotspot Management license support

*11: The Speedtest result is conducted with 1Gbps WAN link in real world and it is subject to fluctuate due to quality of the ISP link.
