Overview:

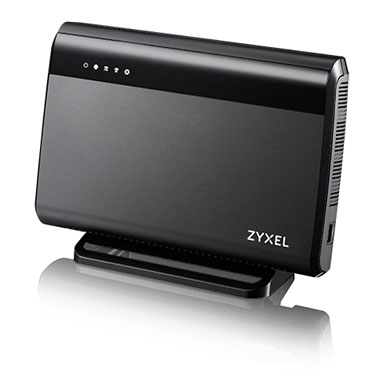

The Zyxel EMG6765-Q10A is an AC2200 Gigabit Ethernet MoCA Gateway with MoCA 2.0 features that works as a wired backbone for reliable WiFi extensions. The EMG6765-Q10A enables concurrent data transfer rates of 450 Mbps at 2.4 GHz and 1733 Mbps at 5 GHz for users to enjoy higher speeds across greater distances throughout the entire home for maximum wireless coverage. The device also features TR-069 standard management specifications for service providers to manage and configure client devices remotely without the need for any end-user intervention.
- Speeds of up to 450 Mbps at 2.4 GHz and 1733 Mbps at 5 GHz
- True dual-network design for optimized HD media and excellent HD media experience for mobile devices and desktops
- MoCA support as the Gigabitgrade backbone for wholehome networking coverage
- Auto provisioning and remote management through TR-069
- 802.1q, port-based VLAN and DHCP options support tripleplay services
- 2 USB 3.0 Host ports deliver Samba File Service and DLNA media streaming from external USB disks or hard drives
- WPS button for easy setup
Benefits:
High power for ultimate coverage
The Zyxel EMG6765-Q10A optimizes the power of home networks and ensures its coverage reaches every corner in the house. High-power amplifiers and high-gain antennas for the maximum WiFi coverage bring ultimate range and performance that users expect from their networked devices.
MoCA 2.0 bonded Gigabit speed

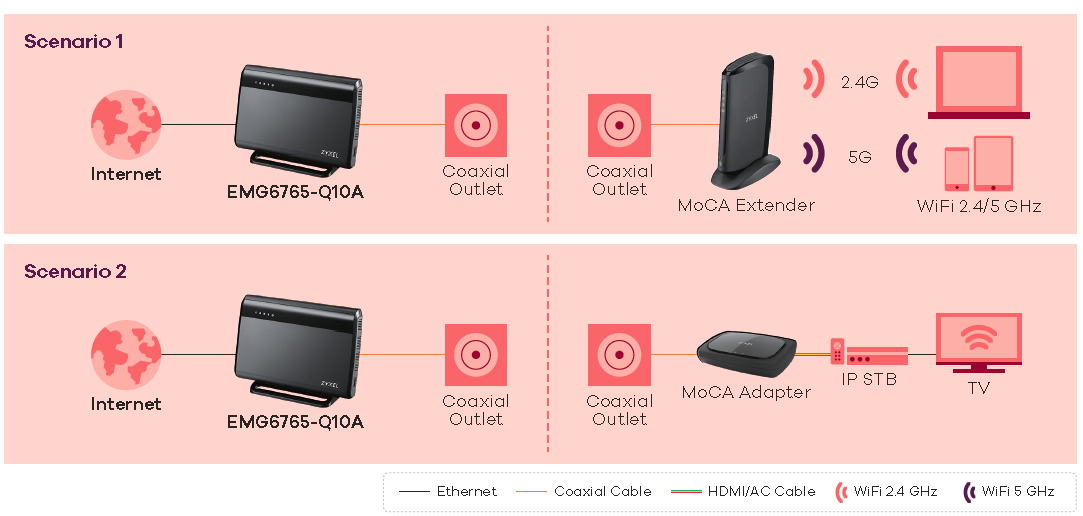

The Zyxel EMG6765-Q10A with MoCA 2.0 has been designed as a wired backbone for reliable WiFi extensions. MoCA 2.0 Bonded is the preferred solution for extending wireless coverage in multilevel homes.
802.1q, port-based VLAN and DHCP options support triple-play services
The built-in VLAN and DHCP features of the Zyxel EMG6765-Q10A enable service providers to deploy multimedia services based on triple-play offerings for better network efficiency and productivity to meet the need of residential users.

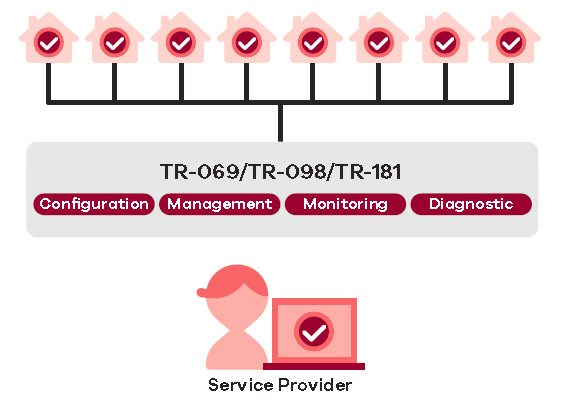

Auto provisioning and remote management through TR-069/TR-098/TR-181
The Zyxel EMG6765-Q10A incorporates the TR-069 standard management specifications for service providers to remotely manage and configure devices without any end-user intervention. The feature offers a true “plug-and-play” experience while reducing deployment complexity to help saving operating and maintenance costs for service providers.
Easy administration for two-level configuration
The Zyxel EMG6765-Q10A provides a two-level administration design, so service providers can use two different privilege levels to complete critical device configurations. Service providers can manage and configure devices with full privilege and parameters, while end users are only granted with partial administration rights for basic, user-friendly configuration options such as wireless scheduling and SSID setting.
Optimized concurrent dual-band wireless for different applications
The Zyxel EMG6765-Q10A AC2200 Gigabit Ethernet MoCA Gateway features 802.11ac technology to provide the ultimate solution for both speed and coverage performance. With 802.11ac wireless data rates of up to 1750 Mbps*, the EMG6765-Q10A provides stable, reliable wireless connections for high-speed data and multimedia applications. The 802.11ac technology empowered the device to eliminate dead zones and to extend coverage while retaining backward compatibility with any WiFi certified device. Users can browse the Web on the 2.4 GHz band while watching HD video or play online games over the 5 GHz band smoothly while others at home are browsing the Web or checking emails.
* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
Specifications:
| EMG6765-Q10A Specifications: |
| Wireless Standard |
- IEEE 802.11b/g/n 2.4 GHz
- IEEE 802.11a/n/ac 5 GHz
|
| Wireless Transfer Rate |
- Transmit:
- 450 Mbps* for 2.4 GHz
- 1733 Mbps* for 5 GHz
- Receive:
- 450 Mbps* for 2.4 GHz
- 1733 Mbps* for 5 GHz
|
| MoCA Transfer Rate and Band |
- PHY data rate:
- 700 Mbps (baseline)
- 1400 Mbps (bonded)
- Backward compatible with MoCA 2.0/1.1/1.0
-
- Frequency range:
- 1350 to 1675 MHz (D-high SKU)
- 1125 to 1675 MHz (Full-D SKU)
|
| Wireless Security |
WPA2, WPA2-PSK |
| Wireless Features |
- Auto channel selection
- WiFi Multimedia (WMM)
- Wireless scheduling
- Wireless output power management
- Multiple SSID up to 4
- WiFi Protected Setup (WPS)
- Intra-BSS traffic block
- MAC address filtering
|
| Firewall |
- Stateful Packet Inspection (SPI)
- Denial-of-Service (DoS) attack prevention
- ICMP blocking
|
| Routing |
- IPv4/IPv6
- NAT
- Port forwarding
- WAN connection type: DHCP, PPPoE
- DHCP option 60/121/125
- DHCP server on LAN
- IGMP v1/v2
- IGMP proxy
- Dynamic DNS
|
| VPN Pass-through |
|
| VLAN |
- 802.1q tag/tag based VLAN
- VLAN to ETH port mapping
- Bridged/routed VLAN support
|
| Management |
- Bandwidth management QoS
- Web GUI (HTTP/HTTPS)
- TR-069/TR-098/TR-181
- SNMP v1/v2c & MIB II
- Firmware upgrade through GUI/TR-069
- 2-tier level access and administration
- Customized factory default
|
| Other |
- Content filter
- Parental control
- UPnP
- USB media sharing
|
| WAN |
One 10/100/1000 Mbps Ethernet RJ-45 port with auto MDI/MDIX support |
| LAN |
Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support |

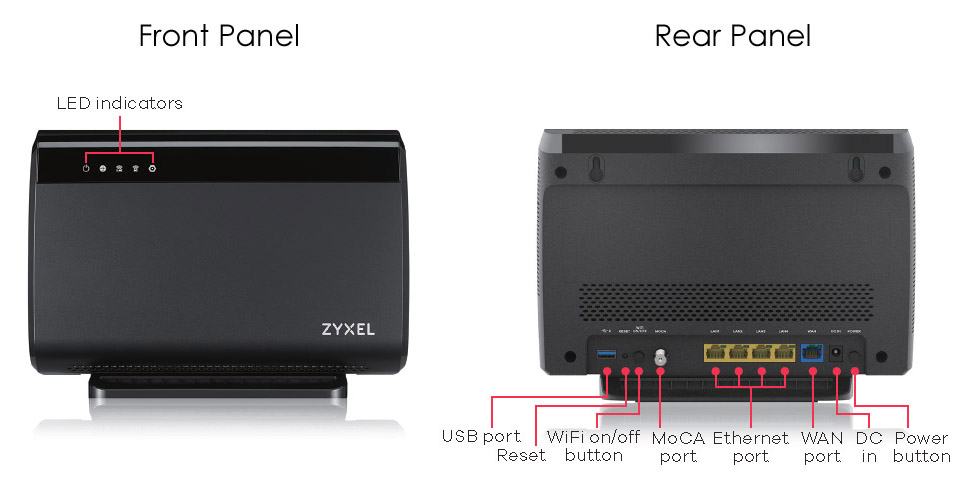

| LED indicators |
- Power
- Internet
- WLAN for 2.4 GHz/WPS
- WLAN for 5 GHz/WPS
- MoCA
- WAN (on RJ-45)
- LAN 1-4 (on RJ-45)
|
| Internal antennas |
Yes |
| Buttons |
- Power on/off
- Wireless on/off
- WPS
- Reset
|
| Power |
12V DC, 3A |
| Power consumption |
33 watt max |
| Item dimensions (WxDxH)(mm/in.) |
260.4 x 168.6 x 43.5 mm (10.25" x 6.64" x 1.71") |
| Item weight (kg/lb.) |
688 g (1.52 lb.) |
| Packing dimensions (WxDxH)(mm/in.) |
321 x 202 x 106 mm (12.64" x 7.95" x 4.17") |
| Packing weight (kg/lb.) |
1218 g (2.69 lb.) |
| Operating temperature |
0°C to 40°C (32°F to 104°F) |
| Operating humidity |
10% to 90% (Non-condensing) |
| Storage temperature |
-30°C to 70°C (-22°F to 158°F) |
| Storage humidity |
10% to 95% (Non-condensing) |
| EMC |
FCC, IC |
| Package Contents |
- Wireless router
- Power adapter
- Ethernet cable
- Quick start guide
|
* The maximum wireless data transfer rate is derived from IEEE Standard 802.11 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
Documentation:
Download the Zyxel EMG6765-Q10A Datasheet (PDF).
