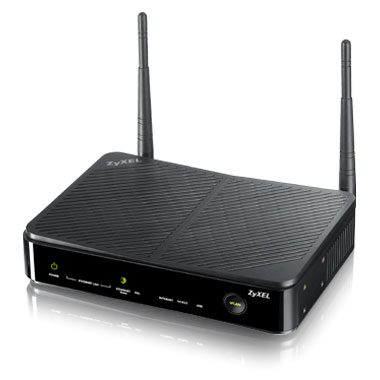

Zyxel SBG3300-N
Wireless N VDSL2 Combo WAN Small Business Security Gateway

Overview:

Robust firewall and VPN to secure business communications

The Zyxel SBG3300-N Series applies ACL rules, Stateful Packet Inspection (SPI), Denial of Service (DoS) and DDoS features for first-line defense against hackers, network intruders and other harmful threats. A configurable DMZ provides more flexible accessibility while preventing external attacks on confidential databases.

The SBG3300-N Series additionally features IPSec VPN which empowers companies to provide secure connections to branch offices, partners, road warriors and telecommuters. They can use L2TP or PPTP VPN to safely access corporate networks without having to install VPN software.

• Robust firewall and VPN to secure business communications
• Multi-WAN connectivity with load balancing and failover
• Comprehensive authentication for safe, efficient management
• Combo WAN-in-a-box to optimize the CAPEX of FTTH/VDSL2 deployments
• G. vectoring to maximize effective range for service providers
• Extreme routing performance to take advantage of FTTx applications
• Five Gigabit ports and 802.11n for superior LAN networking

Benefits:

Multi-WAN connectivity with load balancing and failover

The Zyxel SBG3300-N Series includes multiple WAN interfaces for DSL, Ethernet and USB 3G/4G adapters to establish WAN backups or load balancing. The WAN backup provides contingency in case the primary line or ISP suffers temporary outage. When the primary line of normal services is restored, all traffic resumes normal activity. This function enables highly reliable connectivity and flexibility in multiple applications.

Comprehensive authentication for safe, efficient management

The Zyxel SBG3300-N Series offers a two-level login mechanism to differentiate user segments. The ISP can also define the policies for the limited accounts to easily manage them with the integrated profile database.

11n for superior performance and coverage

The Zyxel SBG3300-N Series Wireless N VDSL2 Combo WAN Small Business Security Gateway featuring 802.11n technology provides the ultimate solution for exceptional security, speed, and coverage. The SBG3300-N Series offers a Web authentication portal for easy management of Internet access. Multiple SSIDs and guest/limited wireless accounts allow companies to protect sensitive data by separating public Internet access from a company’s private LAN. With the guest SSID feature, it’s easy to share wireless connectivity without compromising security; guests are allowed to access only unsecured data.

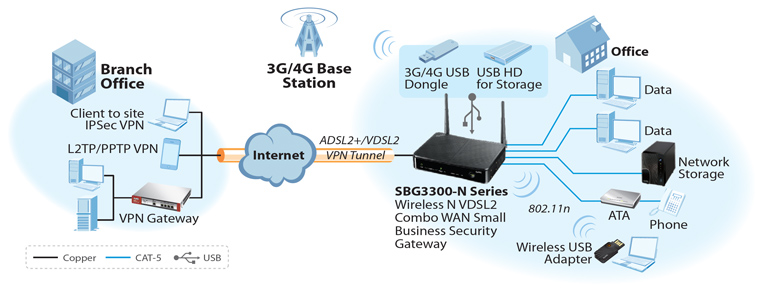

Application Diagram:

Specifications:

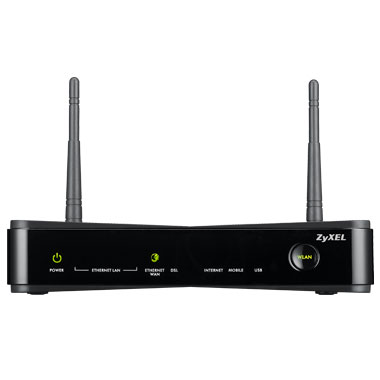

Front View

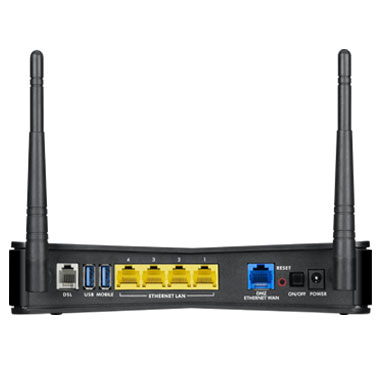

Rear View

Model:	SBG3300-N
System Specifications
VDSL Compliance	G.993.1 VDSL Annex A G.993.2 VDSL2 band plan Annex A, Annex B G.994.1 (G.hs) Handshake, G.997.1 Supports VDSL profiles up to 17a Seamless Rate Adaption (SRA) INP: Up to 16 symbols G.INP, G.Vector PhyR configurable
ADSL Compliance	G.992.1 (G.dmt), G.992.2 (G.lite) Annex A, B G.992.3 (ADSL2), G.992.5 (ADSL2+) Annex A, B Reach-Extended ADSL (RE ADSL) Seamless Rate Adaptation (SRA) PPP over ATM AAL5 (RFC2364) Supports VC-based and LLC-based multiplexing ATM traffic shaping (CBR, VBR-rt/nrt, UBR) PhyR configurable
WLAN	Two external 3 dbi detachable antennas IEEE 802.11 b/g/n compliance WMM for QoS configuration of each SSID Multi SSID: Up to 4 Hidden SSID support Guest Wi-Fi access Web portal for terms of service WPA/WPA2-PSK with TKIP & AES WPA/WPA2-enterprise, supports EAP-MD5/ TLS/TTLS 32 MAC filter Wireless scheduling High gain power option for specific regions
High Availability WAN	Three WAN interface (VDSL, Ethernet and mobile USB) options User configurable multi-WAN load balancing with one WAN for failover/fallback
Bridge/Router	Dynamic learning for up to 2014 MAC address PPPoE, PPPoA, IPoE, IPoA (RFC 1483) DHCP client/server/relay DHCP option 43/60/61/121/125 DNS proxy, DDNS RIP I/RIP II supported UPnP Static/Policy route Adjustable MTU size (max 1518 byte) QoS classification route, queueing and scheduling Interface grouping IPv6 support
VPN	Simple wizard support (Express wizard) 20 concurrent IPSec VPN tunnels (Can set up to 35) IPSec, PPTP and L2TP over IPSec VPN Dead peer detection/replay detection IPSec HW engine Algorithm: AES (128/192/256)/3DES/DES Authentication: SHA-1/MD5 VPN failover/fallback
Firewall & Security	Full cone NAT/symmetric NAT/restrict cone NAT, NAT ALGs 16000 NAT sessions supported Virtual server (port forwarding) Configurable DMZ PPTP/IPSec/L2TP pass through PAP/CHAP/MS-CHAP v1 and v2 Stateful packet inspection DoS/DDoS protection URL/key word filtering Access control: up to 256 ACL rules Report via Syslog, GUI, and email daemon
USB	Two USB 1.1/2.0 ports FTP file sharing Supported file system: FAT16/32, EXT2/3 Support mobile broadband dongle 3G budget control
Management	2-tier log in Login privilege Dual image Text based configuration (XML based) Configurable access control for remote management Supports TR-069, TR-098, TR-064 and TR-111 SNMP v1, v2c Centralized log User management (user data base/profile)
Hardware Specifications
LED	Power, LAN 1 - 4, Ethernet WAN, DSL, Internet, USB 1/2, WLAN
Ports	One RJ-11 DSL port over POTS (Annex A)
Button	WLAN button
Power consumption	18 Watt max.
Physical Specification
Item dimensions (WxDxH)(mm/in.)	210 x 115 x 33 mm (8.27” x 6.06” x 1.57”)
Item weight (kg/lb)	495 g (1.09 lb.)
Packing dimensions (WxDxH)(mm/in.)	270 x 255 x 65 mm (10.63” x 10.04” x 2.56”)
Packing weight (kg/lb)	1,100 g (2.43 lb.)
Environmental Specification
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	20% to 95% RH (Non-condensing)
Storage Temperature	-30°C to 60°C (-22°F to 140°F)
Storage Humidity	10% to 95% (Non-condensing)
Certification
CE	EN60950-1, IEC60950-1

Documentation:

Download the Zyxel SBG3300-N Series Datasheet (PDF).
