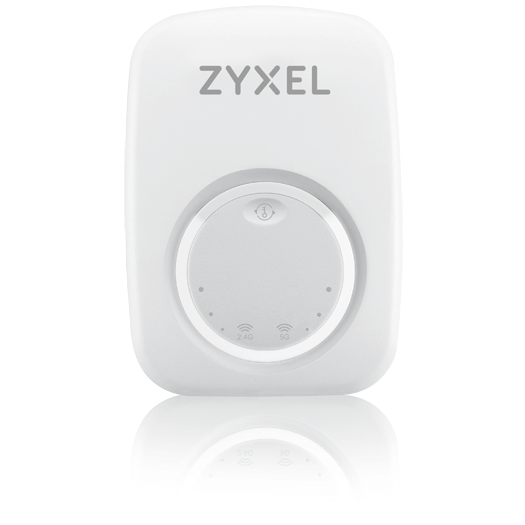

Zyxel WRE6505
IEEE 802.11ac 750 Mbit/s Wireless Range Extender

Overview:

Zyxel’s WRE6505 v2 Wireless AC750 Range Extender is a compact, stylish product that extends your existing dual-band Wi-Fi network easily thanks to the one-touch Wi-Fi Protected Setup (WPS) button. With the extender’s handy signal strength light indicator, you can effortlessly find the optimal location to install the extender. Equipped with the latest 802.11ac wireless technology, the Zyxel WRE6505 v2 gives you faster wireless connection for your latest mobile devices.

• Compact design — dimensions are smaller than a credit card
• Extends your existing 802.11ac dual-band Wi-Fi network for better speed and coverage
• Easily extends a Wi-Fi network with the one-touch WPS button
• 3 selectable extension modes for faster, wider wireless coverage

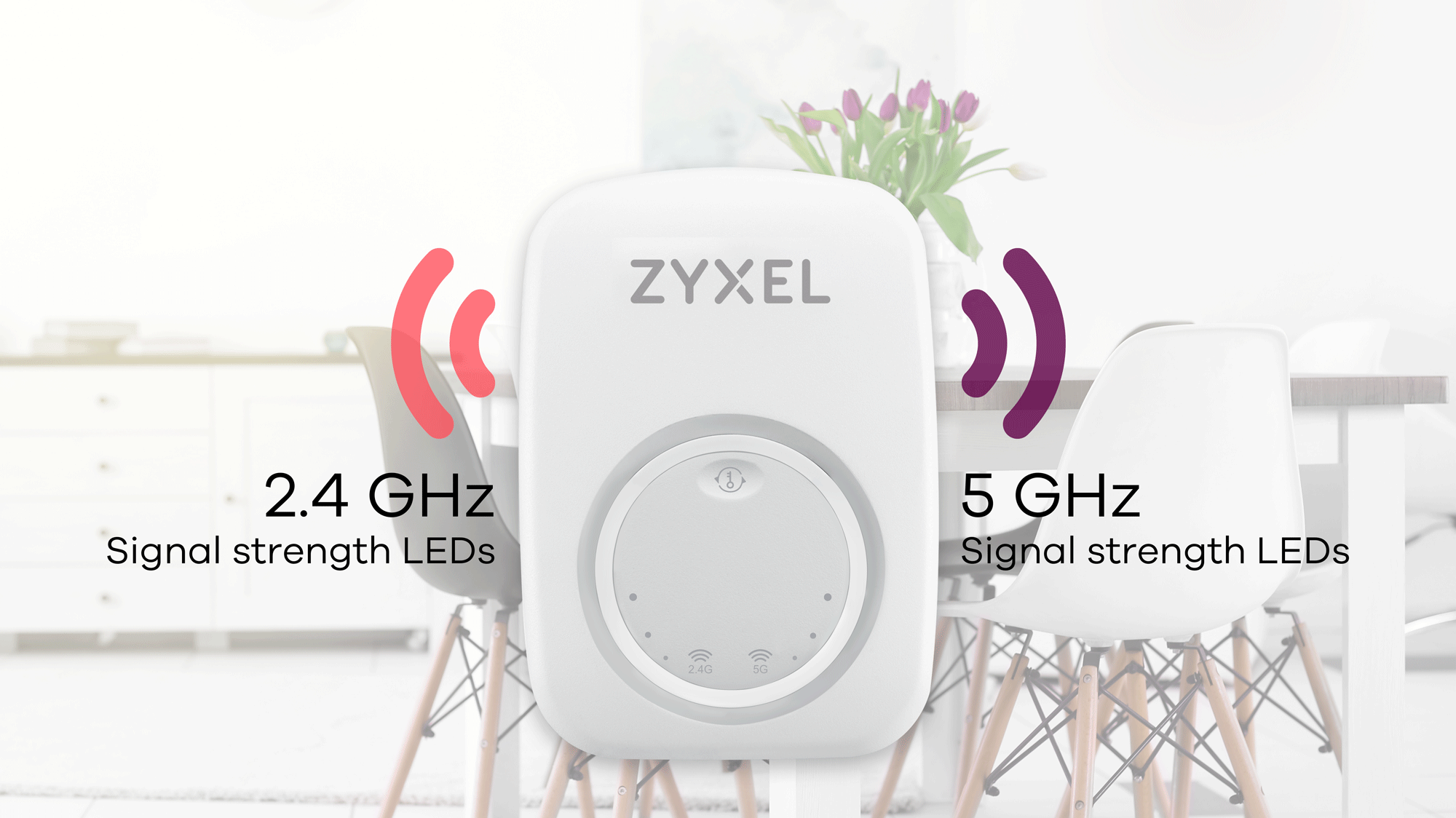

• Signal strength light indicator to help finding the best installation spots for extending your Wi-Fi network

Benefits:

Compact, stylish and non-intrusive design

The Zyxel WRE6505 v2 Wireless AC750 Range Extender blends into your home environment easily. With dimensions smaller than a credit card, you can plug the device anywhere that fits. Are its lights distracting? Not a problem, Zyxel’s WRE6505 v2 gives you that option by simply pressing the WPS button three times!

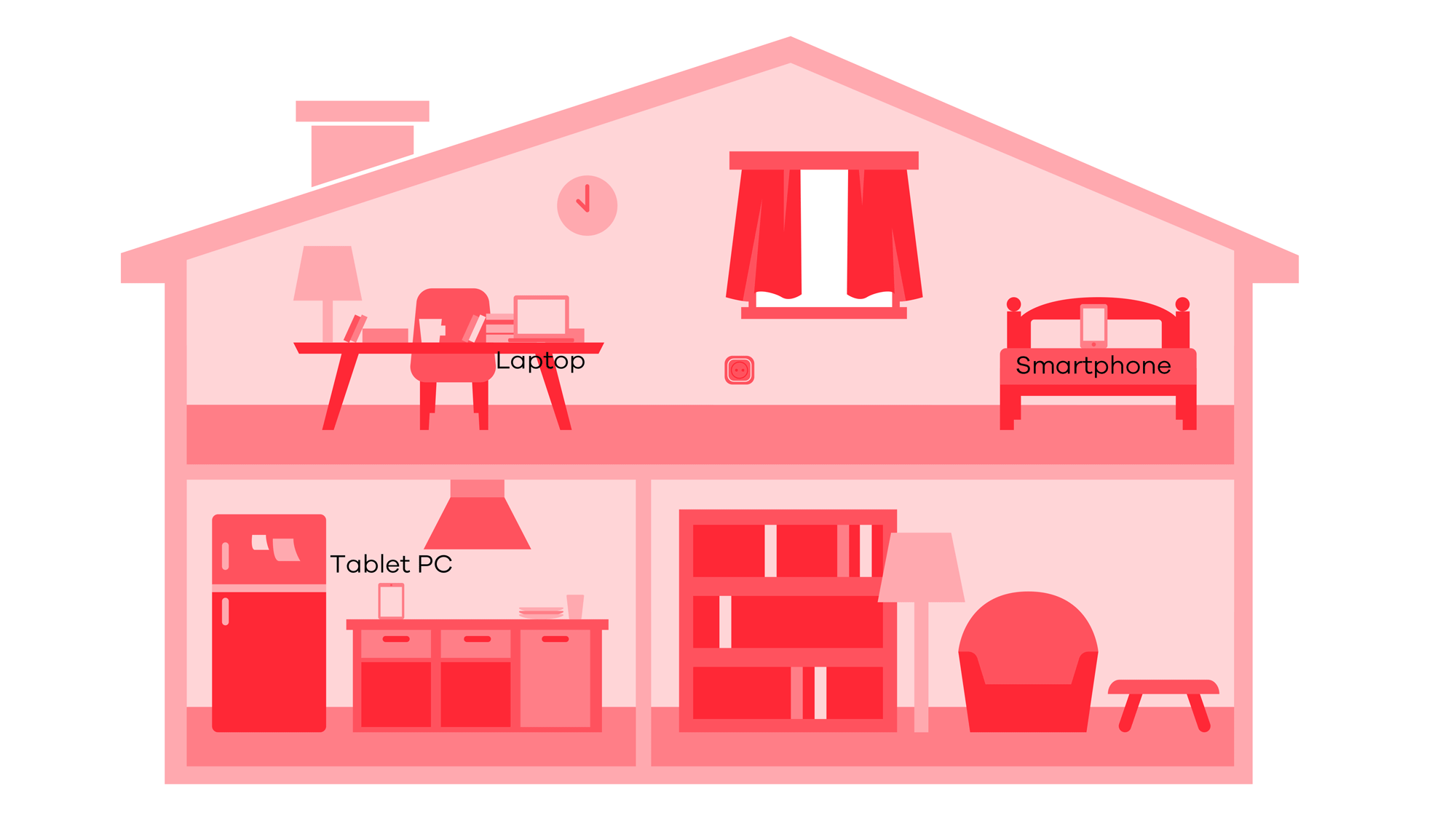

Easily extends fast 802.11ac Wi-Fi networks to dead spots

Eliminate spots with poor wireless signals in those rooms with the Zyxel WRE6505 v2. Just plug the extender into a wall outlet, press the WPS button on the extender once, and then press the WPS button on your wireless router or gateway, the Zyxel WRE6505 v2 extender will copy your existing Wi-Fi network and extend those wireless signals to those dead spots for all your wireless mobile devices to connect to.

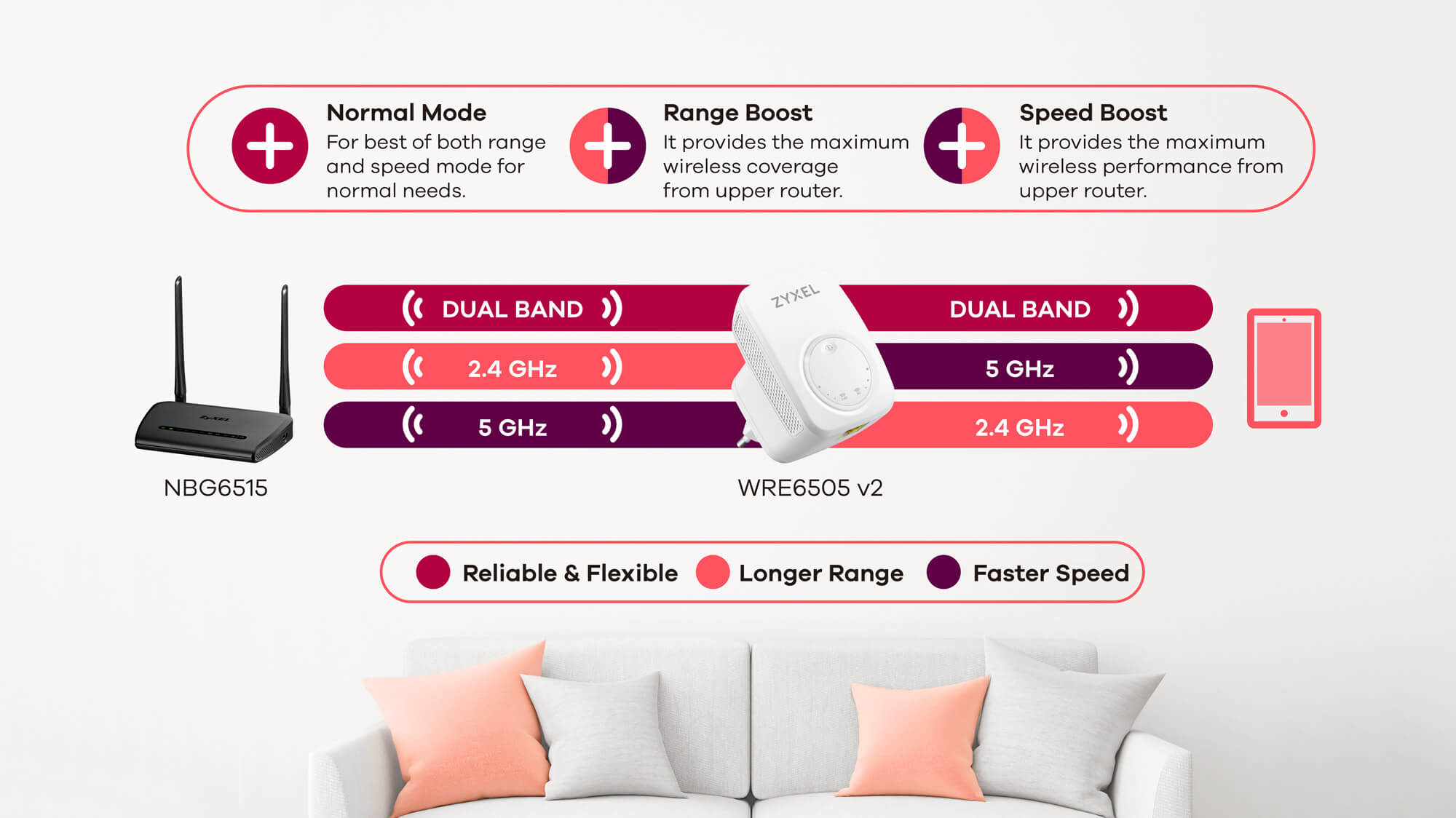

Three selectable extending modes for faster, wider wireless coverage

Extend your Wi-Fi networks with Zyxel’s WRE6505 v2 the way you like. You can choose the Normal Mode to extend on both 2.4 GHz and 5 GHz bands, Range Mode that extends only the 2.4 GHz band for better wireless coverage, or Speed Mode to extend only the 5 GHz band for better wireless performance.

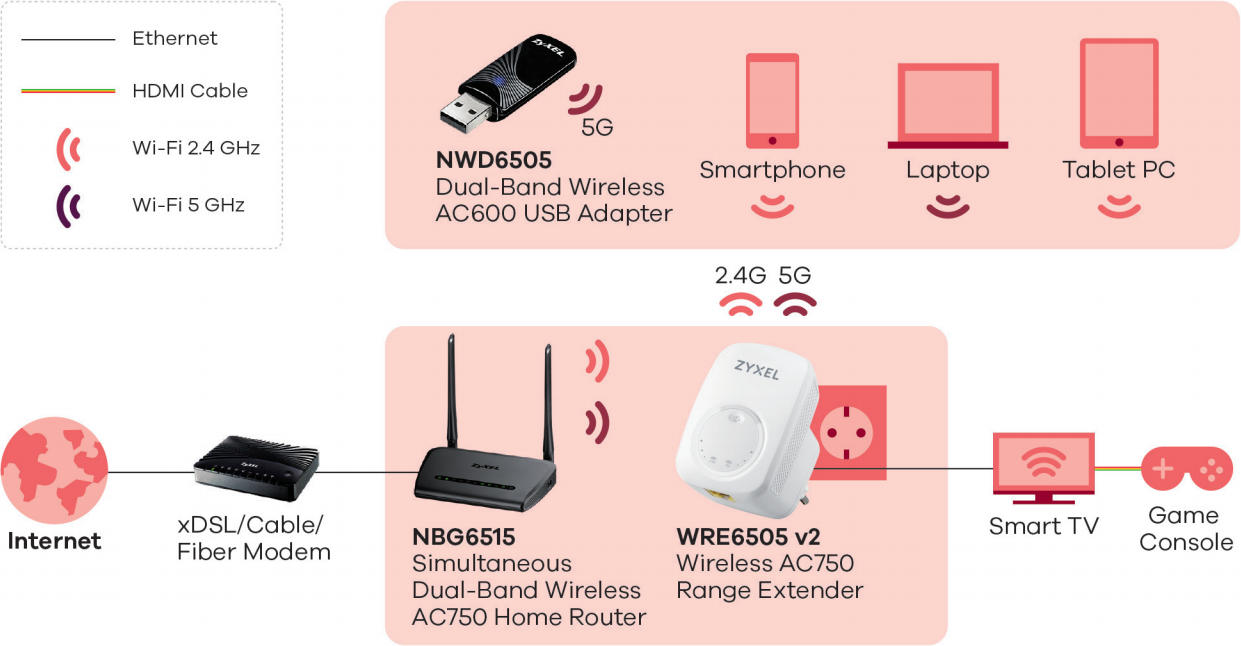

Application Diagram:

Specifications:

WRE6505 Specifications
System Specifications
Wirless Standard		802.11 a/b/g/n/ac
Wireless Speed		Transmit: 300 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz Receive: 300 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz
WLAN Features		Repeater mode AP mode Wi-Fi Protected Setup (WPS) Wi-Fi Multimedia (WMM) Auto channel selection Wireless scheduling Wireless output power management MAC address filtering Coverage setting mode
System Management		Online firmware upgrade
Hardware Specifications
LAN		One 10/100 Mbps Ethernet RJ-45 port
LED indicators		Power/WPS (Blue) WLAN (2.4 GHz)(White, one LED-Weak, two LEDs-Good, three LED-Best) WLAN (5 GHz)(White, one LED-Weak, two LEDs-Good, three LED-Best)
Button		WPS button
Power Input		100 V to 240 V AC, 50/60 Hz
Physical Specifications
Item	Dimensions (WxDxH)	46.5 x 62.3 x 90.9 mm (1.83" x 2.45" x 3.57")
	Weight	88.6 g (0.20 lb.)
Packing	Dimensions (WxDxH)	138 x 122 x 95 mm (5.43" x 4.80" x 3.74")
	Weight	243 g (0.54 lb.)
Environmental Specifications
Operating	Temperature	0°C to 40°C (32°F to 104°F)
	Humidity	10% to 90% (Non-condensing)
Storage	Temperature	-30°C to 70°C (-22°F to 158°F)
	Humidity	10% to 95% (Non-condensing)
Certifications
Safety		CE LVD
EMC		CE, FCC
Package Contents
Package Contents		Wireless range extender Ethernet cable Quick start guide (including warranty form)

* The maximum wireless data transfer rates of up to 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz in simultaneous transmission are derived from the IEEE Standard 802.11 specifications. Actual data transfer rates may vary from network conditions including: distance, network traffics, building site material/construction, interference from other wireless devices and other adverse factors.

Documentation:

Download the Zyxel WRE6505 Datasheet (PDF).
