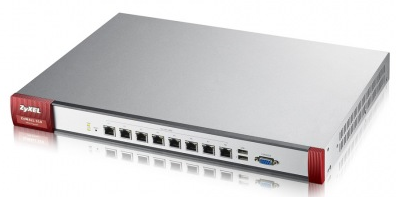

Zyxel ZyWALL 310
VPN Firewall

Overview:

Ultra-fast Performance for Tomorrow’s VPN Deployments

Business operations have become more mobile than ever. New and advanced business applications have also created demand for faster VPN performance, which legacy fi rewall and UTM appliances cannot satisfy. To keep up with the dynamic business environment, business networks today need to provide branch offi ces, chain stores and mobile employees faster remote access to headquarter resources. Moreover, they must do so without exposing company resources and customer information to threat and data breach.

Zyxel’s new ZyWALL Series VPN Firewalls are business-grade VPN gateways purpose-built to deliver the fastest performance for multi-site VPN deployments. These high performance VPN Firewalls feature multi-core CPUs and are fi ne-tuned to deliver ultra-fast performance with up to 3.6 Gbps fi rewall and 800 Mbps VPN throughputs. The new ZyWALL Series VPN Firewalls also feature the most advanced VPN functionality—SHA-2 encryption, VPN HA and L2TP—for more secure, more reliable and more mobile VPN connectivity.

• Multi-core CPUs deliver up to 3.6 Gbps fi rewall throughput and 800 Mbps VPN throughput
• Up to 9x the fi rewall performance and 4.4x the VPN performance of preceding models
• More secure VPN connections with SHA-2 encryption
• VPN High Availability (HA) with dual-WAN failover and fallback support
• L2TP support for iOS, Android and Windows mobile devices
• Auto-provisioned client-to-site IPsec setup with Easy VPN

Benefits:

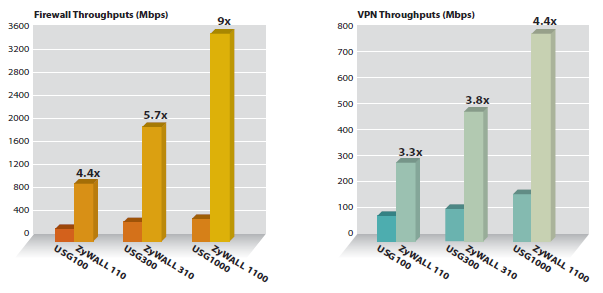

Best-in-class VPN and fi rewall throughput

The new ZyWALL Series VPN Firewalls are designed with multi-core CPUs to deliver the fastest VPN and fi rewall performance on the market. High-speed networking performance is guaranteed with up to 3.6 Gbps fi rewall throughput and 800 Mbps VPN throughput—up to 9x the fi rewall performance and 4.4x the VPN performance of preceding models. Designed with completely new and advanced hardware platforms, the new ZyWALL Series VPN Firewalls deliver uncompromising performance for high-speed site-to-site and client-to-site VPN applications.

Safer, more reliable VPN connections

Faster processors today have greatly boosted the capabilities of attackers to decrypt VPN tunnels. Legacy VPN encryption algorithms like Message Digest 5 (MD5) and Secure Hash Algorithm 1 (SHA-1) are no longer suffi cient to guarantee secured external communications. Supporting the more advanced Secure Hash Algorithm 2 (SHA-2), the ZyWALL Series provides the safest VPN connections in its class and ensures maximum security for business communications.

The complete range of ZyWALL Series VPN Firewalls deliver reliable, non-stop VPN services with dual-WAN failover and fallback support. With two WAN connections—one primary and one for redundancy—the ZyWALL VPN Firewall automatically switches to the backup connection should the primary link fail, and automatically switches back to the primary connection once it is back online.

Unlimited business mobility

To support dynamic, mobile business operations in today’s BYOD (bring your own device) business environment, the ZyWALL Series VPN Firewalls off er unlimited business mobility with Layer 2 Tunneling Protocol (L2TP) VPN for mobile devices. The ZyWALL Series supports L2TP VPN on a wide variety of mobile Internet devices running the iOS, Android and Windows mobile platforms.

Zero-configuration remote access

Virtual private networks provide businesses a secure and convenient way of sharing company resources with partners, customers, or employees on business trips. Yet typical VPN solutions are hard for non-technical users to confi gure, which greatly reduces their usability and convenience. The ZyWALL Series VPN Firewalls feature Easy VPN to provide auto-provisioned client-to-site IPsec VPN setup. A wizard is available with the Zyxel IPsec VPN client software that automatically retrieves the VPN confi guration fi le from the remote ZyWALL VPN Firewall and completes the IPsec VPN setup in 3 simple steps. Zyxel’s Easy VPN lowers administration eff ort and allows partner, customers, or traveling employees to access company servers, email, or data centers easily and securely.

Application Diagram:

Centralized Service Deployment via VPN

Features:

Firewall Routing and transparent (Bridge) modes Zone-based access control list Stateful packet inspection User-aware policy enforcement SIP/H.323 NAT traversal ALG supports custom ports IPv6 Support IPv6 ready gold logo certified Dual stack IPv4 tunneling (6rd and 6to4 transition tunnel) Host, router, firewall Virtual Private Network (VPN) ICSA-certified IPsec VPN Algorithm: AES, 3DES, DES Authentication: SHA-2, SHA-1, MD5 Key management: Manual key, IKE Perfect forward secrecy (DH groups) support 1, 2, 5 IPsec NAT traversal Dead peer detection/relay detection PKI (X.509) certifi cate support Centralize VPN support VPN Wizard support Auto reconnect VPN VPN HA (Redundant remote VPN gateways)

SSL VPN Clientless secure remote access Reverse proxy mode and full tunnel mode Unified policy enforcement Supports two-factor authentication High Availability Active-passive mode Device failure detection and notification ICMP and TCP ping check Link monitoring Auto-sync configurations Networking Routing mode, bridge mode & mixed mode Layer 2 port grouping (ZyWALL 110 only) Ethernet/PPPoE NAT/PAT Tagged VLAN (802.1Q) Virtual interface (Alias interface) Policy-based routing (User-aware) Policy-based NAT (SNAT) Dynamic routing (RIP v1/v2, OSPF) DHCP client/server/relay Dynamic DNS support WAN trunk (More than 2 ports) Per host session limit Guaranteed bandwidth Maximum bandwidth Priority-bandwidth utilization

Authentication Local user database Microsoft Windows active directory integrate External LDAP/RADIUS user database Xauth over RADIUS for IPsec VPN Forced user authentication (Transparent authentication) IP/MAC address binding System Management Role-based administration Multiple administrator login Multi-lingual Web GUI (HTTPS/HTTP) Object-based confi guration Command line interface (Console/Web console/SSH/TELNET) SNMPv2c (MIB-II) System confi guration rollback Firmware upgrade via FTP/Web GUI Logging & Monitoring Comprehensive local logging Syslog Email alert Real-time traffi c monitoring Built-in daily report Advanced reporting (VRPT)

Accessories
Item	Description	Supported OS
ZyWALL IPsec VPN Client	VPN client software for the ZyWALL and USG Series with Easy VPN for zero-configuration remote access	Windows XP (32-bit) Windows Server 2003 (32-bit) Windows Server 2008 (32/64-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit) Windows 8 (32/64-bit)

Specifications:

ZyWALL 310 Specifications
Hardware Specifications
10/100/1000 Mbps RJ-45 ports		8 (configurable)
USB ports		2
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2		2,000
AES VPN throughput (Mbps)*3		500
Unlimited user licenses		Yes
Max. concurrent sessions*4		100,000
New session rate		8,000
Max. concurrent IPsec VPN tunnels		200
Max. concurrent SSL VPN users		50
Included SSL VPN user no.		50
Customizable zones		Yes
IPv6 support		Yes
Power Requirements
Power input		100 - 240 V AC, 50/60 Hz, 1.3 A max.
Max. power consumption (watt)		58.5
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	430 x 250 x 44/ 16.93 x 9.84 x 1.73
	Weight (kg/lb.)	3.3/7.28
Packing	Dimensions (WxDxH)(mm/in.)	519 x 392 x 163/ 20.43 x 15.43 x 6.42
	Weight (kg/lb.)	4.74/10.45
Environmental Specifications
Operating	Temperature	0°C to 40°C/32°F to 104°F
	Humidity	10% to 90% (non-condensing)
Storage	Temperature	-30°C to 70°C/-22°F to 158°F
	Humidity	10% to 90% (non-condensing)
MTBF (hr)		560,811.5
Certifications
EMC		FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI
Safety		LVD (EN60950-1), BSMI

Note:
*1: Actual performance may vary depending on network conditions and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: AES VPN throughput measured based on RFC 2544, using UDP traffic with 1,424-byte packets.
*4: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.

Model Comparison:

Model		ZyWALL 110	ZyWALL 310	ZyWALL 1100
Product photo
Hardware Specifications
10/100/1000 Mbps RJ-45 ports		2 x WAN, 1 x OPT, 4 x LAN/DMZ	8 (configurable)	8 (configurable)
USB ports		2	2	2
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2		1,000	2,000	3,600
AES VPN throughput (Mbps)*3		300	500	800
Unlimited user licenses		Yes	Yes	Yes
Max. concurrent sessions*4		60,000	100,000	500,000
New session rate		2,800	8,000	8,000
Max. concurrent IPsec VPN tunnels		100	200	1,000
Max. concurrent SSL VPN users		25	50	250
Included SSL VPN user no.		25	50	250
Customizable zones		Yes	Yes	Yes
IPv6 support		Yes	Yes	Yes
Power Requirements
Power input		12 V DC, 3.33 A max.	100 - 240 V AC, 50/60 Hz, 1.3 A max.	100 - 240 V AC, 50/60 Hz, 1.3 A max.
Max. power consumption (watt)		37	58.5	58.5
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.)	300 x 178 x 44/ 11.81 x 7 x 1.73	430 x 250 x 44/ 16.93 x 9.84 x 1.73	430 x 250 x 44/ 16.93 x 9.84 x 1.73
	Weight (kg/lb.)	2/4.41	3.3/7.28	3.3/7.28
Packing	Dimensions (WxDxH)(mm/in.)	245 x 152 x 351/ 9.65 x 5.98 x 13.82	519 x 392 x 163/ 20.43 x 15.43 x 6.42	519 x 392 x 163/ 20.43 x 15.43 x 6.42
	Weight (kg/lb.)	2.83/6.24	4.74/10.45	4.74/10.45
Environmental Specifications
Operating	Temperature	0°C to 40°C/32°F to 104°F	0°C to 40°C/32°F to 104°F	0°C to 40°C/32°F to 104°F
	Humidity	10% to 90% (non-condensing)	10% to 90% (non-condensing)	10% to 90% (non-condensing)
Storage	Temperature	-30°C to 70°C/-22°F to 158°F	-30°C to 70°C/-22°F to 158°F	-30°C to 70°C/-22°F to 158°F
	Humidity	10% to 90% (non-condensing)	10% to 90% (non-condensing)	10% to 90% (non-condensing)
MTBF (hr)		787,109.3	560,811.5	560,811.5
Certifications
EMC		FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI	FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI	FCC Part 15 (Class A), CE EMC (Class A), C-Tick (Class A), BSMI
Safety		LVD (EN60950-1), BSMI	LVD (EN60950-1), BSMI	LVD (EN60950-1), BSMI

Note:
*1: Actual performance may vary depending on network conditions and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: AES VPN throughput measured based on RFC 2544, using UDP traffic with 1,424-byte packets.
*4: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.

Documentation:

Download the Zyxel ZyWALL 310 Datasheet (PDF).
