Zyxel AX5700 WiFi 6 Gigabit Ethernet Gateway
EX3510-B0
Overview:
The Zyxel EX3510-B0 AX5700 WiFi 6 Gigabit Ethernet Gateway supports the latest dual-band wireless WiFi 6 (11AX) technology for optimized bandwidth utilization to increase network capacity and the number of simultaneous streams, which allow more subscribers to enjoy superior connectivity with extremely low latency.


WiFi 6 (11AX) for superior performance and coverage

Supports uplink/downlink MU-MIMO for increased network capacity

Supports OFDMA for maximized network efficiency

Zyxel MPro Mesh™ solution (compliant with EasyMesh standards)

Auto-provisioning and remote management through TR-069/TR-098/TR-181

In-house developed OPAL realizes the flexibility and faster time to market
Features:
Lightning-fast next-generation technology
The Zyxel EX3510-B0 supports the WiFi 6 (11AX) standard to offer lightning-fast throughputs of up to 5700 Mbps*. The performance enables operators to provide UHD 4K/8K services to subscribers and hybrid high-throughput applications in homes for a true IoT lifestyle.
Maximize network capacity for more devices
Support by the unique uplink MU-MIMO, the Zyxel EX3510-B0 allows users to enjoy interactive applications such as VR or AR with minimized latency. Moreover, the revolutionary Orthogonal Frequency Division Multiple Access (OFDMA) improves average throughputs to considerably shortened latency and increase network efficiency.
CAF II performance testing support
The Zyxel EX3510-B0 supports optimized TR-143 protocol to facilitate FCC mandated CAF II performance testing.
Zyxel OPAL firmware realizes the flexibility and faster time to market
Compliant with the same OPAL firmware trunk applied in all Zyxel CPEs, the EX3510-B0 inherits a rich, field-proven feature set including TR-069 and more. Service providers can ensure the same user experience, after migrating to new devices.
Premium MPro Mesh™ for whole-home coverage
Featuring EasyMesh fully compliant Zyxel MPro Mesh™ solution, the Zyxel EX3510-B0 enhances your subscribers’ experience by providing self-adapting, easy-to-manage whole-home WiFi coverage, while reducing your service OPEX.

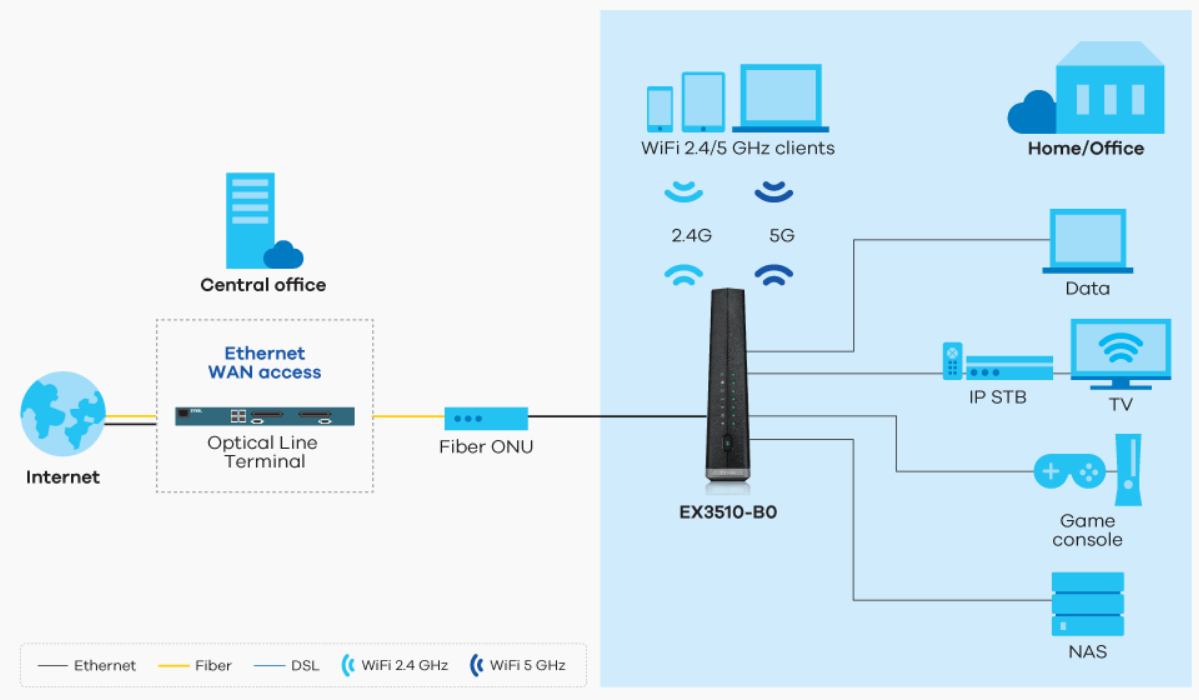

Application Diagram:
*The maximum wireless data transfer rate is derived from IEEE Standard 802.11. The actual data transfer rate will vary from network environment including distance, network traffic, building site materials/construction, interference from other wireless devices, and other adverse conditions.
EX3510-B0 Specifications:
Wireless standards
- IEEE 802.11 b/g/n/ax 2.4 GHz
- IEEE 802.11 a/n/ac/ax 5 GHz
Wireless transfer rates
- Transmit:
- 802.11ax (2.4 GHz) : up to 860.3 Mbps
- 802.11ax (5 GHz) : up to 4804 Mbps
WLAN features
- Auto channel selection
- WiFi Multimedia (WMM)
- Wireless output power management
- Multiple SSID up to 4
- WiFi Protected Setup (WPS)
- Intra-BSS traffic block
- MAC address filtering
- WPS 2.0
- WPA2-PSK
- WPA3-SAE**
Firewall
- IPv4/IPv6 firewall (Stateful Packet Inspection)
- Denial-of-Service (DoS) attack prevention
- ICMP blocking
Routing
- IPv4/IPv6
- NAT
- Port forwarding
- WAN connection type: DHCP, PPPoE
- DHCP option 60/121/125
- DHCP server on LAN
- IGMP v2/v3
- IGMP proxy
- Dynamic DNS
VPN pass-through
- PPTP
- L2TP
- IPSec
VLAN
- 802.1q tag/tag based VLAN
- VLAN to ETH port mapping
- Bridged/routed VLAN support
Management
- Web GUI (HTTP/HTTPS)
- TR-069/TR-098/TR-181
- Firmware upgrade through GUI/TR-069
- 2-tier level access and administration

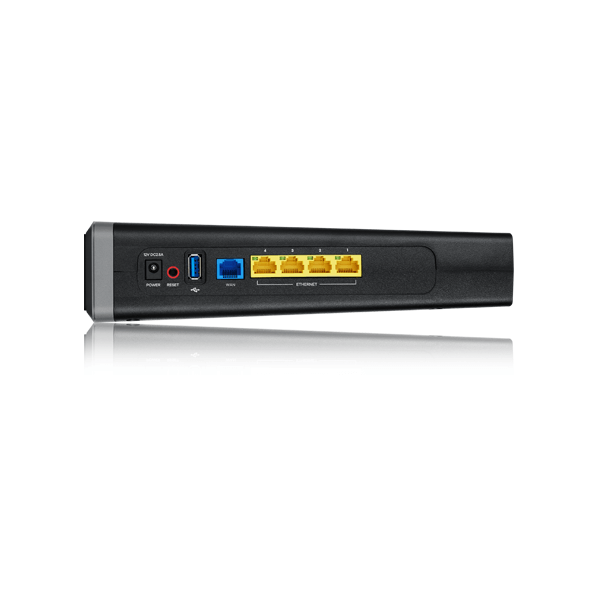

WAN
- One 1GbE RJ-45 port
LAN
- Four 1GbE RJ-45 ports
USB
- One USB 2.0 host

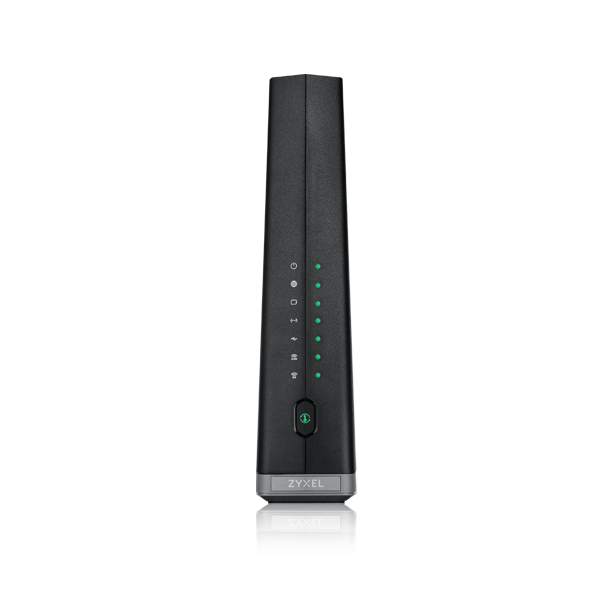

LED indicators
- Power
- Internet
- Ethernet WAN
- Ethernet LAN
- WiFi 2.4G
- WiFi 5G
- WPS
Button
- WPS
- Reset
- 12 V DC/2.5 A
- 27 Watt max
- Item dimensions (WxDxH): 175 x 60 x 245 mm (6.88” x 2.36” x 9.64”)
- Item weight: 546 g (1.20 lb.)
- Packing dimensions (WxDxH): 279 x 279 x 70 mm (10.98” x 10.63” x 2.76”)
- Packing weight: 991 g (2.19 lb.)
Operating environment
- Temperature: 5°C to 40°C (41°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
Storage environment
- Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity: 10% to 95% (Non-condensing)
- RF: FCC, IC
- EMC: FCC, IC
- Gigabit Ethernet gateway
- Power adapter
- Ethernet cable
- Quick start guide
Documentation:
Download the Zyxel EX3510-B0 Datasheet (PDF).
