Zyxel NBG6818
AC2600 Multi-Gigabit WiFi Router

System Specifications

Wireless Speed

• AC2600 (800+1733 Mbps)

Standard Compliance

• IEEE 802.11 b/g/n 2.4 GHz
• IEEE 802.11 a/n/ac 5 GHz

Transmission Speeds

• Transmit:
  • 800Mbps* for 2.4 GHz
  • 1733Mbps* for 5 GHz
• Receive:
  • 800Mbps* for 2.4 GHz
  • 1733Mbps* for 5 GHz

App

Armor app

• Easy to setup
  • Support myZyxelCloud SSO (Single-Sign-On) system
  • Quick Bluetooth setup
  • Support combining/separating 2.4 GHz and 5 GHz WiFi network
• Support Parental Control
  • Organize multiple devices into group
  • Block or allow specific group based on time schedule
  • Flexible override Internet access for specific device group
• Support guest WiFi setting
  • Share WiFi name and password via QR code for your guests
  • Monitor of active concurrent guest devices connected
• Diagnose network via speed test
  • Push notification
    • New device connected
    • New firmware available
    • Speed test result
  • Remote management
  • Automatic updates for new features
  • Support iOS 9/Android 5.0 or later
  • Support language: EN/ZH/DE/ES/FR/IT/PT/RU

Software Specifications

Security

• WPA2-PSK/WPA3-PSK
• WPS support
• VPN support (OpenVPN)
• VPN client support
• IPSec pass-through
• PPTP pass-through
• L2TP pass-through
• Guest network
• Automatic firmware update

Wireless Features

• MU-MIMO
• Guest WiFi
• WiFi Protected Setup (WPS)
• Auto channel selection
• Wireless scheduling
• MAC address filtering

Wired Interface

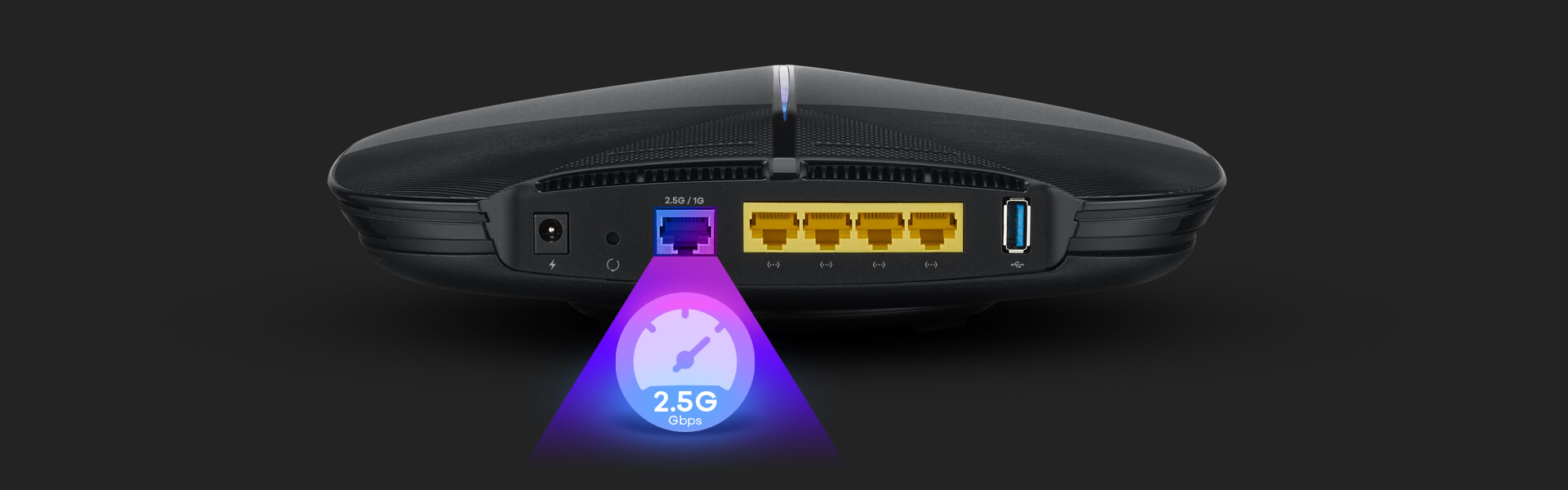

• One 2.5 Gbps WAN port
• Four Gigabit Ethernet ports
• One USB 3.1 Gen 2 port

Routing Protocols

• WAN Type: Static IP, DHCP, PPPoE, PPTP
• IGMP v1/v2
• Auto-IP change
• IPv4/IPv6
• Network Address Translation (NAT)
• Port Trigger
• DHCP server/client
• Dynamic DNS

Firewall

• Stateful Packet Inspection (SPI)
• Deny of Service (DoS) Prevention
• MAC Filter
• TCP/IP Filter

Operation mode

• Standard mode (Router mode)
• Bridge mode (Access point mode)

Web Browser

• Advanced wired & wireless setup and management
• Diagnose & speed test
• Parental Control

Hardware Specifications

CPU

• 1 GHz processor

Memory

• 256MB Flash and 512MB RAM

Ethernet Interface

• WAN: One 100/1000/2500 Mbps Ethernet RJ-45 port with auto MDI/MDIX support
• LAN: Four 10/100/1000 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support

Antenna

• 13 Internal Antennas

Button

• Reset Button

Power Rating

• Power: 12V/3A
• Power consumption: 25W max.

USB Features

• SMB
• CIFS
• FTP
• Printer Server

Physical Specifications

• Item dimensions (WxDxH): 248 x 182 x 66 mm (9.8 x 7.2 x 2.6 inch)
• Item weight: 1kg (2.2 lb.)
• Packing dimensions (WxDxH): 382 x 232 x 76 mm (15.0 x 9.1 x 3.0 inch)
• Packing weight: 1.8kg (4.0 lb.)

Environmental Specifications

Operating Environment

• Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 90% (Non-condensing)

Storage Environment

• Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 10% to 90% (Non-condensing)

Package Contents

• ARMOR G1 x1
• Power adapter x1
• Ethernet cable x1
• Quick start guide (warranty card included) x1
